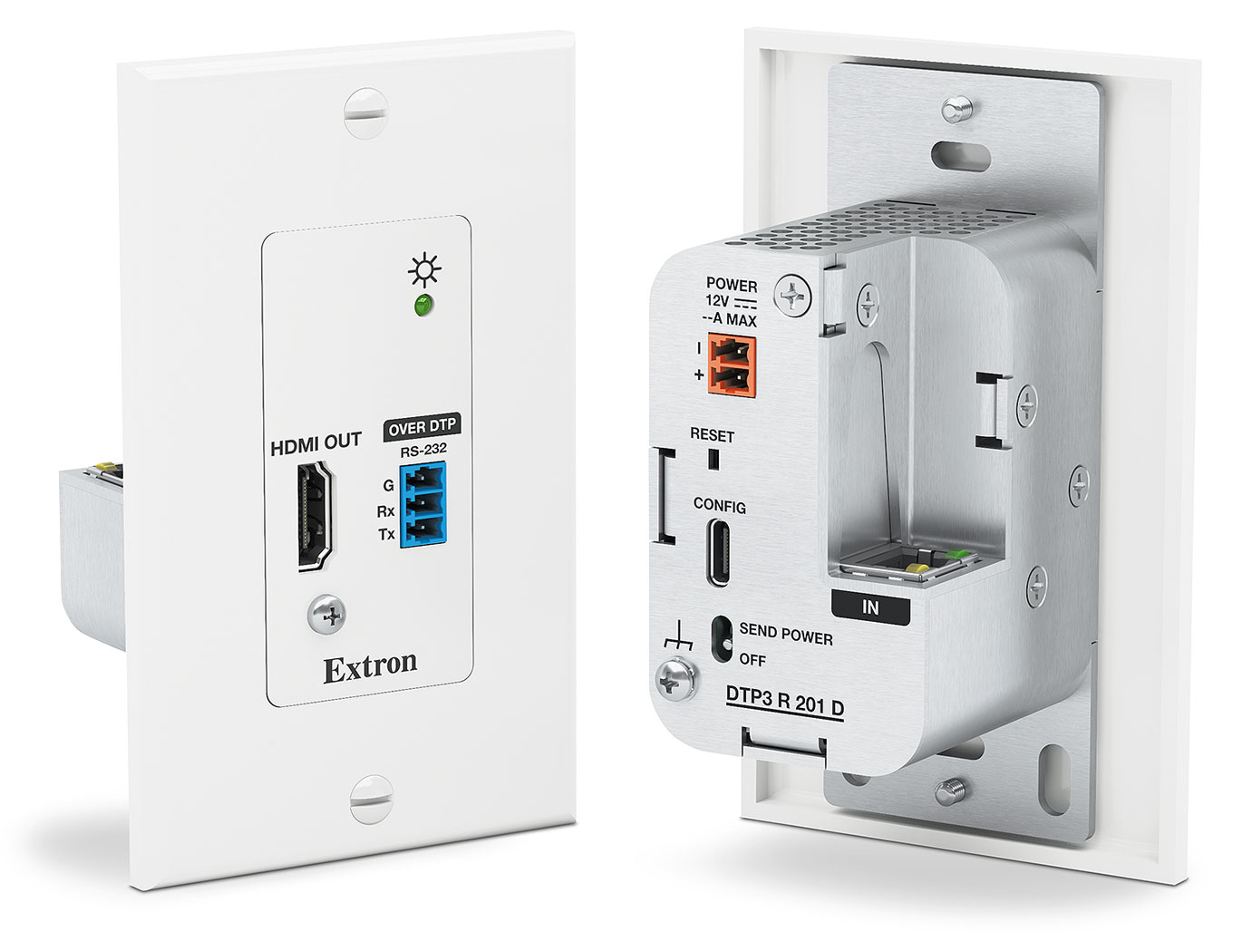

DTP3 R 201 D
4K/60 HDMI DTP3 接收器 - Decorator 型墙面板
近期查看的产品
DTP3 R 201 D
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。

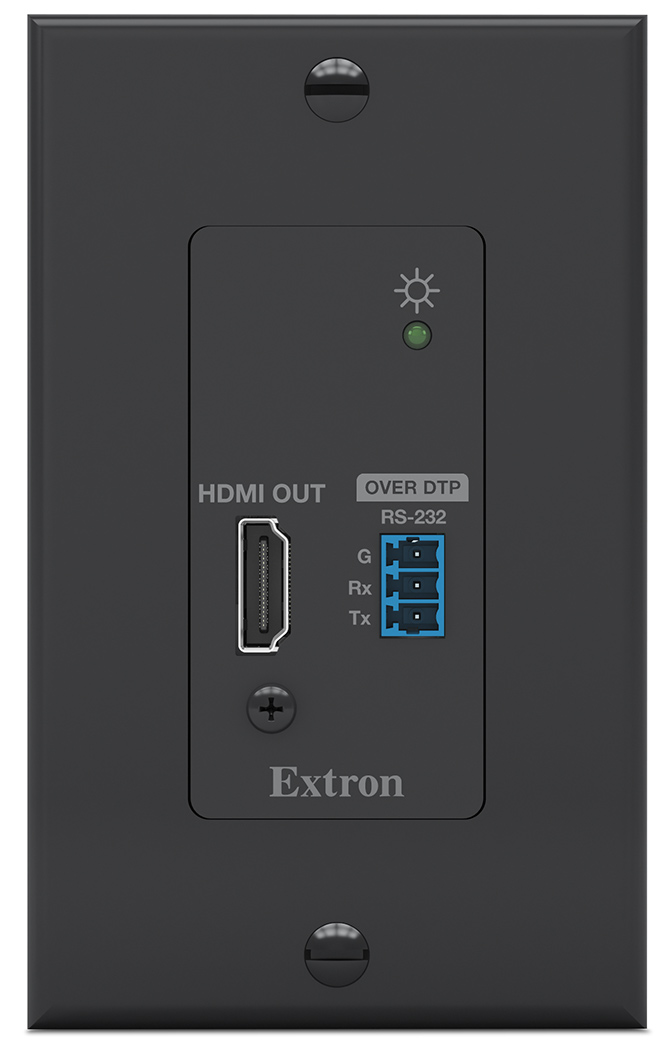

DTP3 R 201 D – Black
- Provide an HDMI wallplate twisted pair receiver that shall support the distribution of HDMI over a shielded CAT 6A cable
- One-gang decorator-style wallplate receiver for the extension of HDMI and control
- Video input requirements
- Shall provide one (1) RJ-45 for connection to an Extron DTP3-enabled product
- Video output requirements
- Shall provide one (1) HDMI output
- Supported HDMI 2.0 specifications include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Shall support uncompressed computer and video resolutions up to 4K/60 @ 4:4:4 color sampling
- Shall support RGB and YCbCr digital video formats
- Shall provide one (1) HDMI output
- Audio output requirements
- Shall support embedded digital audio on HDMI input
- Shall support multiple embedded audio formats
- Shall support embedded HD lossless audio formats
- Transmission requirements
- Shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
- HDCP requirements
- Shall be HDCP 2.3 compliant with backward compatibility for earlier HDCP versions
- Control/Remote – RS-232 pass-through over shielded CAT 6A requirements
- Shall provide connection for AV device control
- One (1) 3-pole captive screw: RS-232 pass-through over DTP
- Shall provide connection for AV device control
- Power requirements
- Shall accept remote power from a DTP3-enabled product
- Shall accept local power

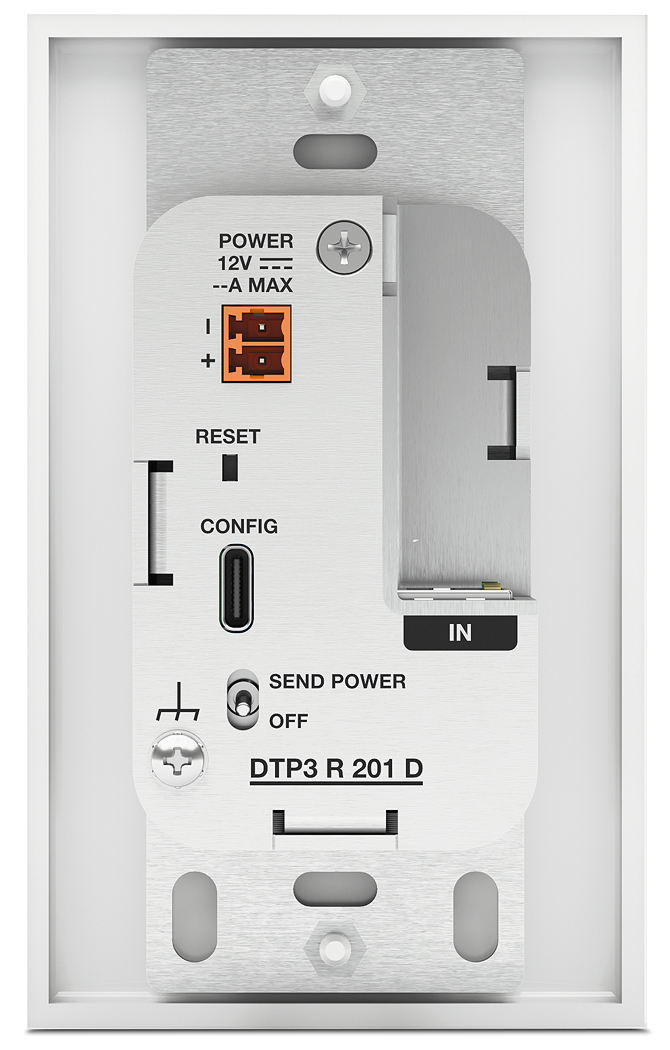

- Shall provide a DIP switch on rear panel for selection to provide power to a connected DTP3 transmitter
- General requirements
- Shall be installable into a one-gang electrical junction box
- Shall be wall, floor, or furniture mountable in a decorator-style opening
- Shall include a USB-C configuration port on the rear panel for data access and firmware updates
- Shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
- Shall provide visual indication for power status on front panel
- Shall provide visual indication of RJ-45 signal and link status for DTP port
- Shall provide Extron LockIt® HDMI cable lacing brackets
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS and WEEE
- Shall provide at least three (3) years parts and labor warranty
- Approved device shall be the Extron DTP3 R 201 D, black (60-2072-52); no alternates or equals
DTP3 R 201 D – Black
- Provide an HDMI wallplate twisted pair receiver that shall support the distribution of HDMI over a shielded CAT 6A cable
- One-gang decorator-style wallplate receiver for the extension of HDMI and control
- Video input requirements
- Shall provide one (1) RJ-45 for connection to an Extron DTP3-enabled product
- Video output requirements
- Shall provide one (1) HDMI output
- Supported HDMI 2.0 specifications include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Shall support uncompressed computer and video resolutions up to 4K/60 @ 4:4:4 color sampling
- Shall support RGB and YCbCr digital video formats
- Shall provide one (1) HDMI output
- Audio output requirements
- Shall support embedded digital audio on HDMI input
- Shall support multiple embedded audio formats
- Shall support embedded HD lossless audio formats
- Transmission requirements
- Shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
- HDCP requirements
- Shall be HDCP 2.3 compliant with backward compatibility for earlier HDCP versions
- Control/Remote – RS-232 pass-through over shielded CAT 6A requirements
- Shall provide connection for AV device control
- One (1) 3-pole captive screw: RS-232 pass-through over DTP
- Shall provide connection for AV device control
- Power requirements
- Shall accept remote power from a DTP3-enabled product
- Shall accept local power
- Shall provide a DIP switch on rear panel for selection to provide power to a connected DTP3 transmitter
- General requirements
- Shall be installable into a one-gang electrical junction box
- Shall be wall, floor, or furniture mountable in a decorator-style opening
- Shall include a USB-C configuration port on the rear panel for data access and firmware updates
- Shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
- Shall provide visual indication for power status on front panel
- Shall provide visual indication of RJ-45 signal and link status for DTP port
- Shall provide Extron LockIt® HDMI cable lacing brackets
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS and WEEE
- Shall provide at least three (3) years parts and labor warranty
- Approved device shall be the Extron DTP3 R 201 D, black (60-2072-52); no alternates or equals

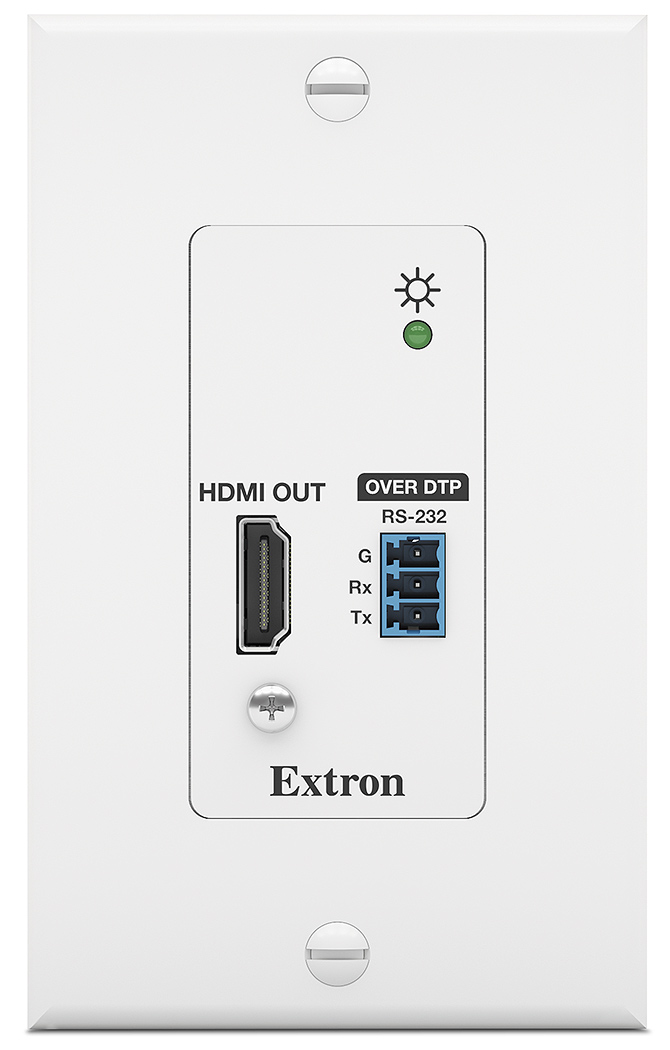

DTP3 R 201 D – White
- Provide an HDMI wallplate twisted pair receiver that shall support the distribution of HDMI over a shielded CAT 6A cable
- One-gang decorator-style wallplate receiver for the extension of HDMI and control
- Video input requirements
- Shall provide one (1) RJ-45 for connection to an Extron DTP3-enabled product
- Video output requirements
- Shall provide one (1) HDMI output
- Supported HDMI 2.0 specifications include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Shall support uncompressed computer and video resolutions up to 4K/60 @ 4:4:4 color sampling
- Shall support RGB and YCbCr digital video formats
- Shall provide one (1) HDMI output
- Audio output requirements
- Shall support embedded digital audio on HDMI input
- Shall support multiple embedded audio formats
- Shall support embedded HD lossless audio formats
- Transmission requirements
- Shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
- HDCP requirements
- Shall be HDCP 2.3 compliant with backward compatibility for earlier HDCP versions
- Control/Remote – RS-232 pass-through over shielded CAT 6A requirements
- Shall provide connection for AV device control
- One (1) 3-pole captive screw: RS-232 pass-through over DTP
- Shall provide connection for AV device control
- Power requirements
- Shall accept remote power from a DTP3-enabled product
- Shall accept local power
- Shall provide a DIP switch on rear panel for selection to provide power to a connected DTP3 transmitter
- General requirements
- Shall be installable into a one-gang electrical junction box
- Shall be wall, floor, or furniture mountable in a decorator-style opening
- Shall include a USB-C configuration port on the rear panel for data access and firmware updates
- Shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
- Shall provide visual indication for power status on front panel
- Shall provide visual indication of RJ-45 signal and link status for DTP port
- Shall provide Extron LockIt® HDMI cable lacing bracket
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS and WEEE
- Shall provide at least three (3) years parts and labor warranty
- Approved device shall be the Extron DTP3 R 201 D, white (60-2072-53); no alternates or equals
DTP3 R 201 D – White
- Provide an HDMI wallplate twisted pair receiver that shall support the distribution of HDMI over a shielded CAT 6A cable
- One-gang decorator-style wallplate receiver for the extension of HDMI and control
- Video input requirements
- Shall provide one (1) RJ-45 for connection to an Extron DTP3-enabled product
- Video output requirements
- Shall provide one (1) HDMI output
- Supported HDMI 2.0 specifications include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats
- Shall support uncompressed computer and video resolutions up to 4K/60 @ 4:4:4 color sampling
- Shall support RGB and YCbCr digital video formats
- Shall provide one (1) HDMI output
- Audio output requirements
- Shall support embedded digital audio on HDMI input
- Shall support multiple embedded audio formats
- Shall support embedded HD lossless audio formats
- Transmission requirements
- Shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
- HDCP requirements
- Shall be HDCP 2.3 compliant with backward compatibility for earlier HDCP versions
- Control/Remote – RS-232 pass-through over shielded CAT 6A requirements
- Shall provide connection for AV device control
- One (1) 3-pole captive screw: RS-232 pass-through over DTP
- Shall provide connection for AV device control
- Power requirements
- Shall accept remote power from a DTP3-enabled product
- Shall accept local power
- Shall provide a DIP switch on rear panel for selection to provide power to a connected DTP3 transmitter
- General requirements
- Shall be installable into a one-gang electrical junction box
- Shall be wall, floor, or furniture mountable in a decorator-style opening
- Shall include a USB-C configuration port on the rear panel for data access and firmware updates
- Shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
- Shall provide visual indication for power status on front panel
- Shall provide visual indication of RJ-45 signal and link status for DTP port
- Shall provide Extron LockIt® HDMI cable lacing bracket
- Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
- Shall meet regulatory compliances
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS and WEEE
- Shall provide at least three (3) years parts and labor warranty
- Approved device shall be the Extron DTP3 R 201 D, white (60-2072-53); no alternates or equals
