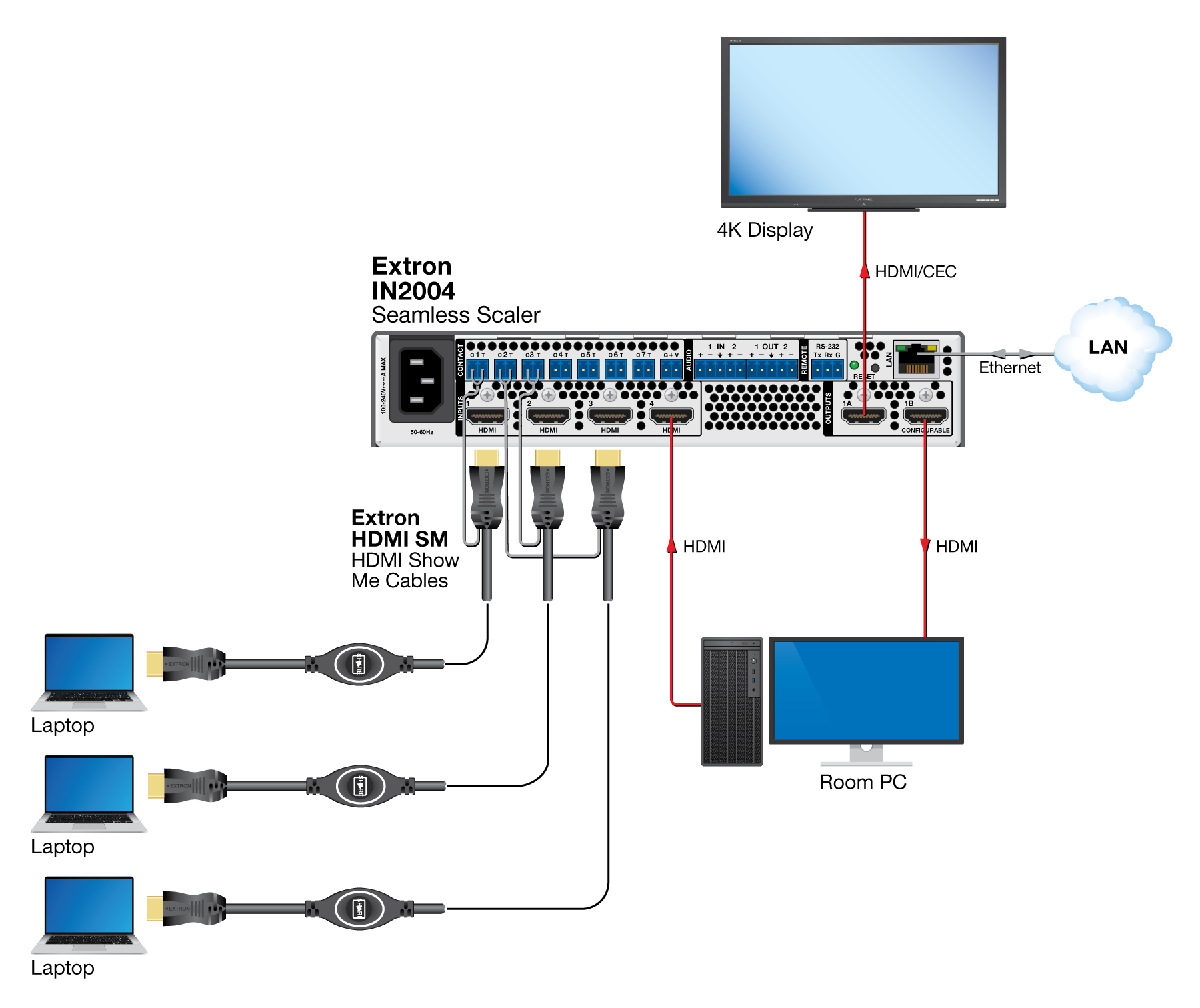

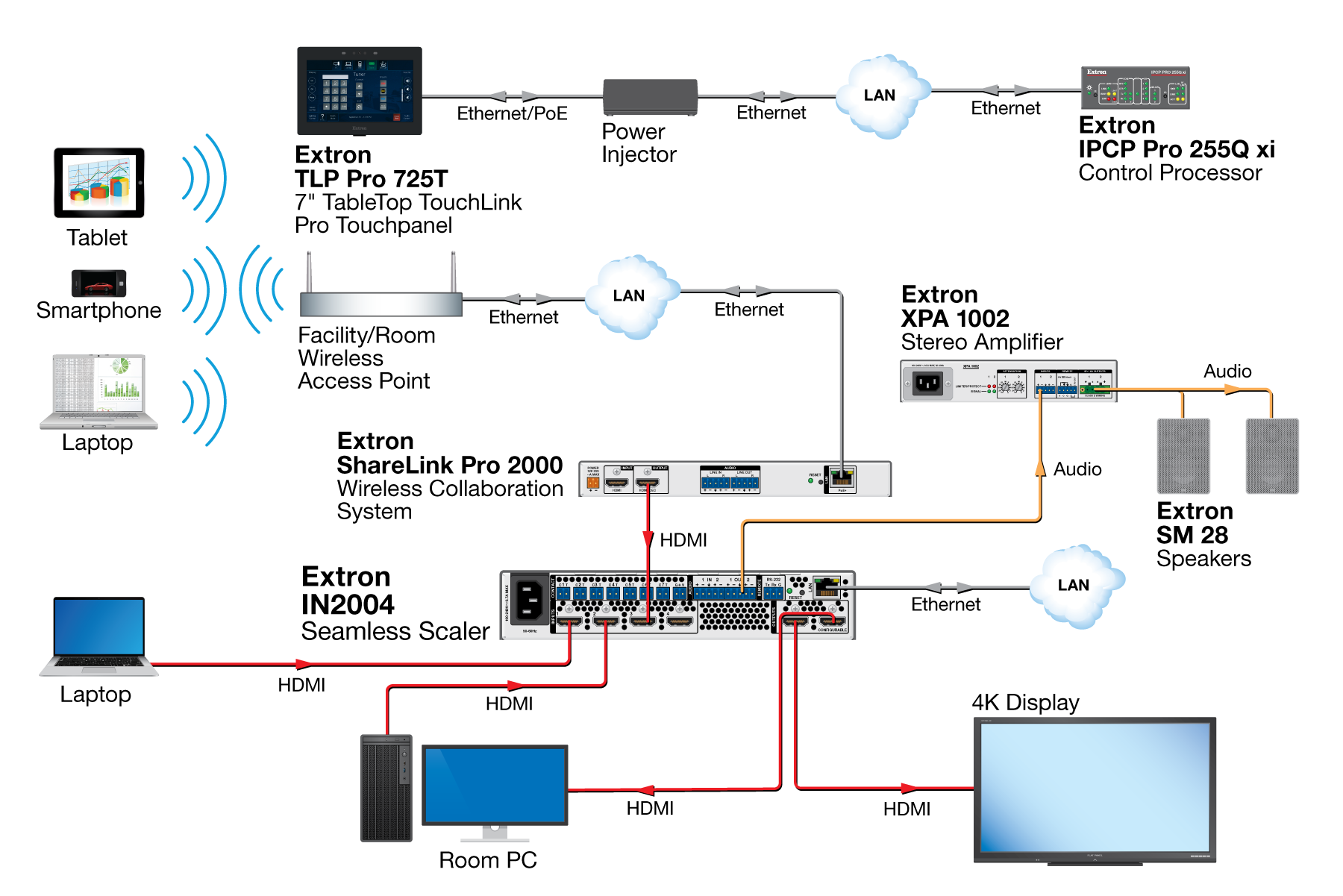

| IN2004 Series |
|
 specification |
|---|
| Max. 4K Capabilities |
| Resolution and Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 4096x2160 at 60 Hz2 |
4:4:4 |
8 bit |
| 3840x2160 at 60 Hz |
| 4096x2160 at 30 Hz |
10 bit |
| 3840x2160 at 30 Hz |
| 4096x2160 at 60 Hz |
4:2:02 |
| 3840x2160 at 60 Hz |
|
| Frame rate1 | 24, 25, 30, 50, 60, 120, 144, or 250 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, and 4:2:02 |
| Color bit depth1 | 8 or 10 bits per color |
| Signal Type | DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3 |
| Max. video data rate1 | 18 Gbps (6 Gbps per color) |
| NOTE | • 1 Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to
determine video parameters supported by this data rate.
• 2 3840 x 2160 and 4096 x 2160 @ 50-60 Hz at 4:2:0 are supported at input only. |
|
| NOTE | DTP3 ports are backwards-compatible with DTP endpoints for resolutions up to 4K @ 30 Hz, 4:4:4 (input or output), or 4K @ 60 Hz, 4:2:0 (input only). |
|
|
| Video input |
|---|
| Number/signal type | |
| IN2004 and DTP3 IN2004 DO | 4 HDMI |
| DTP3 IN2004 DI/DO | 3 HDMI
1 HDMI or DTP3/XPT (selectable) |
| Connectors | |
| IN2004 and DTP3 IN2004 DO | 4 female HDMI type A |
| DTP3 IN2004 DI/DO | 3 female HDMI type A
1 female HDMI type A or 1 female RJ-45 |
| Horizontal frequency | 15 kHz to 270 kHz |
| Vertical frequency | 24 Hz to 240 Hz |
| Resolution range | 640x480 to 4096x2160, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 2K (up to 60 Hz), 3840x2160 (up to 60 Hz) to 4096x2160 (up to 60 Hz) |
| Input cable equalization | Automatic |
| Input cable length | At 4096x2160@ 60 Hz, 4:4:4, 8 color bits:
HDMI Ultra — Up to 12 feet (3.6 meters)
HDMI Pro — Up to 25 feet (7.6 meters) |
| NOTE | Lower resolutions may support longer transmission distances. Transmission distance varies depending on signal resolution, type of cable, and source device used in system. |
|
| Standards | DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3 |
|
| Video processing |
|---|
| Digital sampling | 8 or 10 bits per color; 600 MHz pixel clock maximum |
| Colors | 1.07 billion (10 bit 4:4:4 processing) |
|
| Video output |
|---|
| Number/signal type | |
| All models | 2 HDMI |
| NOTE | HDMI Output 1B can mirror the scaler output (default), or it can be configured as a non-scaled loop output of any video input. |
|
| DTP3 models | 1 DTP3/XTP/HDBT (configurable) |
| Connectors | |
| All models | 2 female HDMI type A |
| DTP3 models | 1 female RJ-45 |
| Peripheral device power | 250 mA per output (HDMI outputs only) |
| Scaled resolution | 640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x9008, 1680x10508, 1600x12008, 11920x12008, 2048x12008, 2048x15368, 2560x10808, 2560x14408, 2560x16008, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8
480p7,8, 576p6, 720p3,4,5,6,7,8, 1080p1,2,3,4,5,6,7,8, 2K1,2,3,4,5,6,7,8
123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz |
| Output cable length | At 4096x2160 @ 60 Hz, 4:4:4, 8 color bits:
HDMI Ultra — Up to 12 feet (3.6 meters)
HDMI Pro — Up to 25 feet (7.6 meters) |
| NOTE | Lower resolutions may support longer transmission distances. Transmission distance varies depending on the signal resolution, type of cable, and equalization capabilities of the display in the system. |
|
| Standards | DVI 1.0, HDMI 1.4 and v2.0, HDCP 1.4 and 2.3 |
|
| Interconnection between transmitting and receiving devices (DTP3 models only) |
|---|
| Termination standard | TIA/EIA T568B |
| Signal transmission distance (using XTP DTP 24 cable) | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 4K/UHD @ 30 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 4K/UHD @ 60 Hz | Up to 150' (45 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable
Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot exceed 3' [0.9 m])
Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables |
| 4K/UHD @ 60 Hz | Up to 175' (45 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable with no couplers |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP cable |
| Signal transmission distance (using XTP DTP 22 cable) | |
| 1080p @ 60 Hz | Up to 330' (100 m) using XTP DTP 22 cable |
| 4K/UHD @ 30 Hz | Up to 330' (100 m) using XTP DTP 22 cable |
| 4K/UHD @ 60 Hz | Up to 330' (100 m) using XTP DTP 22 cable
Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable
Using 2 coupler with two 4' (1.2 m) (max) patch cables (each patch cable cannot exceed 4' [1.2 m])
Using two punch downs with 3' (0.9 m) to 8' (2.4 m) patch cables |
| Cable requirements | Solid conductor, 22 AWG or better |
| Cable recommendations | 500 MHz bandwidth, S/FTP cable |
| NOTE | Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance (1) with couplers, (2) no couplers. |
|
|
| Audio |
|---|
| Gain | Unbalanced output: -6 dB; balanced output: 0 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.1%, 20 Hz to 20 kHz at nominal level |
| S/N | >90 dB at maximum balanced output (unweighted) |
| Crosstalk | ≤-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 1 kHz |
| Supported formats | |
| Analog de-embedding | LPCM up to 2.0/24-bit/96 kHz |
| HDMI pass-through | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats |
|
| Audio input |
|---|
| Number/signal type | |
| All models | 1 stereo or 2 independent mono, line level, balanced or unbalanced (5 pole captive screw)
4 stereo, de-embedded HDMI/DTP/XTP (LPCM-2Ch only) |
| DTP3 IN2004 DI/DO | 1 stereo DTP remote unbalanced analog*
*Available to a DTP3 transmitter only |
| Connectors | |
| All models | (1) 3.5 mm, 5 pole captive screw
4 female HDMI type A |
| DTP3 IN2004 DI/DO | 1 female RJ-45 |
| Impedance | >10k ohms unbalanced, >20k ohms balanced |
| Nominal level | Line input: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms), adjustable |
| Maximum level | +21 dBu balanced, +15 dBu unbalanced |
| CMRR | >65 dB @ 1 kHz |
| NOTE | Unbalanced analog audio inputs applied at a DTP3 transmitter input have +12 dB of gain applied to bring the signal to a nominal level (DTP3 IN2004 DI/DO only). Analog audio is not supported from DTP T 2xx/3xx endpoints. |
|
| Input gain adjustment | -18 dB to +24 dB (analog input only) |
|
| Audio output |
|---|
| Number/signal type | |
| All models | 1 stereo or 2 independent mono, line level, balanced or unbalanced
2 HDMI, embedded |
| DTP3 models | 1 DTP/XTP/HDBT (embedded digital and remote balanced/unbalanced analog*)
*Available to a DTP3 receiver only |
| Connectors | |
| All models | (1) 3.5 mm, 5 pole captive screw
2 female HDMI type A |
| DTP3 models | 1 female RJ-45 |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Gain error | ±0.5 dB channel to channel |
| Maximum level (Hi-Z) | >+21 dBu, balanced; >+15 dBu, unbalanced |
| Output volume range | 0 to -100 dB in 1 dB steps |
| NOTE | System gain for the analog DTP3 receiver output is rated at -12 dB (unbalanced) and -6 dB (balanced) (DTP3 IN2004 DO and DTP3 IN2004 DI/DO only). Analog audio is not supported to DTP R 2xx/3xx endpoints. |
|
|
| Communications — scaling presentation switcher |
|---|
| Serial control port | 1 bidirectional RS-232, 3.5 mm, 3 pole captive screw connector (rear panel) |
| Baud rate and protocol | 9600, 8 data bits, 1 stop bit, no parity (default) |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| USB control port | 1 female mini USB B (front panel ) |
| USB standards | USB 2.0, high speed |
| Ethernet | |
| Connector | 1 female RJ-45 |
| Ethernet data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Ethernet protocol | ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP (ping), IP, NTP, SFTP,
SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP |
| Ethernet default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off |
| Storage | 512 MB user memory |
| Contact/tally ports | 7 sets (2 pins each) of contact and tally ports
1 set (1 pin each) of +V and G
Tally output power +5 VDC, 0.2 A |
| Program control | Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™)
Microsoft® Internet Explorer® |
|
| Communications — external device (RS-232/IR over DTP3/XTP/HDBaseT) — DTP3 models only |
|---|
| Serial control pass-through port | RS-232 can be transmitted to and from twisted pair endpoints via Ethernet insertion (DTP3 models only). |
| Baud rates | Up to 115200 baud |
| Protocol | 7 or 8 data bits
1 or 2 stop bits
Even, odd, mark, or space parity, no parity (default)
Flow control = XON, XOFF, none |
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption | |
| Full power | |
| IN2004 | 34 watts |
| DTP3 IN2004 DO | 50 watts |
| DTP3 IN2004 DI/DO | 68 watts |
| Power save mode | |
| IN2004 | TBD watts |
| DTP3 IN2004 DO | TBD watts (TBD watts for Psav2) |
| DTP3 IN2004 DI/DO | TBD watts (TBD watts for Psav2) |
| Remote power budget | |
| DTP3 IN2004 DO | 8 watts |
| DTP3 IN2004 DI/DO | 16 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing |
| Cooling | 2 fans, air flows front to rear |
| Thermal dissipation | |
| Full power | |
| IN2004 | 103 BTU/hr |
| DTP3 IN2004 DO | 129 BTU/hr |
| DTP3 IN2004 DI/DO | 158 BTU/hr |
| Power save mode | |
| IN2004 | TBD BTU/hr |
| DTP3 IN2004 DO | TBD BTU/hr (TBD BTU/hr for Psav2) |
| DTP3 IN2004 DI/DO | TBD BTU/hr (TBD BTU/hr for Psav2) |
| Mounting | |
| Rack mount | Yes, with optional rack shelf |
| Furniture mount | Yes, with optional under-desk or through-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.66" H x 8.68" W x 11.5" D (1U high, half rack wide)
(42 mm H x 220 mm W x 292 mm D)
(Depth excludes connectors and buttons.) |
| Product weight | |
| IN2004 | 2.6 lbs (1.2 kg) |
| DTP3 IN2004 DO | 2.6 lbs (1.2 kg) |
| DTP3 IN2004 DI/DO | 2.6 lbs (1.2 kg) |
| Regulatory compliance | CE, c-UL, UL, AS/NZS, ICES, PSE, VCCI, RoHs, and WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor
|
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6450-D5) |
