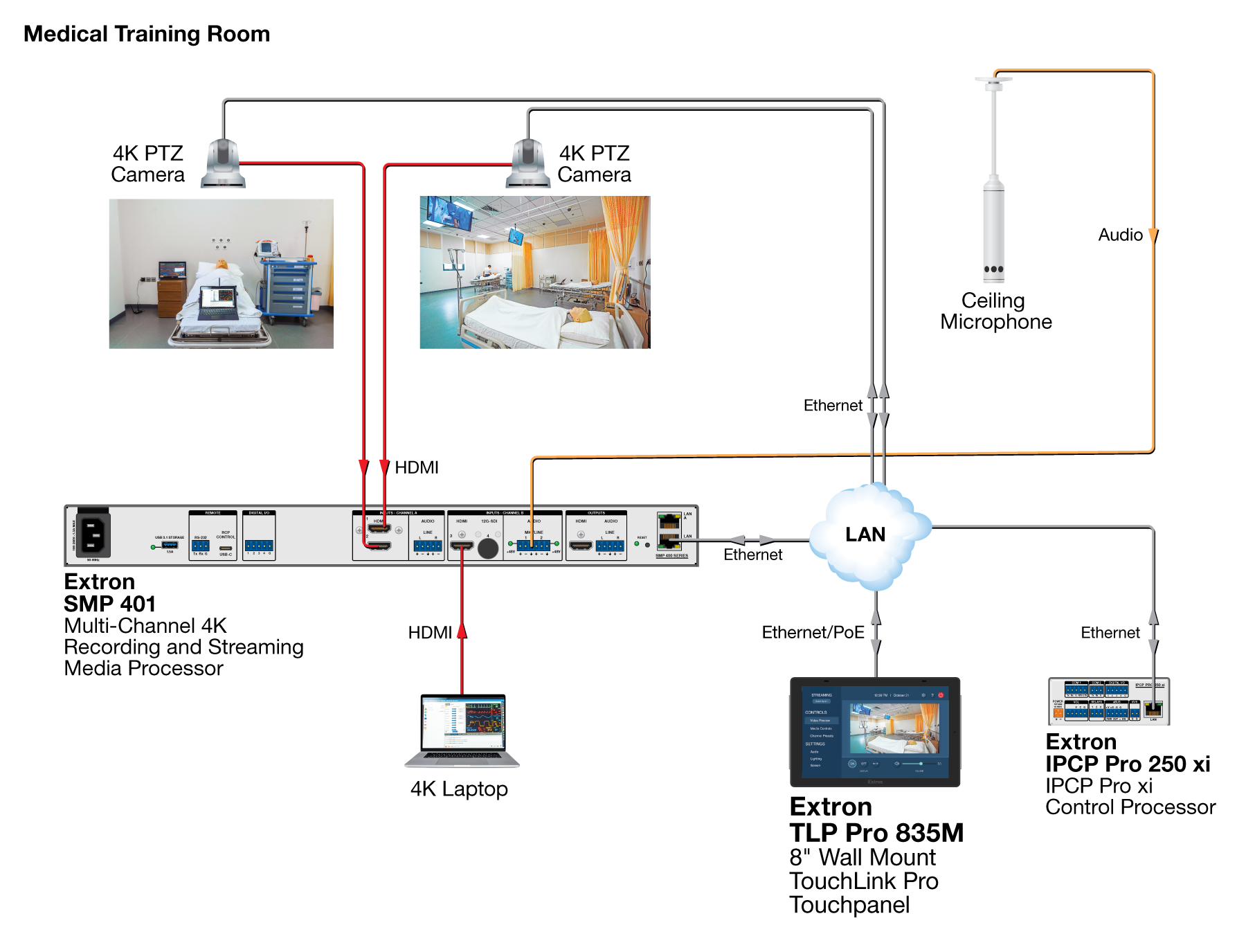

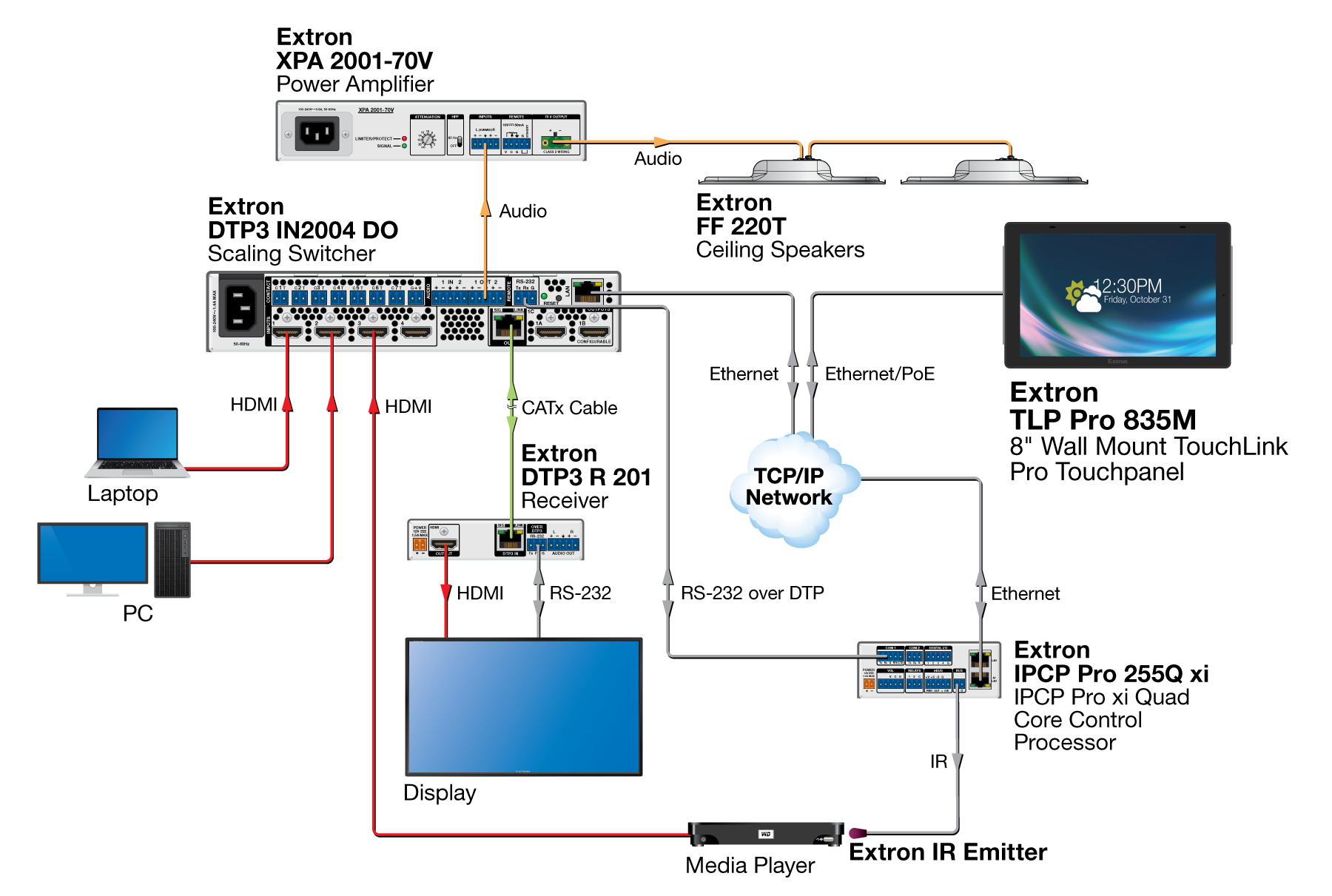

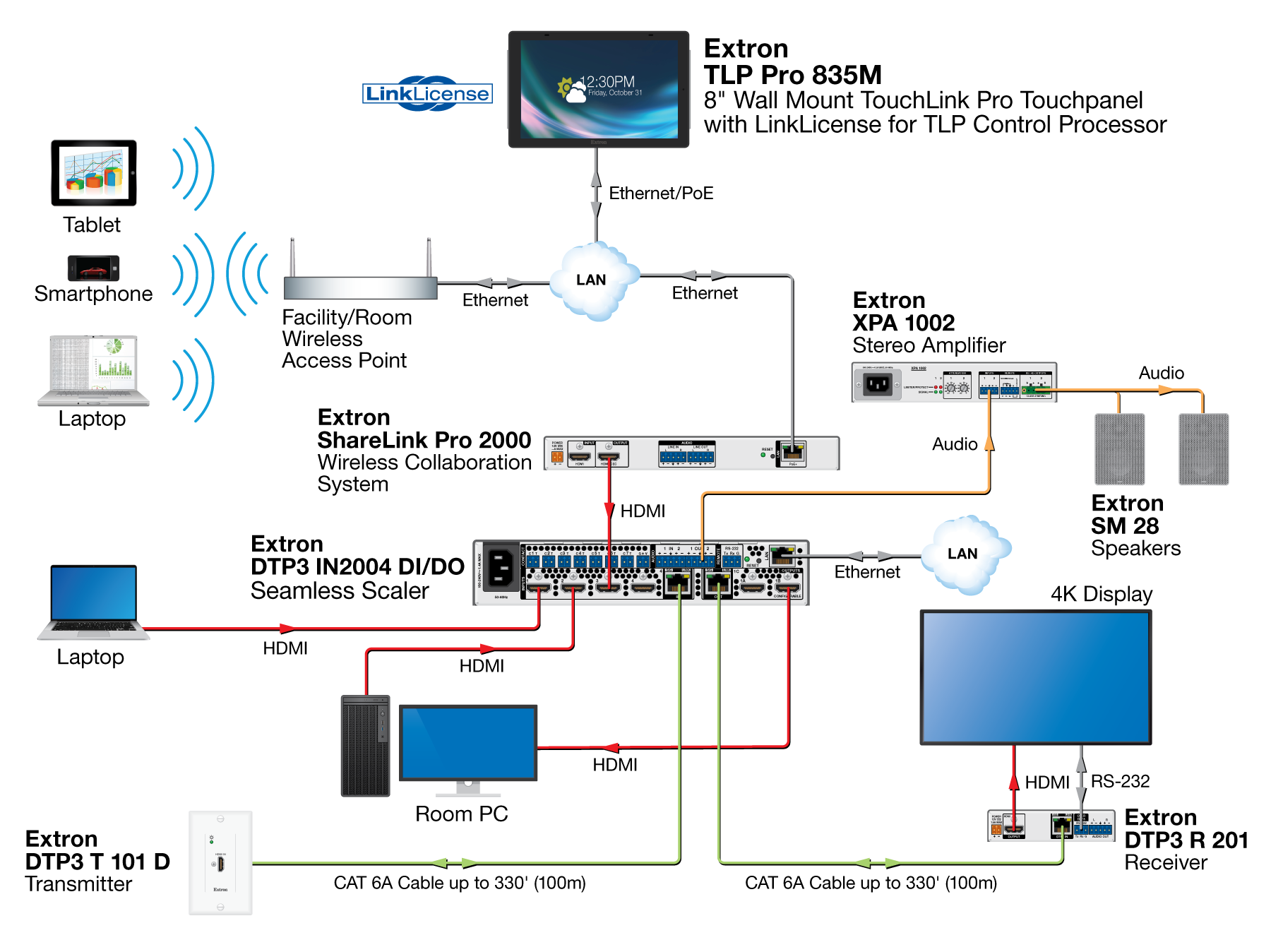

| TLP Pro 835M Series |
|
| Display |
|---|
| Screen type | IPS TFT active matrix color LCD |
| Size | 8.0" (20.3 cm) diagonal |
| Resolution | 1280x800 (WXGA) |
| Pixel density | 188.7 PPI |
| Aspect ratio | 16:10 |
| Color depth | 24 bit, 16.7 million colors |
| Brightness | 420 nits (cd/m²) |
| Contrast | 1200:1 |
| Backlight | LED with auto brightness control |
| Viewing angle | ±80° horizontal, ±80° vertical |
| Touch screen | Projected capacitive |
|
| Memory |
|---|
| RAM | 4GB DDR4 |
| Storage | 64GB eMMC |
| Usable project storage | 32GB |
|
| Audio |
|---|
| Speaker output | 2 stereo |
| Playback format(s) | |
| Container format | WAV (Microsoft RIFF) |
| Encoding | LPCM (uncompressed) |
| Bit depth | Unsigned 8-bit
Signed 16-bit
Signed 24-bit
Signed 32-bit |
| Sampling rate | Up to 192 kHz |
| Audio channels | Mono or Stereo |
|
| Ethernet |
|---|
| Connectors | 1 female RJ-45 connector |
| Data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
|
| USB |
|---|
| Quantity/type | 1 high-speed USB 2.0 |
| Connectors | 1 USB-C receptacle |
| Standards | USB 2.0, USB 1.1, USB 1.0 |
| Max. data rates | Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) |
|
| Digital input |
|---|
| Quantity/type | 1 digital input (configurable) |
| Connectors | (1) 3.5 mm captive screw connector, 2 pole |
| Input voltage range | 0 to 24 VDC, clamped at +30 VDC |
| Input impedance | ≥10k ohms |
| Programmable pullup | 1k ohms to +5 VDC |
| Threshold low to high | 2.8 VDC |
| Threshold high to low | 2.0 VDC |
| Pin configuration | 1 = Digital input, 1 = Gnd |
|
| Sensors |
|---|
| Motion sensor | On/off |
| Light sensor | Auto/manual |
|
| Software |
|---|
| TouchLink Pro touchpanels | |
| Configuration software | Global Configurator Plus and Professional, GUI Designer |
| Programming software | ControlScript Programing |
| Control apps | Extron Control |
| Resource management software | GlobalViewer Enterprise |
| Utilities | Toolbelt, Embedded web page |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | Power over Ethernet (PoE 802.3af, class 3) |
| Power consumption |
| Device | TBD |
| Device and power injector | TBD |
| Auxiliary power output | |
| USB | 5 VDC, 500 mA |
| Thermal dissipation |
| Device | TBD |
| Device and power injector | TBD |
| Ambient temperature/humidity | Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection |
| Mounting | Wall, furniture, or rack |
| Enclosure type | Plastic |
| |  |

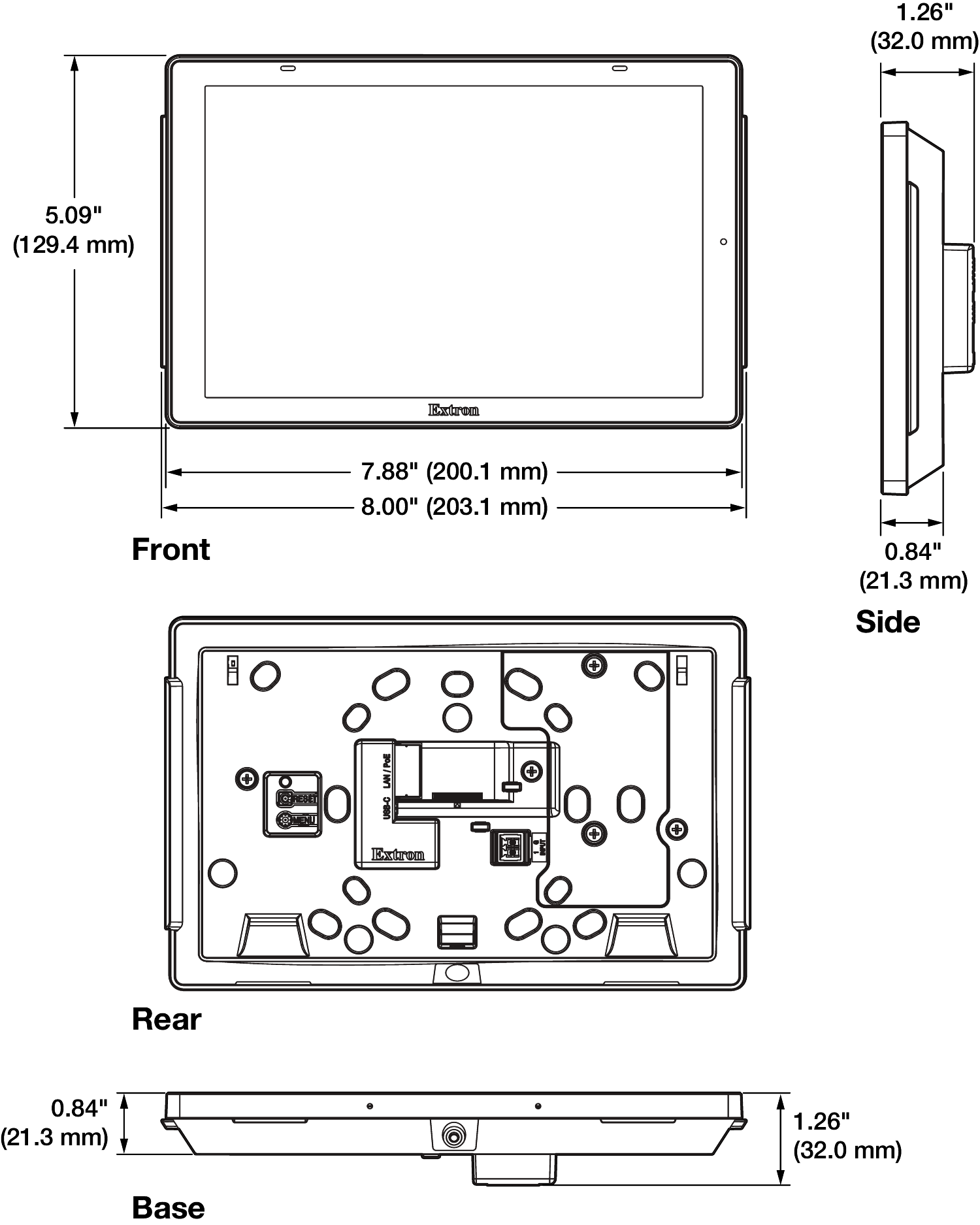

| Enclosure dimensions | 5.09" H x 8.00" W x 1.26" D
129 mm H x 203 mm W x 32.0 mm D
Touchpanel projects 0.84" (21.3 mm) from the mounting surface. |
| Product weight | TBD |
| Regulatory compliance | CE, C-Tick, c-UL,FCC Class A, ICES, RoHS, UKCA, UL, VCCI, WEEE |
| Product warranty | 3 years parts and labor; touchpanel display and overlay components are covered for 1 year |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6533-D2) |
