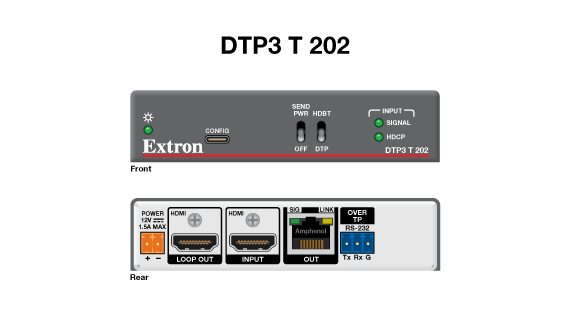

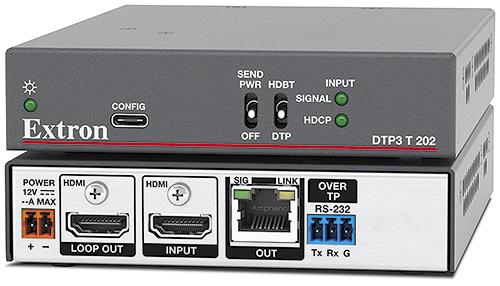

| DTP3 T 202 |
|
 specification |
|---|
| Max. 4K and 5K Capabilities |
| Resolution and Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 5120x1440 at 60 Hz |
4:4:4 |
8 bit |
| 5120x2880 at 30 Hz |
| 4096x2160 at 60 Hz |
| 3840x2160 at 60 Hz |
| 4096x2160 at 30 Hz |
12 bit |
| 3840x2160 at 30 Hz |
| 4096x2160 at 60 Hz |
4:2:0 |
| 3840x2160 at 60 Hz |
|
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8, 10, 12 bits per color |
| Signal Type | HDMI 2.0b, HDCP 2.3 |
| Max. video data rate | 18 Gbps (6 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Maximum data rate | 18 Gbps (6 Gbps per color) |
| Maximum pixel clock | 600 MHz |
| Resolution range | |
| VESA | 640x480 to 4096x2160 |
| SMPTE | Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling) |
| Ultra Wide & 5K | 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600,
5120x1080* @ 60 Hz, 5120x1440* @ 60 Hz, 5120x2160 @ 30 Hz,
5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz |
| NOTE | *Indicated rates not available via standard 256-byte EDID and may require custom video card configuration. |
|
| Horizontal frequency range | 15 kHz to 270 kHz for resolutions up to 18 Gbps |
| Vertical frequency range | 24 Hz to 240 Hz for resolutions up to 18 Gbps |
| Color bit depth | 8, 10, or 12 bits — subject to the maximum data rate limit |
| Formats | RGB and YCbCr digital video |
| HDR | HDR10, HDR10+, Dolby Vision |
| Standard | DVI 1.0, HDMI 2.0b, HDCP 1.x, HDCP 2.3 |
| NOTE | Extron strongly recommends compatibility testing while designing, and before installing, any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Applications Engineer for more information. |
|
|
| Video input |
|---|
| Number/signal type | 1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapters) |
| Connector | 1 female HDMI type A |
|
| Video output |
|---|
| Number/signal type | 1 single link HDMI or DVI-D* (Loop through)
1 DTP3 (Output) |
| Connectors | 1 female HDMI (loop through)
1 female RJ-45 |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
|
| Audio |
|---|
| Sampling rates | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| Bit depths | 16, 20, 24 bit |
|
| Audio input |
|---|
| Number/signal type | 1 digital audio, de-embedded from HDMI |
| Connectors | 1 female HDMI type A (shared with video input) |
| Source formats | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel |
|

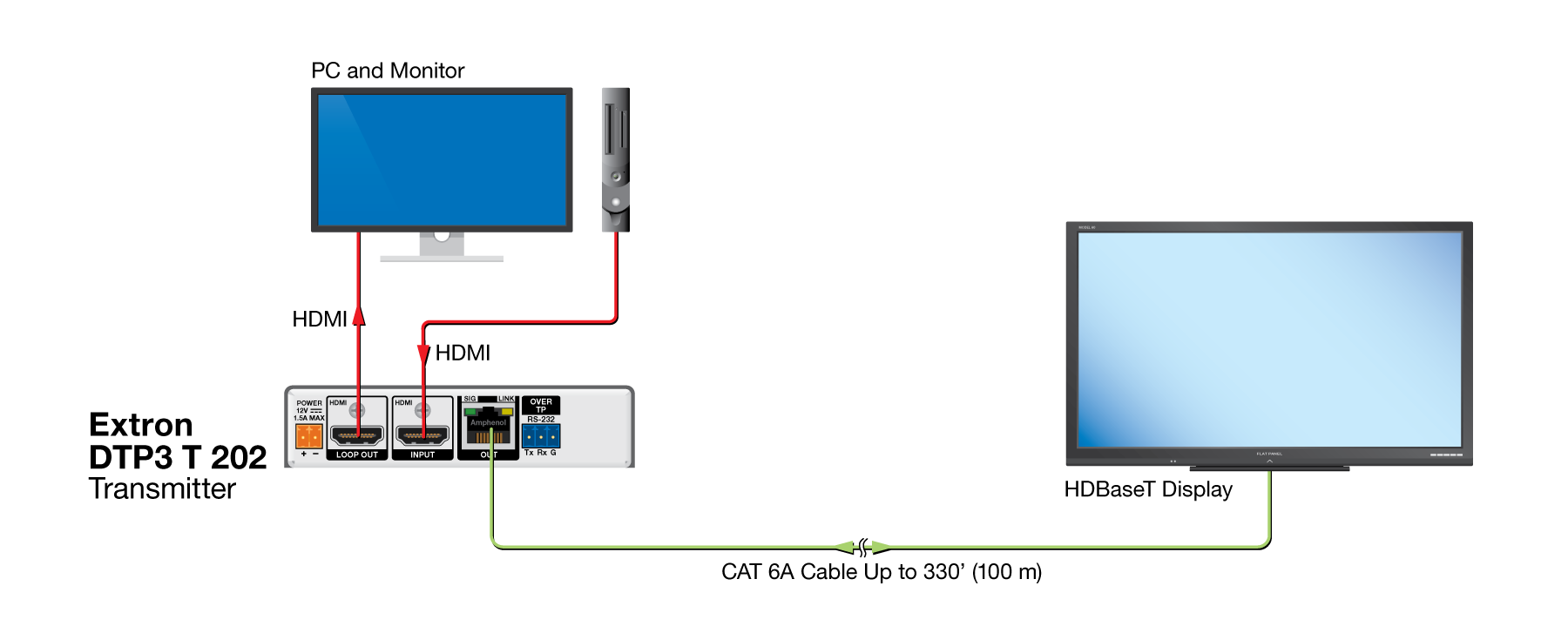

| Interconnection between transmitter and receiver |
|---|
| Connector | 1 female RJ-45 per unit |
| Termination standard | TIA/EIA T568B |
| Signal transmission distance (using XTP DTP 24 cable) | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair STP or XTP DTP 24 cable |
| 4K/UHD @ 30 Hz | Up to 330' (100 m) using shielded twisted pair STP or XTP DTP 24 cable |
| 4K/UHD@ 60 Hz (1) | Up to 150' (45 m) using shielded twisted pair STP or XTP DTP 24 cable
Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable
Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot
exceed 3')
Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables |
| 4K/UHD@ 60 Hz (2) | Up to 175' (53 m) using shielded twisted pair STP or XTP DTP 24 cable with no couplers |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) |
| Signal transmission distance (using XTP DTP 22 cable) | |
| 1080p @ 60 Hz | Up to 330' (100 m) using XTP DTP 22 cable |
| 4K @ 30 Hz | Up to 330' (100 m) using XTP DTP 22 cable |
| 4K/UHD@ 60 Hz (1), (2) | Up to 330' (100 m) using XTP DTP 22 cable
Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable
Using 2 couplers with 4' (1.2 m) (max) patch cables (each patch cable cannot
exceed 4')
Using two punch downs with 3' (0.9 m) to 8' (2.4 m) patch cables |
| Cable requirements | Solid conductor, 22 AWG or better |
| Cable recommendations | 500 MHz bandwidth, STP (shielded twisted pair) |
| NOTE | Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance.
(1) With coupler(s), (2) No coupler(s)
|
|
|
| Communications |
|---|
| Control/Remote — Transmitter | |
| USB control port | 1 front panel, female USB type C |
| USB standards | USB 2.0, low speed |
| Program control | Extron Simple Instruction Set (SIS™)
Extron Product Configuration Software (PCS) |
| Control/Remote — external device (RS-232 Over TP) | |
| Serial control pass-through ports | 1 RS-232, 3.5, mm 3-pole captive screw connector |
| Baud rate and protocol | 300 to 115200 baud |
| Protocol | 8 or 7 data bits
1 or 2 stop bits
No parity (default), even or odd parity |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| NOTE | Protocol is mirrored between the connected DTP3 endpoints and the "Over TP" port. Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP3 endpoints for control of remote sink or source devices. |
|
|
| General |
|---|
| Power supply | External (included with Tx)
Input: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 7.16 watts |
| Device and power supply | 8.10 watts |
| Remote power budget | 18.0 watts |
| NOTE | The transmitter can be powered either locally by an external power supply or remotely by a receiver on the other end of the twisted pair cable. |
|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents on top and sides |
| Thermal dissipation | |
| Device | 23.49 BTU/hr |
| Device and power supply | 26.71 BTU/hr |
| Mounting |
| Rack mount | Optional 1U high rack shelf |
| Furniture mount | Optional under-desk mount kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 4.3" W x 6.0" D (quarter rack wide)
(25 mm H x 109 mm W x 152 mm D)
(Depth excludes connectors.) |
| Product weight | 0.6 lbs (0.27 kg) |
| Regulatory compliance | CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI
Complies with appropriate requirements of RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%.
Specifications are subject to change without notice. |
|
| (6544-D11) |
