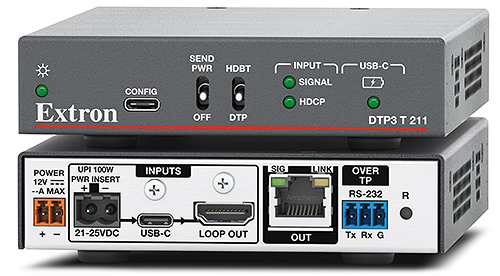

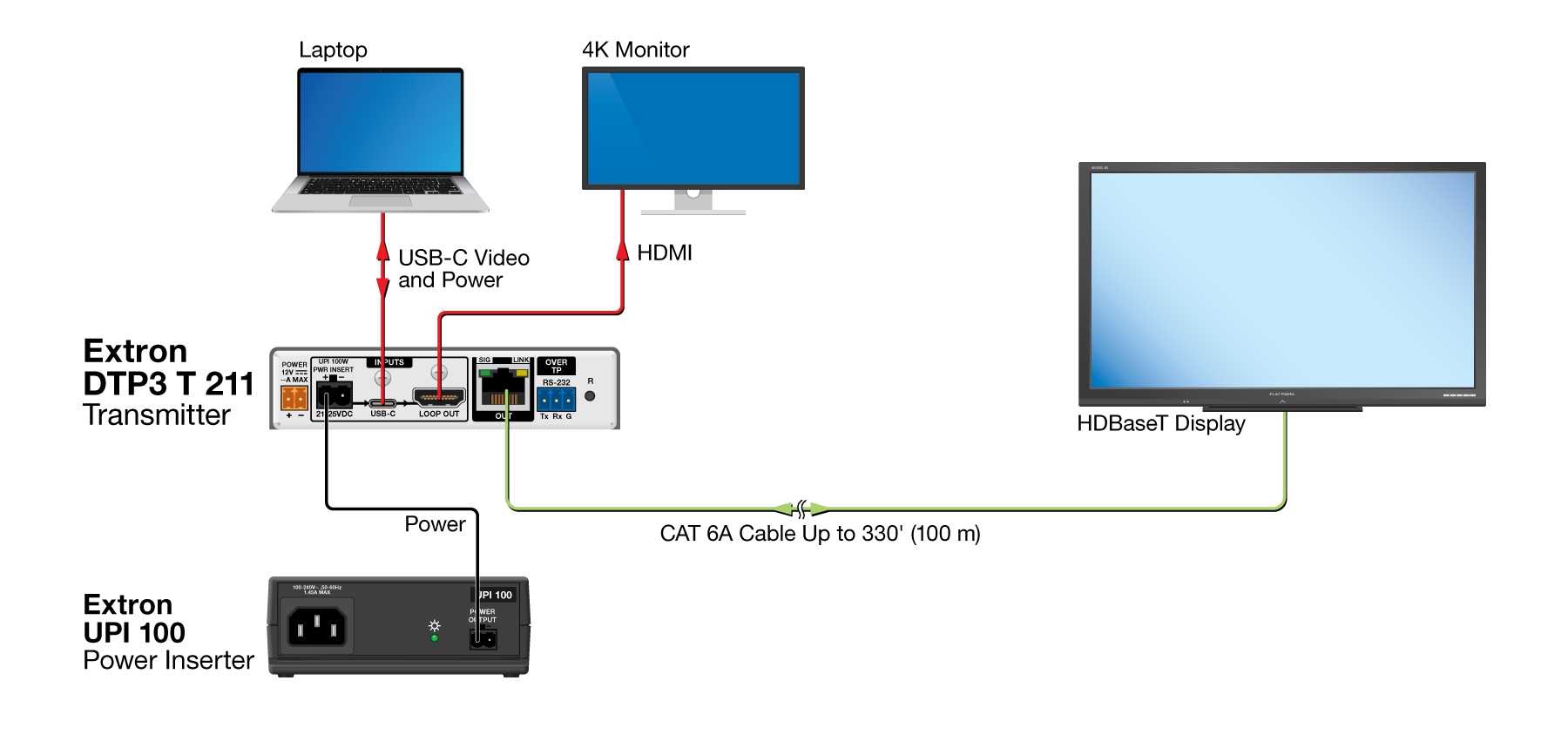

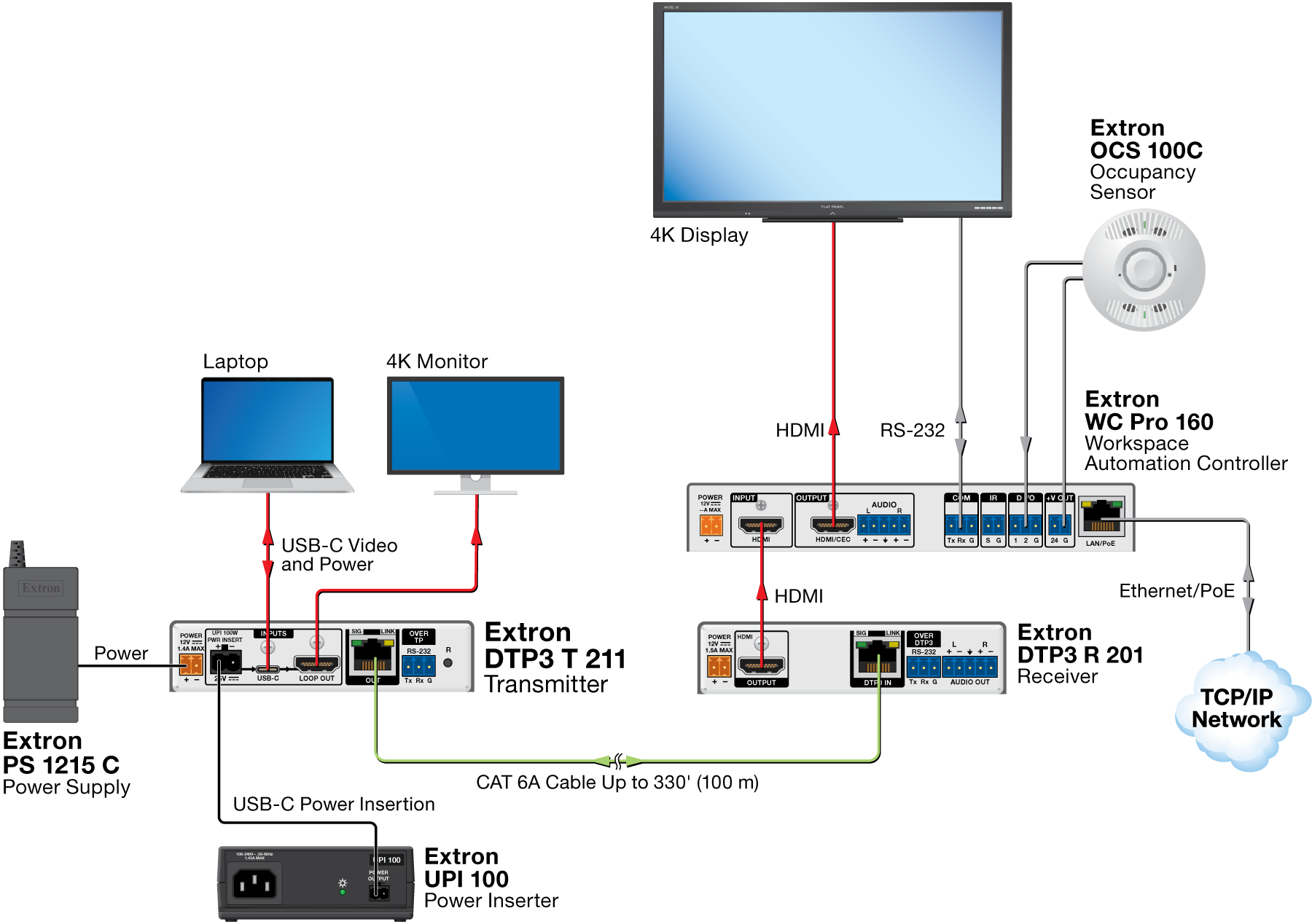

| DTP3 T 211 |
|
 Specification |
|---|
| |
 |
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0b, DisplayPort 1.2 (Alt-Mode), HDCP 2.3 |
| Max. video data rate | 18 Gbps (6 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Maximum data rate | 18 Gbps (6 Gbps per color) |
| Maximum pixel clock | 600 MHz |
| Resolution range | |
| VESA | 640x480 to 4096x2160 |
| SMPTE | Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling) |
| Ultra Wide & 5K | 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600
5120x1080* @ 60 Hz, 5120x1440* @ 60 Hz, 5120x2160 @ 30 Hz,
5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz |
| NOTE | *Indicated rates not available via standard 256-byte EDID and may require custom video card configuration. |
|
| Horizontal frequency range | 15 kHz to 270 kHz for resolutions up to 18 Gbps |
| Vertical frequency range | 24 Hz to 240 Hz for resolutions up to 18 Gbps |
| Color bit depth | 8, 10, or 12 bits |
| Formats | RGB and YCbCr digital video |
| Standards | HDMI 2.0b, USB-C (DP Alt-Mode), HDCP 1.4, HDCP 2.3 |
| Power delivery* | 5 VDC @ up to 3 A
9 VDC @ up to 3 A
12 VDC @ up to 3 A
15 VDC @ up to 3 A
20 VDC @ up to 3 A
20 VDC @ up to 5 A |
| NOTE | *USB-C Power Delivery voltages are only available when a UPI 100 is used. |
|
|
| Video input |
|---|
| Number/signal type | 1 USB-C (DisplayPort Alt-Mode, 2 or 4 lanes supported) |
| DisplayPort video | 1 DisplayPort Alt mode, DP 1.2 (2 or 4 lanes), RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps |
| Connector | 1 female, USB type C |
| EDID emulation | 128-256 byte EDID support (1-2 blocks) |
|
| Video output |
|---|
| Number/signal type | 1 single link HDMI or DVI-D* (Loop Out)
1 DTP3 or HDBaseT, configurable |
| Connectors | 1 female HDMI (Loop Out)
1 female RJ-45 |
| NOTE | *Appropriate HDMI/DVI cables or adapters are required for HDMI/DVI signal input/output. |
|
|
| Interconnection between transmitter and receiver |
|---|
| Connector | 1 female RJ-45 |
| Termination standard | TIA/EIA T568B |
| Signal transmission distance (using XTP DTP 24 cable) | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 4K/UHD @ 30 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 4K/UHD @ 60Hz (1) | Up to 150' (45 m) using shielded twisted pair STP or XTP DTP 24 cable
Using 1 coupler with 3' (0.9 m) to 9' (2.7 m) patch cable
Using 2 couplers with two 3' (0.9 m) (max) patch cables (each patch cable cannot
exceed 3')
Using two punch downs with two 3' (0.9 m) to 9' (2.7 m) patch cables |
| 4K/UHD @ 60Hz (2) | Up to 175’ (53 m) using shielded twisted pair STP or XTP DTP 24 cable with no couplers |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) cable |
| Signal transmission distance (using XTP DTP 22 cable) | |
| 1080p @ 60 Hz | Up to 330' (100 m) using XTP DTP 22 cable |
| 4K/UHD @ 30 Hz | Up to 330' (100 m) using XTP DTP 22 cable |
| 4K/UHD @ 60Hz (1)(2) | Up to 330' (100 m) using XTP DTP 22 cable
Using 1 coupler with 3' (0.9 m) to 16' (4.9 m) patch cable
Using 2 couplers with two 4' (1.2 m) (max) patch cables (each patch cable cannot
exceed 4')
Using two punch downs with two 3' (0.9 m) to 8' (2.4 m) patch cables |
| Cable requirements | Solid conductor, 22 AWG or better |
| Cable recommendations | 500 MHz bandwidth, STP (shielded twisted pair) cable |
| NOTE | Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| NOTE | (1) With coupler(s), (2) No couplers |
|
|
| Audio |
|---|
| Sampling rates | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| Bit depths | 16, 20, 24 bit |
|
| Audio input |
|---|
| Number/signal type | 1 embedded digital audio USB-C signal |
| Connector | 1 female USB-C (shared with video input) |
|
| Communications |
|---|
| Control/Remote — Transmitter | |
| USB control port | 1 female USB type C, front panel |
| USB standards | USB 2.0, low speed |
| Program control | Extron Simple Instruction Set (SIS™), Extron PCS |
| Control/Remote — External Device (RS-232 Over DTP) | |
| Serial control pass-through ports | 1 RS-232, 3.5 mm 3-pole captive screw connector |
| Baud rate and protocol | 300 to 115200 baud |
| Protocol | 8 or 7 data bits
1 or 2 stop bits
No parity (default), even or odd parity |
| Serial control pin configuration | 1 = Tx, 2 = Rx. 3 = Gnd |
| NOTE | Protocol is mirrored between the connected DTP3 endpoints and the "Over TP" port. Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP3 endpoints for control of remote sink or source devices. |
|
|
| General |
|---|
| Power supply | External (included with Tx)
Input: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 8.7 watts |
| Device and power supply | 10.6 watts |
| Remote power budget | 18.0 watts |
| NOTE | The transmitter can be powered either locally by an external power supply or remotely by a receiver on the other end of the twisted pair cable. |
|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents on top and sides |
| Thermal dissipation | |
| Device | 25.4 BTU/hr |
| Device and power supply | 32 BTU/hr |
| Mounting |
| Rack mount | Optional 1U high rack shelf |
| Furniture | Optional under-desk mount kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0” H x 4.3” W x 6.0” D (quarter rack wide)
(25 mm H x 109 mm W x 152 mm D) |
| Product weight | 0.6 lbs (0.27 kg) |
| Regulatory compliance | CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI
Compiles with the appropriate requirements of RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%.
Specifications are subject to change without notice. |
|
| (6442-D5) |
