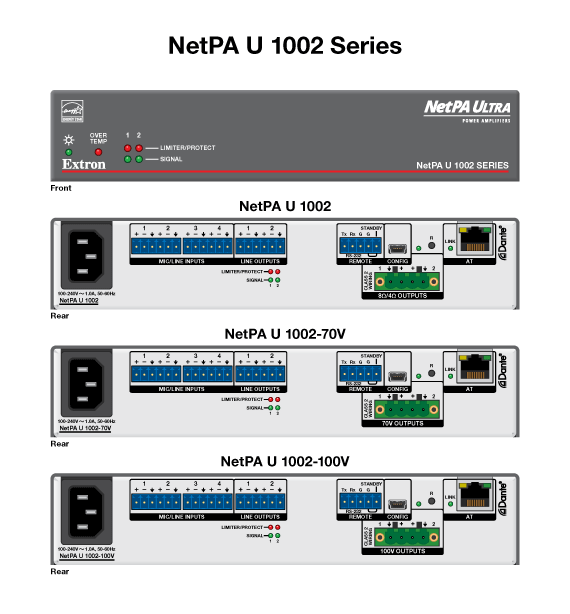

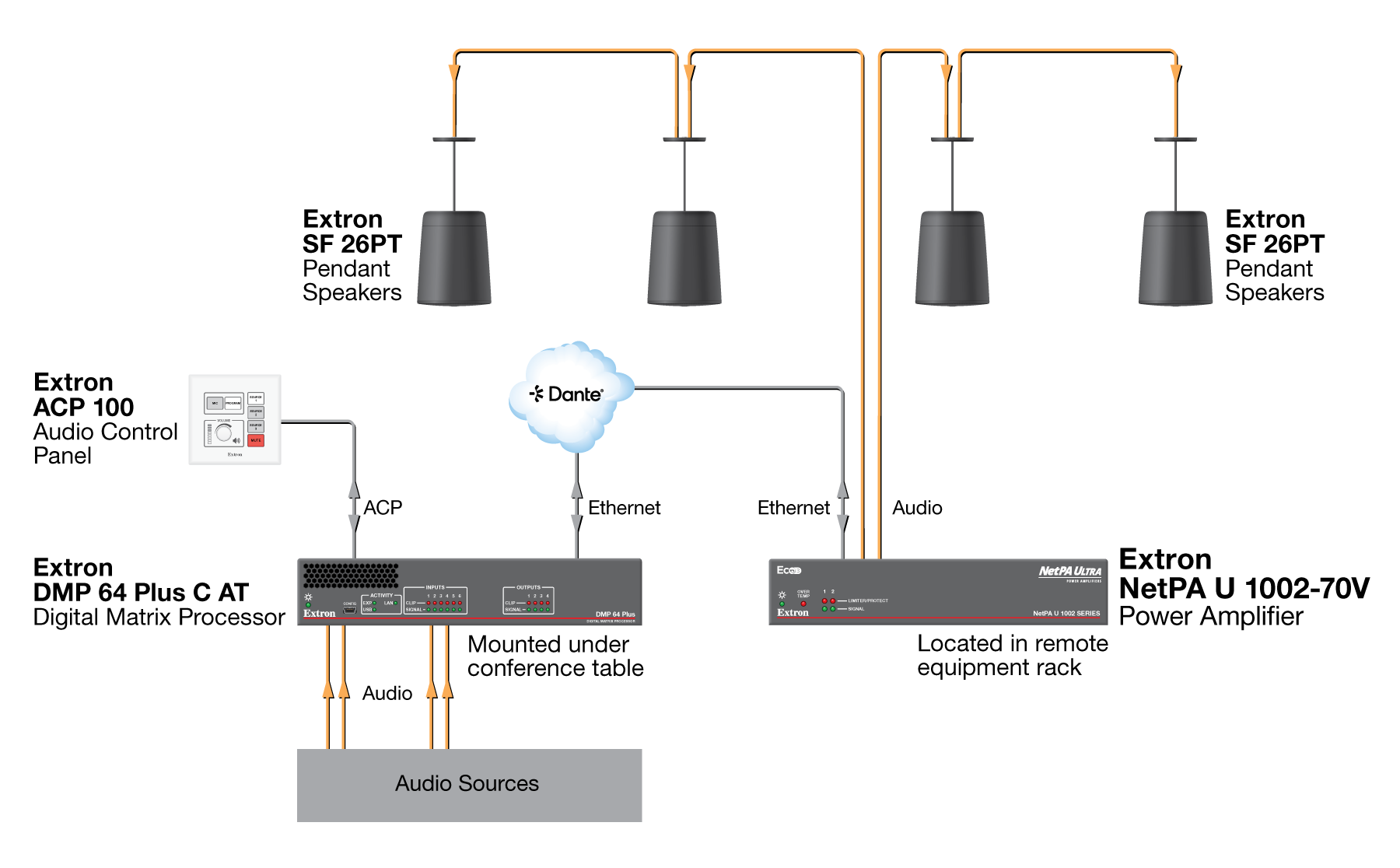

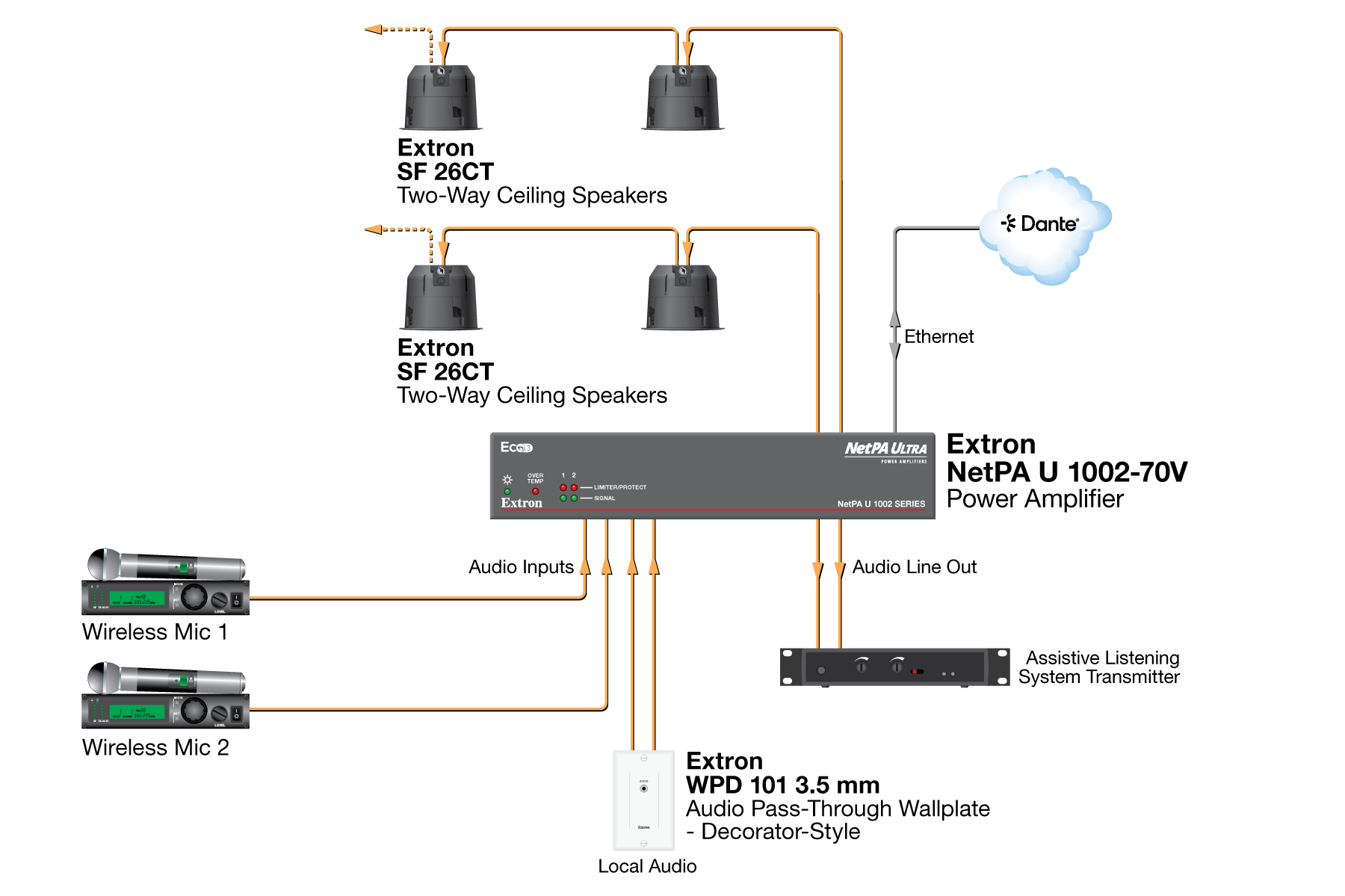

| NetPA Ultra Series 1002, 1002-70V, 1002-100V |
|
| Audio system |
|---|
| Frequency response | |
| Through DSP | 20 Hz to 20 kHz, ±0.5 dB |
| Through amplifier | 20 Hz to 20 kHz, ±1 dB |
| THD + Noise | |
| Through DSP | <0.01% @ 1 kHz at maximum output level |
| Through amplifier | 0.1% @ 1 kHz at 3 dB below clipping |
| S/N | |
| Mic/line in to line out | 90 dB, 20 Hz to 20 kHz at maximum output (unweighted) |
| Mic/line in to speaker out | 90 dB, 20 Hz to 20 kHz at maximum output (unweighted) |
| Mic/line in to digital out | 90 dB, 20 Hz to 20 kHz at maximum output (unweighted) |
| Digital in to line out | 100 dB, 20 Hz to 20 kHz at maximum output (unweighted) |
| Digital in to speaker out | 100 dB, 20 Hz to 20 kHz at maximum output (unweighted) |
| Crosstalk | <-90 dB @ 1 kHz, fully loaded |
| Volume control | -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps) |
|
| Audio input |
|---|
| Number/signal type | 4 mono, mic/line, balanced/unbalanced |
| Connectors | (2) 3.5 mm captive screw connectors, 6 pole, mono, balanced/unbalanced |
| Impedance | >10k ohms unbalanced/balanced |
| Nominal level | -60 dBV, +4 dBu, -10 dBV adjustable via input gain |
| Maximum level | +21 dBu at rated THD+N when input gain is set to 0 dB |
| Equivalent input noise | <-120 dBV (1 μVrms) at 45 dB input gain |
| Input sensitivity | |
| Mic/line input | +21 dBu, all gains / attenuators in signal path set to 0 dB |
| AT input | 0 dBFS, all gains / attenuators in signal path set to 0 dB |
| CMRR | >60 dB typical |
| Input gain adjustment | -18 dB to +60 dB in 0.1 dB steps, adjustable per input |
|
| Audio line output |
|---|
| Number/signal type | 2 mono, line, balanced/unbalanced |
| Connectors | (1) 3.5 mm captive screw connector, 6-pole |
| Impedance | 100 ohms balanced, 50 ohms unbalanced |
| Gain error | ±0.1 dB channel to channel |
| Maximum level (Hi-Z) | >+21 dBu balanced; +15 dBu unbalanced |
|
| Audio processing |
|---|
| D/A conversion | 24 bit, 48 kHz |
|
| AT port — Audio Transport |
|---|
| Transmission type | Dante/AES-67, software selectable |
| Connectivity | 1 RJ-45 connector, 1-port 100 Mbps to Dante interface |
| Inputs | 2 channels Rx (2 flows, unicast or multicast) |
| Outputs | 2 channel Tx (2 flows, unicast or multicast) |
| Audio format | 24-bit uncompressed, selectable at 44.1, 48, 88.2, and 96 kHz sampling rate |
| Latency | Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio speaker output |
|---|
| Number/signal type | |
| NetPA U 1002 | 2 channels, 4 or 8 ohms |
| NetPA U 1002-70V | 2 channels, 70 V |
| NetPA U 1002-100V | 2 channels, 100 V |
| Connectors | (1) 5 mm screw lock captive screw connector, 4-pole |
| NOTE | These connectors accept wires of 22 AWG to 12 AWG. |
|
| Load impedance | |
| NetPA U 1002 | 4 ohms minimum |
| NetPA U 1002-70V | 50 ohms minimum |
| NetPA U 1002-100V | 100 ohms minimum |
| Amplifier type | Class D |
| Output power | |
| NetPA U 1002 | 100 watts per channel, 4 or 8 ohms, 1 kHz, <0.1% THD |
| NetPA U 1002-70V | 100 watts per channel, 70 V, 1 kHz, <0.1% THD |
| NetPA U 1002-100V | 100 watts per channel, 100 V, 1 kHz, <0.2% THD |
| High pass filter | |
| NetPA U 1002- 70V/100V only | 80 Hz, 12 dB per octave rolloff (On by default, Changeable via software) |
|
| Control/Remote |
|---|
| Control port | (1) 3.5 mm captive screw connector, 5-pole |
| Serial | |
| Serial host control port | 1 bidirectional RS-232 |
| Baud rate and protocol | 38400 baud, 8 data bits, 1 stop bit, no parity |
| Pin configuration | Pin 1 = Tx, Pin 2 = Rx, Pin 3 = GND |
| Standby | |
| Standby power control | Contact Closure |
| Pin configuration | Pin 4 = GND, Pin 5 = STANDBY |
| USB control port | 1 rear panel female USB Mini-B |
| USB standards | USB 2.0, high speed |
| Ethernet host port | 1 RJ-45 female connector |
| Ethernet data rate | 10/100 Base-T |
| Program control | Configuration program for Windows®
Extron Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz, 1.0 A |
| Power consumption and thermal dissipation | |
| | | NetPA U 1002 | 115 VAC, 60Hz | 230 VAC, 50Hz | AC Line
Current | AC Power
Consumed | Thermal
Dissipation | AC Line
Current | AC Power
Consumed | Thermal
Dissipation | | Condition | A | W | W | BTU/hr | A | W | W | BTU/hr | Active (1/8 power), all
channels driven | 8Ω | 0.4 | 37 | 12 | 41 | 0.2 | 36.6 | 11.6 | 40 | | 4Ω | 0.4 | 38.7 | 13.7 | 47 | 0.3 | 37.9 | 12.9 | 44 | | Quiescent (idle) | 0.1 | 8 | 8 | 27 | 0.1 | 7.8 | 7.8 | 27 | | Standby | <0.1 | <4 | <4 | <14 | <0.1 | <4 | <4 | <14 |
|
| |
| NetPA U 1002-70V |
115 VAC, 60Hz |
230 VAC, 50Hz |
AC Line
Current |
AC Power
Consumed |
Thermal
Dissipation |
AC Line
Current |
AC Power
Consumed |
Thermal
Dissipation |
| Condition |
A |
W |
W |
BTU/hr |
A |
W |
W |
BTU/hr |
Active (1/8 power), all
channels driven |
70V |
0.4 |
38 |
13 |
44 |
0.3 |
37.1 |
12.1 |
41 |
| Quiescent (idle) |
0.1 |
8.3 |
8.3 |
28 |
0.1 |
8.1 |
8.1 |
28 |
| Standby |
<0.1 |
<4 |
<4 |
<14 |
<0.1 |
<4 |
<4 |
<14 |
|
| |
| NetPA U 1002-100V |
115 VAC, 60Hz |
230 VAC, 50Hz |
AC Line
Current |
AC Power
Consumed |
Thermal
Dissipation |
AC Line
Current |
AC Power
Consumed |
Thermal
Dissipation |
| Condition |
A |
W |
W |
BTU/hr |
A |
W |
W |
BTU/hr |
Active (1/8 power), all
channels driven |
100V |
0.4 |
38.7 |
13.7 |
47 |
0.3 |
37.9 |
12.9 |
44 |
| Quiescent (idle) |
0.1 |
8.1 |
8.1 |
28 |
0.1 |
8 |
8 |
27 |
| Standby |
<0.1 |
<4 |
<4 |
<14 |
<0.1 |
<4 |
<4 |
<14 |
|
| Ambient temperature/humidity | |
| Storage | -40 to +158°F (-40 to +70°C) / 10% to 90%, non-condensing |
| Operating | +32° to +122°F (0° to +50°C) / 10% to 90%, non-condensing |
| Cooling | Convection, no vents |
| Protection | Clip limiter, thermal, short circuit, DC output |
| Indication | Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, or a short circuit.
Over Temp LED indicates when the amplifier exceeds the recommended operating temperature for optimal unit longevity.
Power LED indicates power state, DC output protection (see NetPA Ultra Series User Guide for details). |
| Mounting | |
| Rack mount | Yes, with included brackets or optional 1U rack shelf |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)
(43 mm H x 221 mm W x 267 mm D) |
| Product weight | 3.8 lbs (1.7 kg) |
| Regulatory compliance | CCC, CE, C-tick, c-UL, EN55032, EN55035, FCC Class B, ICES, KC, UL, VCCI Class B.
Meets UL 62368-1, IEC 62368-1, and BSEN 62368-1 for Multimedia Equipment.
Complies with the appropriate requirements of Ecofficient level 3, RoHS, WEEE.
UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%.
|
|
| NOTE | Specifications are subject to change without notice. |
|
| (6415-D7) |
