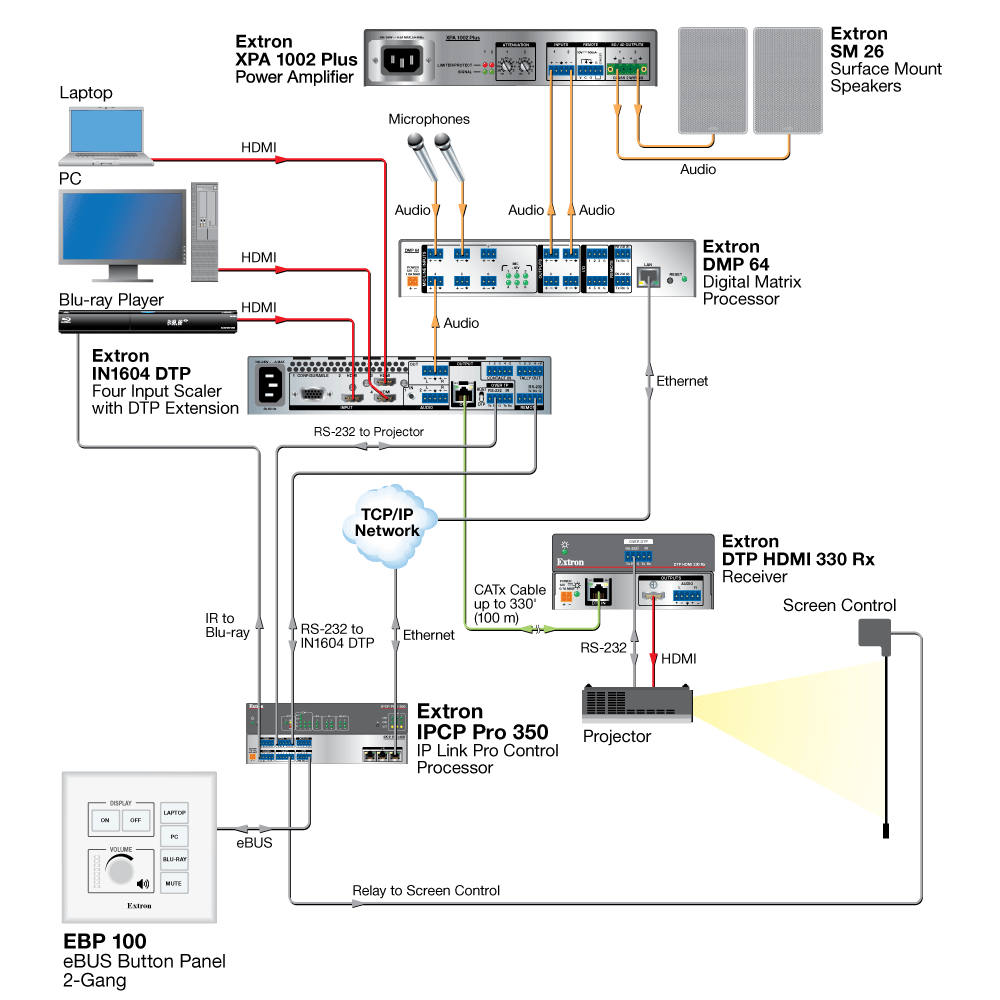

Extron EBP 100 eBUS^® 按键面板是一款完全可定制的视音频系统控制界面，设计与 Extron 具有 eBUS 功能的控制系统配合使用。该易于使用的控制面板与 IPCP Pro 控制处理器连接，可执行多种视音频系统功能，如显示设备开/关、输入切换、音量控制等。EBP 100 具有 6 个双色背光按键，即使在光线较暗的环境下也可自由操作，还有一个音量控制旋钮，可提供流畅、精准的音量调整。2 个 eBUS 端口还能用于系统扩展。eBUS 按键面板可通过单根电缆彼此连接，或与控制处理器连接，以传输电源及进行通信。EBP 100 安装在两单元接线盒中，并随附黑色和白色面板。

技术参数

EBP 100
eBUS control interface
eBUS control ports	(2) 3.5 mm captive screw connectors, 4 pole
eBUS pin configuration	+V = +12 VDC; +S = + signal; -S = - signal; G = ground
Recommended cable type	Extron STP20-2/1000 or STP20-2P/1000 cable
Maximum system cable length	1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the EBP 100 and EBP 200 Setup Guide or eBUS Technology Reference Guide for details.
Software and control options
Configuration software	Global Configurator Plus and Professional
Programming software	Global scripter
Control apps	Extron Control
Utilities	Toolbelt
General
Power	12 VDC (Power is supplied by an Extron IPCP Pro series control processor or optional power supply).
Power consumption	0.5 W
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation	1.1 BTU/hr

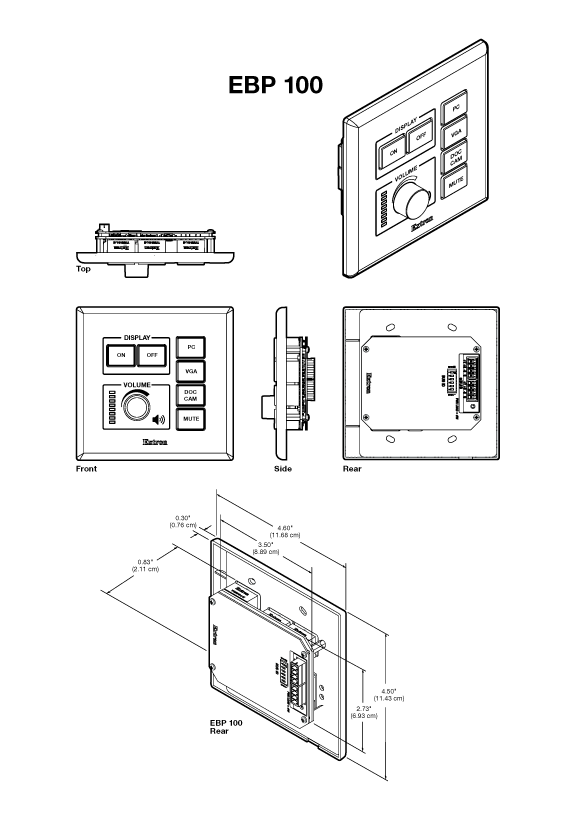

Mounting
Rack mount	No
Furniture or wall mount	Yes, in a standard US 2-gang electrical junction box or mud ring
Enclosure type	Plastic faceplate and high-impact plastic rear enclosure

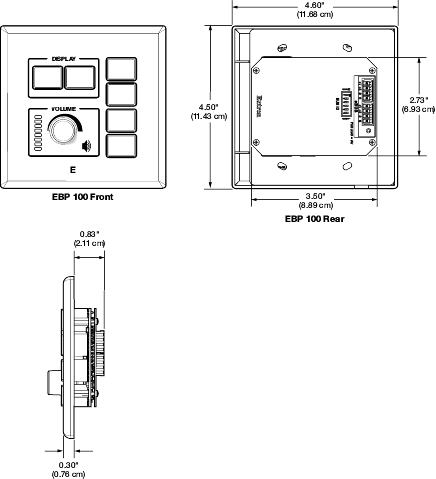

Enclosure dimensions
Faceplate	4.5" H x 4.6" W x 0.3" D (11.4 cm H x 11.7 cm W x 0.8 cm D)
Device	2.7" H* x 3.5" W x 0.8" D (6.9 cm H* x 8.9 cm W x 2.1 cm D) 2.7" H* x 3.5" W x 1.25" D (6.9 cm H* x 8.9 cm W x 3.2 cm D) including captive screw connectors (Depth excludes faceplate and buttons. Fits most 2 gang US boxes or mud rings. Allow at least 1.9" [4.7 cm] depth in the wall or furniture.)
Product weight	0.5 lb (0.2 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL
EMI/EMC	CE, C-Tick, FCC Class A, ICES, VCCI class A
Environmental	Complies with the appropriate requirements of RoHS, WEEE
Accessibility	Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29 U.S.C. 794d).
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(8.1-112116-D5)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
60-1388-01	10.2 cm	14.0 cm	14.6 cm	0.48 kg
