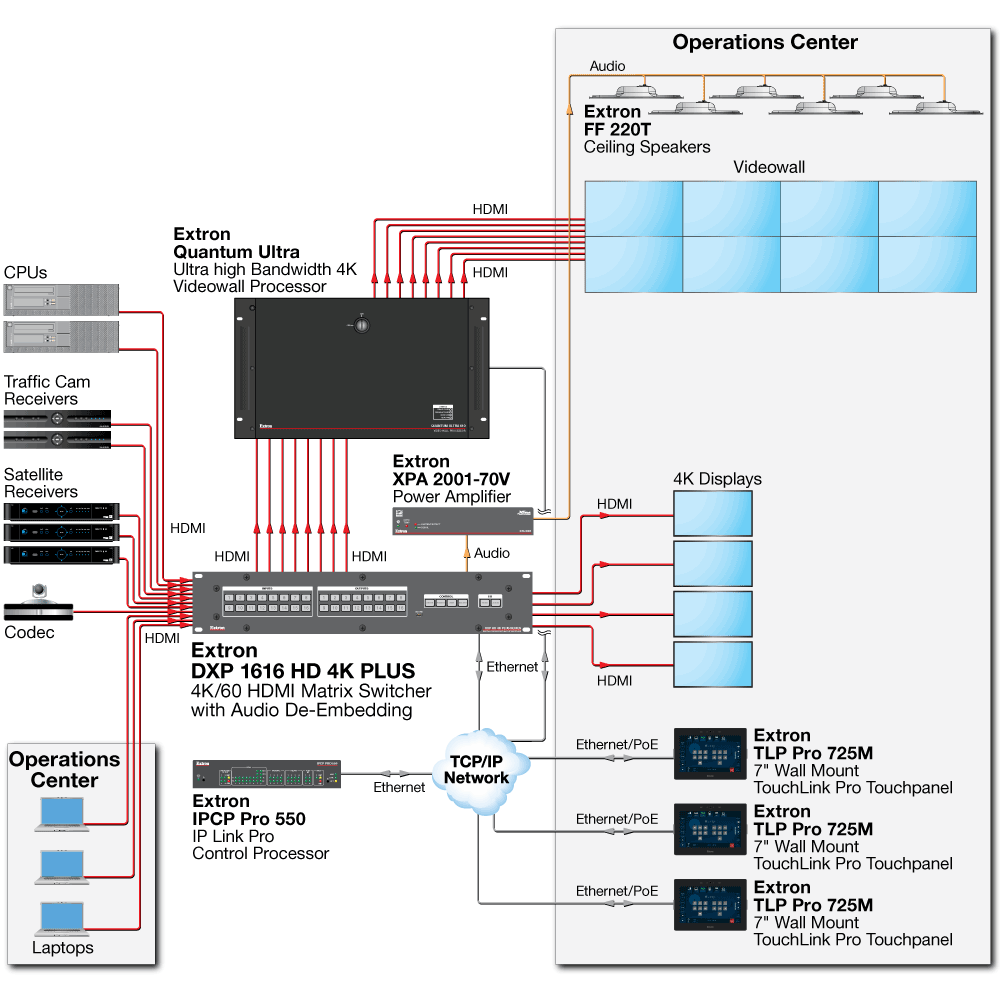

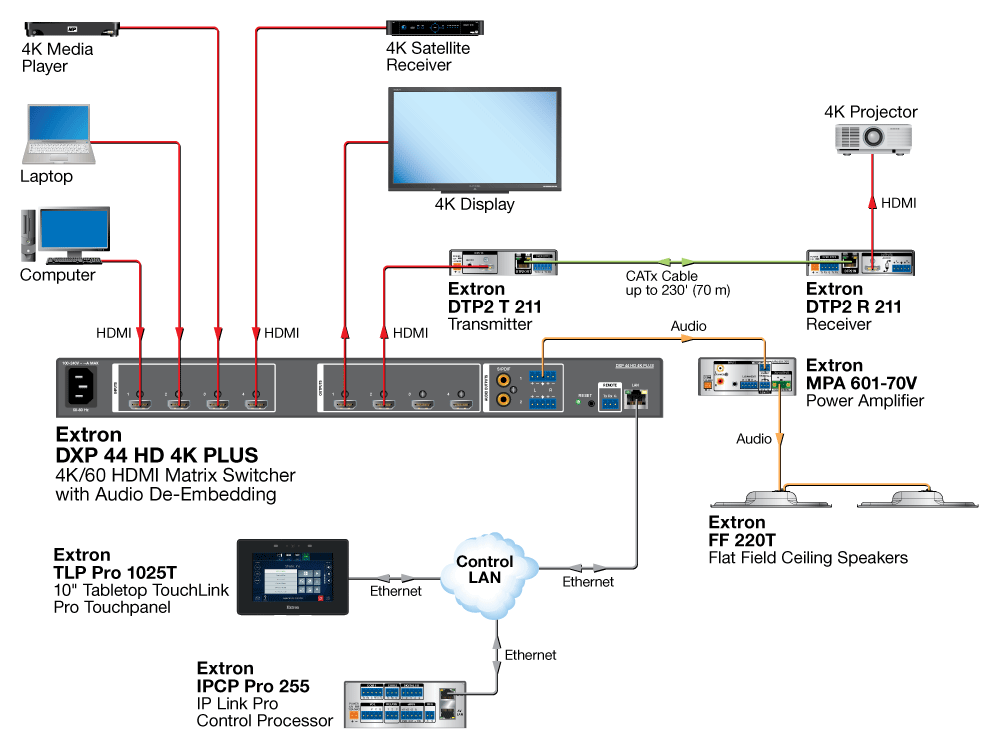

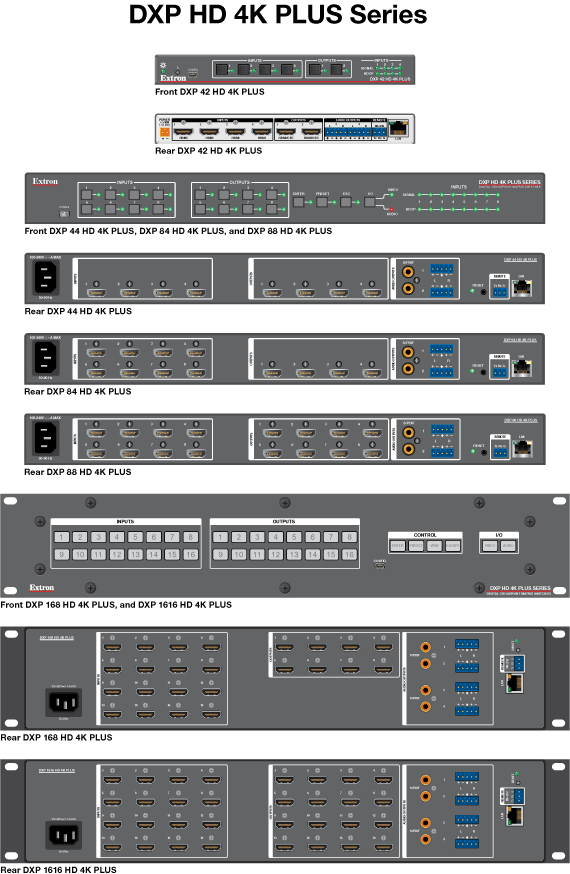

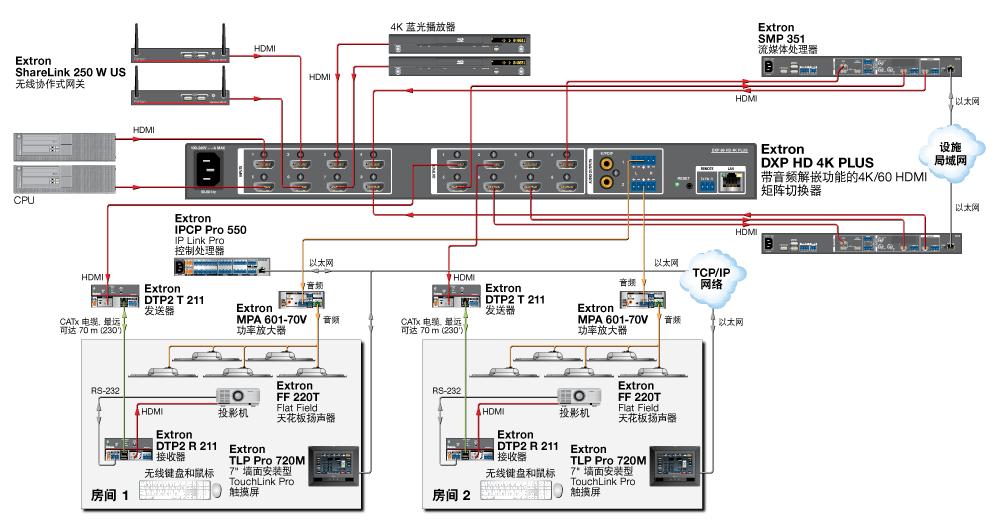

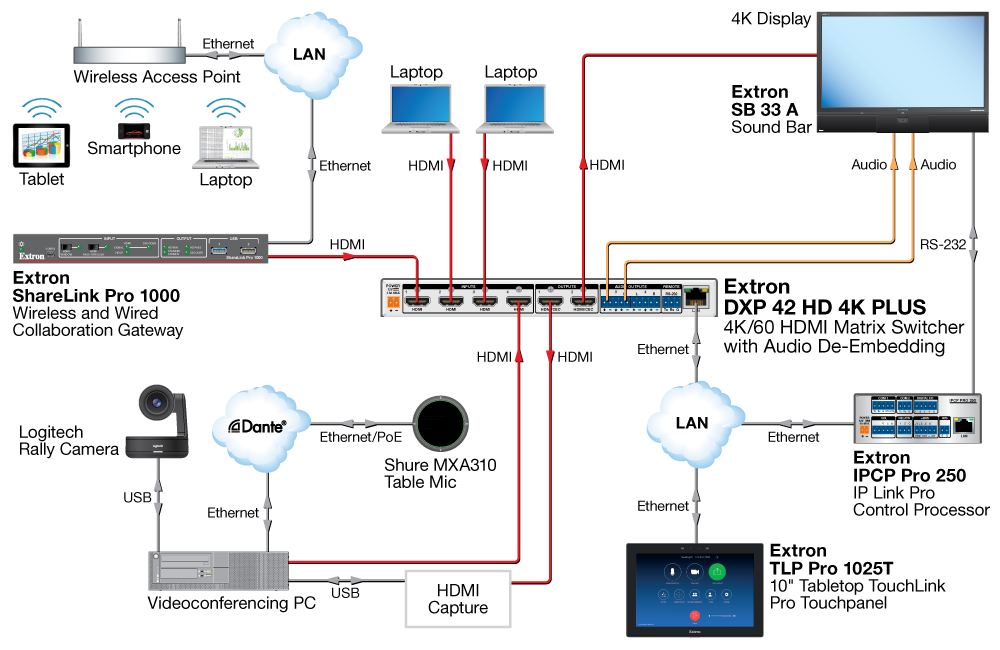

| DXP HD 4K PLUS Series |
|
 specification |
|---|
| Max. 4K Capabilities |
| Resolution and Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 4096x2160 at 60 Hz |
4:4:4 |
8 bit |
| 3840x2160 at 60 Hz |
| 4096x2160 at 30 Hz |
12 bit |
| 3840x2160 at 30 Hz |
| 4096x2160 at 60 Hz |
4:2:0 |
| 3840x2160 at 60 Hz |
|
| Frame rate1 | 24, 25, 30, 50, 60, 120, 144, 240 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0, HDCP 2.3 |
| Max. video data rate | 18 Gbps (6 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (/8Kdatarate.aspx) to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Routing | 4x2 to 16x16 matrix |
| Maximum data rate | 18 Gbps (6 Gbps per color) |
| Maximum pixel clock | 600 MHz |
| Resolution range | Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)
5120x1080* @ 30 Hz, 5120x1440* @ 30 Hz, 5120x2160 @ 30 Hz
5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz (4:4:4 chroma sampling) |
| NOTE | *Indicated rates are not available via standard 256-byte EDID and may require custom video card configuration. |
|
| Formats | RGB and YCbCr digital video |
| Standards | *DVI 1.0, HDMI 1.4, HDMI 2.0, HDCP 1.n and 2.3 |
| NOTE | *Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input and output. |
|
| NOTE | Extron strongly recommends compatibility testing while designing, and before installing, any 3D or HDR (high dynamic range) system. There are several unique 3D and HDR formats in use by source devices and display manufactorers. The level of 3D and HDR product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Application Engineer for more information. |
|
|
| Video processing |
|---|
| Digital sampling | 8, 10, or 12 bits per color |
| Colors | 1 billion (10-bit processing) |
|
| Video input |
|---|
| Number/signal type | 4, 8, or 16 HDMI digital video (HDCP compliant) |
| Connectors | 4, 8, or 16 female HDMI type A |
| Horizontal frequency | 15 KHz to 270 KHz for resolutions up to 18 Gbps |
| Vertical frequency | 24 Hz to 240 Hz for resolutions up to 18 Gbps |
| NOTE | Use our calculator (/8Kdatarate.aspx) to determine video parameters supported by these data rates. |
|
|
| Video output |
|---|
| Number/signal type | 2, 4, 8, or 16 HDMI digital video (HDCP compliant) |
| Connectors | 2, 4, 8, or 16 female HDMI type A |
| Power for active cables | 4.2 or 8.6 W total power for all HDMI ports
1.1 W per HDMI port, max. |
| Peripheral device power | 250 mA per HDMI output |
| Standards | DVI 1.0, HDMI 1.4, HDMI 2.0, HDCP 1.4 and 2.3 |
|
| Audio — DXP 42, 44, 84, 88, 168, 1616 HD 4K PLUS |
|---|
| Analog de-embedding | LPCM up to 2.0/24-bit/96 kHz |
| Supported formats — Pass through | |
| HDMI connectors | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats
DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats |
| Supported formats — S/PDIF (DXP 44, 84, 88, 168, 1616 HD 4K PLUS) | |
| LPCM | 2-channel, 16/20/24 bit depths, 32/44.1/48 kHz sampling |
| Dolby Digital (AC-3) | 6-channel, 640k mbr, 32/44.1/48 kHz sampling |
| DTS | 7-channel, 1536k max bit rate, 44.1/48 kHz sampling |
|
| Audio — individual audio groups (HDMI) |
|---|
| DXP 42 HD 4K PLUS | |
| Gain | Unbalanced output: -6 dB, balanced output 0 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.01% @ 20-20 kHz at nominal level |
| S/N | >90 dB at maximum balanced output (unweighted) |
| Crosstalk | ≤-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 1 kHz |
| DXP 44, 84, 88, 168, 1616 HD 4K PLUS | |
| Gain | Unbalanced output: 0 dB; balanced output: +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.2 dB |
| THD + Noise | 0.03% @ 1 kHz at nominal level |
| S/N | >105 dB at maximum output (unweighted) |
| Crosstalk | <-90 dB @ 20 Hz to 20 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 20 Hz to 20 kHz |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output |
|---|
| Number/signal type | 2, 4, 8, or 16 HDMI, embedded
2 or 4 stereo, balanced or unbalanced
2 or 4 S/PDIF (DXP 44, 84, 88, 168, 1616 only) |
| Connectors | |
| HDMI | 2, 4, 8, 16 female |
| Stereo audio | (2 or 4) 3.5 mm captive screw, 5 pole |
| S/PDIF | 2 or 4 female RCA (DXP 44, 84, 88, 168, and 1616 models only) |
| Impedance | |
| Stereo audio | 50 ohms unbalanced, 100 ohms balanced |
| S/PDIF | 75 ohms (DXP 44, 84, 88, 168, and 1616 HD 4K PLUS only) |
| Gain error | ±0.1 dB channel to channel |
| D/A conversion | 24-bit, 192 kHz |
| Maximum level (Hi-Z) | |
| DXP 42 HD 4K PLUS | >+12 dBu, balanced, or >+6 dBu, unbalanced |
| DXP 44, 84, 88, 168, 1616 HD 4K PLUS | >+21 dBu, balanced, or +15 dBu, unbalanced |
| Output volume range | |
| DXP 42 HD 4K PLUS | -90 to 0 dB (control 0 to 100 in 1 dB steps) |
| DXP 44, 84, and 88 HD 4K PLUS | -100 to 0 dB (control 0 to 100 in 1.3 dB steps) |
| DXP 168 and 1616 HD 4K PLUS | -90 to 0 dB (control 0 to 90 in 1.3 dB steps) |
|
| Communications |
|---|
| Serial control port | 1 bidirectional RS-232 |
| Serial control connector | (1) 3.5 mm captive screw, 3 pole (rear panel) |
| Baud rate and protocol | 300 to 115200 baud; 7 or 8 data bits; 1 or 2 stop bits; no parity, even, odd, mark, or space parity
Defaults: 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| USB control port | 1 front panel female USB mini-B |
| USB standards | USB 2.0, low speed |
| Ethernet control port | 1 female RJ-45 connector |
| Ethernet data rate | 10/100Base-T, half/full duplex with autodetect |
| Ethernet protocol | ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP |
| Ethernet default settings | Link speed and duplex level: autodetected
IP address: 192.168.254.254
Subnet mask: 255.255.0.0
Gateway: 0.0.0.0
DHCP: Off |
| Web server | Up to 200 simultaneous sessions
40.0 MB nonvolatile user memory |
| Program control | Extron Product Configuration Software (PCS)
Extron Simple Instruction Set™ (SIS™)
Microsoft® Edge®, Telnet |
|
| General |
|---|
| Power supply | |
| DXP 42 HD 4K PLUS | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| DXP 44, 84, 88, 168, 1616 HD 4K PLUS | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption (full load) | |
| DXP 42 HD 4K PLUS | |
| Device | 16 watts |
| Device and power supply | 17.5 watts |
| DXP 44 HD 4K PLUS | 20.4 watts |
| DXP 84 HD 4K PLUS | 26.6 watts |
| DXP 88 HD 4K PLUS | 30.8 watts |
| DXP 168 HD 4K PLUS | 59.3 watts |
| DXP 1616 HD 4K PLUS | 67.9 watts |
| Power consumption (power save) | |
| DXP 42 HD 4K PLUS | |
| Power save mode 1 | Device: 5.57 watts
Device with power supply: 6.99 watts |
| Power save mode 2 | Device: 5.58 watts
Device with power supply: 7.1 watts |
| DXP 44 HD 4K PLUS | 7 watts |
| DXP 84 HD 4K PLUS | 8 watts |
| DXP 88 HD 4K PLUS | 11 watts |
| DXP 168 HD 4K PLUS | 29 watts |
| DXP 1616 HD 4K PLUS | 33 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | |
| DXP 42 HD 4K PLUS | Convection, vents on top and sides |
| DXP 44, 84, 88, 168, 1616 HD 4K PLUS | Fans, air flows from right to left (as viewed from front panel) |
| Thermal dissipation (full load) | |
| DXP 42 HD 4K PLUS | |
| Device | 51.2 BTU/hr |
| Device and power supply | 56.3 BTU/hr |
| DXP 44 HD 4K PLUS | |
| 115 VAC, 60 Hz | 64.9 BTU/hr |
| 240 VAC, 50 Hz | 65.8 BTU/hr |
| DXP 88 HD 4K PLUS | |
| 115 VAC, 60 Hz | 96.8 BTU/hr |
| 240 VAC, 50 Hz | 97.3 BTU/hr |
| DXP 168 HD 4K PLUS | |
| 115 VAC, 60 Hz | 194.6 BTU/hr |
| 220 VAC, 50 Hz | 191.1 BTU/hr |
| DXP 1616 HD 4K PLUS | 217 BTU/hr |
| 115 VAC, 60 Hz | 216.5 BTU/hr |
| 220 VAC, 50 Hz | 212.9 BTU/hr |
| Mounting | |
| DXP 42 HD 4K PLUS | |
| Rack mount | Yes, with optional rack shelf kit
Back of the rack mountable with optional back-of-the-rack mounting kit |
| Furniture mount | Yes, with optional under-desk mounting kit |
| DXP 44, 84, and 88 HD 4K PLUS | |
| Rack mount | Yes, with included brackets |
| DXP 168 and 1616 HD 4K PLUS | |
| Rack mount | Yes (has built-in brackets) |
| Enclosure type | Metal |
| Enclosure dimensions | |
| DXP 42 HD 4K PLUS | 1.0" H x 8.75" W x 8.0" D (half rack wide)
(25 mm H x 222 mm W x 152 mm D)
(Depth excludes connectors.) |
| DXP 44, 84, and 88 HD 4K PLUS | 1.75" H x 17.5" W x 9.5" D (1U high, full rack wide)
(44 mm H x 445 mm W x 241 mm D)
(Depth excludes connectors and knobs. Width excludes rack ears.) |
| DXP 168 and 1616 HD 4K PLUS | 3.5" H x 17.4" W x 9.5 D (2U high, full rack wide)
(89 mm H x 432 mm W x 241 mm D)
(Depth excludes connectors and knobs. Width excludes rack ears.) |
| Product weight | |
| DXP 42 HD 4K PLUS | 1.5 lbs (0.7 kg) |
| DXP 44 HD 4K PLUS | 5.2 lbs (2.3 kg) |
| DXP 84 HD 4K PLUS | 5.3 lbs (2.4 kg) |
| DXP 88 HD 4K PLUS | 5.5 lbs (2.5 kg) |
| DXP 168 HD 4K PLUS | 8.2 lbs (3.7 kg) |
| DXP 1616 HD 4K PLUS | 8.8 lbs (4.0 kg) |
| Regulatory compliance | CE, C-tick, c-UL, UL, FCC Class A, ICES, KC, VCCI, RoHs, and WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | Specifications are subject to change without notice. |
|
| NOTE | All nominal levels are at ±10%. |
|
| (6100-D12) |
