| ACP 106 D Control Panel |
|

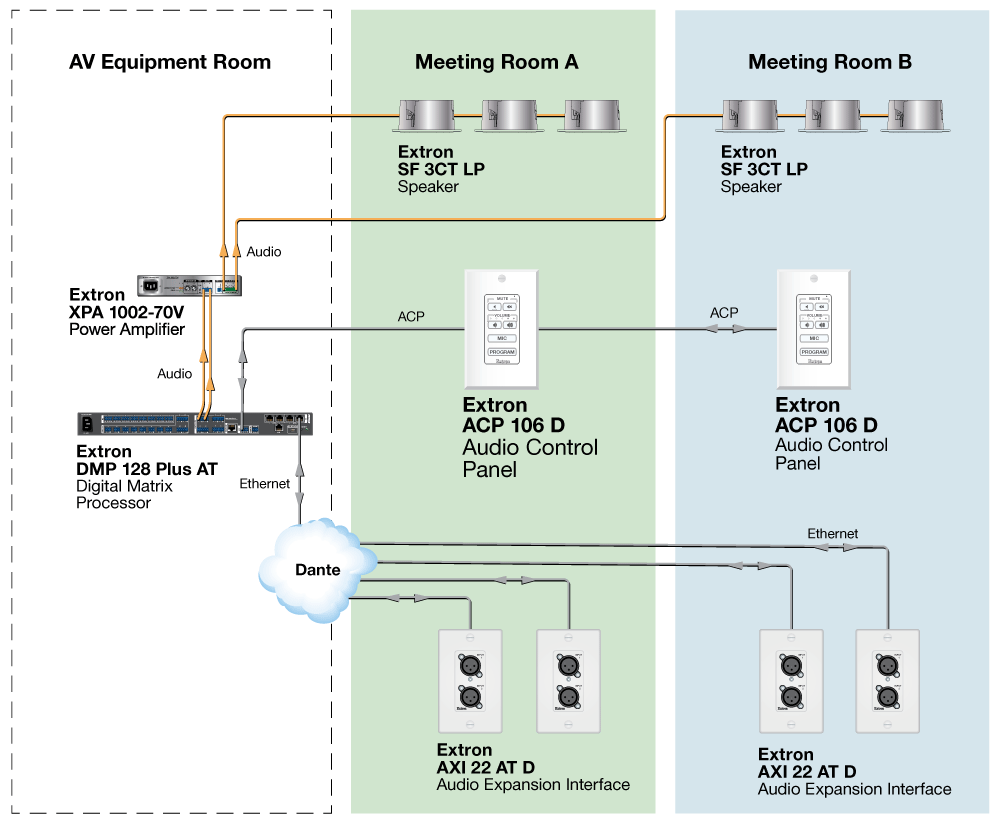

| ACP Control Interface |
|---|
| ACP control ports | (2) 3.5 mm captive screw connectors, 4 pole |
| ACP pin configuration | +V = +12 VDC; +S = + signal; -S = - signal; G = ground |
| Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable |
|
| Software Configuration |
|---|
| Software | Extron DSP Configurator |
|
| General |
|---|
| Power | Power is supplied by an ACP enabled processor or optional power supply |
| ACP power consumption | 1.5 watts, 12 VDC (Device only) |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Mounting | |
| Rack mount | No |
| Furniture or wall mount | Yes, in a standard US 1-gang electrical junction box or mud ring |
| Enclosure type | Plastic faceplate, metal mounting plate |

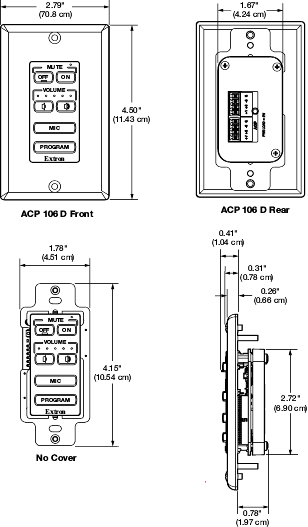

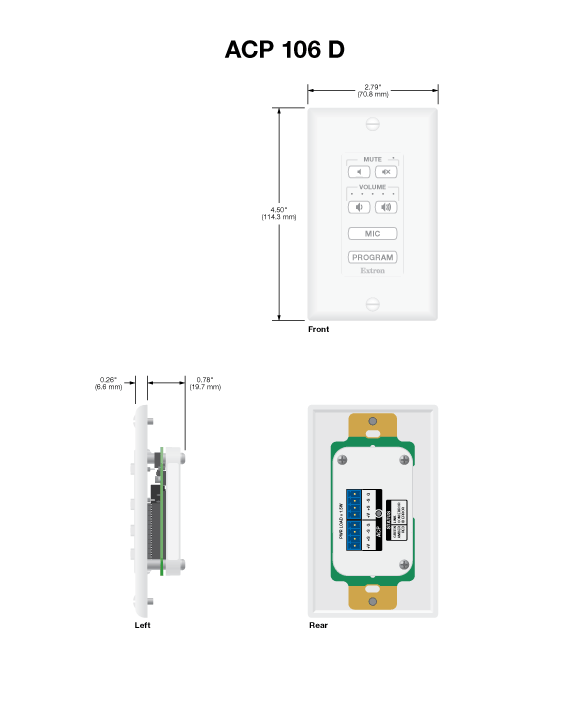

| Enclosure dimensions | |
| Coverplate | 4.5" H x 2.8" W x 0.3" D (11.4 cm x 7.1 cm x 0.7 cm) |
| Faceplate | 4.2" H x 1.8" W x 0.8" D (10.5 cm x 4.5 cm x 2 cm)
(Fits the opening in a 1-gang decorator-style wallplate) |
| Device | 2.7" H x 1.7" W x 0.8" D (6.9 cm x 4.2 cm x 2 cm)
(Depth excludes faceplate and buttons) |
| Device and captive screw | 2.7" H x 1.7" W x 1.25" D (6.9 cm x 4.2 cm x 3.2 cm) |
| Product weight | 0.2 lbs (0.1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI Class A |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE |
| Accessibility | Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29 U.S.C. 794d) |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| |  |
| (040717-D2) |
