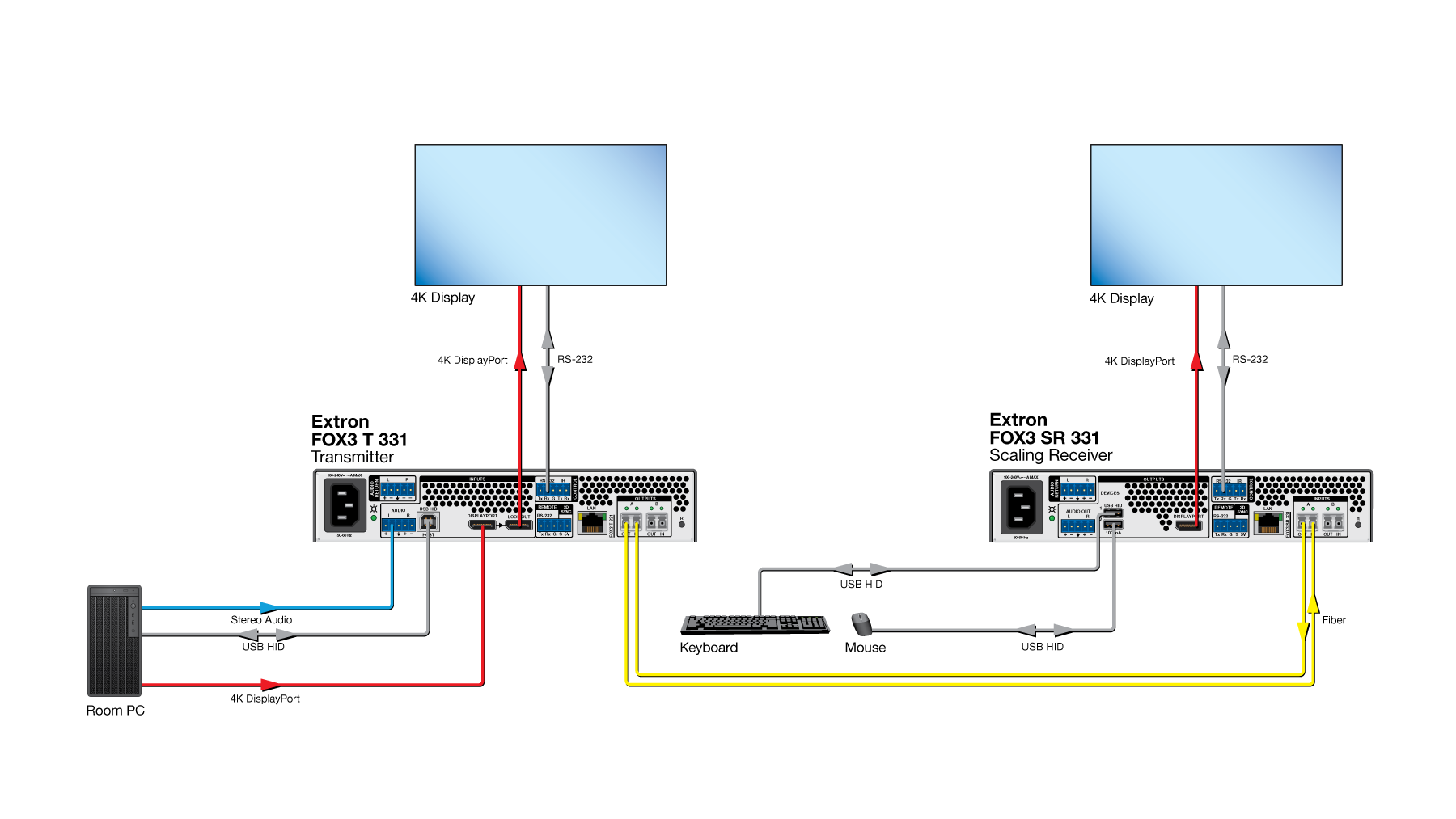

| FOX3 SR 321/331 |
|
 specification |
|---|
| Max. 4K Capabilities |
| Resolution and Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 4096 x 2160 at 60 Hz1 |
4:4:4 |
8 bit |
| 3840 x 2160 at 60 Hz1 |
| 4096 x 2160 at 30 Hz1 |
10 bit |
| 3840 x 2160 at 30 Hz1 |
| 4096 x 2160 at 60 Hz2 |
4:2:2 |
| 3840 x 2160 at 60 Hz2 |
| 4096 x 2160 at 30 Hz2 |
4:4:4 |
| 3840 x 2160 at 30 Hz2 |
|
| Frame rate3 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling3 | 4:4:4, 4:2:2 |
| Color bit depth2,3 | 8 or 10 bits per color |
| Signal Type | DP 1.2a |
| Max. video data rate | 21.6 Gbps (5.4 Gbps per lane) |
| NOTE | 1Supports lossless 4K video over one fiber or uncompressed 4K video over two fibers.
2Supports 12-bit color bit depth for uncompressed 4K video over two fibers. When using a FOX3 SR scaling receiver, the scaler must be in bypass mode to pass 4K video with a 12-bit color bit depth.
3Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
| NOTE | This product contains Class 1 laser. It meets the safety regulation of IEC 60825-1, FDA 21 CFR 1040.10,
and FDA 21 CFR 1040.11. |
|
|
| Optical fiber interconnection between transmitter and receiver |
|---|
| Number/type | 1 or 2 SFPs |
| Connectors | 2 or 4 LC connectors |
| Operating distance | |
| Singlemode | 20 km (12.4 miles) with singlemode (SM) cables |
| Multimode | 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables |
| NOTE | The system works with OM1, OM2, and OM3 fiber at reduced distances. |
|
| NOTE | Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. |
|
| Nominal peak wavelength | 850 nm for multimode, 1310 nm for singlemode |
| Data rate | 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers) |
| Transmission power | |
| Singlemode | -5.2 dBm, typical |
| Multimode | -3.3 dBm, typical |
| Maximum receiver sensitivity | |
| Singlemode | -12.6 dBm, typical |
| Multimode | -13.0 dBm, typical |
| Optical loss budget | |
| Singlemode | +7.4 dB, maximum |
| Multimode | +9.7 dB, maximum |
|
| Video |
|---|
| Maximum data rate | 21.6 Gbps (5.4 Gbps per lane) |
| Maximum pixel clock | 594 MHz |
| Resolution range | 640x4808 up to 4096x21601,2,3,4,5,6,7,8,
480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9,
2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8
123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz |
| Frame rate | 24, 25, 30, 50, 60, or 120 fps |
| Color space | 4:4:4, 4:2:2 |
| Color bit depth | 8 or 10 bits per color |
| Standards | DP 1.2a |
| Horizontal frequency | 24 kHz to 135 kHz for resolutions up to 18 Gbps |
| Vertical frequency | 24 Hz to 120 Hz for resolutions up to 18 Gbps |
| Format | RGB and YCbCr digital video |
|
| Video output |
|---|
| Number/signal type | 1 single link DisplayPort |
| Connectors | 1 female DisplayPort type A |
| Scaled resolution | 640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x9008, 1600x12008, 1920x12008, 2048x12008, 2048x15368, 2560x10808, 2560x14408, 2560x16008, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8
480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2K1,2,3,4,5,6,7,8,
1 custom, bypass
123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz |
|
| Audio |
|---|
| Gain | Unbalanced output: -6dB; balanced output: 0 dB (default) |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.1% @ 20 Hz to 20 kHz at nominal level |
| S/N | >90 dB at maximum output (unweighted) |
| CMRR | 65 dB @ 20 Hz to 20 kHz |
| Stereo channel separation | >80 dB @ 1 kHz |
| Bit depth | 16, 20, 24 |
| Sampling rate | 48 kHz |
|
| Audio output |
|---|
| Number/signal type | 1 digital audio, de-embedded from DisplayPort (2-CH, PCM only) or
1 analog stereo, balanced/unbalanced |
| Connectors | 1 female DisplayPort (shared with video output)
(1) 3.5 mm captive screw connector, 5 pole |
| Supported formats | |
| DisplayPort | 2 CH LPCM |
| Analog | Analog stereo audio |
| Impedance | 50 ohms unbalanced, 100 ohms balanced (analog only) |
| Maximum level (Hi-Z) | +21 dBu balanced, +15 dBu unbalanced |
| Gain error | ± 0.5 dB channel to channel |
| Volume control range | 100% to 0% (0 - 100 in 1% steps) |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio return input |
|---|
| Number/signal type | 1 analog stereo, balanced/unbalanced |
| Connectors | (1) 3.5 mm captive screw connector, 5 pole
|
| Impedance | ≥10 k ohms unbalanced, ≥20 k ohms balanced |
| Nominal level | +4 dBu (1.23 Vrms), -10 dBV (316 mVrms) |
| Maximum level | +21 dBu balanced, +15 dBu unbalanced |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Communications |
|---|
| USB configuration port | |
| Number/type | 1 front panel mini USB B, female |
| Standard | Ethernet over USB |
| USB standards | USB 2.0, low speed |
| Serial host control port |
| Control | 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel |
| Pass-through | 1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel |
| Baud rate and protocol | |
| Control | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Pass-through | 9600 to 115,200 baud |
| Serial control pin configuration | Captive screw: 1 = Tx, 2 = Rx, 3 = GND |
| IR control port | (1) 3.5 mm captive screw connector, 5 pole (connector is shared with RS-232 pass thru) TTL level (0 to 5V) modulated infrared control from 30 kHz to 56 kHz |
| IR control pin configuration | 3 = GND, 4 = IR Tx, 5 = IR Rx |
| Ethernet control | |
| Ethernet port | 1 RJ-45 connector, female |
| Ethernet data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off |
| Program control | Extron Product Configuration Software
Extron Simple Instruction Set (SIS™) |
|
| USB extension (USB) |
|---|
| USB standards | USB 2.0, USB 1.1, USB 1.0 compatible |
| USB data rates | Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480Mbps) |
|
| USB host ports |
|---|
| FOX3 SR 321 | |
| Number/signal type | (1) 2-port USB HID (No external hubs can be connected to these ports)
(1) 1-port USB 2.0 |
| Connectors | 3 USB type A, female (2 USB HID and 1 USB 2.0) |
| Maximum built-in USB hubs | 0 |
| Minimum built-in USB hubs | 0 |
| Available USB power | USB 2.0 port = 500 mA
USB HID ports = 100 mA |
| FOX3 SR 331 | |
| Number/signal type | (1) 2-port USB HID (No external hubs can be connected to these ports) |
| Connector | 2 USB type A, female (2 USB HID) |
| Maximum built-in USB hubs | 0 |
| Minimum built-in USB hubs | 0 |
| Available USB power | USB HID ports = 100 mA |
| NOTE | When configured endpoint to endpoint, there are 0 hubs. When configured with a FOX3 Matrix, there is 1 hub. |
|
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption | |
| FOX3 SR 321 | 29.1 watts |
| FOX3 SR 331 | 26.1 watts |
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents TBD |
| Thermal dissipation | |
| FOX3 SR 321 | 75.7 BTU/hr |
| FOX3 SR 331 | 73.3 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional rack shelf |
| Furniture mount | Yes, with optional under desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 8.75" W x 8.5" D (1U, half rack wide)
(4.4 cm H x 22 cm W x 15 cm D)
(Depth excludes connectors.) |
| Product weight | |
| FOX3 SR 321 | 2.4 lbs (1.1 kg) |
| FOX3 SR 331 | 2.4 lbs (1.1 kg) |
| Regulatory compliance | CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6337-D2) |
