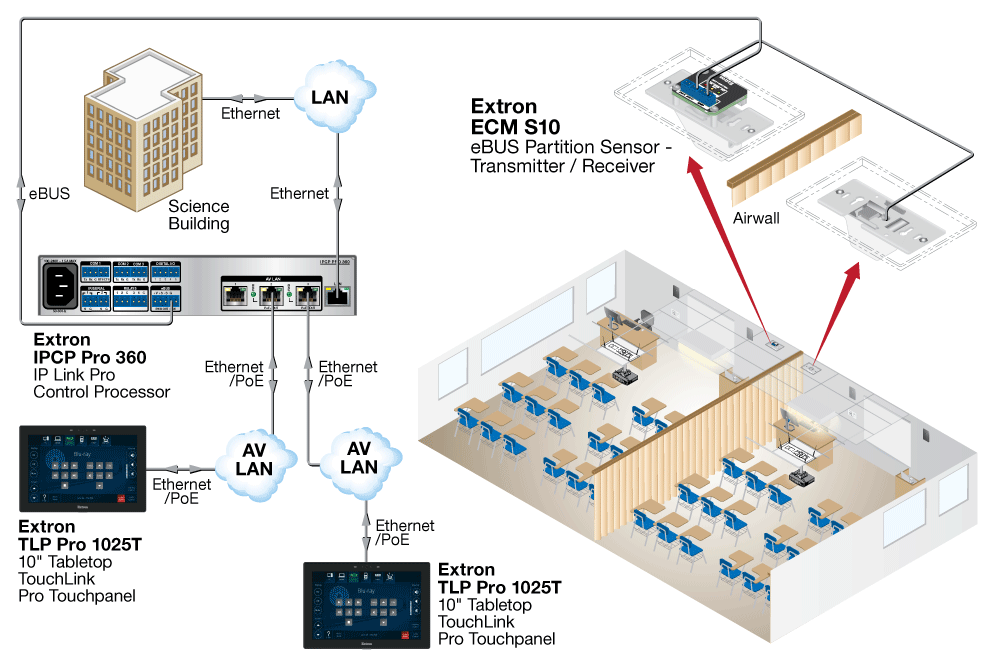

Extron ECM S10 是一款隔断感应器，可根据可分离式房间隔断的位置实现视音频系统自动化控制。该装置可与任一配备有数字化输入/输出端口或 eBUS 端口的 Extron Pro 系列设备直连。它采用红外光束来感应可分离式房间内的移动式隔断位置。ECM S10 接收器具有 1 路数字输出端口和 1 路用来为发送器供电的 14 VDC 输出。为了便于集成，类似 ECM  S10 的 eBUS 控制模块可通过单根电缆与控制处理器连接，或与其它 eBUS 设备连接以传输电源及进行通信。ECM S10 发送器和接收器可分别安装在 1 个美式一单元、欧式或 MK 接线盒中，并随附白色超大 decorator 型墙面板。

技术参数

ECM S10
eBUS control interface
eBUS control	(1) 3.5 mm captive screw connectors, 4 pole
eBUS pin configuration	+V = +12 VDC; +S = + signal; -S = - signal; G = ground
Recommended cable type	Extron STP20-2/1000 or STP20-2P/1000 cable
Maximum system cable length	1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the ECM S10 Setup Guide or eBUS Technology Reference Guide for details.
ECM S10 — Receiver
Digital output
Connectors	(1) 3.5 mm captive screw connectors, 2 pole
Low logic	0 VDC ~ 2.0 VDC
High logic	2.8 VDC ~ 5.0 VDC
Hysteresis	0.8 VDC
Pullup	fixed
Power output
Connector	(1) 3.5 mm captive screw connectors, 2 pole provides power to transmitter
Power output	14 VDC @ 100 mA
Detecting Distance	10 feet (3.0 m)
Operating angle	Transmitter/Receiver 3-15 degrees
ECM S10 — Transmitter
Light source	Infrared LED (870 nm wavelength)
Software and control options
Configuration software	Global Configurator Plus and Professional
Programming software	Global Scripter
Control apps	Extron Control
Utilities	Toolbelt
General
Power
Transmitter	14 VDC (supplied by ECM S10 receiver)
Receiver	12 VDC (Power is supplied by an Extron IPCP Pro series control processor or optional power supply)
Power consumption	1.0 watts (transmitter and receiver combined)
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 35% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 35% to 85%, noncondensing
Cooling	Convection, no vents
Thermal dissipation	2.6 BTU (transmitter and receiver combined)
Mounting
Rack mount	No
Furniture or wall mount	Yes, in a standard 1-gang US, EU or MK junction box. Oversized 1-gang Decorator style faceplate (included).
Enclosure type	Plastic faceplate, metal mounting plate

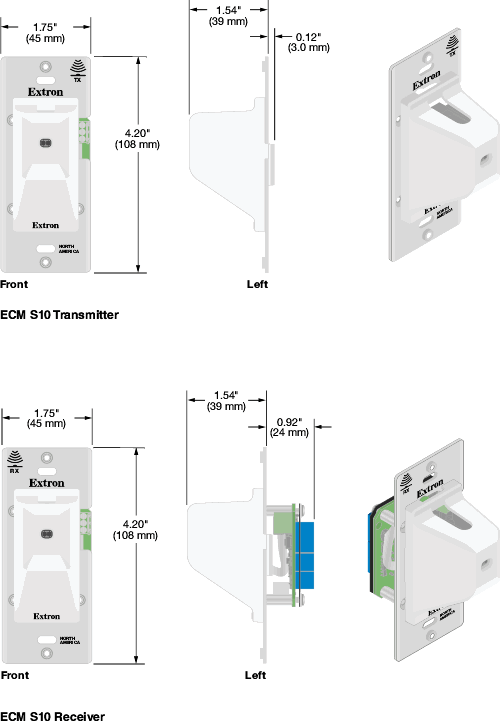

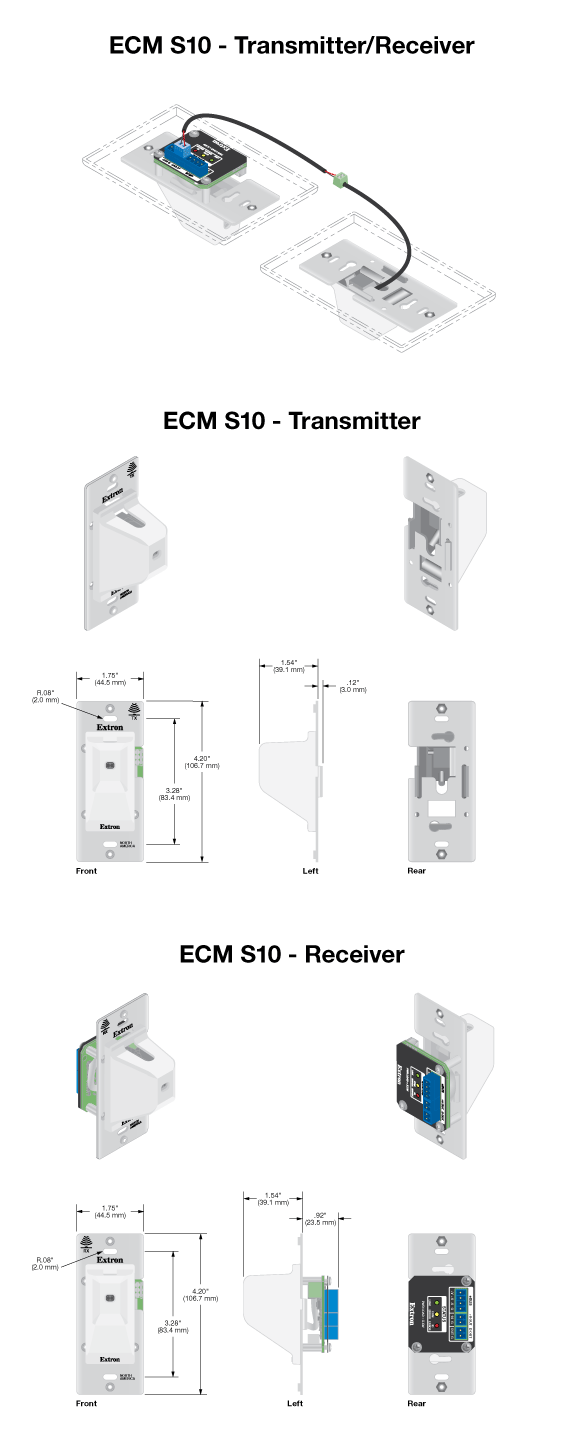

Enclosure dimensions
Faceplate	(Transmitter and Receiver) Oversized 1-gang Decorator style (included) 5.25" H x 3.50" W (134 mm H x 89 mm W)
Device
Transmitter	4.20" H x 1.75" W x 1.66" D (108 mm H x 45 mm W x 42 mm D)
Receiver	4.20" H x 1.75" W x 2.46" D (108 mm H x 45 mm W x 63 mm D)
Product weight
Transmitter	0.15 lb (0.07 kg)
Receiver	0.20 lb (0.09 kg)
Regulatory compliance	CE, c-UL, C-Tick, FCC Class A, ICES, RoHS, UL, VCCI class A, WEEE
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4783-D3)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
60-1705-03	7.0 cm	33.8 cm	23.2 cm	0.57 kg
