| SF 3C LP |
|
| Audio/acoustic and electrical |
|---|
| Speaker type | Low profile ceiling speaker with composite back can |
| Frequency range | 65 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5) |

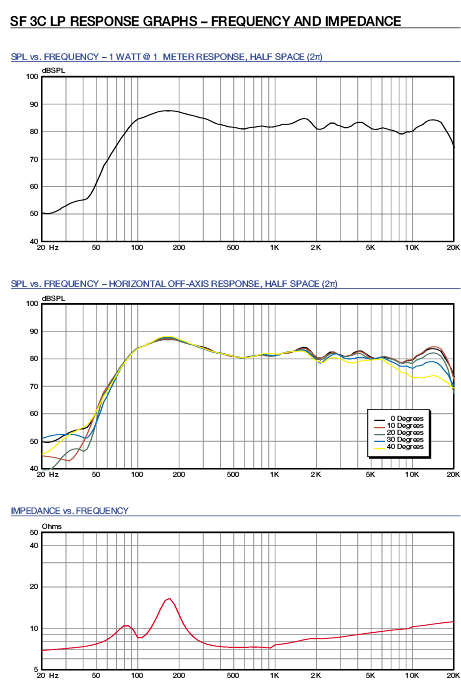

| Frequency response | 265 Hz to 19 kHz, +/-3 dB, half space |
| Power capacity | 16 W (rms) continuous pink noise (per IEC 60268-5)
32 W (rms) continuous program |
| Nominal sensitivity | 83 dB SPL, 1 W, 1 m, 8 ohms direct, half space (per IEC 60268-5) |

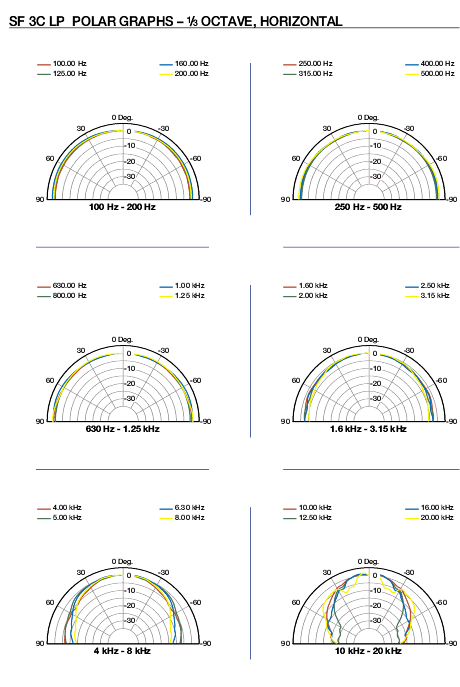

| Nominal coverage angle | 165° conical coverage (1 kHz to 4 kHz) |
| Nominal impedance | 8 ohms |
| Driver | (1) 3" (76 mm) paper cone |
| Input connector | (1) 5 mm captive screw connector, 4 pole for 1 input and 1 loop-through |
|
| General |
|---|
| Package | 2 speakers (1 pair) |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Mounting | Ceiling mountable with included hardware:
V-rails for 2' x 4' (600 mm x 1200 mm) ceiling tiles, and C-rings |
| Enclosure type | Plenum rated, fire-resistant (UL94V-0) composite back can/baffle;
Magnetically attached powder-coated steel grille with plastic bezel. |

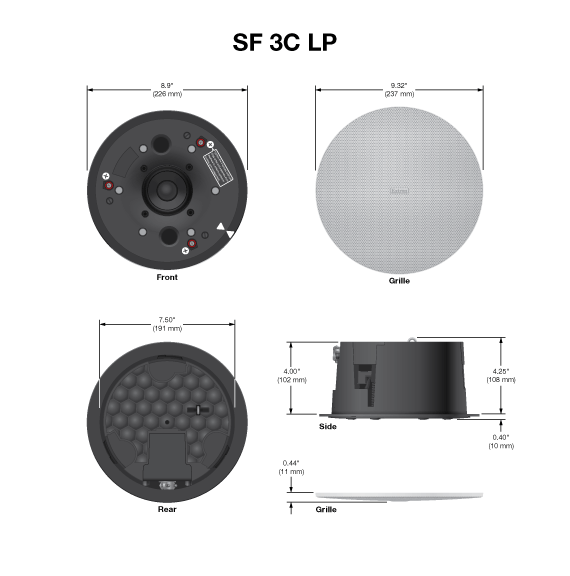

| Enclosure outer dimensions | 4.4" H x 8.9" diameter
(112 mm x 226 mm diameter)
4.0" H (102 mm H) from front of ceiling tile to top of enclosure |
| Cutout dimensions | 7.6" diameter
(191 mm diameter) |
| Product weight | 2.9 lbs (1.3 kg) each |
| Regulatory compliance | |
| Safety | CE, UL 2043, UL1480, NFPA 90A, NFPA 70
UL Listed for use in plenum airspaces:
UL 2043 listed for heat and smoke release,
UL 1480 listed for commercial and professional
audio systems |
| Environmental | RoHS, WEEE |
| Product warranty | 5 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
 |
 |
| (8.1-063016-D1) |
