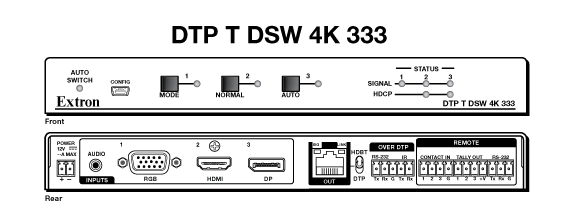

| DTP T DSW 4K Series |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30, 502, or 602 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:02 |
| Color bit depth1 | 8 bits per color |
| Signal type1 | HDMI 1.4 , DisplayPort 1.1a, HDCP 1.4 |
| Max. video data rate1 | |
| HDMI | 10.2 Gbps (3.4 Gbps per color) |
| DisplayPort | 10.8 Gbps (2.7 Gbps per lane) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (www.extron.com/8Kdatarate) to determine video parameters supported by this data rate.
2Applicable to HDMI signals only. |
|
| | |
|
| Video |
|---|
| VGA input | |
| Gain | Unity |
| Bandwidth | 170 MHz (-3 dB) |
| Crosstalk | -50 dB @ 10 MHz, -30 dB @ 100 MHz |
| HDMI input | |
| Maximum data rate | 10.2 Gbps (3.4 Gbps per color) |
| Maximum pixel clock | 300 MHz |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz,
UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
(*Reduced blanking) |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E |
| DisplayPort Input | |
| Maximum data rate | 10.8 Gbps (2.7 Gbps per lane) |
| Maximum pixel clock | 300 MHz |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz
(*Reduced blanking) |
| Formats | RGB and YCbCr digital video |
| Standards | DisplayPort 1.1a |
|
| Video input |
|---|
| Number/signal type | |
| VGA input | 1 VGA-WUXGA RGBHV |
| HDMI input | 1 single link HDMI (or DVI-D*) |
| DisplayPort Input | 1 DisplayPort |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
| Connectors | |
| VGA input | 1 female 15-pin HD |
| HDMI input | 1 female HDMI, type A |
| DisplayPort Input | 1 female DisplayPort |
| VGA input | |
| Nominal level | 1.0 Vp-p |
| Minimum/maximum levels | Analog 0.3 V to 1.5 Vp-p with no offset |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 145 kHz |
| Vertical frequency | 30 Hz to 170 Hz |
| Return loss | <-40 dB @ 5 MHz |
|
| Video output |
|---|
| Number/signal type | |
| DTP T DSW 4K 233 | 1 DTP 230 (output) |
| DTP T DSW 4K 333 | 1 DTP 330 (output) |
|

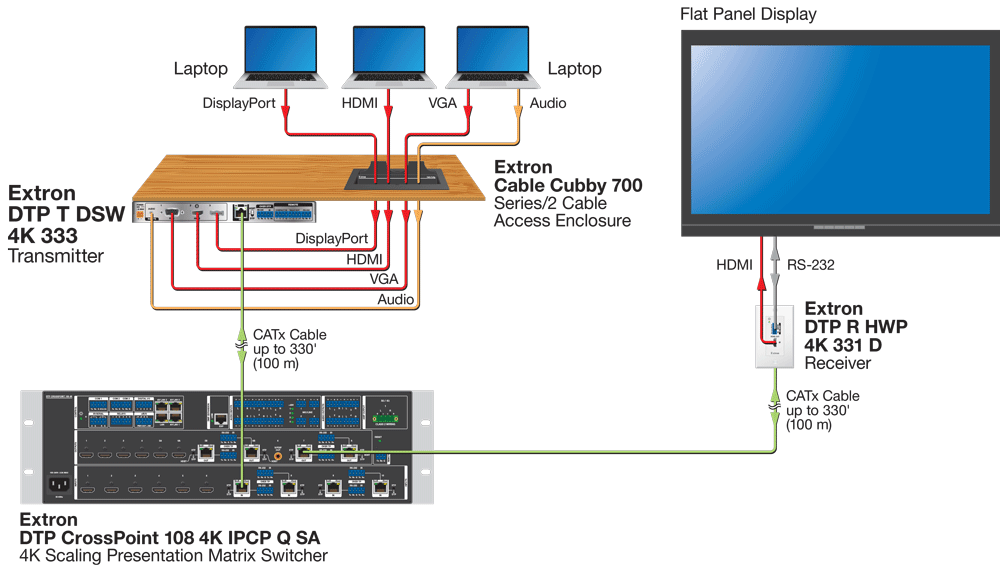

| Interconnection between transmitter and receiver |
|---|
| Connectors | 1 RJ-45 jack |
| Termination standards | TIA/EIA T568B |
| DTP signal | |
| Signal transmission distance | |
| DTP T DSW 4K 233 | |
| 1080p @ 60 Hz | Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 2560x1600 @ 60 Hz | Up to 130' (40 m) using STP cable or XTP DTP 24 cable |
| 4K/UHD @ 30 and 60 Hz | Up to 130' (40 m) using STP cable or XTP DTP 24 cable |
| DTP T DSW 4K 333 | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 2560x1600 @ 60 Hz | Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| 4K/UHD @ 30 and 60 Hz | Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth STP cable |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| NOTE | Output mode signaling:
DTP: HDMI with embedded audio, analog audio, RS-232 and IR, and remote power

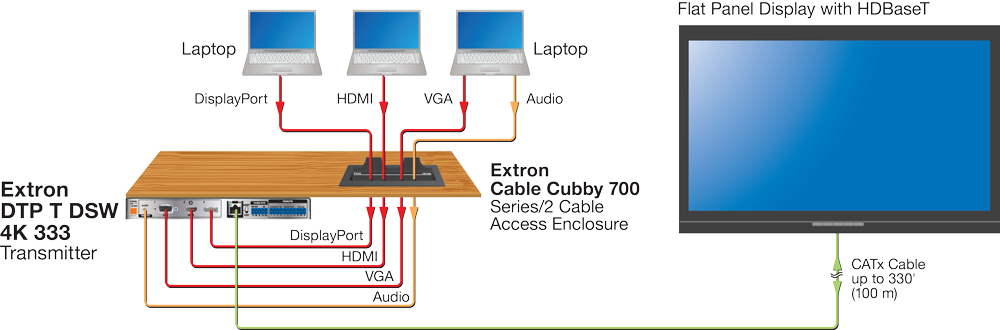

HDBaseT: HDMI with embedded audio plus RS-232 and IR |
|
|
| Sync — VGA |
|---|
| Input type | RGBHV, bi-level and tri-level sync |
| Input level | 1.9 V to 5.0 Vp-p |
| Input impedance | 510 ohms |
| Max. input voltage | 5.0 Vp-p |
|
| Audio |
|---|
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.03% @ 1 kHz at nominal level |
| S/N | >90 dB at maximum input (unweighted) |
| Stereo channel separation | >80 dB @ 1 kHz |
|
| Audio input |
|---|
| Number/signal type | 1 stereo, unbalanced |
| Connectors | (2) 3.5 mm stereo jack, 2 channel; tip (L); ring (R); sleeve (Gnd) |
| Impedance | >10k ohms, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +6 dBV, unbalanced |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Control/remote — switcher |
|---|
| Serial control port | RS-232 via 1 rear panel 3.5 mm, 3-pole captive screw connector |
| Pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| Baud rate and protocol | 9600 baud rate, 8 data bits, 1 stop bit, no parity |
| Contact closure | (1) 3.5 mm, 4-pole captive screw connector |
| Pin configuration | Pin 1 = input 1 contact, Pin 2 = input 2 contact,
Pin 3 = input 3 contact, Pin 4 = Gnd |
| Tally output | (1) 3.5 mm, 4-pole captive screw connector |
| Pin configuration | Pin 1 = input 1 tally ground, Pin 2 = input 2 tally ground,
Pin 3 = input 3 tally ground, Pin 4 = +5 V |
| USB control port | 1 front panel female mini USB B |
| USB standards | USB 2.0, low speed |
| Program control | Extron Simple Instruction Set (SIS™) |
|
| Control/remote — external device (RS-232/IR over TP) |
|---|
| NOTE | Protocol is mirrored between the connected DTP 230 Rx or DTP 330 Rx endpoints and the "Over TP" ports on the
DTP T DSW 4K series. Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP 230 Rx or DTP 330 Rx endpoints for control of remote sink or source devices. The "Over TP" ports are simply pass-through connections to DTP endpoints. There is no RS-232 or IR insertion from any
DTP T DSW 4K control port to the "Over TP" ports. |
|
| Serial control port | Bidirectional RS-232 via 1 rear panel 3.5 mm, 5-pole captive screw connector (connector is shared with IR control ports) |
| Baud rate and protocol | 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| IR pass-through control port | 1 bidirectional rear panel 3.5 mm, 5-pole captive screw connector
(connector is shared with RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
| IR control pin configuration | 3 = Gnd, 4 = IR Tx, 5 = IR Rx |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 2 A, 24 watts |
| NOTE | This product requires a locally connected power supply. It can provide remote DC power to a connected DTP receiver over twisted pair. |
|
| Power consumption | |
| Device | |
| DTP T DSW 4K 233 | 6.8 watts |
| DTP T DSW 4K 333 | 7.1 watts |
| Device and power supply | |
| DTP T DSW 4K 233 | 8.4 watts |
| DTP T DSW 4K 333 | 8.6 watts |
| Remote power budget | |
| DTP T DSW 4K 233 | 12 watts |
| DTP T DSW 4K 333 | 12 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | |
| DTP T DSW 4K 233 | 23.1 BTU/hr |
| DTP T DSW 4K 333 | 24.2 BTU/hr |
| Device and power supply | |
| DTP T DSW 4K 233 | 28.6 BTU/hr |
| DTP T DSW 4K 333 | 29.3 BTU/hr |
| Rack mount | Yes, with optional rack shelf kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 8.75" W x 6.0" D (1" high, half rack wide)
2.5 cm H x 22.2 cm W x 15.2 cm D (depth excludes connectors) |
| Product weight | 1.1 lbs (0.5 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE**, C-tick, FCC Class A**, ICES |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE |
| NOTE | **CE and FCC testing is conducted with STP cable. |
|
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5454-D6) |
