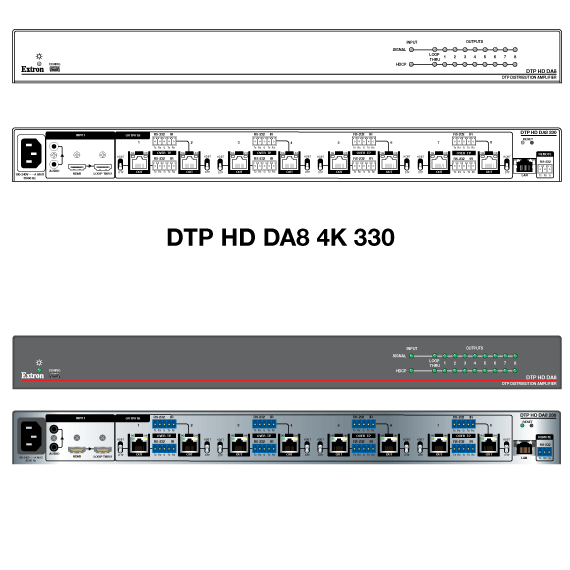

| DTP HD DA 4K 330 Series |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8 bits per color |
| Signal Type | HDMI 1.4, HDCP 1.4 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
| | |
|
| Video |
|---|
| Maximum data rate | 10.2 Gbps (3.4 Gbps per color) |
| Maximum pixel clock | 300 MHz |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz,
4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
(*Reduced blanking) |
| Color bit depth | 8, 10, or 12 bits — subject to the maximum data rate limit |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E |
|
| Video input |
|---|
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for HDMI signal input/output. |
|
| Number/signal type | 1 single link HDMI (or DVI-D*) |
| Connectors | 1 female HDMI type A |
|
| Video output |
|---|
| Number/signal type | 1 single link HDMI (Local Output) |
| DTP HD DA4 4K 330 | 4 DTP 330 |
| DTP HD DA8 4K 330 | 8 DTP 330 |
|
| Interconnection between transmitter and receivers |
|---|
| Connectors | |
| DTP HD DA4 4K 330 | 4 female RJ-45 |
| DTP HD DA8 4K 330 | 8 female RJ-45 |
| Termination standards | TIA/EIA T568B |
| Signal transmission distance | |
| DTP HD DA4/DA8 4K 330 | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 2560x1600 @ 60 Hz | Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| 4K/UHD @ 30 and 60 Hz | Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth STP cable |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| NOTE | Output mode signaling:

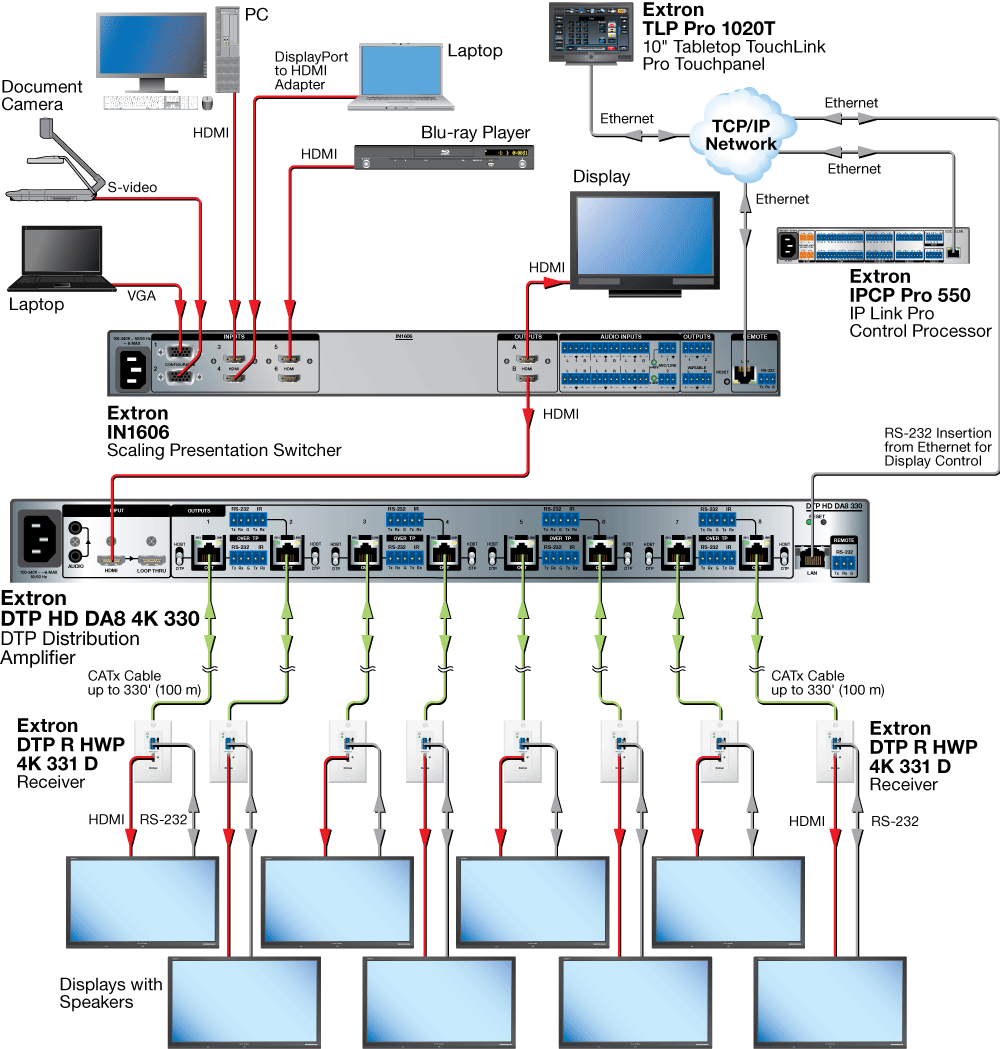

DTP: HDMI with embedded audio, analog audio, RS-232 and IR, and remote power

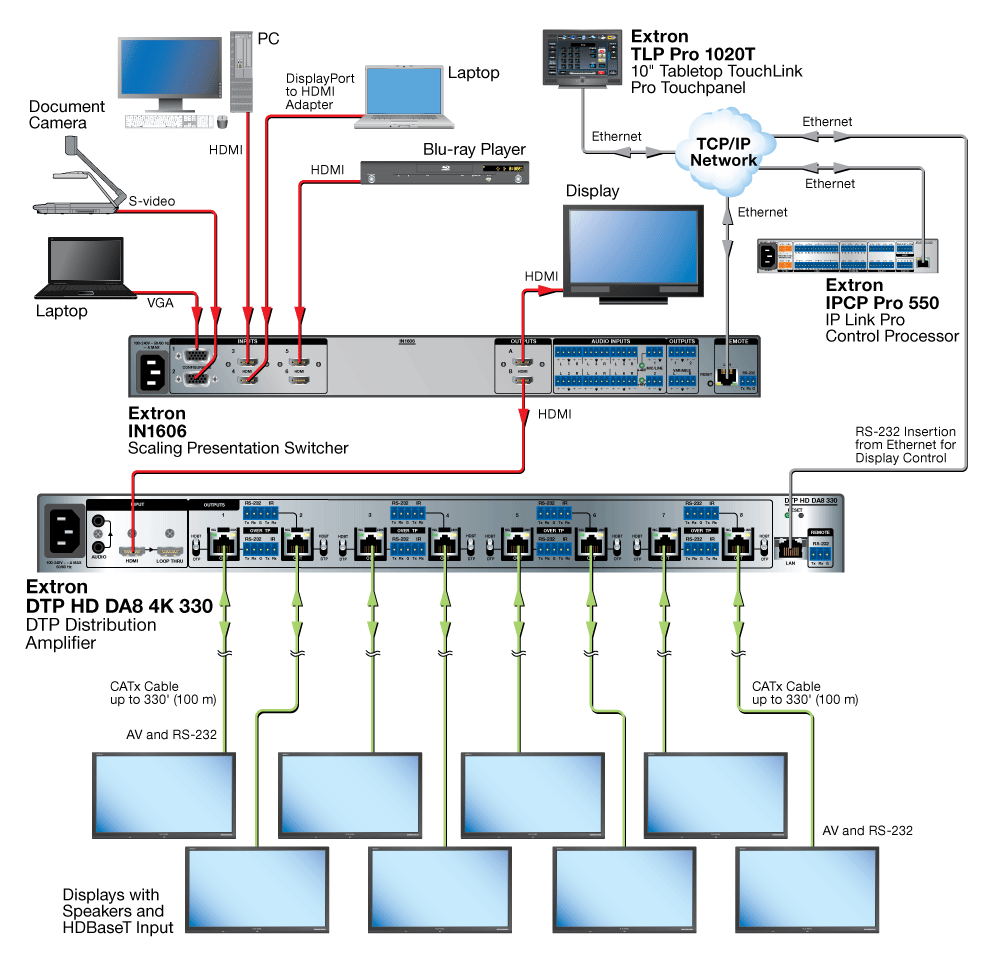

HDBaseT: HDMI with embedded audio plus RS-232 and IR
|
|
|
| Audio (analog audio) |
|---|
| Gain | Unbalanced output (from receiver): 0 dB; balanced output (from receiver): +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±1 dB |
| THD + Noise | 0.03% @ 1 kHz; 0.3% @ 20 kHz at nominal level |
| S/N | >90 dB at maximum input (unweighted) |
| Stereo channel separation | >80 dB |
| Digital sampling rate | 48 kHz |
| Bit Depth | 16 bit |
|
| Audio input (analog audio) |
|---|
| Number/signal type | 1 PC level stereo, unbalanced |
| NOTE | Analog audio is not embedded onto the digital video signal. Analog audio and digital embedded audio are transmitted simultaneously and output on the receiver on two different connectors. |
|
| Connectors | (1) 3.5 mm stereo jack, 2 channel; tip (L); ring (R); sleeve (ground) |
| Impedance | >10k ohms, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +7 dBV, unbalanced |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output |
|---|
| Number/signal type | |
| Local output | 1 PC level stereo, unbalanced |
| DTP output | 4 or 8 embedded digital audio on DTP signal |
| Embedded digital audio source formats | 2-ch PCM, PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1,
Dolby Digital EX, DTS Digital Surround 5.1, DTS-ES Matrix 6.1
DTS-ES Discrete 6.1
|
| Connectors | |
| Local | (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground) |
| DTP | 4 or 8 female RJ-45 |
| Impedance | >50 ohms, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +6.5 dBV (unbalanced) |
|
| Control/remote |
|---|
| Serial control port | RS-232, 3.5 mm, 3 pole captive screw connector |
| Baud rate and protocol | 9600 baud rate, 8 data bits, 1 stop bit, non-parity |
| Serial control pin configurations | Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd |
| USB control ports | 1 front panel female Mini USB-B |
| USB standards | USB 2.0, low speed |
| Ethernet data rate | 10/100Base-T, half/full duplex, with autodetect |
| Ethernet protocol | ARP, ICMP (ping), IP, TCP, DHCP, HTTP, Telnet, SMTP, SSH |
| Program control | Extron's Simple Instruction Set (SIS™), Extron Product Configuration Software (PCS), Microsoft Edge, Telnet |
|
| Communications — external device (RS-232/IR over TP) |
|---|
| Serial control port | RS-232 via (4) or (8) 3.5 mm, 5 pole captive screw connectors
(connectors are shared with IR control ports) |
| Baud rate and protocol | 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity |
| Serial control pin configuration | Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd |
| IR pass-through control port | (4) or (8) 3.5 mm, 5 pole captive screw connectors (connectors are shared with RS-232 control ports)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
| IR control pin configuration | 3 = Gnd, 4 = IR Tx, 5 = IR Rx |
| NOTE | Protocol is mirrored between the connected DTP 230 Rx or DTP 330 Rx endpoints and the "Over TP" ports on the DTP HD DA series. Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP 230 Rx or DTP 330 Rx endpoints for control of remote sink or source devices. The "Over TP" ports are simply pass-through connections to DTP endpoints. There is no RS-232 or IR insertion from any DA control port to the "Over TP" ports. |
|
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption | |
| DTP HD DA4 4K 330 | 46.3 watts |
| DTP HD DA8 4K 330 | 80.8 watts |
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +104°F (0 to +40°C) / 10% to 90%, noncondensing |
| Cooling | Fans, air flows from right to left (when viewed from the front) |
| Thermal dissipation | |
| DTP HD DA4 4K 330 | 87.8 BTU/hr |
| DTP HD DA8 4K 330 | 132 BTU/hr |
| Rack mount | Yes, with included rack ears |
| Enclosure type | Metal |
| Enclosure dimensions | |
| DTP HD DA4 4K 330 | 1.75" H x 17.5" W x 10.6" D (1U high, full rack wide)
(4.4 cm H x 44.4 cm W x 26.8 cm D, depth excludes connectors) |
| DTP HD DA8 4K 330 | 1.75" H x 17.5" W x 10.6" D (1U high, full rack wide)
(4.4 cm H x 44.4 cm W x 26.8 cm D, depth excludes connectors)
|
| Product weight | |
| DTP HD DA4 4K 330 | 4.9 lbs (2.2 kg) |
| DTP HD DA8 4K 330 | 5.0 lbs (2.3 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE**, C-tick, FCC Class A**, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE |
| NOTE | **CE and FCC testing is conducted with STP cable. |
|
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5714-D10) |
