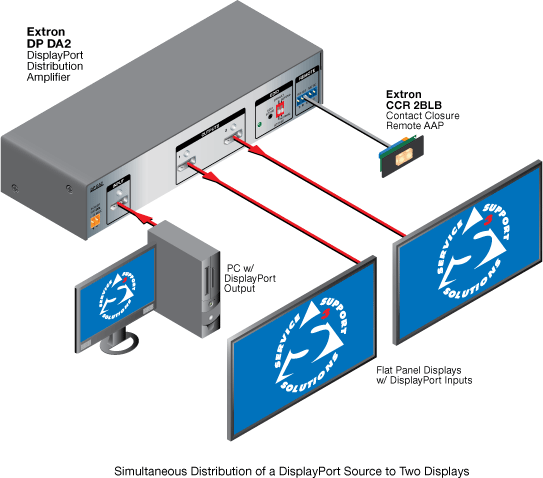

| DP DA2 |
|
| Video |
|---|
| Maximum data rate | Up to 10.8 Gpbs (2.7 Gpbs per lane) |
| Maximum pixel clock | 268 MHz |
| Resolution range | Up to 2560x1600 @ 60 Hz (Normal) and up to 3840x1080 @ 60 Hz (Extend) |
| Formats | RGB and YCbCr digital video |
| Standards | DisplayPort 1.1a, HDCP, VGA*, HDMI*, DVI 1.0* |
| NOTE | *VGA, HDMI and DVI are available only in Dual Mode. |
|
|
| Video input |
|---|
| Number/signal type | 1 DisplayPort |
| Connectors | 1 female DisplayPort |
| Input cable length | Up to 25' (7.6 m) |
|
| Video output |
|---|
| Number/signal type | 2 DisplayPort |
| Connectors | 2 female DisplayPort |
| Output cable length | 25' (7.6 m) |
|
| Control |
|---|
| Serial control port | 1 RS-232, 3.5 mm, 5-pole captive screw connector (shared with mute) |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| Contact closure | (1) 3.5 mm, 5-pole captive screw connector (shared with RS-232) for video mute |
| Contact closure pin configuration | 3 = GND, 4 = mute 1, 5 = mute 2
Pins 4 and/or 5 (labeled 1 and 2) shorted to G (ground) mute video output. |
| USB control port | 1 female mini USB B, front panel |
| USB standards | USB 2.0, low speed |
| Program control | Extron Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts |
| Power consumption | |
| Device | 4.3 watts |
| Device and power supply | 5.4 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, unvented |
| Thermal dissipation | |
| Device | 13.9 btu/hr |
| Device and power supply | 17.7 btu/hr |
| Mounting | |
| Rack mount | Yes, with optional rack shelf kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.75" H x 8.75" W x 3.0" D (half rack wide)
4.4 cm H x 22.2 cm W x 7.6 cm D
(Depth excludes connectors) |
| Product weight | 0.5 lbs (0.2 kg) |
| Shipping weight | 2 lbs (1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (8.0-071912-D2) |
