Extron DisplayPort 系列成品电缆设计为配备了 DisplayPort 端口的设备提供并保持数字连接，同时支持 1.2 标准。它们可以确保对 DisplayPort 设备的高分辨率信号进行完美的传输。长度为 12' (3.6 m) 或以内的电缆支持分辨率高达 4K/60 Hz (4096 x 2160) 的信号。而 25' (7.6 m) 长的电缆则支持分辨率达 4K/30 Hz 的信号。Extron DisplayPort 电缆适用范围广泛，包括需要更高的视频分辨率、刷新率和色深等增强型性能的应用环境。这些成品电缆备有 3' (90 cm)、12' (3.6 m) 和 25' (7.6 m) 3 种长度可选，并且提供了用于安全连接的闭锁连接器。

技术参数

DisplayPort M-M Cable
Performance/electrical — cable
Standards	DisplayPort 1.2
Bit rate	1.62, 2.7, or 5.4 Gbps per pair
Data rates	Up to 21.6 Gbps
Voltage	30 V
Pair impedance	100 ohms ±10 ohms
Attenuation	At 100-450 MHz: <5 dB per 3 m At 0.45-1 GHz: <7.7 dB per 3 m At 1-2 GHz: <12.6 dB per 3 m At 2-3 GHz: <17.5 dB per 3 m At 3-4 GHz: <22.4 dB per 3 m At 4-5 GHz: <27.3 dB per 3 m At 5-7 GHz: <37.1 dB per 3 m
Skew
Intrapair	≤50 ps per 2 m
Interpair	≤4 ns per 2 m
Connectors
Connector type	1 male latching DisplayPort to 1 male latching DisplayPort
Contacts	Gold plated

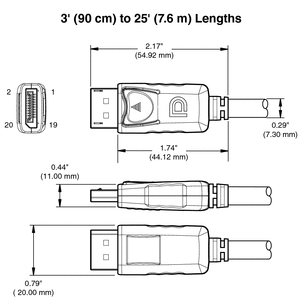

Connector dimensions	2.17" L x 0.79" W x 0.44" H (54.9 mm L x 20.0 mm W x 11.0 mm H)
General — physical characteristics
Material
Conductor	Tinned copper
Drain	Tinned copper
Shielding	Braid, tinned copper
Jacket	PVC
Conductor guage	28 AWG
Drain guage	30 AWG
Dimensions
Cable outer diameter	0.30" (7.6 mm ±0.15 mm)
Bend radius	3.0" (76 mm)
Regulatory compliance
Safety	UL CL2
Temperature rating	80 °C
Product warranty	Limited Lifetime Performance
NOTE     Dimensions given above exclude the cable length.
NOTE     Specifications are subject to change without notice.
(4115-D3)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
26-657-25	5.1 cm	17.1 cm	17.1 cm	0.61 kg
