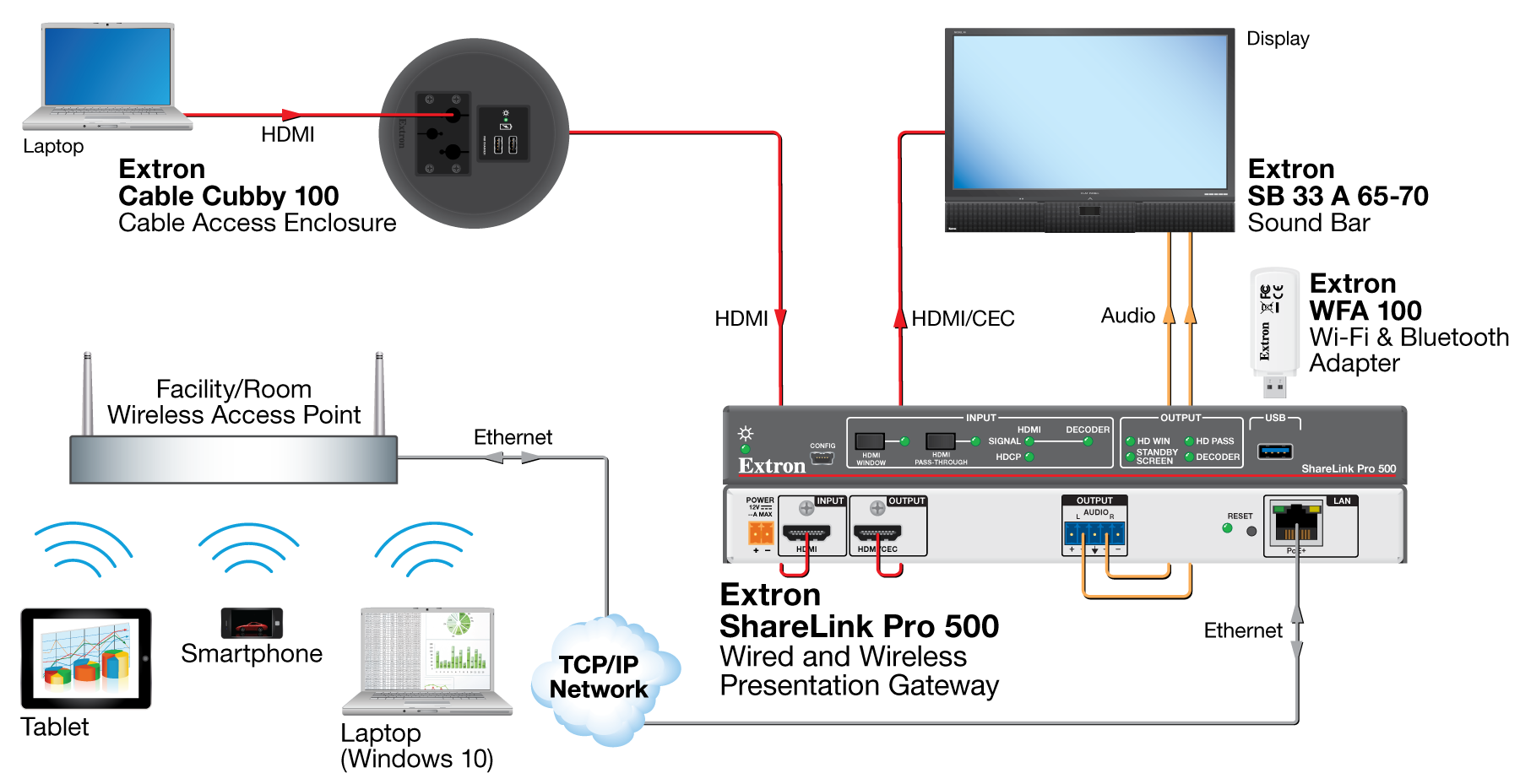

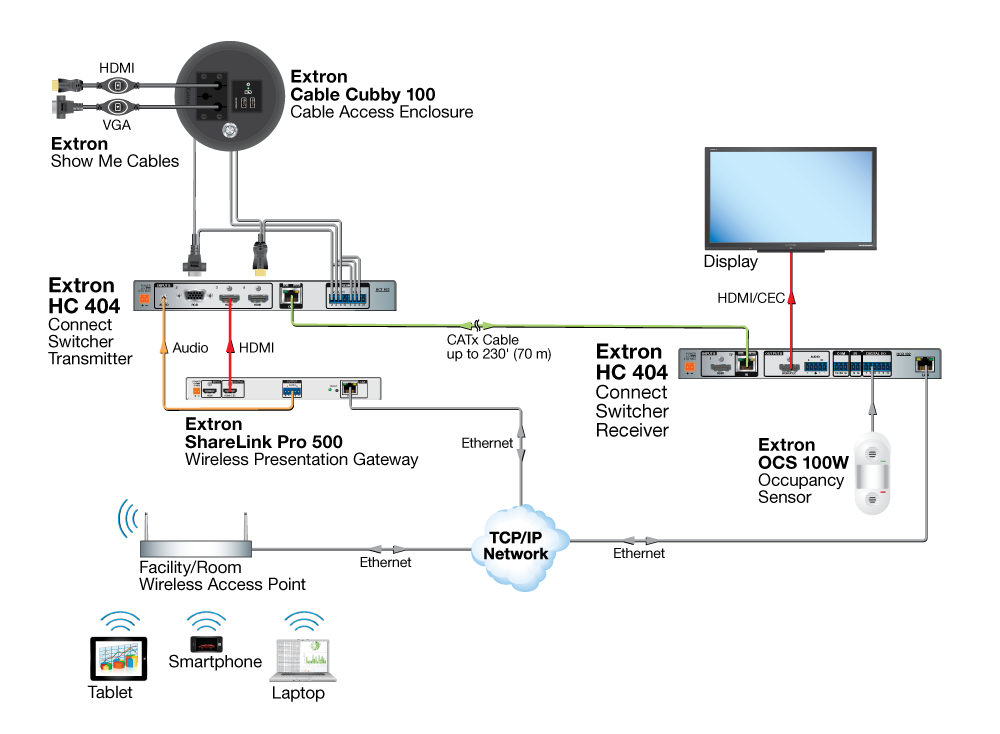

| ShareLink Pro 500 |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0b, HDCP 2.3 |
| Max. video data rate | 18 Gbps (6 Gbps per color) |
| Maximum pixel clock | 600 MHz |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at /8Kdatarate to determine video parameters supported by this data rate. |
|
| NOTE | The specifications above apply only to pass-through mode. |
|
| | |
|
| Software and control options |
|---|
| ShareLink™ Pro | ShareLinkTM Pro for Windows®
ShareLinkTM Pro for macOS® |
| Operating systems | Windows 10 and later
macOS 12.0 and later |
| Supported formats | |
| NOTE | The following formats apply only to the Share Image or Video feature. These formats may include video and audio codecs that are not supported. |
|
| Video file formats | 264, AVI, M2T, M2TS, M4V, MKV, MOV, MP4, MPG, SDP, TS |
| Image file formats | BMP, JPG, PNG, TIFF |
| Supported codecs | |
| NOTE | The following codecs apply only to the Mirror Screen feature. |
|
| Video codecs | VP8 |
| Audio codecs | OPUS |
| NOTE | The following codecs apply only to the Share Image or Video feature. |
|
| Video codecs | MPEG-2, MPEG4/XviD (Simple Profile), H.264 (Baseline, Main, High, Stereo SEI
Profile), VC1 (Simple, Main, Advanced Profile), WEBM VP8, MJPEG |
| Audio codecs | AAC-LC (MPEG-2 part 7, MPEG-4 part 3, sub part 4 and part 14, MP4 mono or stereo audio, max 384 kbps)
PCM mono or stereo 16 kHz to 96 kHz, 16-bit to 32-bit |
| Image codecs | BMP, JPG, PNG, TIFF |
| ConferenceShare™ | ShareLink Pro for Windows®
ShareLink Pro for macOS® |
| Operating systems | Windows 10 and later
macOS 12.0 and later |
|
| Mobile apps and features |
|---|
| Software | ShareLink Pro for AndroidTM
ShareLink Pro for iOS |
| Operating systems | Android 13.0 and later
Apple® iOS 15.0 and later |
| Supported formats | |
| NOTE | The following formats apply only to the Share Image or Video feature. These formats may include video and audio codecs that are not supported. |
|
| Video file formats | 264, AVI, M2T, M2TS, M4V, MKV, MOV, MP4, MPG, SDP, TS |
| Image file formats | BMP, JPG, PNG, TIFF |
| Supported codecs | |
| NOTE | The following codecs apply only to the Share Image or Video feature. |
|
| Video codecs | Android and iOS:
MPEG-2, MPEG4/XviD (Simple Profile), H.264 (Baseline, Main, High, Stereo SEI Profile), VC1 (Simple, Main, Advanced Profile), WEBM VP8, MJPEG
Android (Mirror Screen feature only):
VP8
|
| Audio codecs | AAC-LC (MPEG-2 part 7, MPEG-4 part 3, sub part 4 and part 14, MP4 mono or stereo audio, max 384 kbps)
PCM mono or stereo 16 kHz to 96 kHz, 16-bit to 32-bit |
| Image codecs | BMP, JPG, PNG, TIFF |
|
| Native Screen Mirroring |
|---|
| Apple screen mirroring | |
| Operating systems | Apple iOS 15.0 and later, Apple macOS® 12.0 and later |
| Miracast | |
| Operating systems | Windows 10 version 1903 or later (Extron WFA 100 required) |
|
| Video input |
|---|
| Number/signal type | 1 HDMI digital video |
| Connectors | 1 female HDMI type A |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 75 Hz |
| Resolution range (Window mode) | 640x480 @ 60 Hz to 1920x1200 @ 60 Hz (includes 480p, 576p, 720p, 1080p) |
| Resolution range (Pass-through mode) | 640x480 @ 60 Hz to 4096x2160 @ 60 Hz (includes 480i, 480p, 576i, 576p, 720i,
720p, 1080i, 1080p, 2K, 4K) |
| Standards | DVI 1.0, HDMI 2.0, HDCP 2.3 |
| NOTE | HDCP content is passed through if the display is authenticated. If not authenticated, the video output is green or black (configurable). |
|
|
| Video processing — HDMI window mode |
|---|
| Maximum data rate | 6.75 Gbps (2.25 Gbps per color) |
| Maximum pixel clock | 225 MHz |
| Frame rates | 24, 25, 30, 50, or 60 fps |
| Chroma sampling | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth | 8, 10, 12 or 16 bits per color |
| Resolution range | 1920 x 1200 @ 60 Hz or 1080p @ 60 Hz |
| Formats | RGB and YCbCr digital video |
|
| Video output |
|---|
| Number/signal type | 1 HDMI output |
| Connectors | 1 female HDMI type A |
| Peripheral device power | 250mA |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequencies (window mode) | 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz |
| Vertical frequencies (pass-through mode) | 24 Hz to 75 Hz |
| Output resolutions (window mode) | 640x480, 800x600, 1024x768, 1280x720, 1280x724, 1366x768, 1600x1200, 1920x1200, 480p, 576p, 720p, 1080p |
| Output resolutions (pass-through mode) | 640x480, 800x600, 1024x768, 1280x720, 1280x724, 1366x768, 1600x1200, 1920x1200, 3840x2160, 4096x2160 (up to 60 Hz), 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p, 2K, 4K @ 60 Hz |
| Standards | DVI 1.0, HDMI 2.0, HDCP 2.3 |
| NOTE | Appropriate HDMI to DVI-D cables or adapters are required for DVI signal output. |
|
|
| Audio input |
|---|
| Number/signal type | |
| HDMI input | 1 embedded digital audio from HDMI (stereo) |
| Decoder input | 1 embedded digital audio from decoder (stereo) |
| Connectors | 1 female HDMI type A |
|
| Audio processing |
|---|
| Gain | -6 dB unbalanced, 0 dB balanced |
| Frequency response | 20 Hz to 20 kHz, ±0.1 dB |
| THD + Noise | <0.02%, 20 Hz to 20 kHz at maximum output level (unweighted) |
| S/N | >100 dB, at maximum balanced output (unweighted) |
| Stereo channel separation | >90 dB @ 1 kHz |
| Crosstalk | <-100 dB, at 20 Hz to 20 kHz, fully loaded |
| Volume control | -100 dB to 0 dB (control 0-100 in 1 dB steps, default: -30 dB) |
|
| Audio output — digital |
|---|
| Number/signal type | 1 stereo, HDMI (embedded) |
| Connectors | 1 female HDMI type A |
| Bit depths | 16-bit or 24-bit |
| Sampling rate | 48 kHz |
|
| Audio output — analog |
|---|
| Number/signal type | 1 analog stereo, balanced/unbalanced (variable) |
| Connectors | (1) 3.5 mm captive screw connector, 5-pole |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Nominal level | +4 dBu |
| Gain error | ±0.1 dB channel to channel |
| Maximum level (Hi-Z) | >+21 dBu, balanced; >+15 dBu, unbalanced |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Ethernet control |
|---|
| Network interface controllers (NICs) | 1 |
| Connector | 1 female RJ-45 connector |
| Data rate | 10/100/1000Base-T, half/full duplex with Auto-detect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP,SMB v1, SMB v2, SMB v3 |
| Default settings – LAN | DHCP = Off
Default static IP settings:
Link speed = Auto-detected
Duplex level = Auto-detected
IP address = 192.168.254.254
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DNS: 0.0.0.0 |
|
| Configuration |
|---|
| USB configuration port | For future expansion |
|
| Communication — USB port |
|---|
| Number/signal type | 1 USB 3.1 Gen 1 |
| Connector | 1 female USB 3.1 Gen 1 type A, front panel |
| USB standards | USB 3.1 Gen 1 (USB 3.0 – 5 Gbps), USB 2.0, USB 1.1, USB 1.0 compatible |
| Maximum current source | 900 mA |
| Maximum built-in USB hubs | 0 |
| Minimum built-in USB hubs | 0 |
| Optional built-in USB hubs | 0 |
|
| General |
|---|
| Power input | 12 VDC from external power supply (sold separately)
or
Power over Ethernet Plus (PoE+ IEEE 802.3at) |
| Power Consumption – Power over Ethernet (PoE+) | |
| Device | 19.7 watts |
| Device and power supply | 24.5 watts |
| Power Consumption – 12 VDC Power Supply | |
| Device | 19.3 watts |
| Device and power supply | 20.7 watts |
| Power over Ethernet (PoE) | Complies with 802.3at (PoE+), class 4 (type 2) |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Fan (air flows top to sides); vents on sides |
| Thermal dissipation – Power over Ethernet (PoE+) | |
| Device | 50.7 BTU/Hr |
| Device and power supply | 67.1 BTU/Hr |
| Thermal dissipation – 12 VDC Power Supply | |
| Device | 49.4 BTU/Hr |
| Device and power supply | 54.1 BTU/Hr |
| Mounting |
| Furniture mount | Yes, with optional under-desk or wall mounting kit (MBU 125) |
| Rack mount | Yes, with optional rack shelf kit
Back-of-rack mountable with optional back-of-rack mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 8.75" W x 8.0" D (1" high, half rack wide, 8" deep)
(2.54 cm H x 22.2 cm W x 20.3 cm D)
(Depth excludes connectors) |
| Product weight | 1.8 lbs (0.8 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI
Complies with appropriate requirements of RoHS and WEEE |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6143-D7) |
