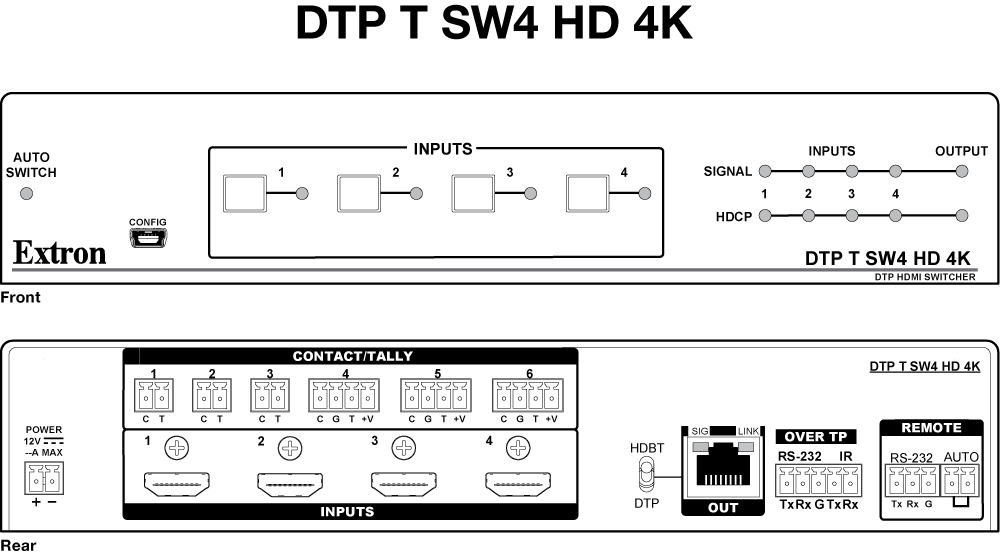

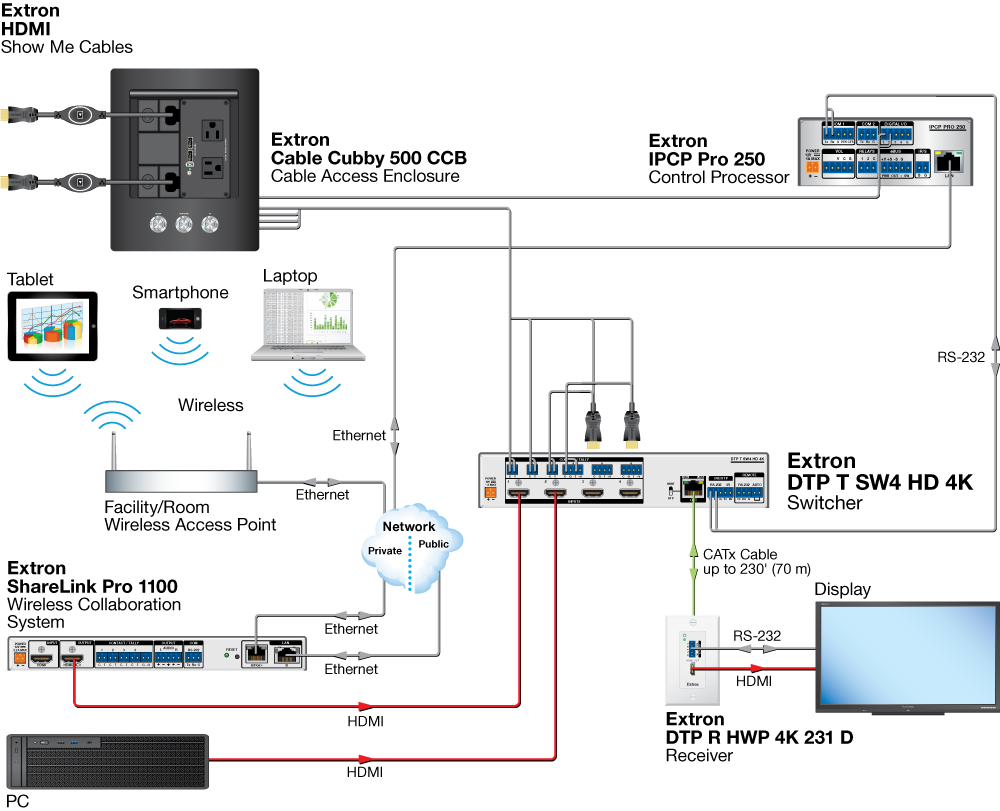

| DTP T SW4 HD 4K |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8 bits per color |
| Signal Type | HDMI 1.4, HDCP 1.4 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Maximum data rate | 10.2 Gbps (3.4 Gbps per color) |
| Maximum pixel clock | 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling) |
| Resolution | Up to 1920 x 1200 or 1080p @ 60 Hz, 12-bit color
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz
4K/UHD @ 60 Hz with 4:2:0 chroma subsampling |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
| NOTE | The DTP T SW4 HD 4K switchers support TMDS data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D**, HD lossless audio, and other HDMI specification features. |
|
| NOTE | **Extron strongly recommends compatibility testing while designing and before installing any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The 3D support in this porduct is limited to signals operating within 164 MHz pixel clock and requires format and EDID compatibility between source and sink devices. Please contact an Extron Application Engineer for more information. |
|
|
| Video input |
|---|
| Number/signal type | 4 single link HDMI (or DVI-D*) |
| Connectors | 4 female HDMI type A |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
|

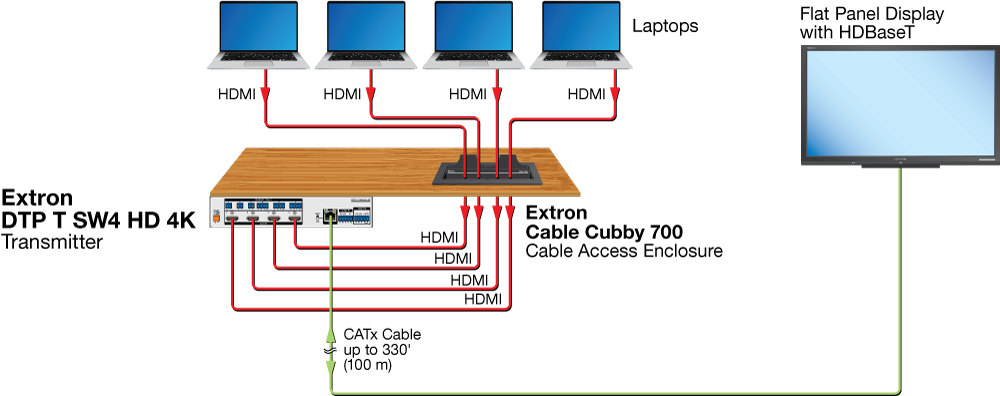

| Video output |
|---|
| Number/signal type | 1 DTP 330 or HDBT Output |
| Connectors | 1 RJ-45 Jack |
|

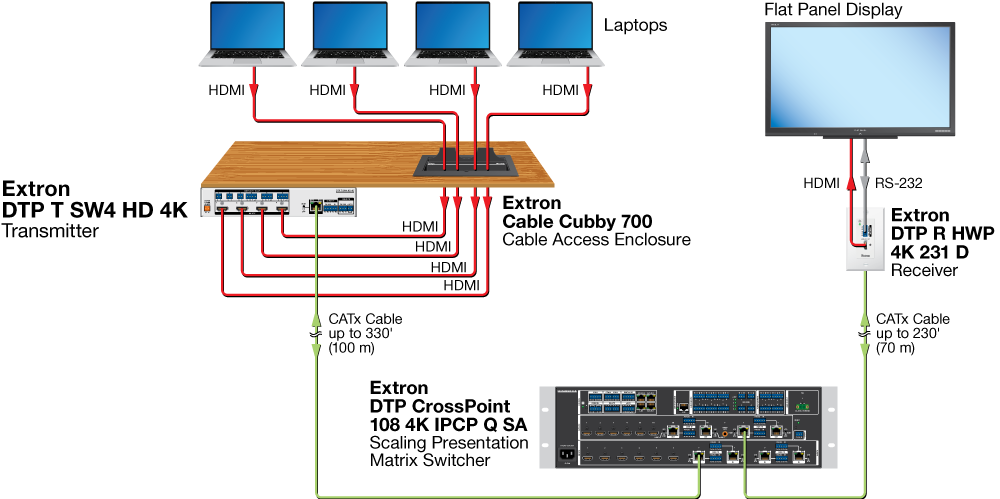

| Interconnection between transmitter and receiver |
|---|
| Connectors | 1 female RJ-45 per unit |
| Termination standard | TIA/EIA T568B |
| Signal transmission distance | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| 2560x1600 @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| 4K/UHD @ 30 and 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
|
| Control/remote — Switcher |
|---|
| Serial control port | 1 RS-232, 3.5 mm, 3 pole captive screw connector |
| Pin configuration | 1 = Tx, 2 = Rx, 3 = GND |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Auto-input switching | (1) 3.5 mm, 2 pole captive screw connector |
| Pin configuration | Pins 1 and 2 of captive screw connector shorted together enable auto-input switching. |
| Contact closure | (3) 3.5 mm captive screw, 2-pole (shared with Tally output)
(2) 3.5 mm captive screw, 4-pole (shared with Tally output) |
| Tally output | (3) 3.5 mm captive screw, 2-pole (shared with Contact closure)
(2) 3.5 mm captive screw, 4-pole (shared with Contact closure) |
| Tally output power | +5 VDC, 0.2 A |
| IR controller module | IR 102 remote control (optional)
30' maximum, 40 degrees off axis |
| USB control ports | 1 front panel female mini USB, type B |
| USB standards | USB 2.0, low speed |
| Program control | Extron PCS Software for Windows, Extron Simple Instruction Set™ (SIS™) |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 7.7 watts |
| Device and power supply | 8.7 watts |
| Remote power budget | 12 watts |
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 26.0 BTU/hr |
| Device and power supply | 29.6 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit or through-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.75" H x 8.75" W x 3.0" D (1U high, half rack wide)
(4.4 cm H x 22.2 cm W x 7.6 cm D)
(Depth excludes connectors.) |
| Product weight | 0.5 lb (0.3 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, UL, FCC Class A, ICES, VCCI, RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5890-D5) |
