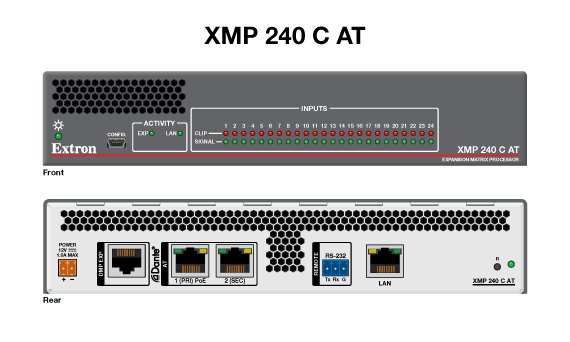

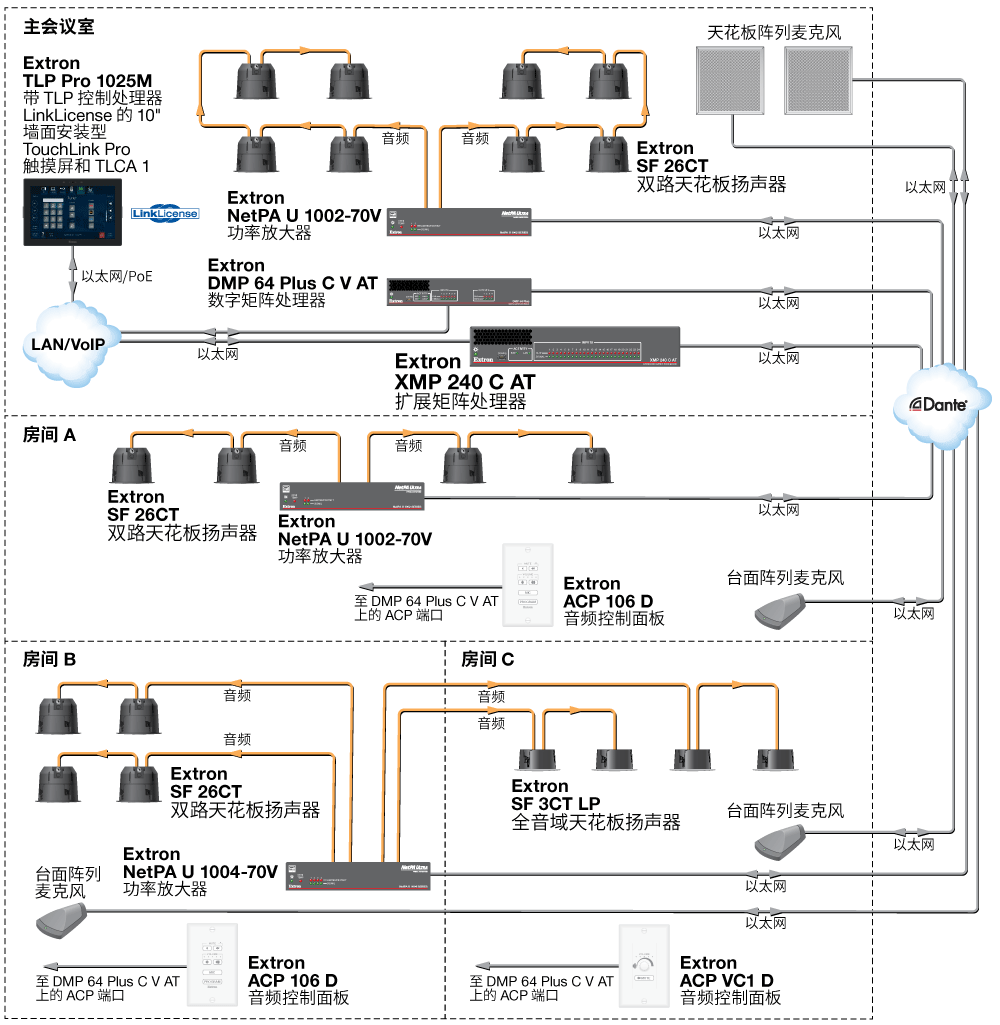

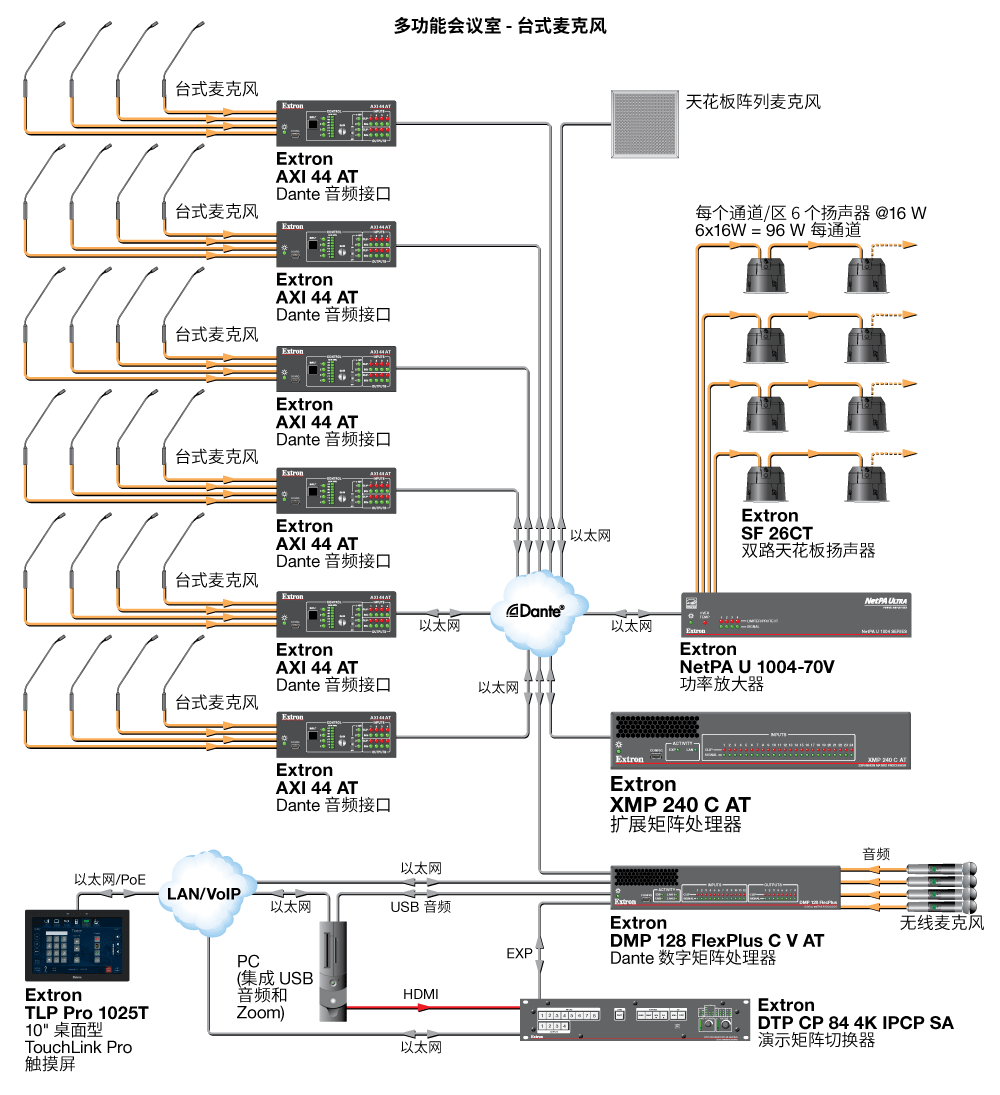

| XMP 240 C AT |
|
| Audio system |
|---|
| Gain | Balanced output: 0 dB, unbalanced output: -6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.2 dB |
| THD + Noise | <0.01%, 20 Hz to 20 kHz, at maximum level |
| S/N | |
| Digital In to Digital Out | 115 dB, 20 Hz to 20 kHz, at full-scale output (unweighted) |
| Crosstalk | <-90 dB @ 20 Hz to 20 kHz, fully loaded |
| Volume control | -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps) |
|
| Audio processing |
|---|
| AEC tail length | >200 msec |
| AEC convergence | Up to 60 dB/sec |
| Noise cancellation | Up to 20 dB, software selectable |
|
| EXP port |
|---|
| Transmission type | Proprietary |
| Connector | 1 RJ-45 |
| Inputs | 16 channels Rx |
| Outputs | 16 channels Tx |
| Audio format | Uncompressed, 24-bit, 48 kHz |
| EXP cable | Shielded CAT6 up to 10 meters (1 foot cable included) |
|
| AT ports — audio transport |
|---|
| Transmission | Dante/AES-67, software selectable |
| Connectors | 2 RJ-45, 2-port 1 Gbps switch to Dante interface |
| Inputs | 48 channels Rx |
| Outputs | 48 channels Tx |
| Audio format | Uncompressed, 24-bit, 48 kHz |
| Latency | Deterministic, based on user selections: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms |
|
| Control/remote |
|---|
| Serial host control port | 1 bidirectional RS-232, 3.5 mm captive screw, 3 pole |
| Baud rate and protocol | 38400 baud, 8 data bits, 1 stop bit, no parity |
| Pin configuration | 1 = Tx, 2 = Rx, 3 = G |
| USB control port | 1 front panel USB mini-B |
| USB standards | USB 2.0, high speed |
| Ethernet host port | 1 RJ-45 |
| Data rate | 10/100/1000 Base-T |
| Protocol | ARP, ICMP, IEEE 802.1X, IP, TCP, DHCP, HTTPS, Telnet |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off |
| Web server | Up to 200 simultaneous sessions |
| Program control | Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™)
Microsoft® Internet Explorer®, Telnet |
|
| General |
|---|
| Power supply | External (included, PS 1215 C)
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power input requirements | 12 VDC or Power over Ethernet (PoE IEEE 802.3af) |
| Power consumption | |
| Power supply | |
| Device | 9.8 watts |
| Device and power supply | 10.5 watts |
| Power injector (optional, XTP PI 100) | |
| Device | 11.7 watts |
| Device and power injector | 14.3 watts |
| Thermal dissipation | |
| Power supply | |
| Device | 33.4 BTU/Hr |
| Device and power supply | 35.8 BTU/Hr |
| Power injector (optional, XTP PI 100) | |
| Device | 39.8 BTU/Hr |
| Device and power injector | 48.6 BTU/Hr |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 8.7" W x 9.5" D (1U high, half rack wide)
(4.3 cm H x 22.1 cm W x 24.1 cm D) |
| Product weight | 2.00 lbs (0.9 kg) |
| Regulatory compliance | CE, c-UL, UL, C-Tick, FCC Class A, ICES, RoHS, VCCI, WEEE |
| Warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice |
|
| NOTE | Shipping weights and dimensions are available at www.extron.com. |
|
| (5028-D3) |
