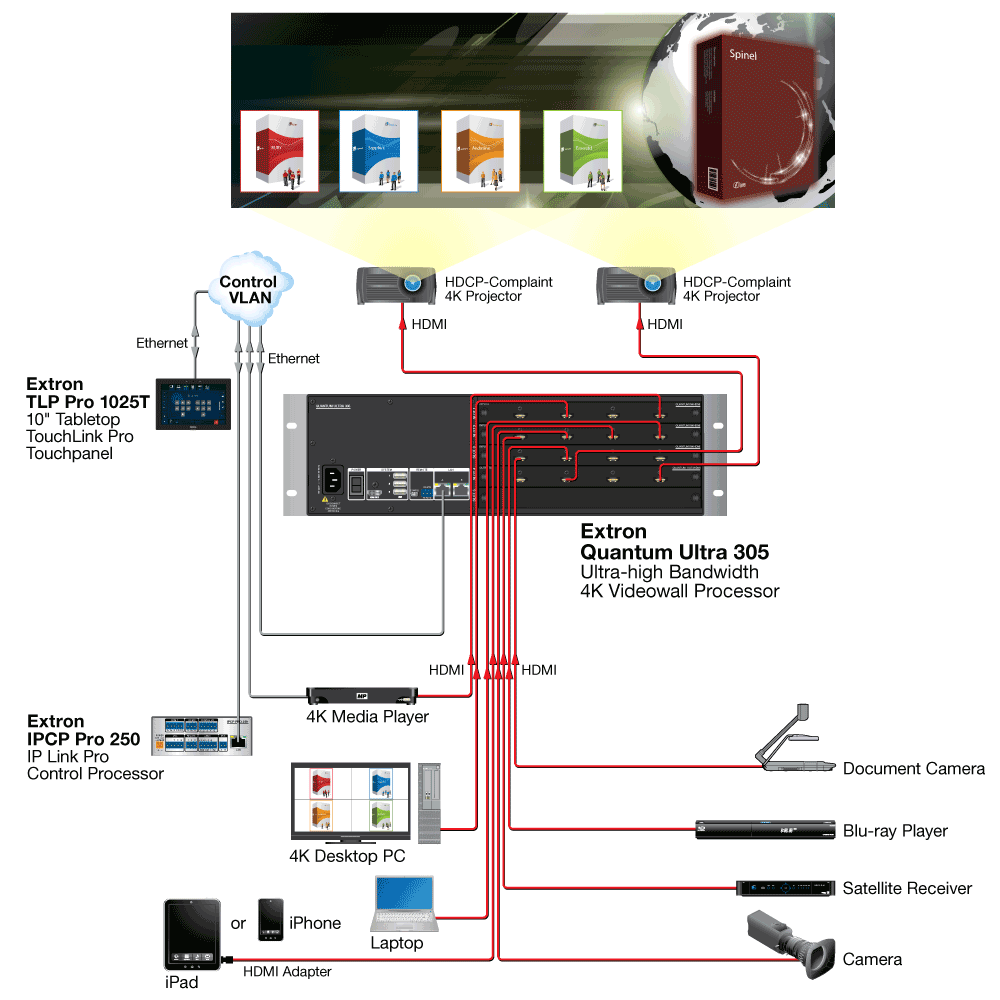

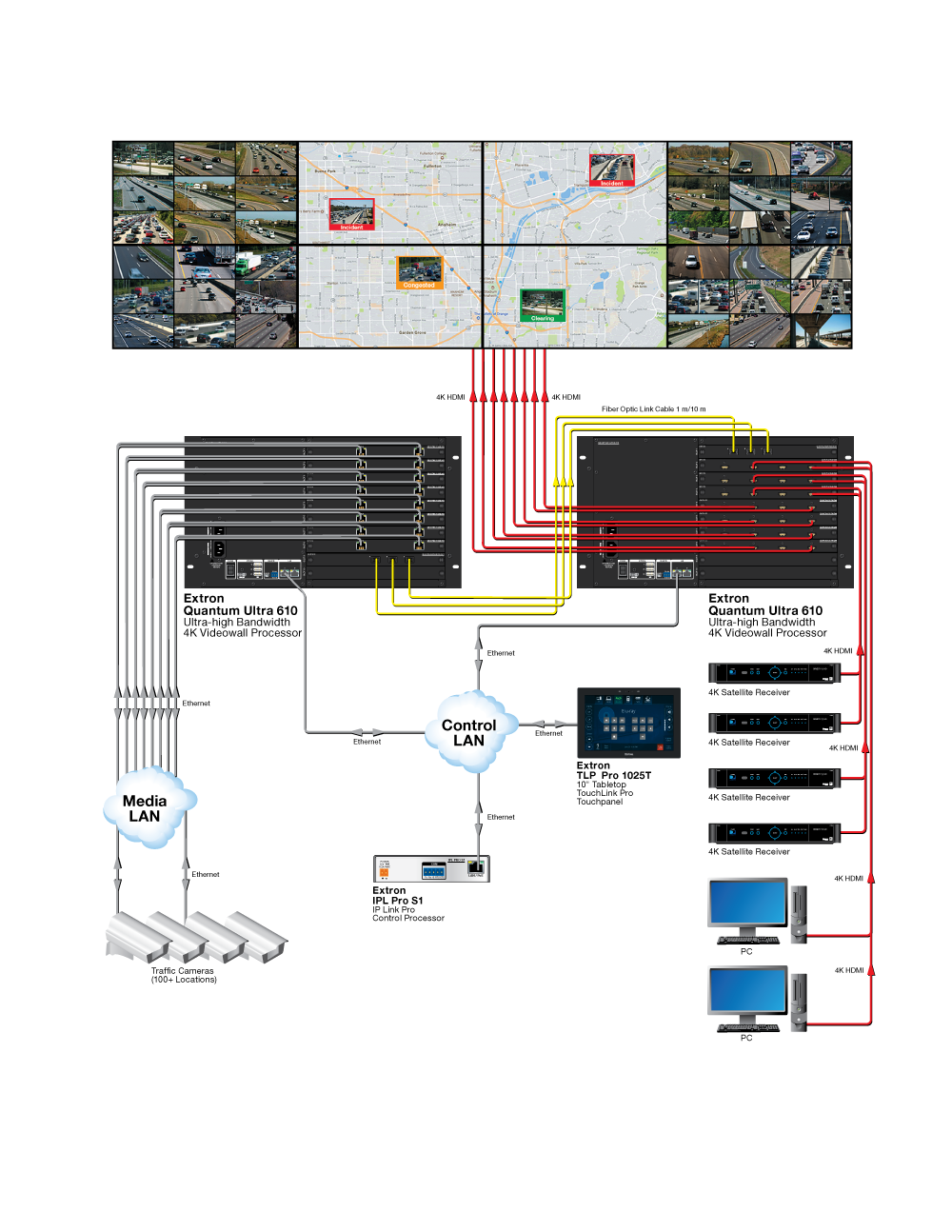

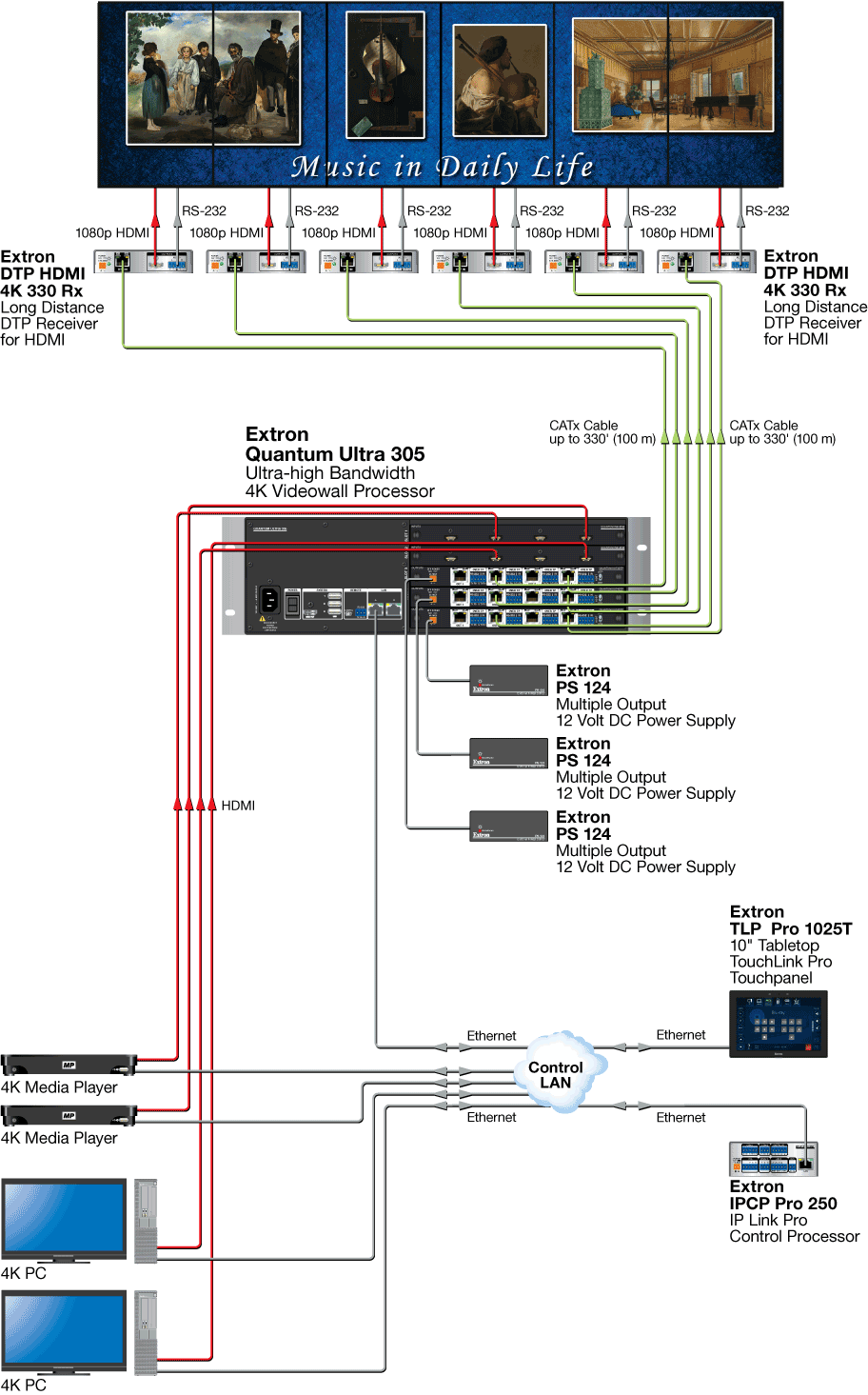

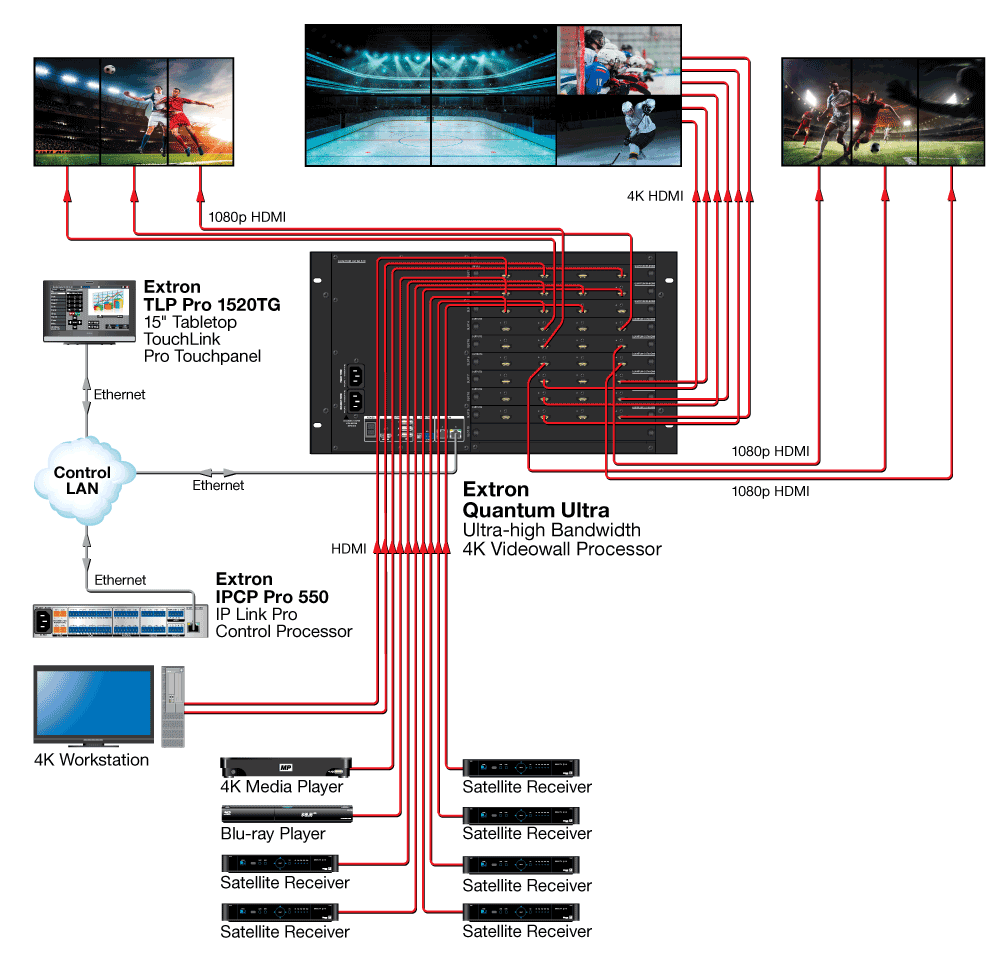

| Quantum Ultra |
| NOTE | The Quantum Ultra 610 has 10 slots for input or output cards, and the Quantum Ultra 305 has 5 slots. |
|
|
 |
|---|
 |
| Frame rate | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4 or 4:2:2 |
| Color bit depth1 | 8 or 10 bits per color |
| Signal Type | DVI 1.0, HDMI 1.4, and HDCP 1.4 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) per connection |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
| NOTE | This product requires two or four parallel connections to achieve 4K at 50 or 60 fps. |
|
|
| Video Input — HDMI — IN4HDMI |
|---|
| Number/signal type | HDMI/DVI (HDCP 1.4 compliant) |
| Connectors | 4 female HDMI |
| Maximum pixel clock | |
| Inputs 1 and 3 | 165 MHz |
| Inputs 2 and 4 | 300 MHz |
| Formats | RGB and YCbCr digital video |
| Horizontal frequency | 15 kHz to 135 kHz |
| Vertical frequency | 24 Hz to 120 Hz |
| Resolution range | 640x480 to 3840x2400*
480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 4096x2160*
*4K resolutions are supported up to 30 Hz refresh rate. 4K at 60 Hz is supported using two or four parallel connections. |
| NOTE | Pixel clocks up to 300 MHz are supported on input connectors 2 and 4 only. The unit disables adjacent input connectors 1 or 3 when configured to support 300 MHz. |
|
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
|
| Video processing — HDMI — IN4HDMI |
|---|
| Digital pixel data bit depth | 8 or 10 bits per channel |
| Colors | 1.07 billion (10-bit processing with full 4:4:4 sampling) |
|
| Video Input — SMD — IN SMD 100 |
|---|
| Number/signal type | Up to 30 H.264/AVC digital video over IP (quantity dependent on stream resolution) |
| Connectors | 2 shielded RJ-45 (decoding capability distributed equally between connections) |
| Ethernet data rate | 10/100/1000Base-T |
| Streaming protocols | |
| Pull streams | RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP |
| Push streams | MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250), Direct RTP (RFC 3984) |
| Stream discovery | SAP (RFC 2974), SDP (RFC 4145, RFC 4566) |
| Transport | TCP, UDP, multicast IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), SSM (RFC 3569, 4607), or unicast (pull streams only) |
| Network protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), SSH, SSC, Telnet, TLS |
| Container (if included) | MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0)
MP4 (MPEG-4 part 14 or ISO/IEC 14496-14) |
| Video coding | MPEG4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<25 Mbps over 1 second), MJPEG |
|
| Video processing — SMD — IN SMD 100 |
|---|
| Source rates | 480p to 1920x1080p @ 60 Hz |
| NOTE | Interlaced sources are not supported. |
|
| Maximum average bit rates | 25 Mbps per stream (1 second average) |
| Latency | 1.0 second maximum |
| Digital sampling | 24-bit, 8 bits per color, 165 MHz pixel clock maximum |
| Colors | 16.78 million (8-bit processing) |
|
| Video Output — HDMI — OUT4HDMI |
|---|
| Number/signal type | HDMI/DVI (HDCP 1.4 compliant) |
| Connectors | 4 female HDMI |
| Maximum pixel clock | Outputs 1 and 3: 165 MHz
Outputs 2 and 4: 300 MHz |
| Peripheral device power | 250 mA per output |
| Vertical frequency | 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz |
| Scaled resolutions | 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536*, 2560x1080*, 2560x1440*, 2560x1600*, 3840x2400*, 4096x2400**, CUSTOM
720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160*, 4096x2160*
*Supported on connectors 2 and 4 only
**Requires 4 parallel connections. |
| NOTE | Pixel clocks up to 300 MHz are supported on output connectors 2 and 4 only. The unit disables adjacent output connectors 1 or 3 when configured to support 300 MHz. |
|
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
|
| Video Output — DTP — OUT4DTP |
|---|
| Number/signal type | 4 DTP, XTP, or HDBaseT (configurable, HDCP compliant) |
| Connectors | 4 female RJ-45 |
| Termination standard | TIA/EIA T568B |
| Maximum pixel clock | Outputs 1 and 3: 165 MHz
Outputs 2 and 4: 300 MHz |
| Vertical frequency | 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz |
| Scaled resolutions | 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536*, 2560x1080*, 2560x1440*, 2560x1600*, 3840x2400*, 4096x2400**, CUSTOM
720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160*, 4096x2160*
*Supported on connectors 2 and 4 only
**Requires 4 parallel connections. |
| NOTE | Pixel clocks up to 300 MHz are supported on output connectors 2 and 4 only. The unit disables adjacent output connectors 1 or 3 when configured to support 300 MHz. |
|
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
|
| Communications — External device (pass-through, unidirectional or bidirectional) (RS-232/IR over TP) |
|---|
| NOTE |
Protocol is mirrored between the connected TP endpoints and the "Over TP" ports on the OUT4DTP. Signals from a control device pass into each OUT4DTP "Over TP" port, are embedded with the TP signal, and sent to indiviual TP Rx endpoints for control of remote sink devices.
The "Over TP" ports are simple pass-through connections to TP endpoints. There is no IR insertion from any Quantum Ultra control port to the "Over TP" ports. RS-232 can be inserted from the Ethernet connection.
|
|
| Serial control pass-through ports | |
| "Over TP" output | RS-232 via (4) 3.5 mm, 5-pole captive screw connectors (shared with IR ports) |
| Baud rates | 9600, 19200, 38400, 115200 baud |
| Protocol | 6 - 8 data bits
1 or 2 stop bits
no parity (default), even or odd parity
flow control = XON, XOFF, none |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| IR pass-through control ports | TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
| "Over TP" output | (4) 3.5 mm, 5-pole captive screw connector (shared with RS-232 port) |
| IR control pin configuration | 3 = Gnd, 4 = IR Tx, 5 = IR Rx |
|
| Communication — Control |
|---|
| Serial control port | 1 RS-232 on 3-pole captive screw connector on rear panel |
| Baud rate and protocol | 9600, 8-bit, 1 stop bit, no parity (default) |
| Pin configurations | 1 = Tx, 2 = Rx, 3 = Gnd |
| Ethernet ports | 2 female RJ-45 |
| Ethernet default settings | Link speed and duplex level = autodetected
LAN A IP address = 192.168.254.254
LAN B IP address = 192.168.1.254
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = Off |
| Ethernet data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | ARP, DHCP, DNS, HTTP, ICMP, NTP, SSH, SMTP, TCP/IP, Telnet, UDP/IP |
| USB control port | 1 female USB mini-B on rear panel |
| Program control | Extron Videowall Configuration Software (VCS) for Windows®
Extron Simple Instruction Set™ (SIS™)
Telnet |
|
| Communication — Chassis to chassis interconnection |
|---|
| Number/signal type | 32 HyperLane channels |
| Connectors | 3 female MPO (12 fibers per connector) |
| Data rate | Up to 15.7 Gbps per channel |
| HyperLane expansion limit | 5 chassis |
|
| Communication — Setup |
|---|
| Number/signal type | 1 HDMI |
| Connector | 1 female HDMI |
| Vertical frequency | 24 Hz to 60 Hz |
| Resolutions | 640x480 to 1920x1200 |
| USB control ports | 3 USB type A |
| USB standards | USB 2.0, USB 1.1, USB 1.0 compatible |
| USB data rates | Low speed (1.5 Mbps), full speed (12 Mbps) |
|
| General |
|---|
| Power supply | |
| Quantum Ultra 610 | Internal, primary and redundant*, hot-swappable
Input: (2*) 100-240 VAC, 50-60 Hz
*A redundant power supply is standard. |
| Quantum Ultra 305 | Internal
Input: 100-240 VAC, 50-60 Hz |
| Remote power capability | OUT4DTP supports up to four endpoints if 48 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBaseT modes) |
| Power consumption (full load) | |
| Quantum Ultra 610 | 174-571 watts (varies with configuration) |
| Quantum Ultra 305 | 101-288 watts (varies with configuration) |
| Power consumption (power save) | |
| Quantum Ultra 610 | 60 watts |
| Quantum Ultra 305 | 38 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +95 °F (0 to +35 °C) / 10% to 90%, noncondensing |
| Cooling | Fans, right to left (as viewed from the front panel) |
| Thermal dissipation | |
| Quantum Ultra 610 | 208-1941 BTU/hr (varies with configuration) |
| Quantum Ultra 305 | 127-956 BTU/hr (varies with configuration) |
| Mounting | |
| Rack mount | Yes |
| Enclosure type | Metal |
| Enclosure dimensions | |

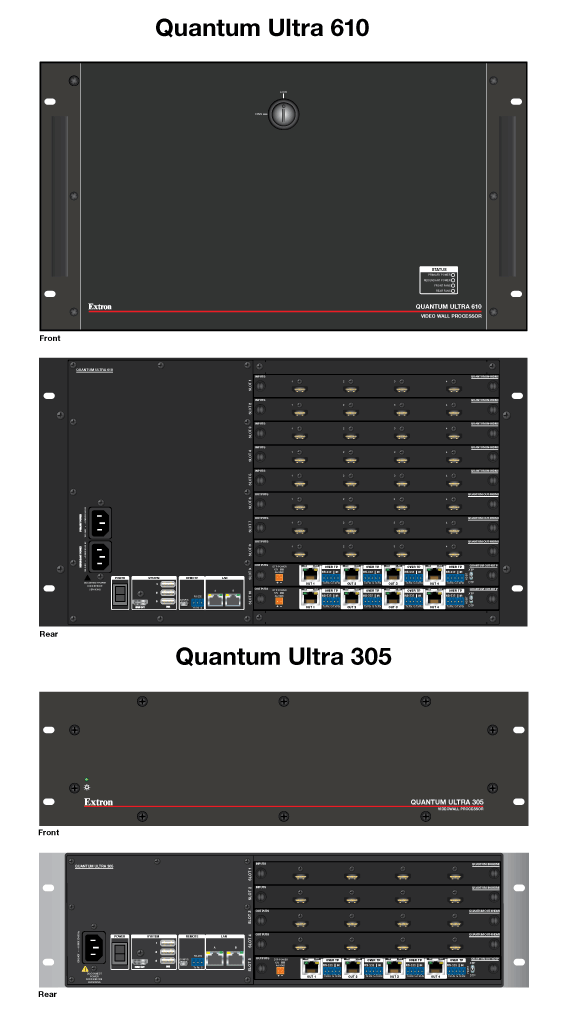

| Quantum Ultra 610 | 10.5" x 17.5" W x 22.3" D (6U high, full rack wide)
(267 mm H x 445 mm W x 566 mm D)
(Depth excludes connectors and handles. Width excludes built-in rack ears.) |
| Quantum Ultra 305 | 5.25" H x 17.5" W x 19" D (3U high, full rack wide)
(133 mm H x 445 mm W x 483 mm D)
(Depth excludes connectors and handles. Width excludes built-in rack ears.) |
| Product weight | |
| Quantum Ultra 610 | 59.8 lbs (28 kg), fully populated |
| Quantum Ultra 305 | 35.9 lbs (16 kg), fully populated |
| Regulatory compliance | CE, c-UL, UL, KC, PSE, RoHs, and WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
