| DTP2 T 202 FB |
|
 specification |
|---|
 |
| Horizontal frequency | 15 kHz to 135 kHz for resolutions up to 18 Gbps |
| Vertical frequency | 24 Hz to 120 Hz for resolutions up to 18 Gbps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0b; HDCP 2.3 |
| Max. video data rate | 18 Gbps (6 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| NOTE | Extron strongly recommends compatibility testing while designing, and before installing, any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Applications Engineer for more information. |
|
| HDMI input | |
| Maximum data rate | 18 Gbps (6 Gbps per color) |
| Maximum pixel clock | 600 MHz |
| Resolution range | Up to 2560x1600* @ 60 Hz or
UHD (3840x2160) @ 60 Hz
*with 4:4:4 chroma subsampling |
| Color bit depth | 8, 10, or 12 bits — subject to the maximum data rate limit |
| Formats | RGB and YUV digital video |
| Standards | DVI 1.0; HDMI 1.4, 2.0b; HDCP 1.4, 2.3; CEA-861E |
| DisplayPort Input | |
| Maximum data rate | 17.28 Gbps (5.4 Gbps per channel) |
| Maximum pixel clock | 600 MHz |
| Resolution range | Up to UHD (3840x2160) @ 60 Hz
with 4:4:4 chroma subsampling |
| Color bit depth | 8, 10, or 12 bits — subject to the maximum data rate limit |
| Formats | RGB and YUV digital video |
| Standard | DisplayPort 1.2 |
|
| Video input — HDMI |
|---|
| Number/signal type | 1 HDMI input (or single-link DVI-D with the appropriate DVI-HDMI adapters) |
| Connectors | 1 female HDMI type A |
|
| Video input — DisplayPort |
|---|
| Number/signal type | 1 DisplayPort |
| Connectors | 1 female 20-pin DisplayPort |
| Input cable length | Up to 6 feet |
|

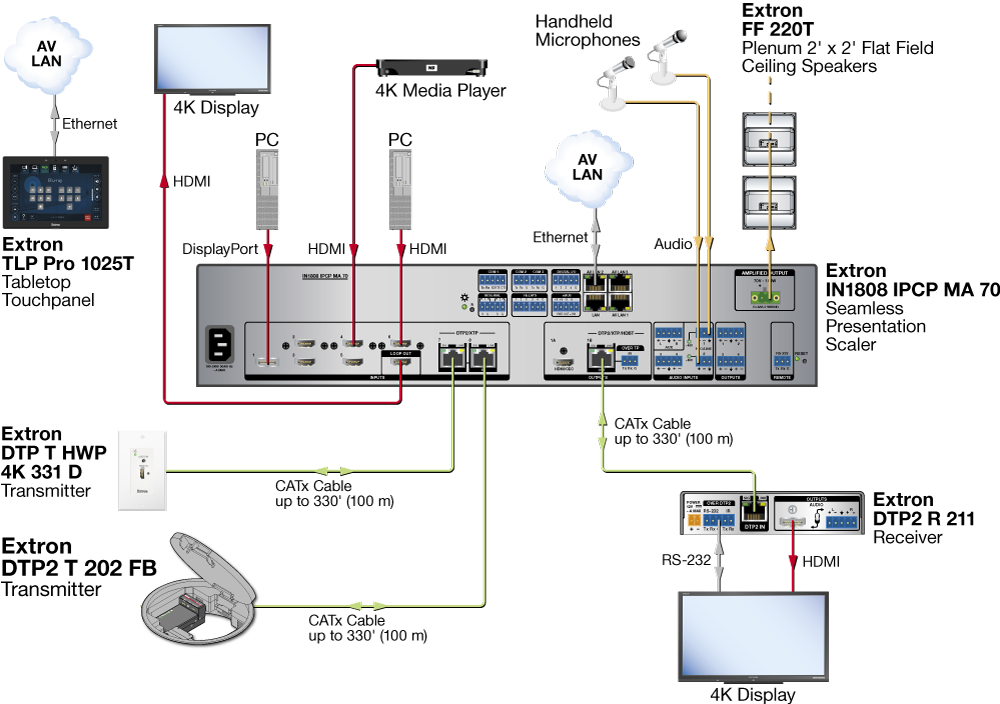

| Interconnection between transmitter and receiver |
|---|
| Connector | 1 female RJ-45 per unit |
| Termination standard | TIA/EIA T568B |
| Transmission distance | Up to 330' (100 m) using shielded twisted pair cable or XTP DTP 24 STP cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
|
| Audio |
|---|
| Gain | Unbalanced output: 0 dB; balanced output +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.03% @ 20 Hz to 20 kHz at maximum output |
| S/N | >90 dB, at maximum output (15 dBu), unbalanced (unweighted) |
| Stereo channel separation | >80 dB @ 1 kHz to 20 kHz |
|
| Analog Audio Input |
|---|
| Number/signal type | 1 analog stereo, unbalanced
2 digital audio, embedded on the HDMI and DP |
| Embedded digital audio source formats | 2-ch PCM, PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1 |
| Connectors | 1 female 3.5 mm mini stereo jack, 2 channel: tip (L), ring (R), sleeve (ground) |
| Impedance | >10k ohms, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +7dBV (unbalanced) |
|
| Control/remote — external device (pass-through, unidirectional or bidirectional) |
|---|
| Serial control port | 1 RS-232, 3.5 mm captive screw connector, 3-pole, rear panel |
| Pin configuration | Pin 1 = Tx, pin 2 = Rx, pin 3 = GND |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| USB control port | 1 female mini USB type B, front panel |
| USB standards | USB 2.0 high speed |
| Over DTP/HDBT RS-232/IR pass through | RS-232: Pin 1 = Tx, Pin 2 = Rx, Pin 3 = GND
IR: Pin 4 = Tx, Pin 5 = Rx |
| Program control | Extron Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power supply | External
Input: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC, 2 A, 24 watts |
| Power consumption | |
| Device | 8.7 watts |
| Device and power supply | 10.3 watts |
| Remote power budget | 18 watts |
| NOTE | Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or transmitter on the other end of the twisted pair cable. |
|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vented |
| Thermal dissipation | |
| Device | 29.6 BTU/hr |
| Device and power supply | 35.0 BTU/hr |
| Mounting |

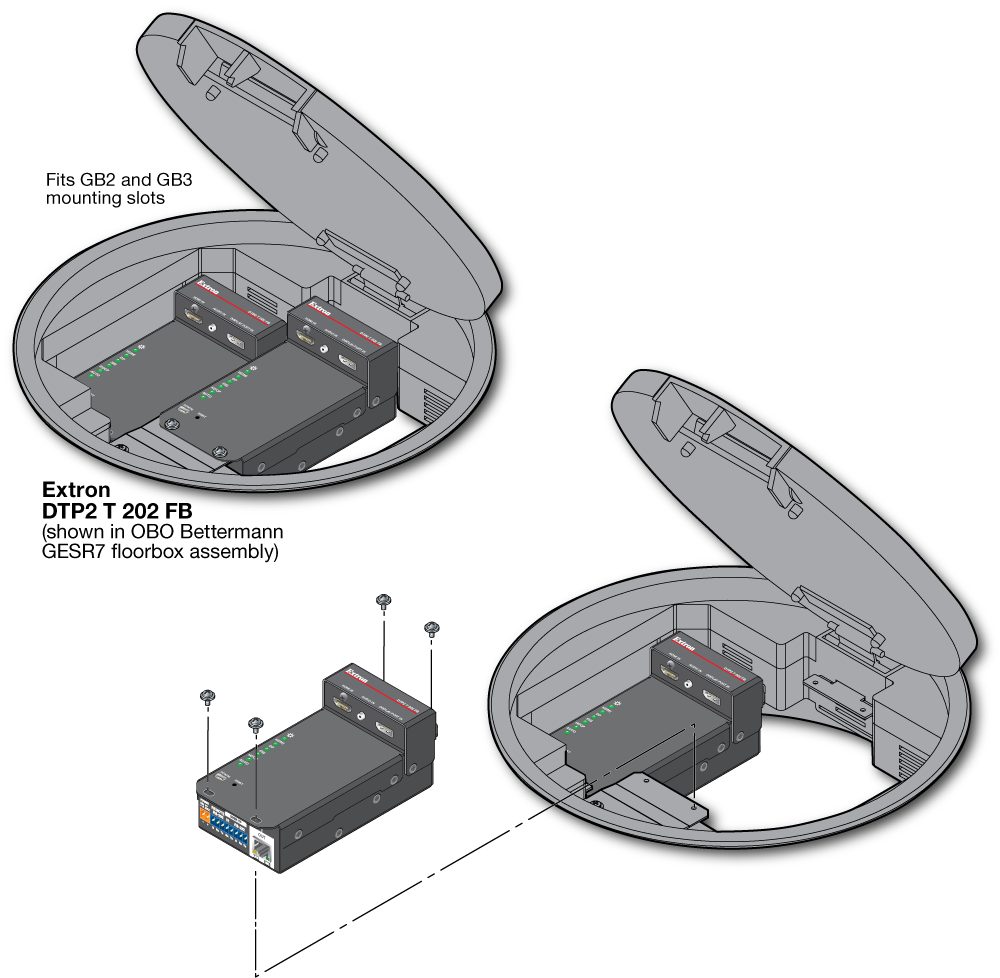

| Floor box mount | Ackermann GB3/OBO Betterman floor box, MK Electric CableLink Plus Single Pan floor box, MK Electric CableLink Plus Modular floor box, ElectraPlan floor box, and PUK floor box mountable |
| NOTE | See the DTP2 T 202 FB User Guide for mounting considerations. |
|
| Enclosure type | Metal |

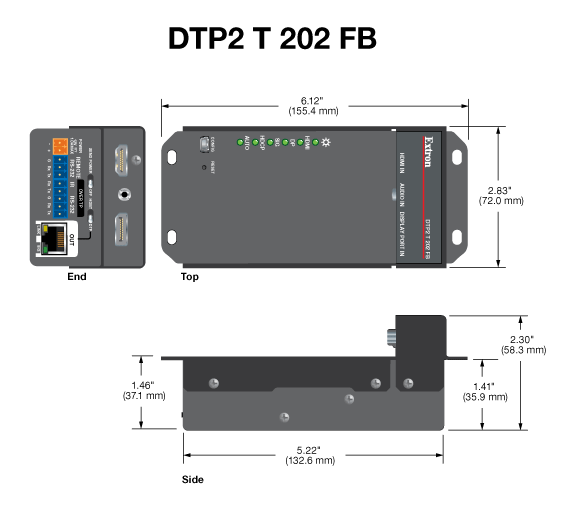

| Enclosure dimensions | 2.3" H x 2.8" W x 5.2" D*
(5.9 cm H x 7.2 cm W x 13.2 cm D)
(Dimensions exclude connectors)
*Depth is 6.1" (15.5 cm) including mounting tabs |
| Product weight | 1.13 lbs (515 g) |
| Regulatory compliance | CE, C-tick, C-UL, UL, FCC Class A, ICES, ROHS, VCCI |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5984-D7) |
