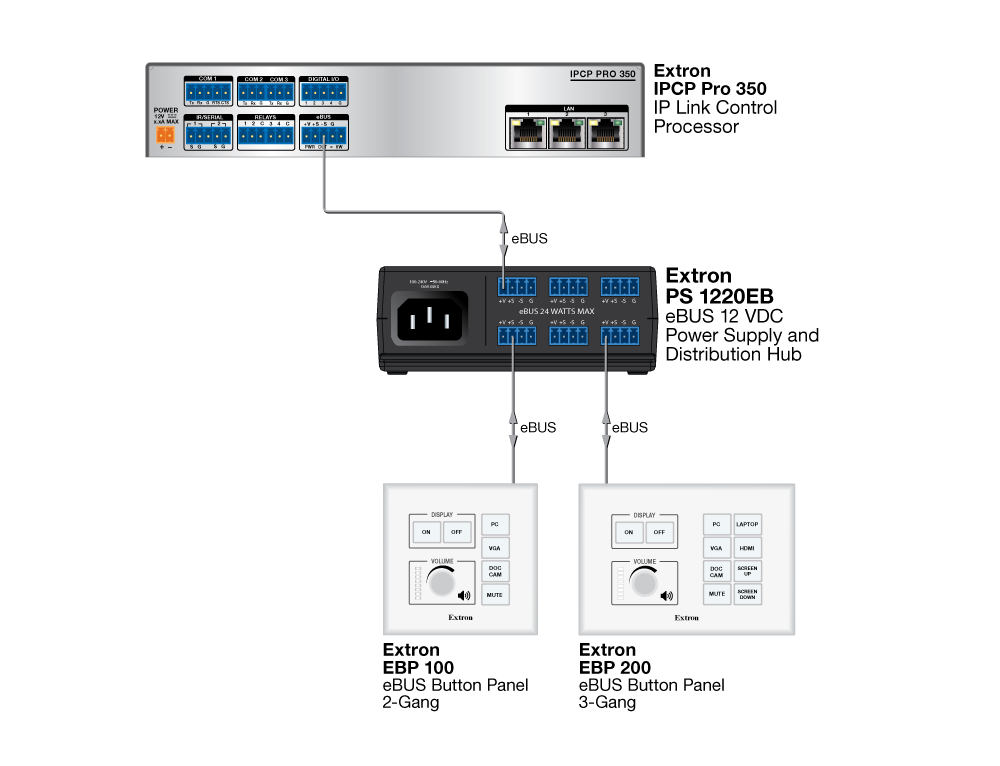

| PS 1220EB |
|
| eBUS control interface |
|---|
| eBUS control ports | (6) 3.5 mm captive screw connectors, 4 pole |
| eBUS pin configuration | +V = +12 VDC; +S = + signal; -S = - signal; G = ground |
| Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable |
| Maximum system cable length | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the users guide or setup guide for details. |
| Program control | Extron Global Configurator® Professional or Global Configurator Plus |
|
| General |
|---|
| Power output | 12 VDC, 2 A, 24 watts; shared between all six outputs |
| Power input | 100-240 VAC, 50-60 Hz |
| No load | 0.3 watts |
| Full power | 28.5 watts, 0.6 A maximum |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf, with the included ZipClip™ 200 mounting clip or by securing to rack rails with tie wraps |
| Furniture mount | Yes, with the included ZipClip 200 mounting clip |
| Pole mount | Yes, using tie wraps |
| Enclosure type | High impact, high temperature plastic |
| Enclosure dimensions | 1.7" H x 4.3" W x 4.5" D (1U high, quarter rack wide)
(4.2 cm H x 10.9 cm W x 11.4 cm D) |
| Product weight | 0.8 lb (0.4 kg) |
| Shipping weight | 3 lbs (2 kg) |
| Vibration | Operating: 10-250 Hz, 0.25 Gp-p, 3 axes, 15 min. sweep |
| Regulatory compliance | |
| Safety, EMI/EMC | CCC, CE, C-tick, c-UL, CISPR 22 Class B, CISPR 24, FCC Class B, NEC Class 2, PSE, S-mark, UL |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE.
These power supplies meet energy efficiency level V. |
| Product warranty | 3 years parts and labor |
| NOTE | Specifications are subject to change without notice. |
|
| (8.1-012916-D3) |
