| DDX 102 Tx/Rx |

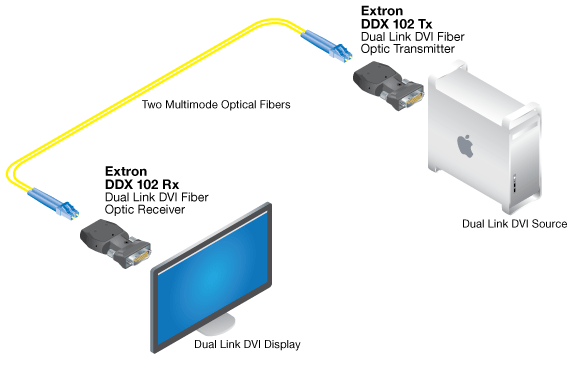

| NOTE | The DDX 102 Tx/Rx consists of a transmitter (DDX 102 Tx) and a receiver (DDX 102 Rx) with fiber optic cables linking the two units. |
|
|
| Optical fiber interconnection between transmitter and receiver |
|---|
| Number/type | 2 fiber optic, 50/125 µm multimode or 62.5/125 µm multimode |
| Connectors | 2 female LC connectors |
| Operating distance | 300 m (985') with 62.5 µm OM1 multimode (MM) cables
500 m (1640') with 50 µm OM2, OM3, or OM4 multimode (MM) cables |
| NOTE | Operating distance is approximate. This is a typical distance. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. |
|
| Nominal peak wavelength | 850 nm |
| Optical loss budget | 9.5 dB, maximum |
|
| Video |
|---|
| Gain | Unity |
| Maximum data rate | 10 Gbps (1.65 Gbps per color) |
| Maximum pixel clock | 330 MHz |
| Resolution range | Up to 1920x1200 or 1080p @ 60 Hz using single link
Up to 2560x1600 @ 60 Hz using dual link |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0 |
|
| Video input — transmitter |
|---|
| Number/signal type | 1 single link or dual link DVI |
| Connectors | 1 male DVI-D |
|
| Video output — receiver |
|---|
| Number/signal type | 1 single link or dual link DVI |
| Connectors | 1 male DVI-D |
|
| General |
|---|
| Power supply | External:
Input: 100-240 VAC, 50-60 Hz
Output: 5 VDC, 3 A, 15 watts
The source device's 5 VDC output on pin 14 of a DVI connector can power the transmitter. |
| Power consumption | |
| Transmitter | |
| Device | 2.0 watts, 5 VDC |
| Receiver | |
| Device | 1.7 watts, 5 VDC |
| Ambient temperature/humidity | Storage: -22 to +158 °F (-30 to +70 °C) / 10% to 85%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 85%, noncondensing |
| Cooling | Convection, no vents |
| Mounting | No |
| Enclosure type | Metal |

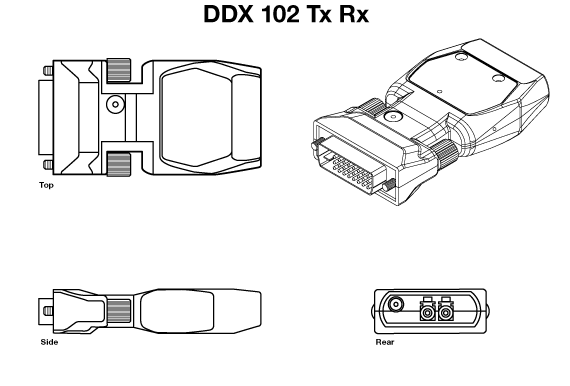

| Enclosure dimensions | 0.6" H x 1.5" W x 2.8" D
(1.5 cm H x 3.9 cm W x 7.2 cm D)
(Depth excludes DVI connector.) |
| Product weight | 0.7 lbs (0.3 kg) per Tx/Rx pair |
| Shipping weight | 1 lb (<1 kg) per Tx/Rx pair |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE |
| EMI/EMC | CE, FCC Class A |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (8.0-121213-D2) |
