Extron EWB 系列外置墙盒是用于 Extron 外部安装型产品的结构化安装解决方案，每个外置墙盒均被设计成足够深的 2.5" (6.4 cm)，以容纳前面板布线以及收纳来自表面安装布线轨道或后墙空间的电缆。EWB 系列的造型设计可为任何应用环境增添现代感。外置墙盒备有多种尺寸，以及黑色和白色可供选择。

技术参数

EWB Series
General
Mounting
Wall mount	Yes
Material	Steel

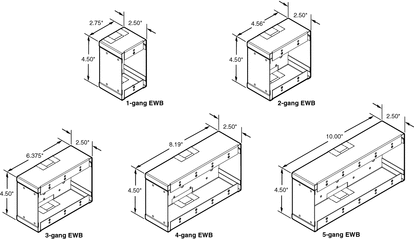

Enclosure dimensions
1-gang EWB	4.50" H x 2.75" W x 2.50" D (1 gang) 11.4 cm H x 7.0 cm W x 6.4 cm D
2-gang EWB	4.50" H x 4.56" W x 2.50" D (2 gang) 11.4 cm H x 11.6 cm W x 6.4 cm D
3-gang EWB	4.50" H x 6.4" W x 2.50" D (3 gang) 11.4 cm H x 16.2 cm W x 6.4 cm D
4-gang EWB	4.50" H x 8.2" W x 2.50" D (4 gang) 11.4 cm H x 20.8 cm W x 6.4 cm D
5-gang EWB	4.50" H x 10.0" W x 2.50" D (5 gang) 11.4 cm H x 25.4 cm W x 6.4 cm D
Surface raceway knockouts	2 small, 2 large
Surface raceway knockout dimensions
Small knockouts	0.9" H x 0.75" W (2.3 cm H x 1.9 cm W)
Large knockouts	0.9" H x 2.0" W (2.3 cm H x 5.1 cm W)
Wall mounting holes
1-gang EWB	4
All other models	6
Product weight
1-gang EWB	0.7 lbs (0.3 kg)
2-gang EWB	0.9 lbs (0.4 kg)
3-gang EWB	1.1 lbs (0.5 kg)
4-gang EWB	1.4 lbs (0.6 kg)
5-gang EWB	1.6 lbs (0.7 kg)
Shipping weight
1-gang EWB	1 lb (1 kg)
2-gang, 3-gang EWBs	2 lbs (1 kg)
4-gang, 5-gang EWBs	3 lb (2 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	c-UL, UL
Environmental	Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
(8.0-081211-D2)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
60-1161-02	9.5 cm	15.2 cm	10.2 cm	0.45 kg
60-1161-03	9.5 cm	15.2 cm	10.2 cm	0.45 kg
60-1162-02	10.5 cm	14.6 cm	14.3 cm	0.5 kg
60-1162-03	10.5 cm	14.6 cm	14.3 cm	0.5 kg
60-1163-02	10.2 cm	14.0 cm	19.1 cm	0.59 kg
60-1163-03	10.2 cm	14.0 cm	19.1 cm	0.61 kg
60-1164-02	9.5 cm	14.0 cm	24.1 cm	0.73 kg
60-1164-03	9.5 cm	14.0 cm	24.1 cm	0.73 kg
60-1165-02	9.5 cm	14.0 cm	27.9 cm	0.83 kg
60-1165-03	10.5 cm	27.9 cm	14.3 cm	0.86 kg
