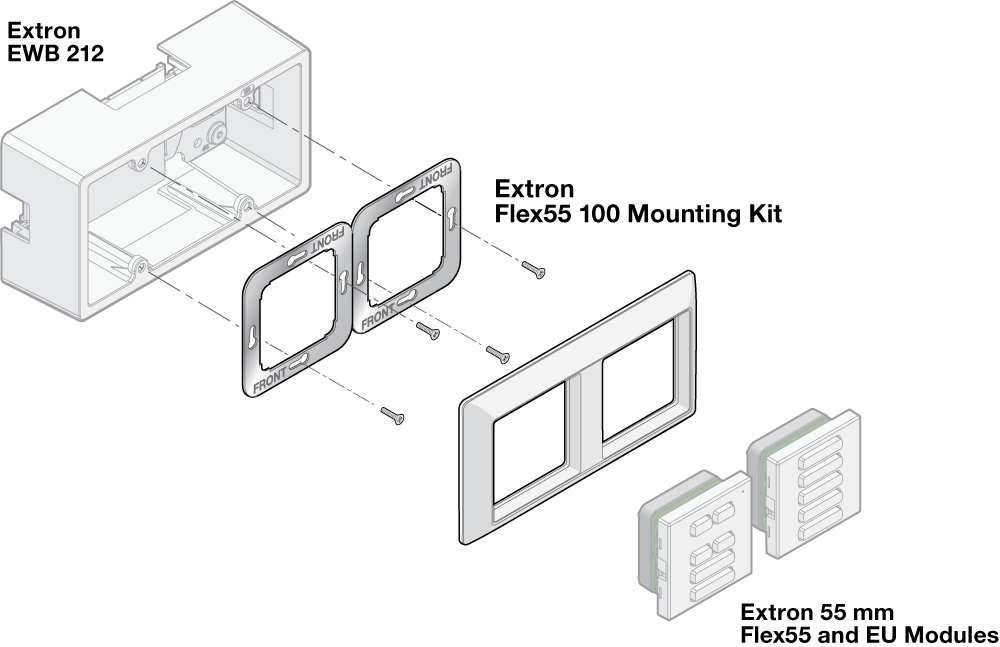

Extron Flex55 100 安装套件可安装到 Flex55™ 和欧式接线盒上面。每个套件包括一组装饰外框和安装支架，可用于一到四单元欧式接线盒或 Flex55 外盒，每个开口可容纳一个全格或两个半格 Flex55 或 EU 模块。它们兼容 EU 模块，如 Extron DTP T EU 4K DTP 发送器和 NBP 网络按键面板。Flex55 112 是一款双倍尺寸的单开口安装套件，兼容的产品包括 Flex55 AC+USB 130 US 电源模块等。此型号支持多达四个半格模块或两个全格模块。在无需 Flex55 或欧式接线盒的环境下，可将 Flex55 112 直接安装于墙壁或家具内。Flex55 100 安装套件备有黑色和白色外观可选。

技术参数

Flex55 100 Mounting Kit Series
General
Mounting	Mounts to Extron Flex55 enclosures, and select EU junction boxes. Accommodates Extron Flex55 modules and select EU modules.
Materials	Metal mounting bracket, high impact plastic frame

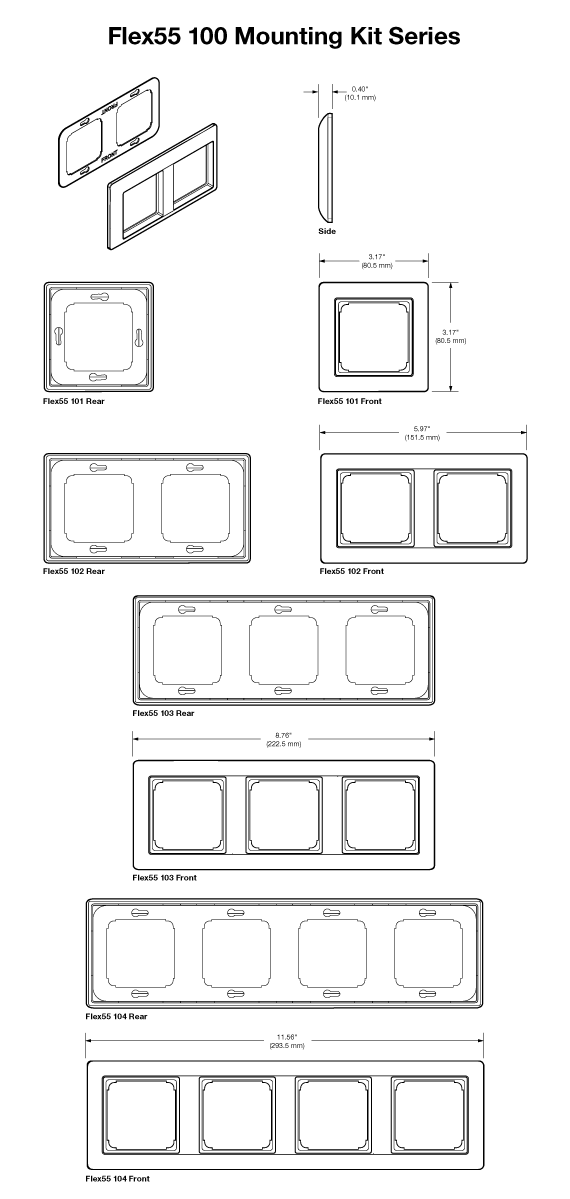

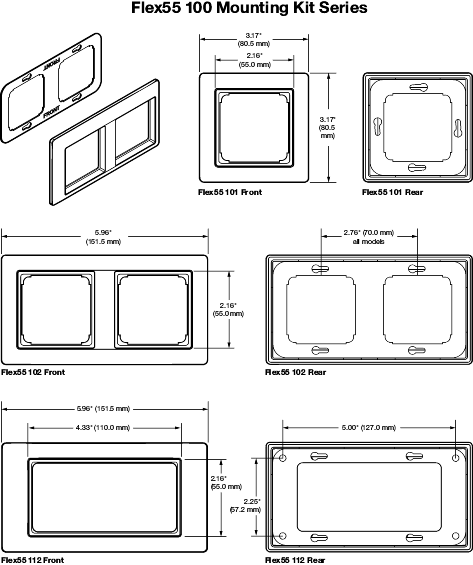

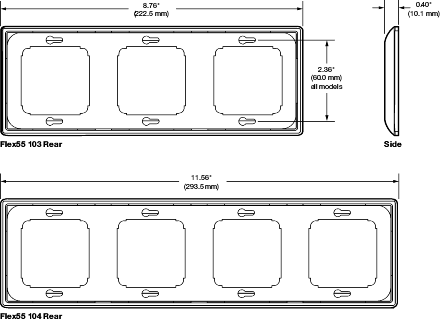

Dimensions
Frame
Flex55 101	3.17" H x 3.17" W x 0.40" D (1 gang) (80.5 mm H x 80.5 mm W x 10.1 mm D)
Flex55 102	3.17" H x 5.96" W x 0.40" D (2 gang) (80.5 mm H x 151.5 mm W x 10.1 mm D)
Flex55 103	3.17" H x 8.76" W x 0.40" D (3 gang) (80.5 mm H x 222.5 mm W x 10.1 mm D)
Flex55 104	3.17" H x 11.56" W x 0.40" D (4 gang) (80.5 mm H x 293.5 mm W x 10.1 mm D)
Flex55 112	3.17" H x 5.96" W x 0.40" D (80.5 mm H x 151.5 mm W x 10.1 mm D)
Product weight
Flex55 101	0.1 lbs (0.1 kg)
Flex55 102	0.2 lbs (0.1 kg)
Flex55 103	0.3 lbs (0.2 kg)
Flex55 104	0.4 lbs (0.2 kg)
Flex55 112	0.2 lbs (0.1 kg)
Regulatory compliance
Safety	CE
Environmental	Complies with the appropriate requirements of RoHS, WEEE.
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
(6400-D2)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
70-1155-12	1.3 cm	8.9 cm	8.9 cm	0.05 kg
70-1155-13	1.3 cm	8.9 cm	8.9 cm	0.05 kg
70-1155-22	1.3 cm	8.9 cm	15.9 cm	0.08 kg
70-1155-23	1.3 cm	8.9 cm	15.9 cm	0.08 kg
70-1342-22	1.3 cm	14.6 cm	27.9 cm	0.09 kg
70-1342-23	2.5 cm	15.2 cm	25.4 cm	0.45 kg
70-1155-32	1.3 cm	8.9 cm	22.9 cm	0.13 kg
70-1155-33	1.3 cm	8.9 cm	22.9 cm	0.13 kg
70-1155-42	1.3 cm	8.9 cm	29.8 cm	0.16 kg
70-1155-43	1.3 cm	8.9 cm	29.8 cm	0.16 kg
