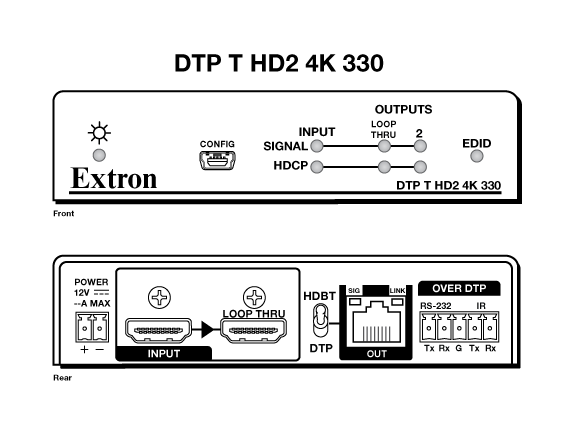

| DTP T HD2 4K 330 |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8 bits per color |
| Signal Type | HDMI 1.4, HDCP 1.4 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/4Kdatarate to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Maximum data rate | 10.2 Gbps (3.4 Gbps per color) |
| Maximum pixel clock | 300 MHz |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz,
UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
(*Reduced blanking) |
| Color bit depth | 8, 10, or 12 bits — subject to the maximum data rate limit |
| Formats | RGB and YCbCr digital video |
| Standard | DVI 1.0, HDMI, HDCP, CEA-861E |
|
| Video input |
|---|
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
| Number/signal type | 1 single link HDMI (or DVI-D*) |
| Connector | 1 female 19-pin HDMI type A |
| Input cable length | Up to 50' (15 m) with 225 MHz signal, 100' (30 m) with 165 MHz signal |
|
| Video output |
|---|
| Number/signal type | 1 single link HDMI (Loop Thru)
1 DTP 330 (Output) |
|
| Interconnection between transmitter and receiver |
|---|
| Connector | 1 RJ-45 jack |
| Termination standard | TIA/EIA T568B |
| Signal transmission distance | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 2560x1600 @ 60 Hz | Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| 4K/UHD @ 30 and 60 Hz | Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| NOTE | Output mode signaling:

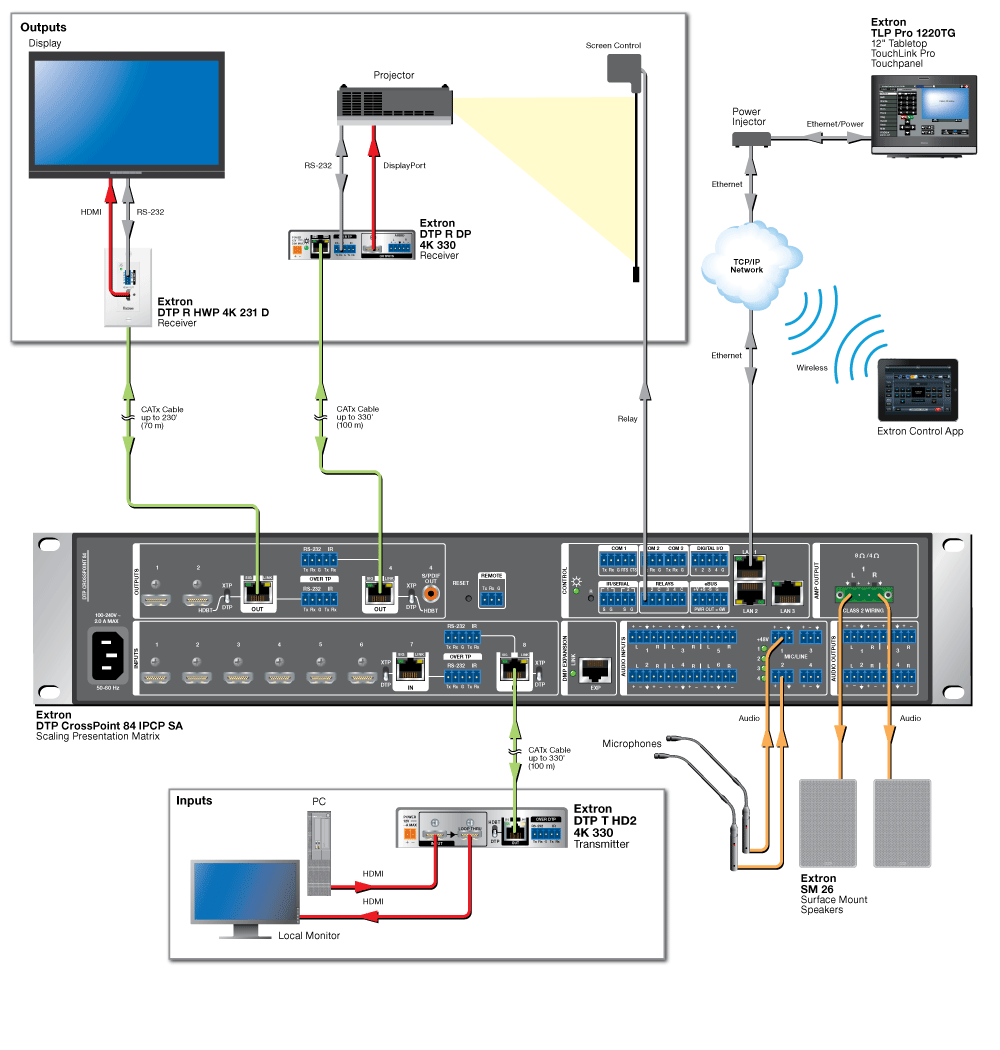

DTP: HDMI with embedded audio, analog audio, RS-232 and IR, and remote power

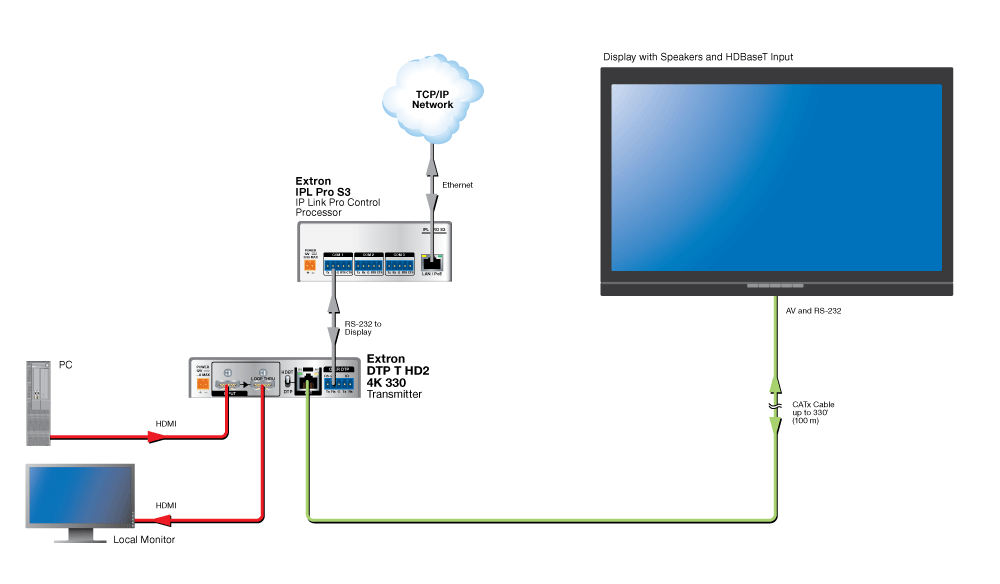

HDBaseT: HDMI with embedded audio plus RS-232 and IR |
|
|
| Control/remote |
|---|
| USB control port | 1 front panel female mini USB B |
| USB standards | USB 2.0, low speed |
| Program control | Extron Simple Instruction Set (SIS™), Extron Product Configuration Software (PCS) |
|
| Communications — external device (RS-232/IR over TP) |
|---|
| NOTE | Protocol is mirrored between the connected DTP 230 Rx or DTP 330 Rx endpoints and the "Over TP" ports on the
DTP T HD2 4K series. Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP 230 Rx or DTP 330 Rx endpoints for control of remote sink or source devices. The "Over TP" ports are simply pass-through connections to DTP endpoints. There is no RS-232 or IR insertion from any DTP T HD2 4K control port to the "Over TP" ports. |
|
| Serial control port | RS-232 via (1) 3.5 mm, 5-pole captive screw connector
(connector is shared with IR control ports) |
| Baud rate and protocol | 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity |
| Serial control pin configuration | Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd |
| IR pass-through control port | (1) 3.5 mm, 5-pole captive screw connector
(connector is shared with RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
| IR control pin configuration | 3 = Gnd, 4 = IR Tx, 5 = IR Rx |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 5.9 watts |
| Device and power supply | 7.4 watts |
| Remote power budget | 12 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 19.0 BTU/hr |
| Device and power supply | 23.9 BTU/hr |
| Rack mount | Yes |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 4.3" W x 6.0" D (1" high, 1/4 rack wide)
2.5 cm H x 10.9 cm W x 15.2 cm D (depth excludes connectors) |
| Product weight | 0.5 lb (0.3 kg) |
| Shipping weight | 1.0 lb (0.5 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE**, C-tick, FCC Class A**, ICES, VCCI |
| NOTE | **CE and FCC testing is conducted with STP cable. |
|
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5383-D7) |
