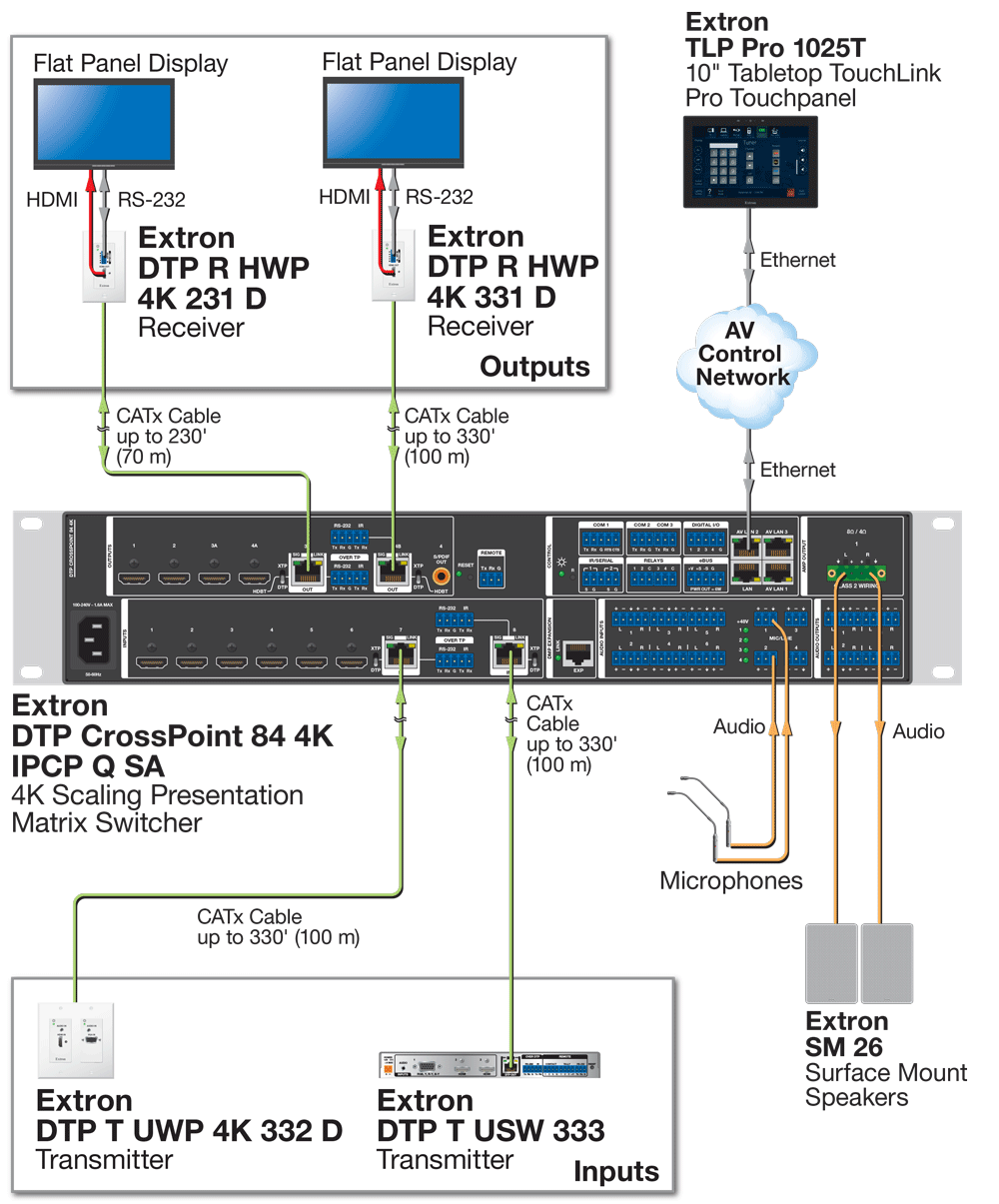

| DTP R HWP 4K 331 D |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8 bits per color |
| Signal Type | HDMI 1.4, HDCP 2.3 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (www.extron.com/8Kdatarate) to determine video parameters supported by this data rate. |
|
| | |
|
| Video |
|---|
| HDMI output | |
| Maximum data rate | 10.2 Gbps (3.4 Gbps per color) |
| Maximum pixel clock | 300 MHz |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz,
UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
(*Reduced blanking) |
| Color bit depth | 8, 10, or 12 bits — subject to the maximum data rate limit |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 1.4, HDCP 2.3, CEA-861E |
|
| Video output |
|---|
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
| Number/signal type | 1 single link HDMI (or single link DVI-D*) output |
| Connectors | 1 female HDMI, type A |
|
| Interconnection between transmitter and receiver |
|---|
| Signal Type | 1 DTP 330 input |
| Connectors | 1 female RJ-45 jack |
| Termination standards | TIA/EIA-T568B |
| DTP signal | |
| Signal transmission distance | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| 2560x1600 @ 60 Hz | Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| 4K/UHD @ 30 and 60 Hz | Up to 330' (100 m) using STP cable or XTP DTP 24 cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth STP cable |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| NOTE | Output mode signaling:
DTP: HDMI with embedded audio, analog audio, RS-232 and IR, and remote power
HDBaseT: HDMI with embedded audio plus RS-232 and IR |
|
|
| Audio |
|---|
| Gain | Unbalanced output: 0 dB; balanced output: +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.03% @ 20 Hz to kHz at maximum output |
| S/N | >90 dB at maximum output (15 dBu), balanced (unweighted) |
| Stereo channel separation | >80 dB @ 1 kHz to 20 kHz |
|
| Audio output |
|---|
| Number/signal type | 1 stereo, balanced/unbalanced |
| Connectors | (1) 3.5 mm 5-pole captive screw |
| Impedance | 50 ohm, unbalanced |
| Gain error | ±0.2 dB channel to channel |
| Maximum level | >+14 dBu, balanced |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
| NOTE | Analog audio is not embedded onto the HDMI/digital signal. Analog audio and embedded digital audio are transmitted simultaneously and output on the receiver on two different connectors. |
|
|
| General |
|---|
| Power supply | External (not included)
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 7.5 watts |
| Device and power supply | 9.4 watts |
| NOTE | Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or transmitter on the other end of the twisted pair cable. |
|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 14.0 BTU/hr |
| Device and power supply | 20.6 BTU/hr |
| Enclosure type | Metal |

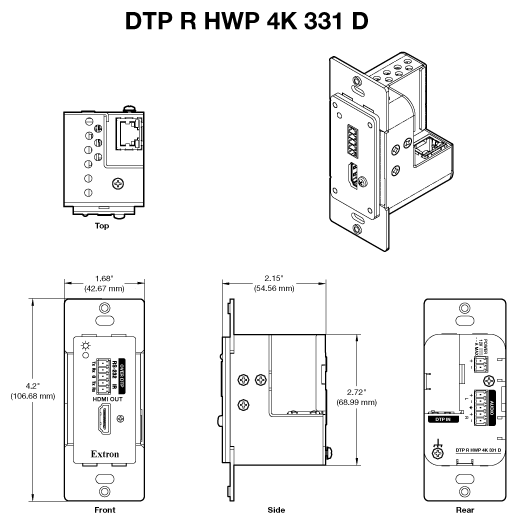

| Enclosure dimensions | |
| Faceplate | 2.6" H* x 1.3" W x 0.2" D
(6.6 cm H* x 3.3 cm W x 0.6 cm D)
Fits the opening in a 1 gang decorator wallplate |
| Device | 4.2" H x 1.7" W x 2.2" D
(10.7 cm H x 4.3 cm W x 5.8 cm D)
|
| Product weight | 0.34 lbs (0.15 kg) |
| Regulatory compliance | c-UL, C-tick, CE**, FCC Class A**, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE |
| NOTE | **CE and FCC testing is conducted with STP cable. |
|
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4941-D4) |
