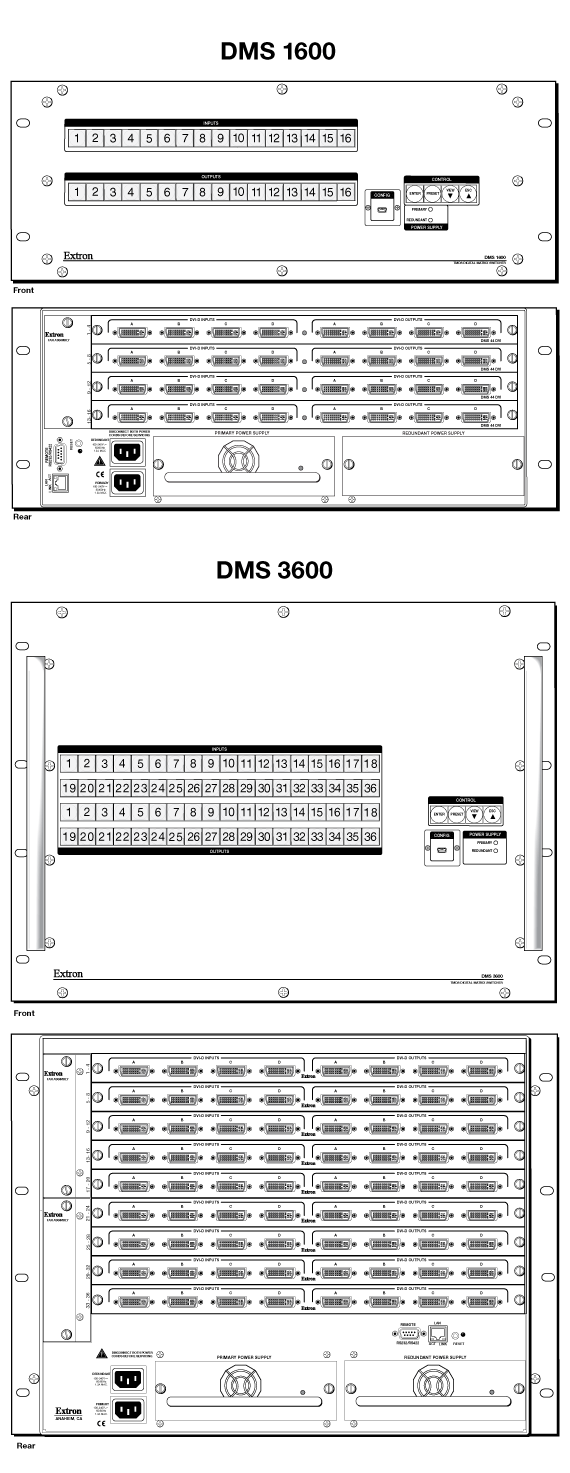

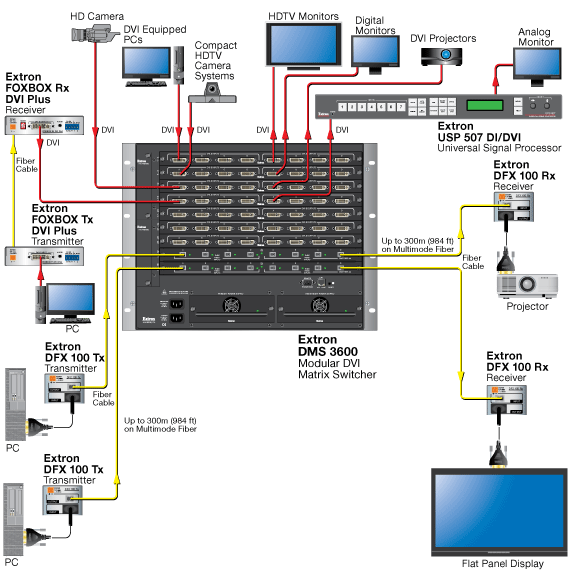

| DMS 3600 Series |
|
| Video — DMS DVI boards |
|---|
| Routing | From 4 x 4 to 36 x 36 matrix, expandable by increments of 4 inputs and 4 outputs |
| Gain | Unity |
| Resolution range | Up to 1080p (HDTV) or 1920x1200 (the highest resolution of the single link DVI standard) @ 48, 50, or 60 Hz |
| Signal Type | Single-link DVI digital video signals are supported. |
| Digital video | RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI), actively buffered (supports all single link DVI and HDMI [if using an optional adapter] standards from 640x480 @ 60 Hz to 1600x1200 @ 60 Hz computer video) |
| NOTE | The DMS DVI Series boards are not compatible with HDMI. |
|
| Digital audio | Embedded audio from HDMI sources can be passed, as long as it is not HDCP encrypted content |
| Consumer Electronics Control (CEC) | Not supported |
| EDID and DDC | Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered. |
| HDCP | Not supported |
| HPD | Supports hot plug detection (HPD) of display as a pass-through signal. |
| Maximum data rate | 4.95 Gbps (1.65 Gbps per color) |
| Maximum pixel clock | 165 MHz |
| Standards | DVI 1.0 |
| Switching speed | 200 ns, max. |
|
| Video input — DMS 44 DVI and DMS 4i DVI input boards |
|---|
| Number/signal type | 4 digital RGB single link DVI-D per input board |
| Connectors | 4 female DVI-I (digital only) per input board |
| Equalization | Automatic |
| Input cable length | 100' (30 m) at 1920x1200 @ 48, 50, or 60 Hz; or 1080p; 8 bit color |
| NOTE | The transmission distance varies depending on the signal resolution and on the type of cable, graphic card, and display used in the system. |
|
|
| Video output — DMS 44 DVI and DMS 4o DVI output boards |
|---|
| Number/signal type | 4 digital RGB single link DVI-D per output board |
| Connectors | 4 female DVI-I (digital only) per output board |
| Re-clocking | Automatic |
| Output cable length | 50' (15.24 m) at 1920x1200 @ 48, 50, or 60 Hz; or 1080p |
| Peripheral device power | 250 mA per output |
|
| Communications — switcher host ports |
|---|
| Serial host control port | 1 bidirectional RS-232 or RS-422, rear panel 9-pin female D connector |
| Baud rate and protocol | 9600 (default), 19200, 38400, 115200 baud, adjustable; 8 data bits, 1 stop bit, no parity |
| Serial control pin configurations |
| 9-pin female D connector | |
| RS-232 | 2 = Tx, 3 = Rx, 5 = Gnd |
| RS-422 | 2 = Tx-, 3 = Rx-, 5 = Gnd, 7 = Rx+, 8 = Tx+ |
| USB control ports | 1 front panel female mini USB B |
| USB standards | USB 2.0, low speed |
| Ethernet control port | 1 RJ-45 female |
| Ethernet data rate (for network communication) | 10/100Base-T, half/full duplex with autodetect |
| Ethernet protocol | ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet |
| Ethernet default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off |
| Web server | Up to 200 simultaneous sessions
7.0 MB nonvolatile user memory |
| Program control | Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™)
Microsoft® Internet Explorer® ver. 6 or higher, Telnet |
|
| General |
|---|
| Power supply | Internal, 2* (positive-negative)
Input: 100-240 VAC, 50-60 Hz
*A redundant power supply is standard. |
| Power consumption | 212 watts
Measured fully loaded with (9) 4x4 I/O boards |
| Power consumption: I/O boards |  |
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing |
| Cooling | Fan, right to left (as viewed from front panel) |
| Thermal dissipation, full load | 724 BTU/hr
Measured fully loaded with (9) 4x4 I/O boards |
| Rack mount | Yes |
| Enclosure type | Metal |
| Enclosure dimensions | 14.0" H x 17.0" W x 12.25" D (8U high, full rack wide)
(35.6 cm H x 43.2 cm W x 31.1 cm D)
(Depth excludes connectors and handles. Width excludes rack ears.) |
| Product weight with boards installed | 38.5 lbs (17.5 kg) |
| Shipping weight with boards installed | 48 lbs (22 kg) |
| Regulatory compliance | CE, c-UL UL,C-tick, FCC Class A, ICES, KC, VCCI,
Complies with the appropriate requirements of RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5617-D9) |
