| DTP T EU 232 |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
|
| Video |
|---|
| Maximum data rate | 6.75 Gbps (2.25 Gbps per color) |
| Maximum pixel clock | 165 MHz |
| Resolution range | Up to 1920x1200 or 1080p @ 60 Hz; 8 bit color depth
2048x1080p @ 60 Hz (2K) |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI, HDCP 1.2, EDID 1.3, CEA-861E |
|
| Video input — HDMI |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D*) input |
| Connectors | 1 female HDMI type A |
|
| Video input — VGA |
|---|
| Number/signal type | 1 analog RGBHV |
| Connectors | 1 female 15-pin HD (RGB) |
| Nominal level | 0.7 Vp-p for RGB |
| Minimum/maximum levels | 0.3 V to 1.45 Vp-p |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 130 kHz |
| Vertical frequency | 30 Hz to 150 Hz |
| Return loss | <-30 dB @ 5 MHz |
| DC offset (max. allowable) | 250 mV |
|
| Interconnection between transmitter and receiver |
|---|
| Signal Type | 1 DTP 230 output |
| Connectors | 1 female RJ-45 |
| Termination standards | TIA/EIA T568B |
| DTP signal | |
| Signal transmission distance | Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth STP cable |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|

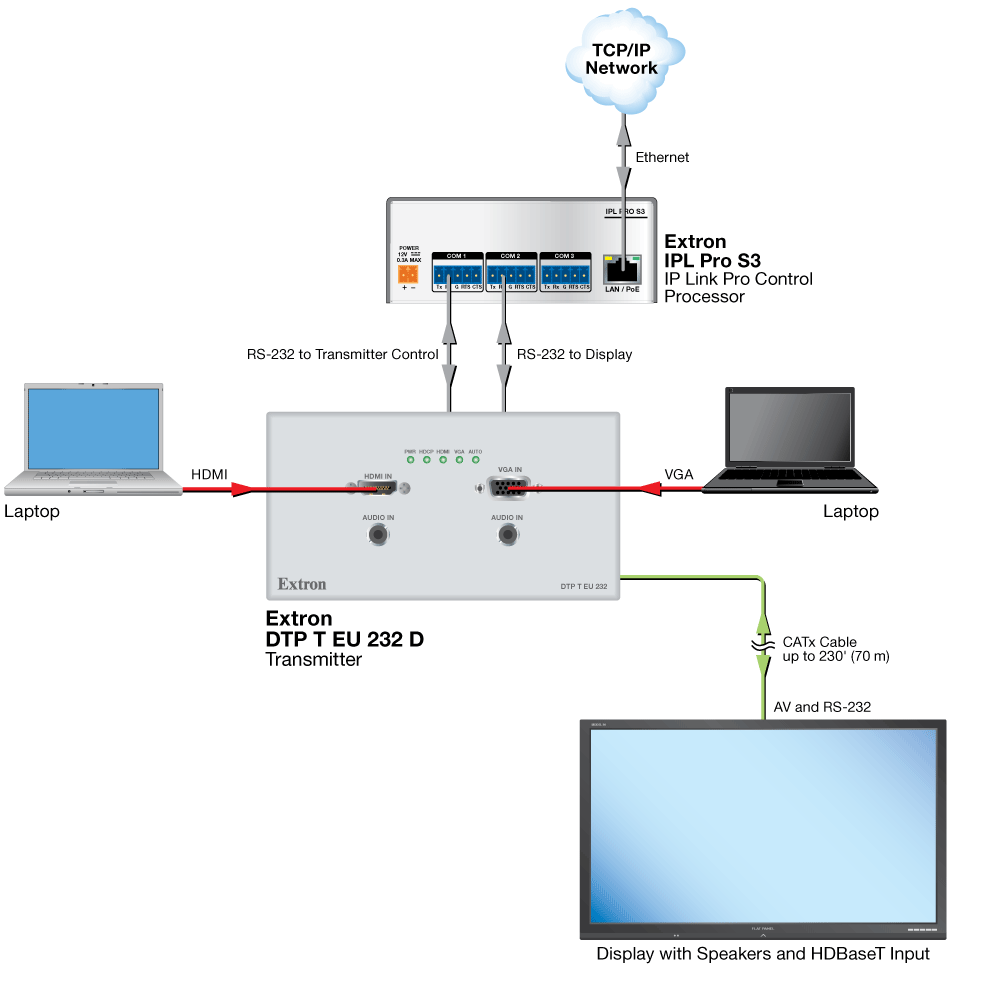

| NOTE | Input and output mode signaling:
DTP: HDMI with embedded audio, analog audio, RS-232 and IR, and remote power
HDBaseT: HDMI with embedded audio plus RS-232 and IR |
|
|
| Audio |
|---|
| Gain | Unbalanced output: 0 dB; balanced output +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.03% @ 20 Hz to 20 kHz at maximum output |
| S/N | >90 dB, at maximum output (15 dBu), balanced (unweighted) |
| Stereo channel separation | >80 dB @ 1 kHz to 20 kHz |
|
| Audio input |
|---|
| Number/signal type | |
| Analog audio (over DTP) | 2 stereo, unbalanced |
| NOTE | Analog audio is not embedded onto the digital video signal. |
|
| Digital audio | 1 embedded digital audio on DTP |
| Embedded digital audio source formats | 2-ch PCM, PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1 |
| Connectors | (2) 3.5 mm stereo jack, 2 channel; tip (L); ring (R); sleeve (ground) |
| Impedance | >10k ohms, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +7 dBu, unbalanced |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output |
|---|
| Number/signal type | |
| Analog audio (over DTP) | 1 stereo, unbalanced |
| Digital audio | 1 embedded digital audio on DTP |
| Embedded digital audio source formats | 2-ch PCM, PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1 |
| Connectors | 1 female RJ-45 jack |
|
| Communications — transmitter |
|---|
| Serial control port | RS-232 via (1) 3.5 mm, 3-pole captive screw connector for RS-232 control (±5 V) |
| Baud rate and protocol | 9600 baud rate, 8 data bits, 1 stop bit, no parity |
| USB control port | 1 side panel female mini USB type B |
| USB standards | USB 2.0, high speed |
| Program control | Extron Simple Instruction Set (SIS™) |
|
| Communications — external device (pass-through) |
|---|
| Serial control pass-through port | Bidirectional RS-232 |
| Connector | |
| DTP output | (1) 3.5 mm captive screw connector, 5-pole (shared with IR pass-through port) |
| Baud rates | 300 to 115200 baud |
| Protocol | Data bits = 5 - 8
Stop bits = 1 or 2
Parity = odd, even, none
Flow control = XON, XOFF, none |
| IR pass-through control port | TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
| DTP output | (1) 3.5 mm captive screw connector, 5-pole (shared with IR pass-through port) |

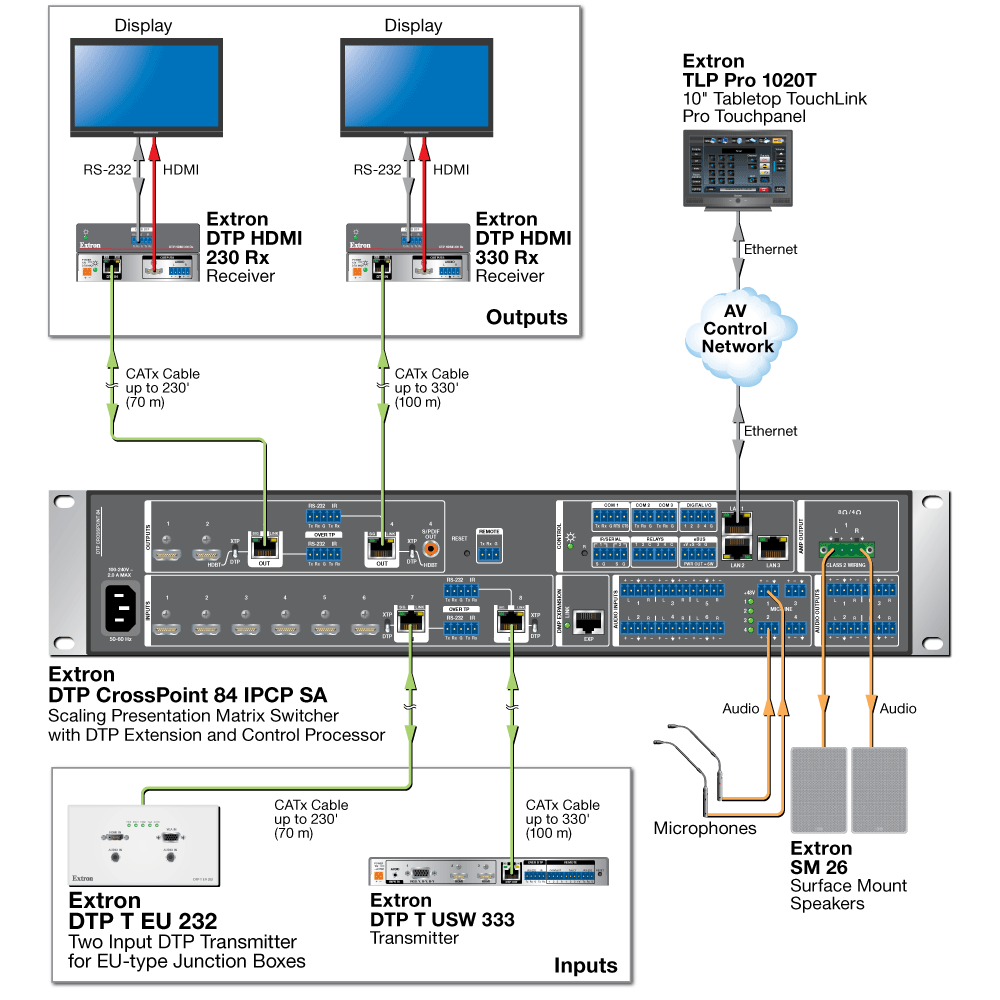

| NOTE | Protocol is mirrored between the connected DTP 230 endpoints and the "Over TP" ports on the DTP T 232 EU. Signals from a control device pass into each "Over TP" port, are embedded with the TP signal and sent to the individual DTP 230 endpoints for control of remote sink or source devices. |
|
|
| General |
|---|
| Power supply | External
Input: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 4.1 watts |
| Device and power supply | 5.6 watts |
| Remote power budget | 12 watts |
| NOTE | Each transmitter or receiver can be powered either locally by an external power supply or remotely by an receiver or transmitter on the other end of the twisted pair cable. |
|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 13.9 BTU/hr |
| Device and power supply | 18.9 BTU/hr |

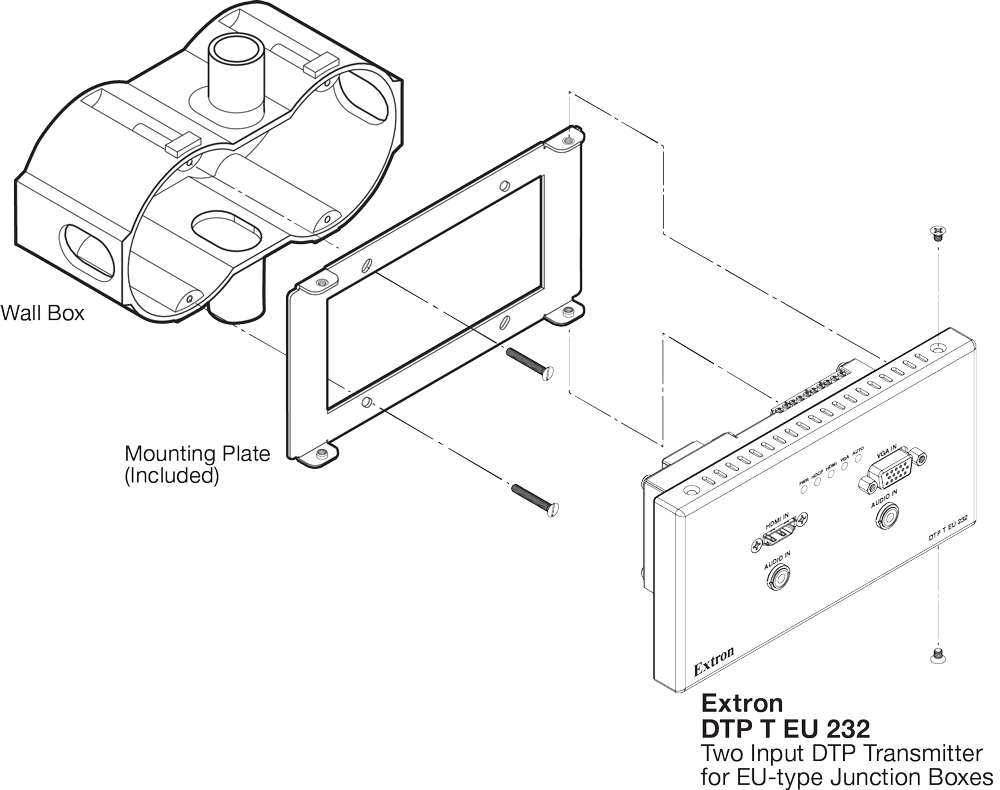

| Mounting |
| Furniture or wall mount | Yes, with an EU 2-gang electrical junction box |
| Enclosure type | Metal |

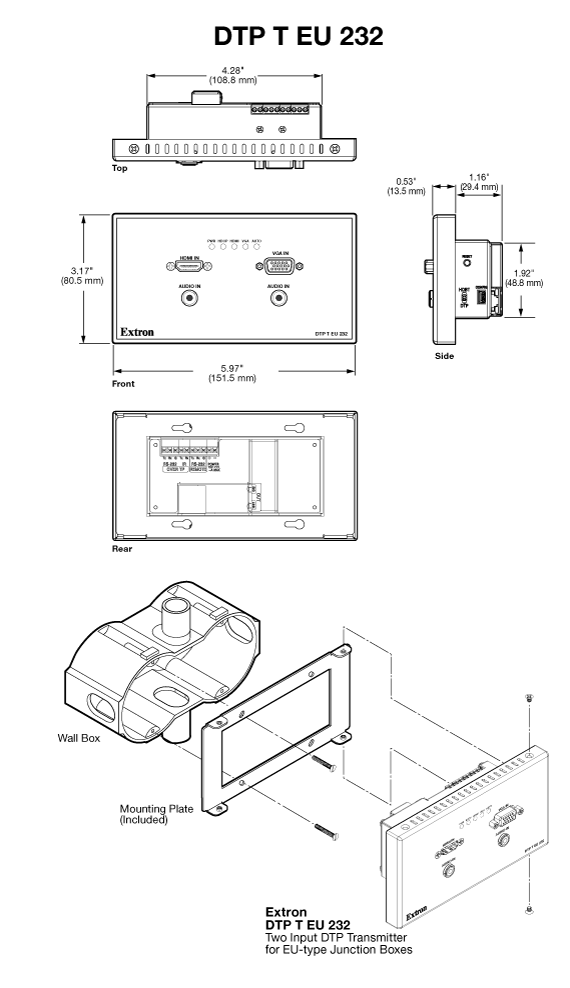

| Enclosure dimensions | |
| Faceplate | 3.2" H x 6.0" W x 0.5" D (2-gang)
(8.1 cm H x 15.2 cm W x 1.4 cm D) |
| Device | 1.9" H x 4.3" W x 1.4" D
(4.9 cm H x 10.9 cm W x 3.5 cm D)
(Depth excludes connectors. Fits some EU 2-gang boxes.) |
| Product weight | 0.7 lbs (0.3 kg) |
| Shipping weight | 3 lbs (2 kg) |
| Regulatory compliance | CE, c-UL UL, CE**, C-tick, FCC Class A**, ICES, VCCI,
Complies with the appropriate requirements of RoHS, WEEE |
| NOTE | **CE and FCC testing is conducted with STP (shielded twisted pair) cable. |
|
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5357-D6) |
