| DTP T EU 4K 331 |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8 bits per color |
| Signal Type | HDMI 1.4, HDCP 2.3, 2.0, 1.4 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
|
| Video |
|---|
| Maximum data rate | 10.2 Gbps (3.4 Gbps per color) |
| Maximum pixel clock | 300 MHz |
| Resolution range | Up to 1920x1200 or 1080p @ 60 Hz; 12-bit color depth, 2K
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 1.4, HDCP 2.2, 1.4, CEA-861E |
|
| Video input |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D*) input |
| Connector | 1 female HDMI type A |
|
| Interconnection between transmitter and receiver |
|---|
| Signal Type | 1 digital video, embedded digital audio (HDMI), and remote power |
| Connector | 1 female RJ-45 |
| Termination standards | TIA/EIA T568B |
| Signal transmission distance | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth STP cable |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|

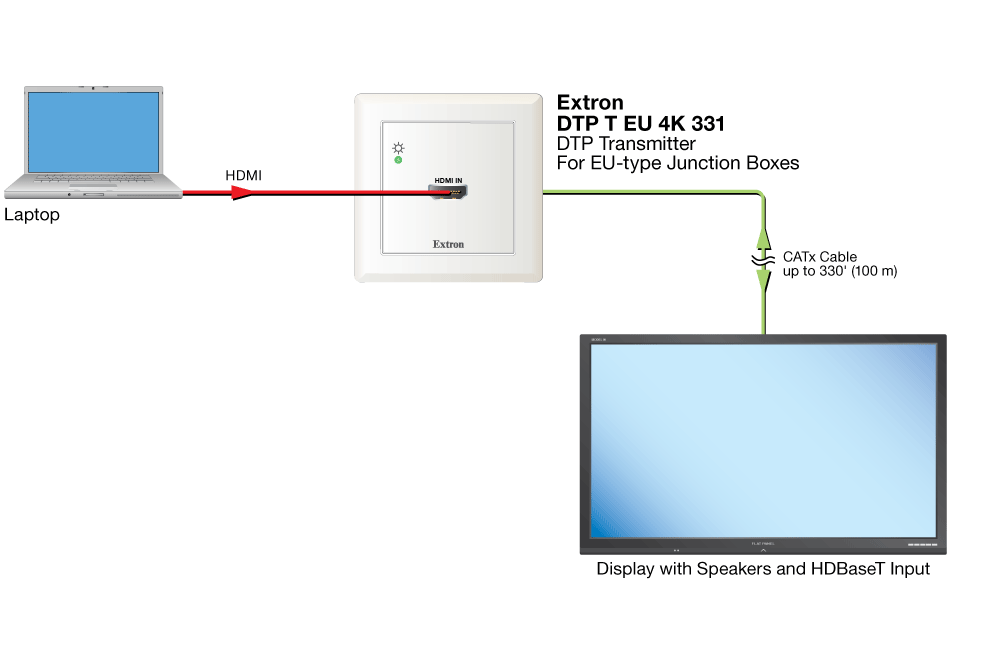

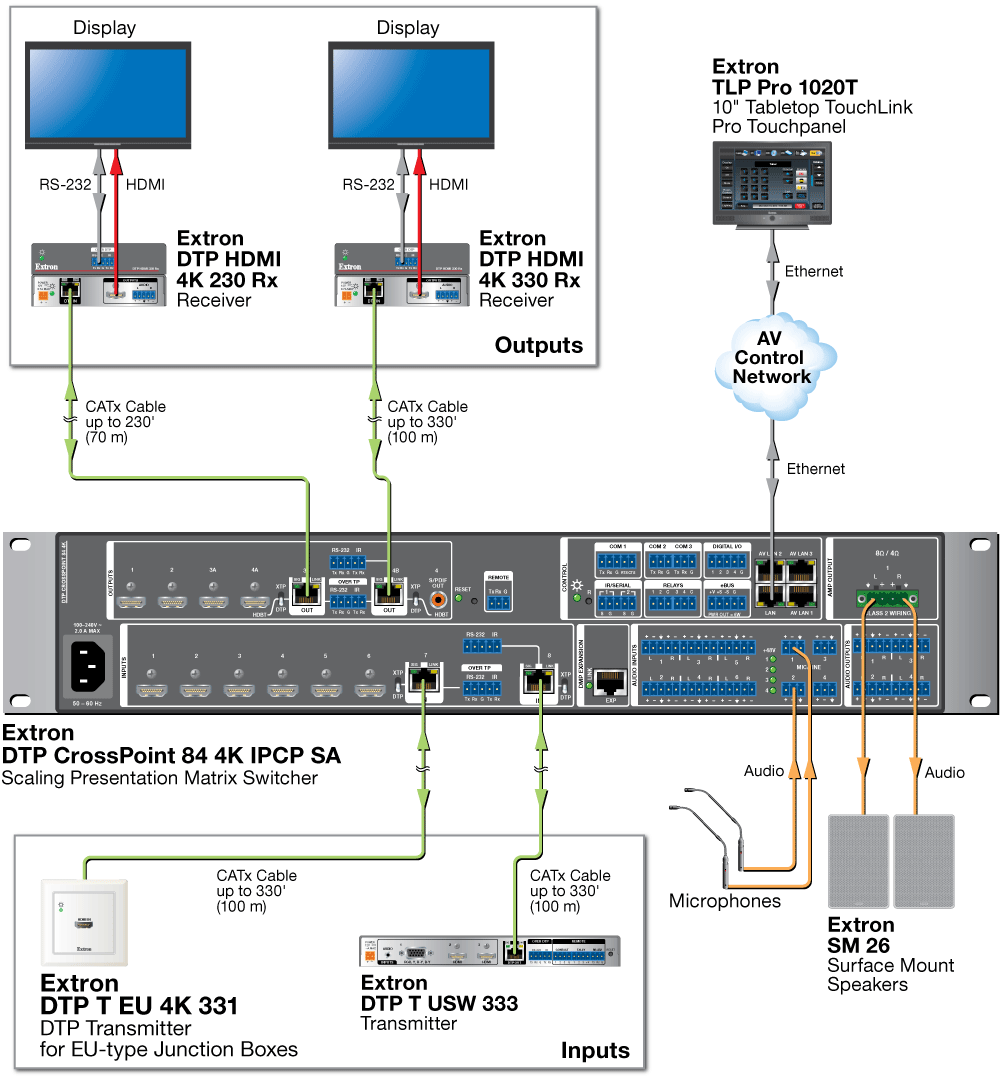

| NOTE | Output mode signaling:
DTP: HDMI with embedded audio and remote power
HDBaseT: HDMI with embedded audio |
|
|
| General |
|---|
| Power supply | External
Input: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Device | 2.9 watts |
| Device and power supply | 3.8 watts |
| Remote power budget | 12 watts |
| NOTE | The transmitter can be powered either locally by the included external power supply or remotely by a powered receiver on the other end of the twisted pair cable. |
|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 9.8 BTU/hr |
| Device and power supply | 12.8 BTU/hr |
| Mounting | Mounts to 1-gang enclosures with 60 mm mounting centers. |
| Enclosure type | Metal |

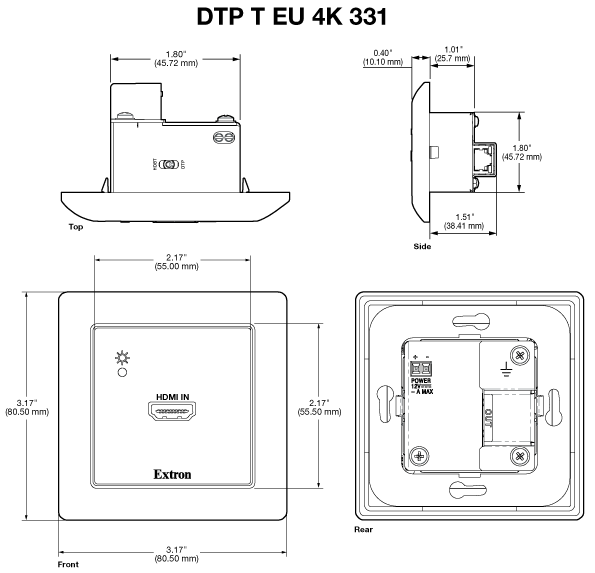

| Enclosure dimensions | |
| Frame | 3.17" H x 3.17" W x 0.40" D (1-gang)
(80.5 mm H x 80.5 mm W x 10.1 mm D) |
| Device module | 2.17" H x 2.17" W x 1.52" D
(55.0 mm H x 55.0 mm W x 38.4 mm D)
Fits mounting frames that accept 55 mm x 55 mm modules.
(Allow at least 1.9" [47 mm] in the junction box for device plus cable clearance.)
|
| |  |
| Product weight | 0.2 lbs (0.1 kg) |
| Regulatory compliance | CE**, c-UL, UL, C-tick, FCC Class A**, ICES, VCCI
Complies with the appropriate requirements of RoHS, WEEE. |
| NOTE | **CE and FCC testing is conducted with STP (shielded twisted pair) cable. |
|
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5348-D6) |
