| DA HD 8K L Series |
|
 specification |
|---|
| Max. 8K Capabilities |
| Resolution |
Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 7680x4320 |
60 Hz |
4:2:0 |
10 bit |
| 30 Hz |
4:4:4 |
| Max. 4K and 5K Capabilities |
| Resolution |
Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 5120x2880 |
60 Hz |
4:4:4 |
12 bit |
| 5120x1440 |
| 4096x2160 |
| 3840x2160 |
| 3840x2160 |
120 Hz |
10 bit |
|
| Frame rate1 | 24, 25, 30, 50, 60, or 120 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.1, HDCP 2.3 |
| Max. video data rate | 40.1 Gbps |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (/8Kdatarate) to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Maximum data rate | 40.1 Gbps |
| Maximum pixel clock | 2376 Mhz |
| Resolution range | |
| VESA | 640x480 to 7680x4320 |
| SMPTE | Up to 1080p @ 240 Hz or 8K @ 60 Hz (4:2:0 chroma sampling) |
| Ultra Wide & 5K | 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600, 5120x1080, 5120x1440, 5120x2160, 5120x2560, 5120x2880 |
| Color bit depth | 8, 10, or 12 bits — subject to the max data rate |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0*, HDMI 2.1, HDCP 1.x, HDCP 2.3 |
| HDR | HDR10, HDR10+, and Dolby Vision |
| NOTE | *Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input/output. |
|
| NOTE | Extron strongly recommends compatibility testing while designing, and before installing any 3D or HDR (high dynamic range) system. There are several unique 3D and HDR formats in use by source devices and display manufacturers. The level of 3D and HDR product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Application Engineer for more information.
|
|
|
| Video input |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D*) |
| Connectors | 1 female 19-pin HDMI type A |
| Input cable length | Up to 15 feet (4.0 m) |
| Horizontal frequency | 15 kHz to 270 kHz for resolutions up to 40.1 Gbps |
| Vertical frequency | 24 Hz to 240 Hz for resolutions up to 40.1 Gbps |
| EDID emulation | 128 - 512 byte EDID support (1 - 4 blocks) |
|
| Video output |
|---|

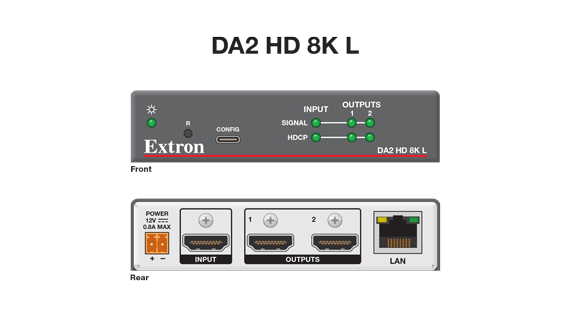

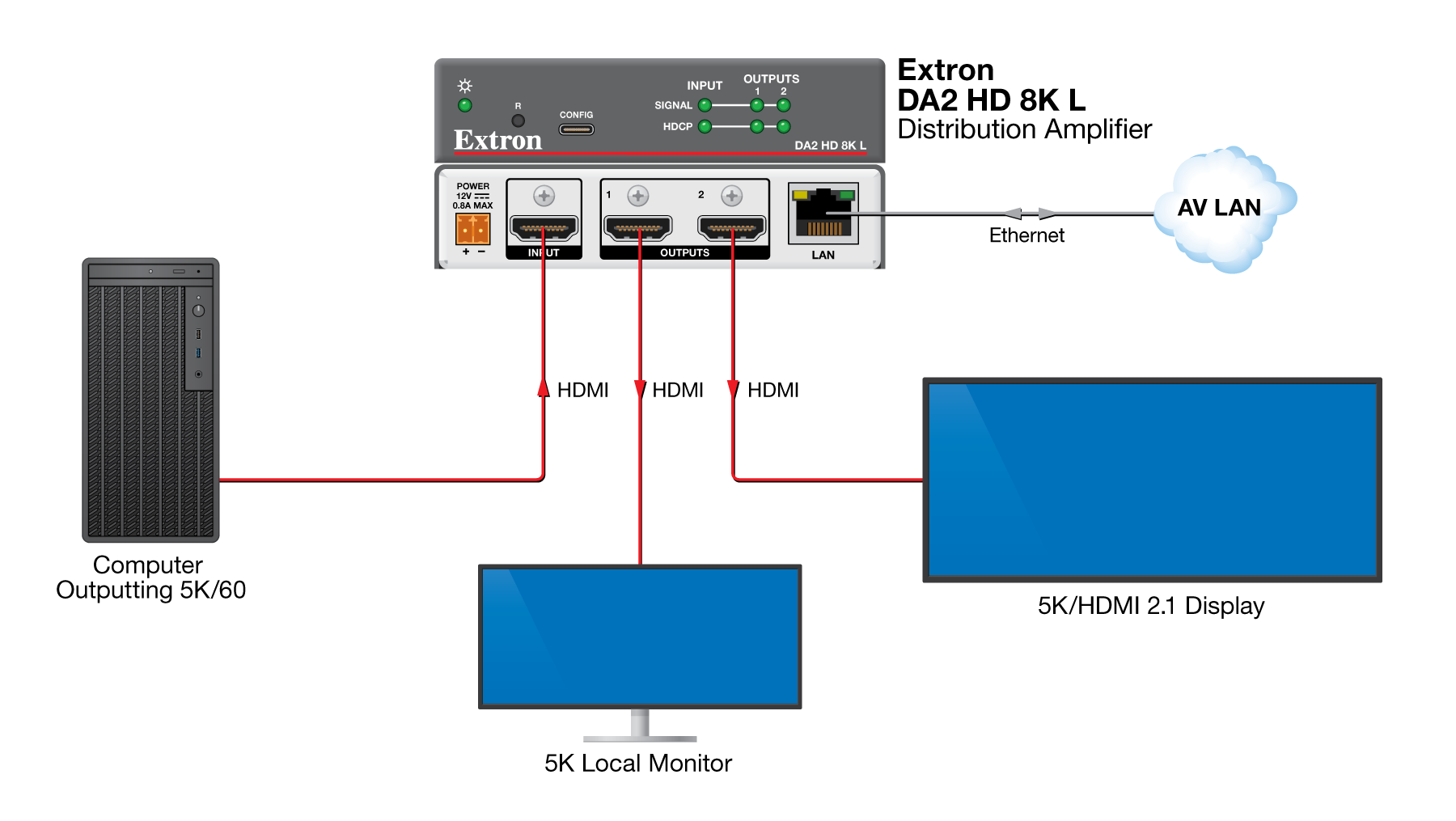

| DA2 HD 8K L | |
| Number/signal type | 2 single link HDMI (or DVI-D*) |
| Connectors | 2 female 19-pin HDMI type A |
| Power for active cables | 1.25 W total power for HDMI port |
| Peripheral device power | 250 mA per HDMI output |
| DA4 HD 8K L | |
| Number/signal type | 4 single link HDMI (or DVI-D*) |
| Connectors | 4 female 19-pin HDMI type A |
| Power for active cables | 1.25 W total power for HDMI port |
| Peripheral device power | 250 mA per HDMI output |
| DA6 HD 8K L | |
| Number/signal type | 6 single link HDMI (or DVI-D*) |
| Connectors | 6 female 19-pin HDMI type A |
| Power for active cables | 1.25 W total power for HDMI port |
| Peripheral device power | 250 mA per HDMI output |
|
| Audio input |
|---|
| Number/signal type | 1 digital embedded audio on HDMI |
| Connector | 1 female 19-pin HDMI type A |
| HDMI pass-through | LPCM up to 7.1/24-bit/192 kHz, Dolby® Digital EX, Dolby Digital Plus™, Dolby Digital 5.1, Dolby Digital 2.0 Surround, Dolby Digital 2.0, Dolby TrueHD, Dolby Atmos™, DTS-HD Master Audio, DTS-X, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS-Digital Surround 5.1, DTS 2-Channel |
|
| Audio output |
|---|
| DA2 HD 8K L | |
| Number/signal type | 2 digital embedded audio on HDMI |
| Connectors | 2 female HDMI |
| DA4 HD 8K L | |
| Number/signal type | 4 digital embedded audio on HDMI |
| Connectors | 4 female HDMI |
| DA6 HD 8K L | |
| Number/signal type | 6 digital embedded audio on HDMI |
| Connectors | 6 female HDMI |
|
| Communications — unit |
|---|
| USB control port | 1 female USB-C on front panel |
| USB standards | USB 2.0 high speed |
| Serial control port | 1 RS-232, rear panel 3.5 mm captive screw connector, 3-pole (DA4 and DA6 only) |
| Baud rate | 9600 |
| Protocols | Data bits: 7 or 8 (default)
Stop bits: 1 (default) or 2
Parity: odd, even, or no (default) |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| LAN Ethernet port | 1 RJ-45 connector |
| Ethernet data rate | 10/100Base-T, half/full duplex with autodetect |
| Ethernet protocol | ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP |
| Program control | Extron Simple Instruction Set (SIS™), Extron PCS |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: DA2 - 12 VDC, 1.5 A, 18 watts
DA4 and DA6 - 12 VDC, 2.0 A, 18 watts |
| Power consumption | |
| DA2 HD 8K L | |
| Device | 7.4 watts |
| Device and power supply | 9.2 watts |
| DA4 HD 8K L | |
| Device | 16.3 watts |
| Device and power supply | 19.6 watts |
| DA6 HD 8K L | |
| Device | 21.5 watts |
| Device and power supply | 24.4 watts |
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +104°F (0 to +40°C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| DA2 HD 8K L | 29.6 BTU/Hr |
| DA4 HD 8K L | 38.5 BTU/Hr |
| DA6 HD 8K L | 47.8 BTU/Hr |
| Mounting | |
| Rack mount | Yes, with optional rack shelf kit |
| Enclosure type | Metal |
| Enclosure dimensions | |
| DA2 HD 8K L | 1.00" H x 4.30" W x 6.00" D ( 1 inch high, quarter rack wide)
(25 mm H x 109 mm W x 152 mm D) |
| DA4 HD 8K L | 1.00" H x 8.75" W x 6.00" D ( 1 inch high, quarter rack wide)
(25 mm H x 222 mm W x 152 mm D) |
| DA6 HD 8K L | 1.00" H x 8.75" W x 6.00" D ( 1 inch high, quarter rack wide)
(25 mm H x 222 mm W x 152 mm D) |
| Product weight | |
| DA2 HD 8K L | 0.53 lbs (0.24 kg) |
| DA4 HD 8K L | 2.95 lbs (1.34 kg) |
| DA6 HD 8K L | 3.05 lbs (1.38 kg) |
| Regulatory compliance | CE, c-UL, UL, C-Tick, FCC Class A, ICES, VCCI |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6521-D4) |
