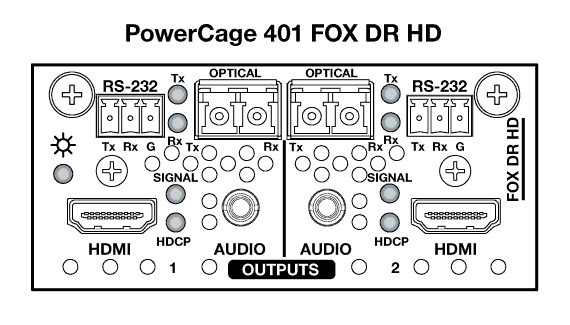

| PowerCage™ 401 FOX DR HD |
| NOTE | The PowerCage 401 FOX DR HD boards are not compatible with the FOX 3G HD-SDI, FOX 3G DVC, or FOX AV models. |
|
| NOTE | The PowerCage 401 FOX DR HD board is available in singlemode or multimode version. |
|
| NOTE | The PowerCage 401 FOX DR HD board is a class 1 laser product. It meets the safety regulations of IEC-60825. |
|
|
| Optical fiber interconnection between transmitter and receiver |
|---|
| Number/type | 4 singlemode or 4 multimode fiber optic input and output per FOX board |
| Connectors | 4 bidirectional LC connectors per FOX board |
| Operating distance | |
| Singlemode | 30 km (18.75 miles) with singlemode (SM) cables with a SM board |
| Multimode | 300 m (984') with 62.5 µm OM1 multimode (MM) cable and a MM board
1 km (3280') with 50 µm OM2 multimode (MM) cable and a MM board
2 km (6561') with 50 µm OM3/OM4 2000/4700 MHz bandwidth laser optimized MM cable and a MM board |
| NOTE | Operating distance is approximate. These are typical distances. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. |
|
| Nominal peak wavelength | 850 nm for multimode (MM), 1310 nm for singlemode (SM) |
| Transmission power, singlemode or multimode | -5 dBm, typical |
| Maximum receiver sensitivity | |
| Singlemode | -18 dBm, typical |
| Multimode | -12 dBm, typical |
| Optical loss budget | |
| Singlemode | 13 dB, maximum |
| Multimode | 7 dB, maximum |
| Maximum channel data rate | 4.25 Gbps |
|
| Video |
|---|
| NOTE | Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input and output. |
|
| Maximum data rate | 4.95 Gbps |
| Maximum pixel clock | 165 MHz |
| Color space | 4:4:4 |
| Horizontal frequency | 24 kHz to 135 kHz |
| Vertical frequency | 40 Hz to 120 Hz |
| Maximum resolution | 640x480 up to 1920x1200 @ 60Hz, including 480p, 576p, 720p @ 50/59.94/60Hz, 1080i @ 25/30 HZ, 1080p @ 50/60Hz, sampled pixel for pixel; higher resolution 2K (2048x1080) @ 60 Hz, undersampled |
| Formats | RGB and YCbCr digital video |
| HDCP | Compliant with High-bandwidth (Digital Content Protection (HDCP) using DVI and HDMI standards). |
| Standards | DVI 1.0, HDMI 1.4a, HDCP 1.4, CEA-861E |
|
| Video output |
|---|
| Number/signal type | 2 single link HDMI |
| Connectors | 2 female 19-pin HDMI type A |
| Nominal level | 0.8 Vp-p |
|
| Audio |
|---|
| NOTE | On PowerCage FOX 401 boards, the analog audio signals are digitized in the transmitter, sent through the fiber cable, and converted back to analog audio in the receiver. |
|
| Gain | |
| Range | Adjustable, -18 dB to +10 dB |
| Default | Unbalanced output: -6 dB; balanced output: 0 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.10% @ 1 kHz at nominal level |
| S/N | >80 dB at maximum output (unweighted) |
| CMRR | 65 dB @ 20 Hz to 20 kHz |
| Audio bits per sample | 18 bits per channel, 2 channels (L, R) |
| Sampling rate | 48 kHz |
|
| Audio output |
|---|
| Number/signal type | 2 stereo, unbalanced or
4 mono, unbalanced
2 stereo, de-embedded from HDMI (2-ch, PCM only) |
| Connectors | (2) 3.5 mm mini stereo jack
2 female HDMI, type A |
| Impedance | >10k ohms unbalanced, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +8.9 dBV, unbalanced at 1% THD+N |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio input — See the transmitter specifications |
|---|
|
| Communications — Serial pass-through port |
|---|
| Serial pass-through port | 2 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole (through FOX DR HD) |
| Baud rates | 9600 to 115,200 baud |
| Pass-through pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| Program control | Extron control/configuration program for Windows® (PCS)
Extron Simple Instruction Set (SIS™)
Microsoft® Internet Explorer® ver 6.0 or higher, Telnet |
|
| General |
|---|
| Power supply | Supplied by PowerCage 401 enclosure. |
| Power consumption | 9.9 watts |
| Power input requirements | 12 VDC, 1.0 A, supplied by the PowerCage 401 enclosure |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, within the PowerCage 401 enclosure |
| Thermal dissipation | 34.1 BTU/hr |
| Dimensions | 1.60" H x 3.50" W x 8.00" D
(4.1 cm H x 8.9 cm W x 20.3 cm D)
(Fits a single slot opening in a PowerCage 401 enclosure.) |
| Product weight | 0.8 lbs (0.4kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, FDA Class 1, ICES, RoHS, UL, VCCI, WEEE |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4913-D3) |
