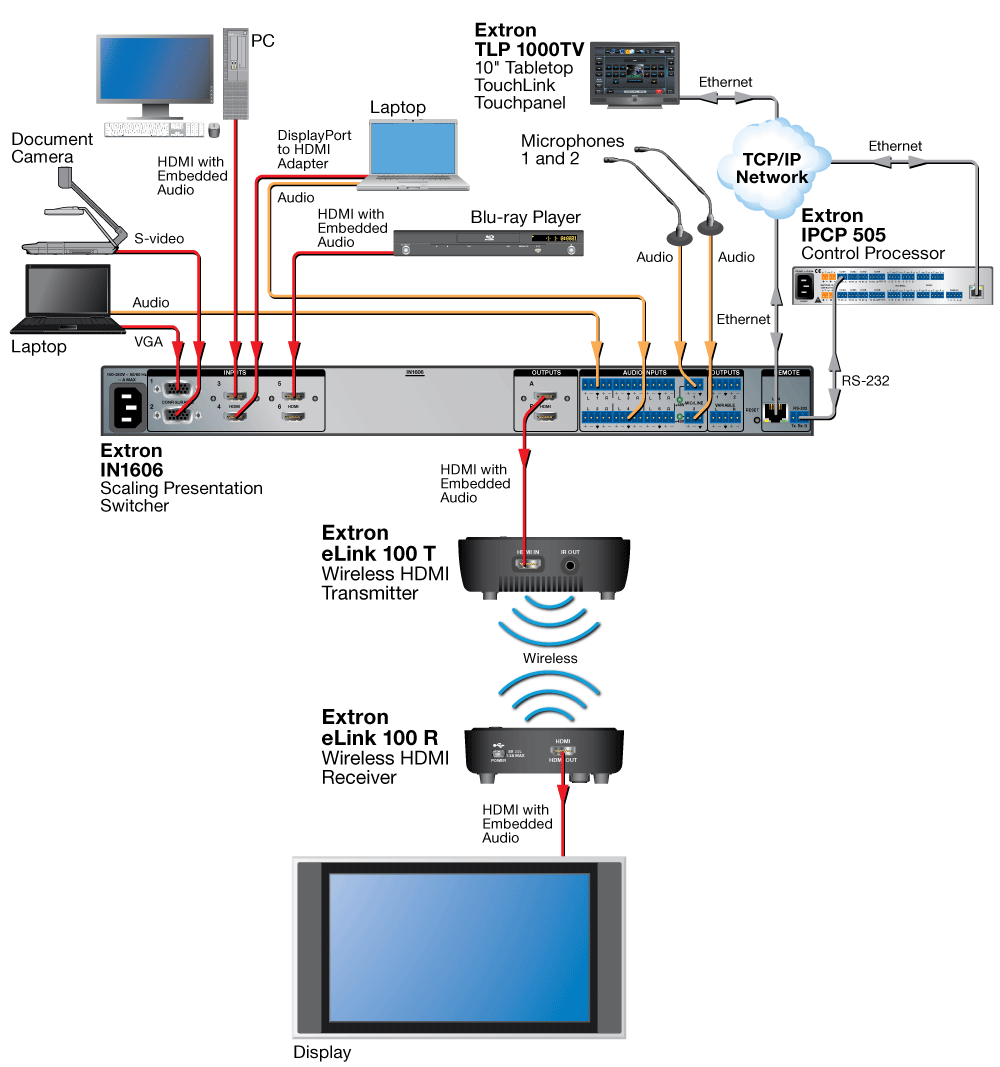

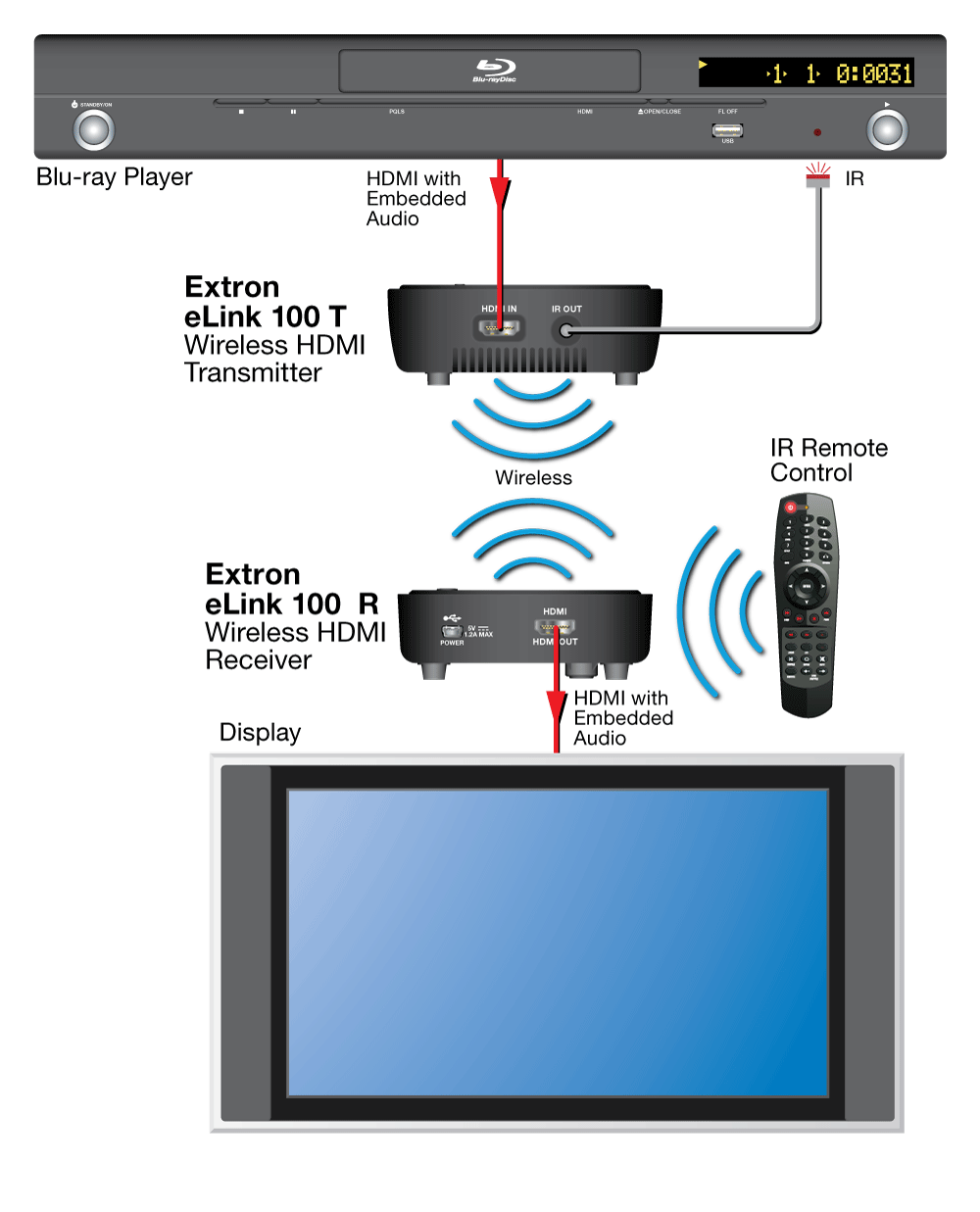

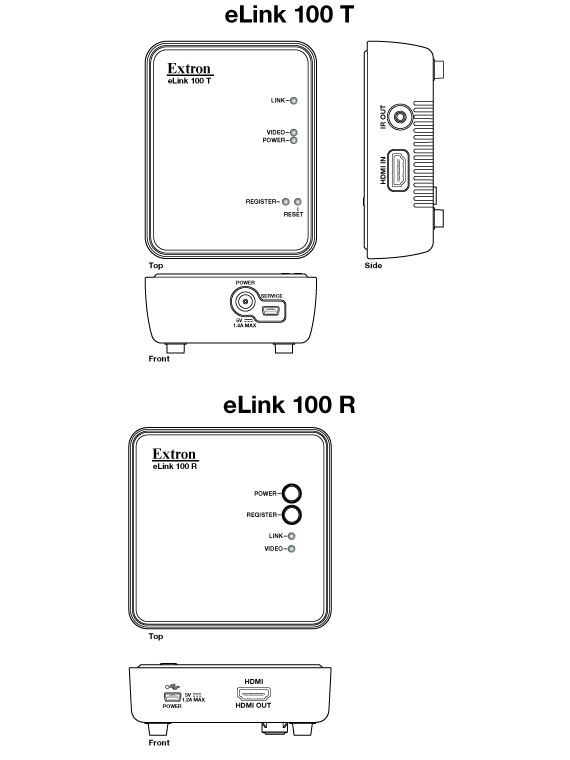

| eLink 100 |
|
| NOTE | *Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input/output. |
|
|
| Video |
|---|
| Maximum data rate | 6.75 Gbps (2.25 Gbps per color) |
| Maximum pixel clock | 148.5 MHz |
| Resolution range | Up to 1080p @ 60 Hz; 8, 10, or 12 bit color depth and VESA up to 1920x1080 @ 60 Hz |
| Supported resolutions | 720(1440)x4801, 640x4801, 720x4801, 720(1440)x5762, 720x5762, 1280x7203, 1920x10803,4, 1366x7685, 1440x9005, 1400x10505, 1600x9005, 1680x10505, 640x4806, 800x6007, 1024x7688, 1280x7209, 1920x10803,9 |
| | 1 = 60 Hz, and 59.94 Hz
2 = 50 Hz
3 = 50 Hz, 60 Hz, and 59.94 Hz
4 = 50 Hz, 60 Hz, 23.98 Hz, 24 Hz, 25 Hz, 59.94 Hz, 29.97 Hz, and 30 Hz
5 = 60 Hz
6 = 72 Hz, and 59.94 Hz
7 = 60 Hz, and 72 Hz
8 = 60 Hz, and 70 Hz
9 = 50 Hz, 60 Hz, 23.98 Hz, 24 Hz, 59.94 Hz, 29.97 Hz, and 30 Hz
|
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI, HDCP 2.0 |
| Signal transmission distance | Up to 100 ft (30 m) |
|
| Video input — transmitter |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D*) |
| Connector | 1 female HDMI type A |
|
| Video output — receiver |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D*) |
| Connector | 1 female HDMI type A |
|
| Audio |
|---|
| Supported formats | PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2-channel, DTS Digital Surround 5.1, DTS 96/24 |
|
| Communications |
|---|
| IR control port (Rx) | Included IR remote control |
| IR pass-through control port (Rx to Tx) | Unidirectional, 38 KHz |
|
| Signal characteristics |
|---|
| HDCP compliant | Yes |
| Bandwidth | 40 MHz |
| Transmission distance | 100 ft (30 m) |
| Operating frequency | |
| Non-DFS center frequencies | USA/Canada: 5.19 ~ 5.23, 5.755 ~ 5.795 GHz
EU: 5.19 ~ 5.23 GHz
Australia: 5.19 ~ 5.23 GHz |
| DFS center frequencies | USA/Canada: 5.27 ~ 5.59, 5.67 GHz
EU: 5.27 ~ 5.67 GHz
Australia: 5.27 ~ 5.55 GHz, 5.67 GHz |
| System latency | <1 ms |
| Security Encryption Standards | AES-128 |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 5 VDC, 2.6 A, 13 watts |
| Power consumption | |
| Transmitter | |
| Device | 7.5 watts, 5 VDC |
| Device and power supply | 8.8 watts, 100-240 VAC, 50-60 Hz |
| Receiver | |
| Device | 7.5 watts, 5 VDC |
| Device and power supply | 9.0 watts, 100-240 VAC, 50-60 Hz |
| Ambient temperature/humidity | Storage: -4 to +176 °F (-20 to +80 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection |
| Thermal dissipation | |
| Transmitter | |
| Device | 24.4 BTU/hr |
| Device and power supply | 28.9 BTU/hr |
| Receiver | |
| Device | 24.4 BTU/hr |
| Device and power supply | 29.6 BTU/hr |
| Mounting |
| Wall mount | Yes |
| Enclosure type | Plastic |
| Enclosure dimensions | |
| Transmitter | 1.4" H x 3.2" W x 4.0" D
(3.6 cm H x 8.0 cm W x 10.2 cm D) |
| Receiver | 1.3" H x 3.7" W x 3.7" D
(3.4 cm H x 9.5 cm W x 9.5 cm D) |
| Product weight | |
| Transmitter | 0.3 lbs (0.1 kg) |
| Receiver | 0.3 lbs (0.1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | UL, c-UL, CE |
| EMI/EMC | CE, C-tick, FCC Class B, ICES, VCCI, KC |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4054-D4) |
