| FOX3 T 301/311/201 PC |
|
 specification |
|---|
 |
| Frame rate3 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling3 | 4:4:4, 4:2:2 |
| Color bit depth2,3 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0, HDCP 2.3 |
| Max. video data rate | 18.0 Gbps |
| NOTE | 1Supports lossless 4K video over one fiber or uncompressed 4K video over two fibers.
2Supports 12-bit color bit depth for uncompressed 4K video over two fibers. When using a FOX3 SR scaling receiver, the scaler must be in bypass mode to pass 4K video with a 12-bit color bit depth.
3Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
| | |
| NOTE | The analog audio signal(s) is (are) digitized in the transmitter, sent through the fiber cable, and converted back to analog audio in the receiver. |
|
| NOTE | Optical data rate is 10 Gbps over one fiber and 20 Gbps over two fibers. |
|
| NOTE | These transceivers are class 1 laser products. They meet the safety regulations of IEC-60825.
|
|
|
| Optical fiber interconnection between transmitter and receiver |
|---|
| Number/type | 1 or 2 SFPs |
| Connectors | 1, 2, or 3 LC connectors |
| Operating distance | |
| Singlemode | 20 km (12.4 miles) with singlemode (SM) cables |
| Multimode | 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables |
| NOTE | The system works with OM1, OM2, and OM3 fiber at reduced distances. |
|
| NOTE | Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. |
|
| Nominal peak wavelength | 850 nm for multimode, 1310 nm for singlemode |
| Data rate | 10.0 Gbps |
| Transmission power | |
| Singlemode | -5.2 dBm, minimum |
| Multimode | -2.8 dBm, minimum |
| Maximum receiver sensitivity | |
| Singlemode | -12.6 dBm, maximum |
| Multimode | -11.1 dBm, maximum |
| Optical loss budget | |
| Singlemode | +7.4 dB, maximum |
| Multimode | +8.3 dB, maximum |
|
| Video |
|---|
| NOTE | Appropriate HDMI to DVI cables or adapters are required for DVI signal output. |
|
| Maximum data rate | 18.0Gbps (6.0 Gbps per color) |
| Maximum pixel clock | 594 MHz |
| Resolution range | 640x4808 up to 4096x21601,2,3,4,5,6,7,8,
480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9,
2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8
123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz |
| Frame rate | 24, 25, 30, 50, 60, or 120 fps |
| Color space | 4:4:4, 4:2:2 |
| Color bit depth | 8, 10, and 12 bits per color |
| Signal Type | DVI 1.0, HDCP 1.4, HDMI 2.0, HDCP 2.3 |
| Horizontal frequency | 24 kHz to 135 kHz |
| Vertical frequency | 24 Hz to 120 Hz (depending on the resolution) |
| Format | RGB and YCbCr digital video |
|
| Video input and loop out |
|---|
| Number/signal type | 1 HDMI input
1 HDMI loop out |
| Connectors | 1 female HDMI input type A
1 female HDMI loop out type A |
| Power for active cables | 1.1 watts |
|
| Audio |
|---|
| Gain | Unbalanced output: -6dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.03% @ 20 Hz to 20 kHz at maximum output |
| S/N | >90 dB at maximumintput (7 dBV), (unweighted) |
| CMRR | 65 dB @ 20 Hz to 20 kHz |
| Stereo channel separation | >80 dB @ 1 kHz to 20 kHz |
| Bit depth | 16, 20, 24 |
| Sampling rate | 48 kHz |
|
| Audio input |
|---|
| Number/signal type | 1 digital audio, de-embedded from HDMI (2-CH, PCM only) or
1 analog stereo, unbalanced |
| Connectors | 1 female HDMI (shared with video input)
(1) 3.5 mm mini stereo jack, 2 channels; top (L), ring (R), sleeve ground) |
| Source formats | 2-CH LPCM |
| Impedance | ≥10k ohms, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +7 dBV unbalanced |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Communications |
|---|
| Program control | Extron Product Configuration Software
Extron Simple Instruction Set (SIS™) |
| Pass-through port | (1) 3.5 mm captive screw connector, 3-pole |
| Pass-through baud rate | 9600 to 115,200 baud |
| Pass-through pin configuration | 1 = Tx, 2 = Rx, 3 = GND |
|
| USB extension (USB) — FOX3 T 301 PC and FOX3 T 311 PC only |
|---|
| USB standards | USB 2.0, USB 1.1, USB 1.0 compatible |
| USB data rates | Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480Mbps) |
| Data transfer types | Bulk, control, interrupt, and isochronous |
|
| USB host ports |
|---|
| FOX3 T 301 PC | |
| Number/signal type | 1 USB HID
1 USB 2.0 |
| Connectors | 2 USB type B, female |
| Maximum built-in USB hubs | 1 |
| Minimum built-in USB hubs | 1 |

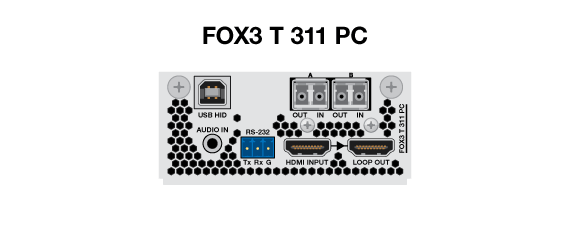

| FOX3 T 311 PC | |
| Number/signal type | 1 USB HID |
| Connector | 1 USB type B, female |
| Maximum built-in USB hubs | 1 |
| Minimum built-in USB hubs | 1 |
|
| General |
|---|
| Power supply | Internal
Powered by the PowerCage 411 Enclosure |
| Power consumption | |
| FOX3 T 201 PC | 17.8 watts |
| FOX3 T 301 PC | 18.2 watts |
| FOX3 T 311 PC | 18.2 watts |
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +104°F (0 to +40°C) / 10% to 90%, noncondensing |
| Cooling | Fans, front to back within the PowerCage 411 enclosure |
| Thermal dissipation | |
| FOX3 T 201 PC | 59.8 BTU/hr |
| FOX3 T 301 PC | 61.3 BTU/hr |
| FOX3 T 311 PC | 61.1 BTU/hr |
| Module dimensions | Each fits a single slot opening in a PowerCage 411 enclosure
1.6” H x 3.5” W x 8.0”
(2.5 cm H x 22.2 cm W x 20.3 cm D)
(Depth excludes connectors.) |
| Product weight | |
| FOX3 T 201 PC | 0.9 lbs (0.4 kg) |
| FOX3 T 301 PC | 0.9 lbs (0.4 kg) |
| FOX3 T 311 PC | 0.9 lbs (0.4 kg) |
| Regulatory compliance | CE, c-UL, C-tick, FCC Class A, FSA Class 1, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6196-D7) |
