Extron FOXBOX SR HDMI 光纤延长器是一款图像解析度转换接收器，可通过光纤长距离地传输符合 HDCP 标准的 HDMI、音频和 RS-232 控制信号。其设计注重出色的高分辨率图像性能，使用 Extron 全数字技术对分辨率高达 WUXGA 1920x1200 的 HDMI 计算机视频图像，包括 HDTV 1080p/60 提供完美的像素对像素的性能。FOXBOX SR HDMI  专门设计用于视音频系统，还包括许多便于集成的特性，如密钥管理器 (Key Minder^®)、音频解嵌、自动输入存储和内部测试图案。其紧凑的薄型外壳允许隐蔽地安装在平板显示器后面。

技术参数

FOXBOX SR HDMI

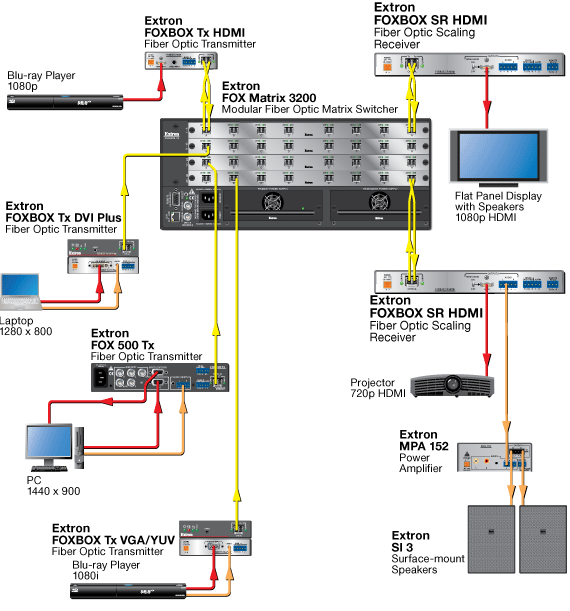

NOTE     The FOXBOX SR HDMI is a receiver that accepts signals from an Extron FOX Series HDMI, DVI, VGA, or VGA/YUV transmitter and is compatible with the FOX Matrix Series. Fiber optic cables link the two units. It is available in singlemode or multimode versions.
NOTE     The FOXBOX SR HDMI is not compatible with the FOX 3G HD-SDI, FOX 3G DVC, or FOX AV models.
NOTE     The analog audio signal(s) is (are) digitized in the transmitter, sent through the fiber cable, and converted back to analog audio in the receiver.
NOTE     This receiver is a class 1 laser product. It meets the safety regulations of IEC-60825.
Optical fiber interconnection between transmitter and receiver
Number/type	2 fiber optic
Connectors	2 LC connectors
Operating distance
Singlemode	30 km (18.75 miles) with singlemode (SM) cables with an SM transmitter
Multimode	300 m (985') with 62.5 µm OM1 multimode (MM) cables with an MM transmitter 1 km (3280') with 50 µm OM2 multimode (MM) cables with an MM transmitter 2 km (6561') with 50 µm OM3/OM4 2000 MHz bandwidth laser optimized multimode cable with an MM transmitter
NOTE     Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Nominal peak wavelength	850 nm for MM unit, 1310 nm for SM unit
Data rate	4.25 Gbps
Transmission power
Singlemode	-5 dBm, typical
Multimode	-5 dBm, typical
Maximum receiver sensitivity
Singlemode	-18 dBm, typical
Multimode	-12 dBm, typical
Optical loss budget
Singlemode	13 dB, maximum
Multimode	7 dB, maximum
Video
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Resolution range	640x480 up to 1920x1200 @ 60Hz, including 480p, 576p, 720p, 1080i, 1080p @ 60Hz, sampled pixel for pixel; higher resolution 2K (2048x1080) @ 60 Hz, undersampled
Formats	RGB and YCbCr digital video
HDCP	Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards
Standards	DVI 1.0, HDMI, HDCP 1.1, CEA-861E
Video input — see the video output specifications of the FOX Series HDMI, DVI, VGA, or VGA/YUV transmitter
Video processing
Digital sampling	24 bit, 8 bits per color, 165 MHz standard
Colors	16.78 million
Video output
Number/signal type	1 single link HDMI (HDCP compliant)
Connectors	1 female HDMI type A
Nominal level	0.8 Vp-p
Video delay	1-2 frames
Scaled resolutions	640x4806,8,9, 800x6006,8,9, 852x4806,8,9, 1024x7686,8,9, 1024x8526,8,9, 1024x10246,8,9, 1280x7686,8,9, 1280x8006,8,9, 1280x10246,8,9, 1360x7656,8,9, 1360x7686,8,9, 1365x7686,8,9, 1365x10246,8,9, 1366x7686,8,9, 1400x10506,8, 1440x9006,8,9, 1600x12006,8, 1680x10506,8, 1920x12006,8 HDTV: 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2048x10801,2,3,4,5,6,7,8 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz.
Audio
Gain
Range	Adjustable, -18 dB to +10 dB
Default	Unbalanced output: -6 dB
Frequency response	20 Hz to 20 kHz, ±0.5 dB
THD + Noise	0.10% @ 1 kHz at nominal level
S/N	>80 dB at maximum output (unweighted)
CMRR	65 dB @ 20 Hz to 20 kHz
Audio bits per sample	18 bits per channel, 2 channels (L, R)
Sampling rate	48 kHz
Audio input — see the audio output specifications of the FOX Series HDMI, DVI, VGA, or VGA/YUV transmitter
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output
Number/signal type	1 balanced/unbalanced stereo or 2 balanced/unbalanced mono
Connectors	(1) 3.5 mm captive screw connector, 5 pole
Impedance	50 ohms unbalanced, 100 ohms balanced
Nominal level	-10 dBV (316 mVrms)
Maximum level (Hi-Z)	+11.0 dBu, balanced at 1% THD+N
Maximum level (600 ohm)	>+10.0 dBu, balanced at 1% THD+N
Audio delay	1.5 frames
Communications — receiver
Serial control ports

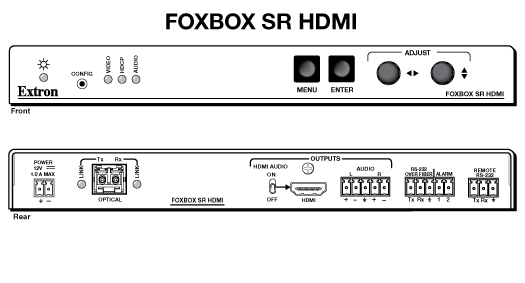

Control	1 RS-232, 2.5 mm mini stereo jack (front panel) 1 RS-232, 3.5 mm captive screw connector, 3-pole (rear panel)
Pass-through	1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used) (rear panel)
Baud rate and protocol
Control	9600 baud, 8 data bits, 1 stop bit, no parity
Pass-through	9600 to 115,200 baud
NOTE     Protocol is mirrored between the transmitter and the receiver.
Serial control pin configuration	Mini stereo jack: tip = Tx, ring = Rx, sleeve = GND Captive screw: 1 = Tx, 2 = Rx, 3 = GND
Program control	Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™)
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts
Power consumption
Device	8.4 watts, 12 VDC
Device and power supply	10.5 watts, 100-240 VAC, 50-60 Hz
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on top and side panels
Thermal dissipation
Device	28.4 BTU/hr
Device and power supply	35.5 BTU/hr
Mounting
Rack mount	Yes, with optional rack shelf
Furniture mount	Yes, with optional under desk mounting kit
Enclosure type	Metal
Enclosure dimensions	1.0" H x 8.75" W x 6.0" D (half rack wide) (2.5 cm H x 22.2 cm W x 15.2 cm D) (Depth excludes connectors and switch.)
Product weight	1.1 lbs (0.5 kg)
Regulatory compliance	CE, c-UL UL, CE**, C-tick, FCC Class A**, ICES, VCCI, Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4374-090718-D9)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
60-1187-21	11.7 cm	24.8 cm	27.3 cm	1.18 kg
60-1187-22	11.7 cm	24.8 cm	27.3 cm	1.18 kg
