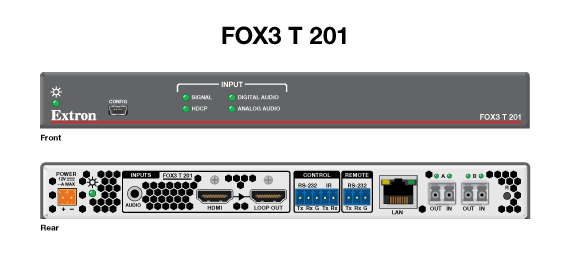

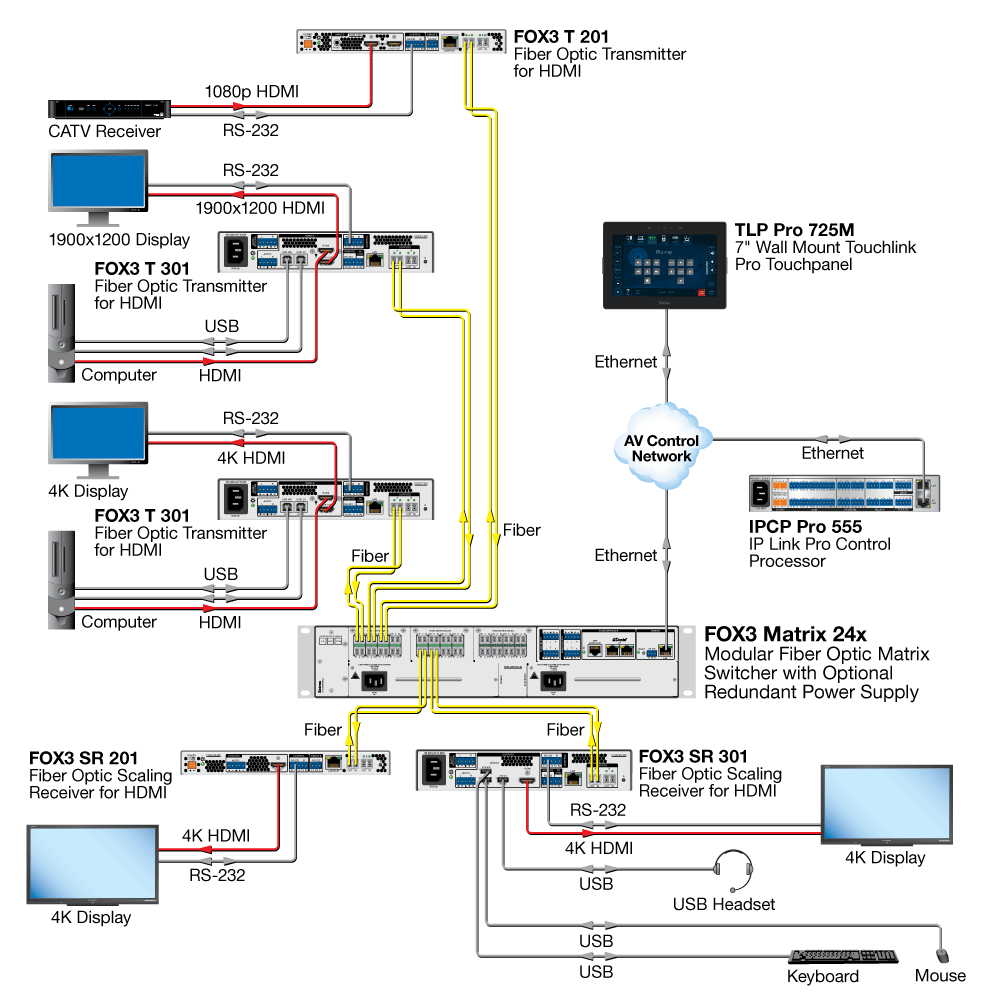

| FOX3 T 201 |
|
 specification |
|---|
 |
| Frame rate3 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling3 | 4:4:4, 4:2:2 |
| Color bit depth2,3 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0, HDCP 2.3 |
| Max. video data rate | 18.0 Gbps |
| NOTE | 1Supports lossless 4K video over one fiber or uncompressed 4K video over two fibers.
2Supports 12-bit color bit depth for uncompressed 4K video over two fibers. When using a FOX3 SR scaling receiver, the scaler must be in bypass mode to pass 4K video with a 12-bit color bit depth.
3Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
| NOTE | These transceivers are class 1 laser products. They meet the safety regulations of IEC-60825.
|
|
|
| Optical fiber interconnection between transmitter and receiver |
|---|
| Number/type | 1 or 2 SFPs |
| Connectors | 1, 2, or 3 LC connectors |
| Operating distance | |
| Singlemode | 20 km (12.4 miles) with singlemode (SM) cables |
| Multimode | 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables |
| NOTE | The system works with OM1, OM2, and OM3 fiber at reduced distances. |
|
| NOTE | Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. |
|
| Nominal peak wavelength | 850 nm for multimode, 1310 nm for singlemode |
| Data rate | 10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers) |
| Transmission power | |
| Singlemode | -5.2 dBm, minimum |
| Multimode | -2.8 dBm, minimum |
| Maximum receiver sensitivity | |
| Singlemode | -12.6 dBm, maximum |
| Multimode | -11.1 dBm, maximum |
| Optical loss budget | |
| Singlemode | +7.4 dB, maximum |
| Multimode | +8.3 dB, maximum |
|
| Video |
|---|
| Maximum data rate | 18.0 Gbps (6.0 Gbps per color) |
| Maximum pixel clock | 594 MHz |
| Resolution range | 640x4808 up to 4096x21601,2,3,4,5,6,7,8,
480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9,
2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8
123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz |
| Frame rate | 24, 25, 30, 50, 60, or 120 fps |
| Color space | 4:4:4, 4:2:2 |
| Color bit depth | 8, 10, and, 12 bits per color |
| Standards | HDMI 2.0, HDCP 2.3 |
| Maximum data rate | Up to 18.0 Gbps (6.0 Gbps per color) |
| Horizontal frequency | 24 kHz to 135 kHz |
| Vertical frequency | 24 Hz to 120 Hz (depending on the resolution) |
| Format | RGB and YCbCr digital video |
| NOTE | HDMI protocol exceptions: Consumer Electronics Control (CEC) signaling across the HDMI interface is not supported.
Ethernet signal transport is not supported (HDMI pin 14 is not connected).
Return Audio channel (ARC) is not supported (HDMI pin 14 is not connected). |
|
|
| Video input and loop out |
|---|
| Number/signal type | 1 HDMI input
1 HDMI loop out |
| Connectors | 1 female HDMI input type A
1 female HDMI loop out type A |
| Power for active cables | 1.0 W max. for the HDMI port |
|
| Audio |
|---|
| Gain | Unbalanced output: -6 dB; balanced output: 0 dB (default) |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.1% @ 20 Hz to 20 kHz at nominal level |
| S/N | >90 dB at maximum output (unweighted) |
| CMRR | 65 dB @ 20 Hz to 20 kHz |
| Stereo channel separation | >80 dB @ 1 kHz |
| Bit depth | 16, 20, 24 |
| Sampling rate | 48 kHz |
|
| Audio input |
|---|
| Number/signal type | 1 digital audio, de-embedded from HDMI (2-CH LPCM only) or
1 analog stereo, balanced/unbalanced |
| Connectors | 1 female HDMI (shared with video input)
(1) 3.5 mm mini stereo jack |
| Impedance | ≥10 k ohms balanced, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +19 dBV (unbalanced) at 1% THD+N |
| Source formats | 2 CH LPCM |
| Gain range | Adjustable, - 18 dB to +24 dB, 1 dB steps |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Communications |
|---|
| USB configuration port | |
| Number/type | 1 front panel mini USB B, female |
| Standard | Ethernet over USB |
| Serial host control port |
| Control | 1 RS-232, 3.5 mm captive screw connector, 3-pole, rear panel |
| Pass-through | 1 RS-232, 3.5 mm captive screw connector, 5-pole, (3 pins are used), rear panel. |
| Baud rate and protocol | |
| Control | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Pass-through | 9600 to 115,200 baud |
| Serial control pin configuration | Captive screw: 1 = Tx, 2 = Rx, 3 = GND |
| IR control port | (1) 3.5 mm captive screw connector, 5 pole (connector is shared with RS-232 pass thru) TTL level (0 to 5V) modulated infrared control from 30 kHz to 56 kHz |
| IR control pin configuration | 3 = GND, 4 = IR Tx, 5 = IR Rx |
| Ethernet control | |
| Ethernet port | 1 RJ-45 connector, female |
| Ethernet data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off |
| Program control | Extron Product Configuration Software
Extron Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 2.0 A, 24 watts |
| Power consumption | |
| Device | 20.0 watts |
| Device and power supply | 22.9 watts |
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing |
| Cooling | Fan, air flows top to rear (vents on rear) |
| Thermal dissipation | |
| Device | 67.1 BTU/hr |
| Device and power supply | 77.3 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional rack shelf |
| Furniture mount | Yes, with optional under desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 8.75" W x 8.0" D (half rack wide)
(2.5 cm H x 22.2 cm W x 20.3 cm D)
(Depth excludes connectors.) |
| Product weight | 1.85 lbs (0.84 kg) |
| Regulatory compliance | CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6179-D11) |
