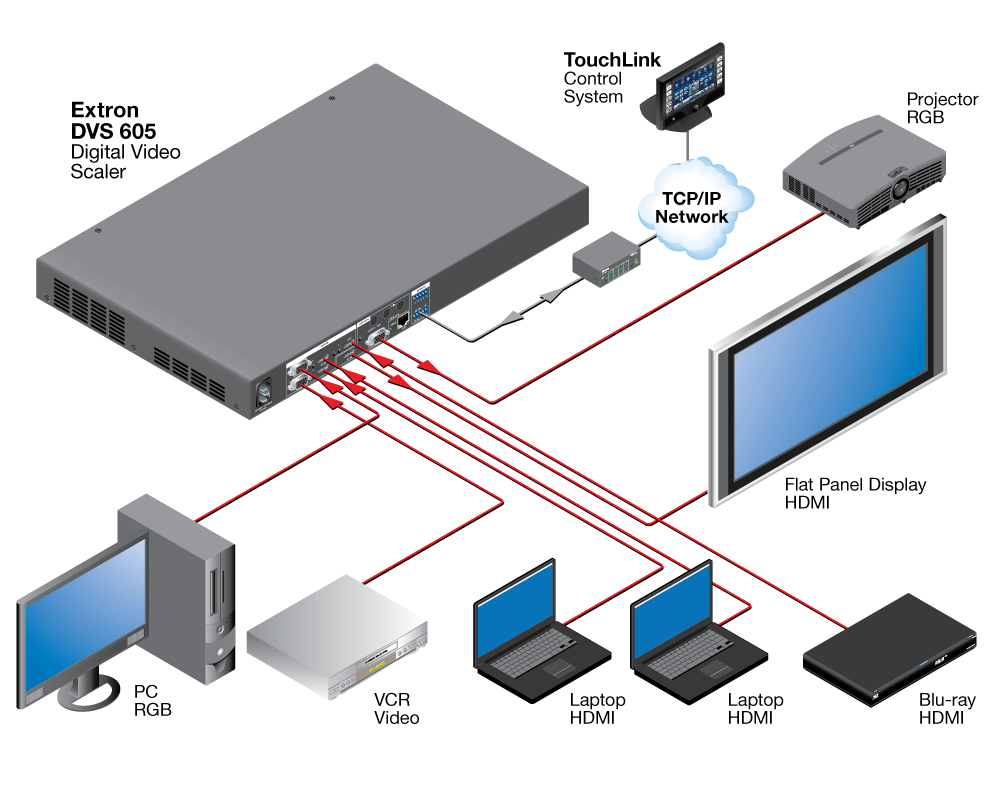

| DVS 605 Series |
|
| Video input |
|---|
| Number/signal type | 2 RGBHV, RGBS, RGsB, RGBcvS, component video (YUVi or YUVp/HDTV), S-video, composite video
3 HDMI |
| Connectors | 2 female 15-pin HD
3 female HDMI type A |
| Nominal level | 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | Analog: 0.0 V to 1.0 Vp-p with no offset |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 75 Hz |
| Resolution range | 640x480 to 1920x1200*, NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K sampled pixel for pixel
*reduced blanking |
| Return loss | >30 dB @ 5 MHz |
| DC offset (max. allowable) | 0.5 V |
| Standards | NTSC 3.58, NTSC 4.43, PAL, SECAM
DVI 1.0, HDMI 1.3, HDCP 1.4 |
|
| Video processing |
|---|
| Decoder | 12 bit digital (3D-adaptive comb filter) |
| Analog sampling | 12 bits per color; 13.5 MHz standard (video) 170 MHz standard (RGB) |
| Digital pixel data bit depth | 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI) |
| Colors | 1 billion (10 bit processing) |
|
| Video output |
|---|
| Number/signal type | |
| DVS 605, DVS 605 A | 1 scaled RGBHV, RGBS, RGsB, or component video (YUVp/HDTV)
1 HDMI |
| DVS 605 D, DVS 605 AD | 1 scaled RGBHV, RGBS, RGsB, or component video (YUVp/HDTV)
1 HDMI
(1) 3G-SDI or HD-SDI with 1 genlock input and 1 genlock loop through |

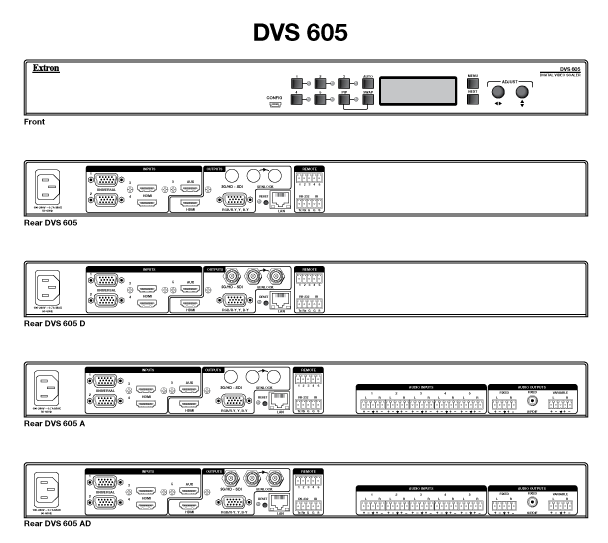

| Connectors | |
| DVS 605, DVS 605 A | 1 female 15-pin HD
1 female HDMI type A |
| DVS 605 D, DVS 605 AD | 1 female 15-pin HD
1 female HDMI type A
3 female BNC: (1) 3G-SDI and HD-SDI, 1 genlock, and 1 genlock loop-through |
| Minimum/maximum levels | 0.0 V to 1.0 Vp-p for Y of component video and for G of RGsB
0.0 V to 0.7 Vp-p for RGB and for R-Y and B-Y of component video |
| Impedance | 75 ohms |
| Return loss | >21 dB @ 5 MHz |
| DC offset | ±300 mV max. |
| Scaled resolution | 640x4806,8,9, 800x6006,8,9, 852x4806,8,9, 1024x7686,8,9, 1024x8526,8,9, 1024x10246,8,9,1280x7686,8,9, 1280x8006,8,9, 1280x10246,8,9, 1360x7656,8,9, 1360x768 6,8,9, 1365x7686,8,9, 1365x10246,8,9, 1366x7686,8,9,1400x10506,8, 1440x9006,8,9, 1600x9006,8, 1600x12006,8, 1680x10506,8, 1920x12006,8
HDTV 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2048x10801,2,3,4,5,6,7,8
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz,4 = at 29.97 Hz, 5 = 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz |
| Standards | DVI 1.0, HDMI 1.3, HDCP 1.4 and 2.3, SMPTE 292M and 424M |
|
| Sync |
|---|
| Input type | RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video |
| Output type | RGBHV, RGBS, RGsB, and bi-level or tri-level component video |
| Input level | 2.75 V to 5.0 Vp-p for RGBHV or RGBS
0.6 Vp-p for component video tri-level sync
0.3 Vp-p for component video bi-level sync or RGsB |
| Output level | TTL: 5.0 Vp-p, unterminated |
| Input impedance | Horizontal: 75 ohms
Vertical: 510 ohms |
| Output impedance | 75 ohms |
| Max. input voltage | 5.0 Vp-p |
| Output polarity | Positive or negative (selectable) |
|

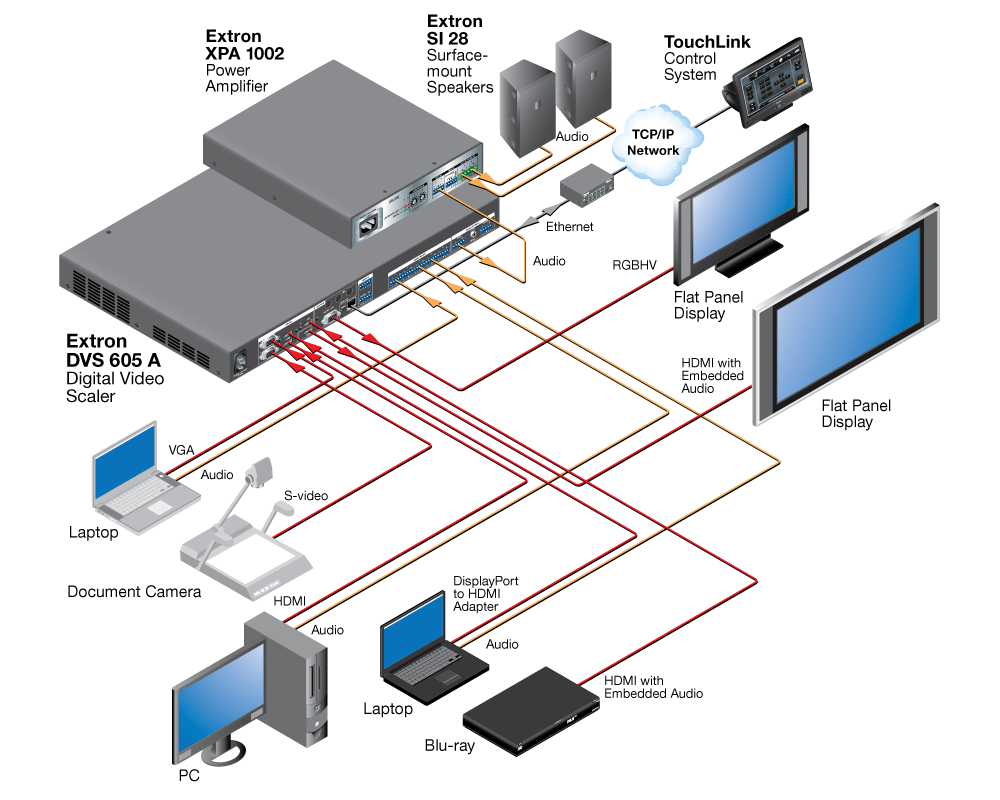

| Audio — DVS 605 A, DVS 605 AD |
|---|
| Gain | Unbalanced output: -6 dB; balanced output: 0 dB |
| Frequency response | Line out: 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | Preamp: <0.110% @ 1 kHz, 20 kHz bandwidth, at maximum output level
Line out: <0.025% @ 1 kHz, 20 kHz bandwidth, at maximum output level |
| S/N at maximum power output (unweighted) | Preamp: 90 dB at rated maximum output
Line out: 90 dB at rated maximum output |
| Crosstalk | Preamp: ≤-80 dB @ 1 kHz, fully loaded
Line out: ≤-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >84 dB @ 1 kHz |
|
| Audio input — DVS 605 A, DVS 605 AD |
|---|
| Number/signal type | 5 stereo, balanced/unbalanced
3 stereo, de-embedded from HDMI (LPCM-2Ch only) |
| Connectors | (5) 3.5 mm captive screw connector, 5 pole
3 female HDMI type A |
| Impedance | >10k ohms unbalanced, DC coupled |
| Nominal level | +4 dBu (1.23 Vrms), -10 dBV (316 mVrms) |
| Maximum level | +21 dBu, (unbalanced) |
| Analog input gain | -53 dB to +24 dB, adjustable per input |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output — DVS 605 A, DVS 605 AD |
|---|
| Number/signal type | Stereo/mono, balanced/unbalanced |
| Fixed output | 1 analog
1 S/PDIF digital audio (LPCM-2Ch, Dolby Digital, or DTS only)
1 HDMI embedded
1 optional 3G-SDI or HD-SDI embedded |
| Variable output | 1 analog |
| Connectors | (2) 3.5 mm captive screw connectors, 5 pole
1 female RCA (S/PDIF)
1 female HDMI type A (shared with HDMI video)
1 optional female BNC (shared with 3G-SDI or HD-SDI video) |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Gain error | ±0.25 dB channel to channel |
| Maximum level (Hi-Z) | >+21 dBu, balanced; >+11 dBu, unbalanced |
| Analog output volume range | 0 dB to -100 dB in 1.0 dB increments |
|
| Control/Remote — scaler |
|---|
| Serial control port | 1 bidirectional RS-232: 1 rear panel 3.5 mm captive screw connector, 5 pole (uses 3 poles) |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configurations | 1 = Tx, 2 = Rx, 3 = GND, 4 = GND, 5 = modulated IR input |
| USB control ports | 1 front panel female mini USB B |
| USB standards | USB 2.0, high speed |
| Ethernet control port | 1 female RJ-45 connector |
| Ethernet data rate | 10/100Base-T, half/full duplex with autodetect |
| Ethernet protocol | ARP, DHCP, DNS, HTTP, ICMP (ping), IP, SFTP, SNMP, SHH, TCP/IP, Telnet, UDP/IP |
| Ethernet default settings | Link speed and duplex level = autodetected
DHCP = Off, IP address = 192.168.254.254 |
| Web server | Up to 200 simultaneous sessions |
| Contact closure | 1 rear panel 3.5 mm captive screw connector, 5 pole |
| Contact closure pin configurations | Pins 1, 2, 3, 4, 5 = inputs 1, 2, 3, 4, 5 |
| IR remote control input | Rear panel captive screw connector (shared with RS-232, uses 2 poles):
38 kHz, hardwired, modulated
TTL level (0 to 5 V) infrared up to 1 MHz |
| Program control | Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™)
Microsoft® Internet Explorer® |
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption | |
| Full power | |
| DVS 605 | 25.7 W |
| DVS 605 AD | 31.3 W |
| Power save mode | |
| DVS 605 | 14.1 W |
| DVS 605 AD | 16.8 W |
| Power save mode restore time | Up to 20 seconds |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Fan, air flows from right to left (as viewed from front panel) |
| Thermal dissipation | |
| Full power | |
| DVS 605 | 83.6 BTU/hr |
| DVS 605 AD | 102.5 BTU/hr |
| Power save mode | |
| DVS 605 | 48.2 BTU/hr |
| DVS 605 AD | 52.1 BTU/hr |
| Mounting | |
| Rack mount | Yes, with included, pre-installed brackets |
| Enclosure type | Metal |
| Enclosure dimensions | 1.72" H x 17.5" W x 10.5" D (1U high, full rack wide)
(4.4 cm H x 44.4 cm W x 26.7 cm D)
(Depth excludes connectors and knobs. Width excludes rack ears.) |
| Product weight | |
| DVS 605 | 4.9 lbs (2.2 kg) |
| DVS 605 D | 5.1 lbs (2.3 kg) |
| DVS 605 A | 5.3 lbs (2.4 kg) |
| DVS 605 AD | 5.4 lbs (2.5 kg) |
| Regulatory compliance | CE, c-UL, C-tick, FCC Class A, ICES, KC, VCCI, UL
Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6474-D12) |
