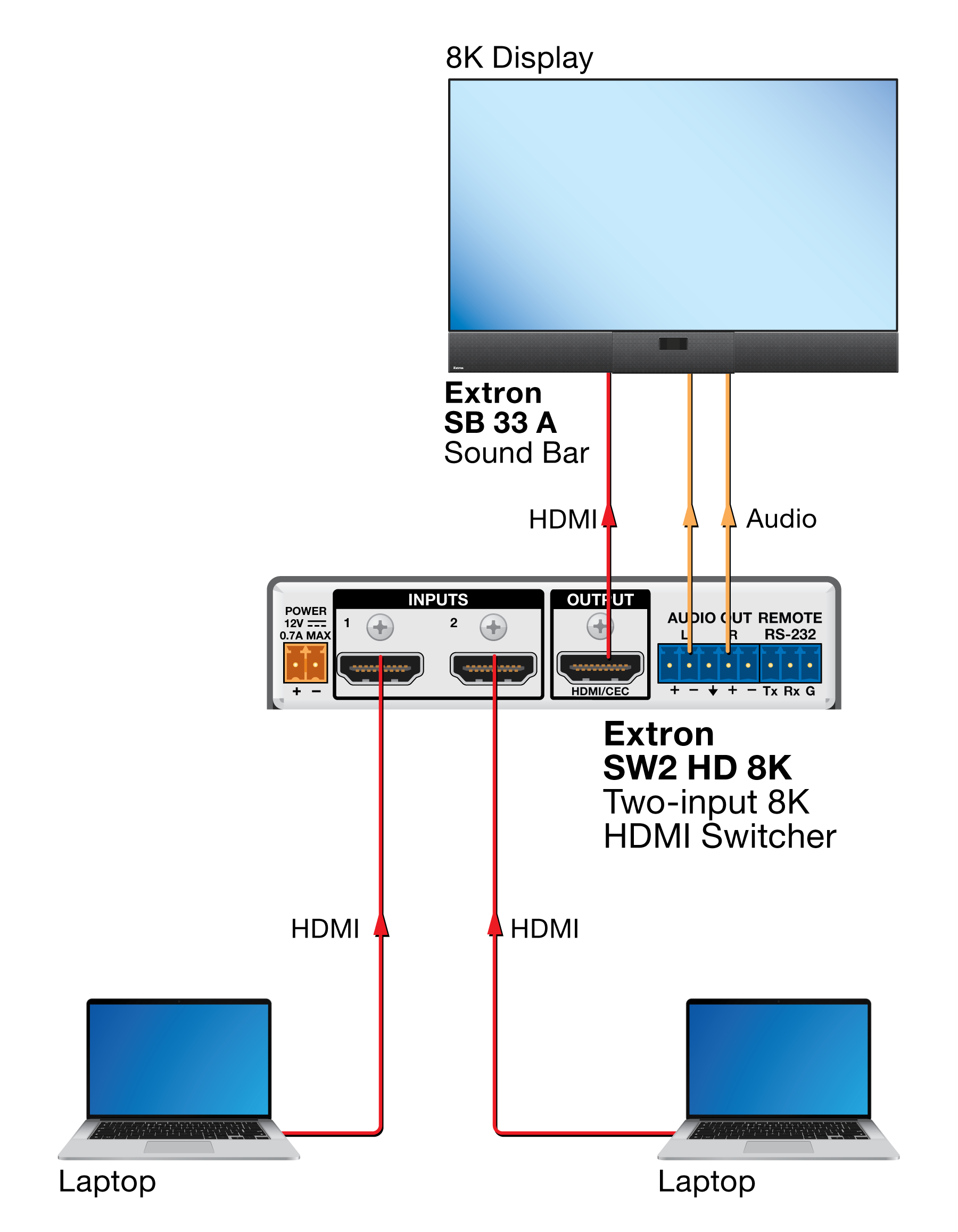

| SW2 HD 8K |
 specification |
| Max. 8K Capabilities |
| Resolution |
Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 7680x4320 |
60 Hz |
4:2:0 |
10 bit |
| 30 Hz |
4:4:4 |
12 bit |
| Max. 4K and 5K Capabilities |
| Resolution and Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 5120x2880 |
60 Hz |
4:4:4 |
12 bit |
| 5120x1440 |
| 4096x2160 |
| 3840x2160 |
| 3840x2160 |
120 Hz |
10 bit |
|
| Frame rate1 | 24, 25, 30, 50, 60, 120, or 240 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.1, HDCP 2.3 |
| Max. video data rate | 48 Gbps |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (/8Kdatarate) to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Maximum data rate | 48 Gbps (12 Gbps per color) |
| Maximum pixel clock | 1.2 GHz |
| Resolution range | |
| VESA | 640x480 to 7680x4320 |
| SMPTE | Up to 1080p @ 240 Hz or 8K @ 60 Hz (4:2:0 chroma sampling) |
| Ultra Wide & 5K | 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600
5120x1080, 5120x1440, 5120x2160, 5120x2560, 5120x2880 |
| Color bit depth | 8, 10, or 12 bits – subject to the max data rate |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 2.1, HDCP 1.x and 2.3 |
| HDR | HDR10, HDR10+, and Dolby Vision |
| NOTE | The SW2 HD 8K switcher supports TMDS data rates up to 48 Gbps, Deep Color up to 12-bit, 3D**, HD lossless audio, and other HDMI specification features.
**Extron strongly recommends compatibility testing while designing and before installing any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Application Engineer for more information.
|
|
|
| Video input |
|---|
| Number/signal type | 2 HDMI or DVI-D* (HDCP compliant) |
| Connectors | 2 female HDMI type A |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 75 Hz |
| EDID emulation | 128 - 512 byte EDID support (1 - 4 blocks) |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
|
| Video output |
|---|
| Number/signal type | 1 HDMI or DVI-D* (HDCP compliant) |
| Connectors | 1 female HDMI type A |
| Power for active cables | 1.25 watts total power for the HDMI port |
| Peripheral device power | 250 mA per HDMI output |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
|
| Audio |
|---|
| Source formats — HDMI | LPCM up to 8 Ch, Dolby Atmos®, Dolby TrueHD®, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital, DTS-HD Master AudioTM, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, Analog stereo |
| Gain | Unbalanced output -6 dB, balanced output |
| Frequency response | Line out 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.1%, 20 Hz to 20 kHz at nominal level |
| S/N | ≤-90 dB @ max balanced output, unweighted |
| Crosstalk | ≤-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 1 kHz |
|
| Audio output — Line out |
|---|
| Number/signal type | 1 HDMI
1 unbalanced/balanced stereo |
| Connectors | 1 female HDMI type A
1 3.5 mm, 5 pole captive screw |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Gain error | ± 0.5 dB channel to channel |
| Maximum level (Hi-Z) | >+21 dBu balanced, >+15 dBu, unbalanced |
| Output volume range | 0 to -100 dB in 0.1 dB steps |
|
| Communications |
|---|
| USB control port | 1 front panel USB-C |
| USB standards | USB 2.0, high speed |
| Serial control port | 1 bidirectional RS-232 |
| Serial control connector | (1) 3.5 mm, 3 pole captive screw (rear panel) |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Pin configuration | 1 = Tx, 2 = Rx, 3 = GND |
| Program control | Extron Product Software Configuration (PCS) program for Windows®
Extron Simple Instruction Set™ (SIS™) |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A |
| Power consumption | |
| Device | |
| Full load | TBD watts |
| Power save mode | TBD watts |
| Device and power supply | TBD watts |
| Full load | TBD watts |
| Power save mode | TBD watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | TBD BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional rack shelf kit |
| Furniture mount | Yes, with optional under-desk mounting kit or through-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 4.3" W x 6.0" D (1" high, quarter rack wide)
(25 mm H x 109 mm W x 152 mm D)
(Depth excludes connectors.) |
| Product weight | 0.53 lbs (0.24 kg) |
| Regulatory compliance | CE, c-UL, UL, PSE, RoHs, and WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6379-D1) |
