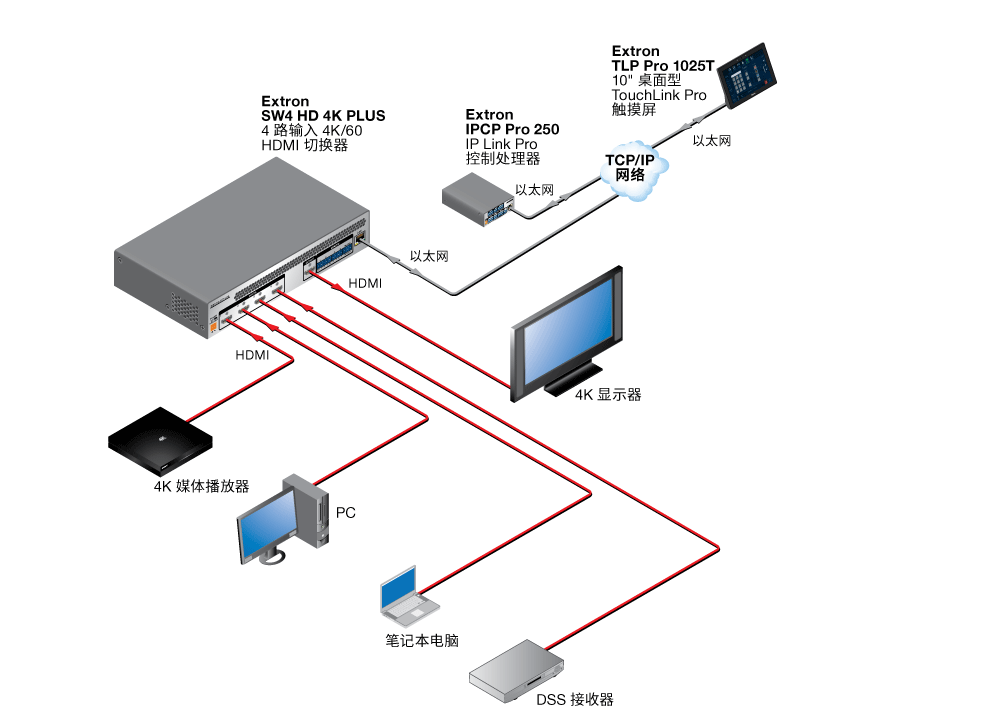

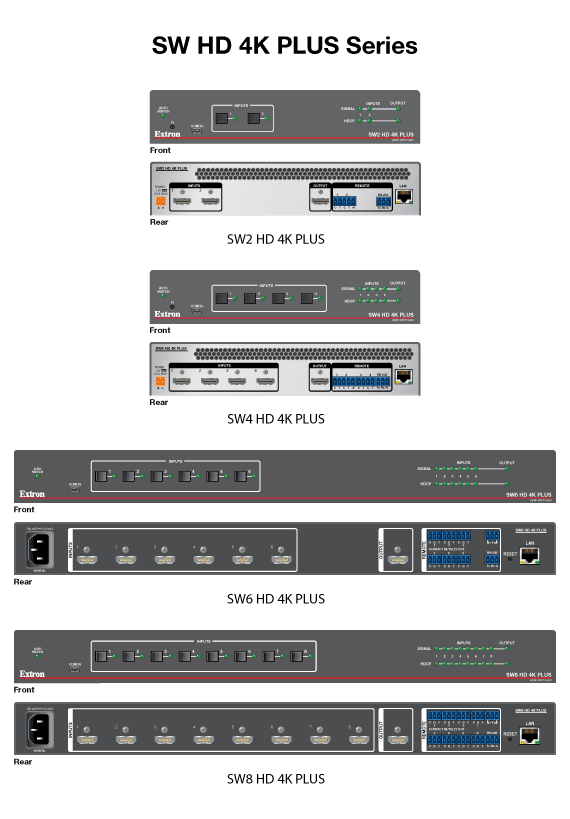

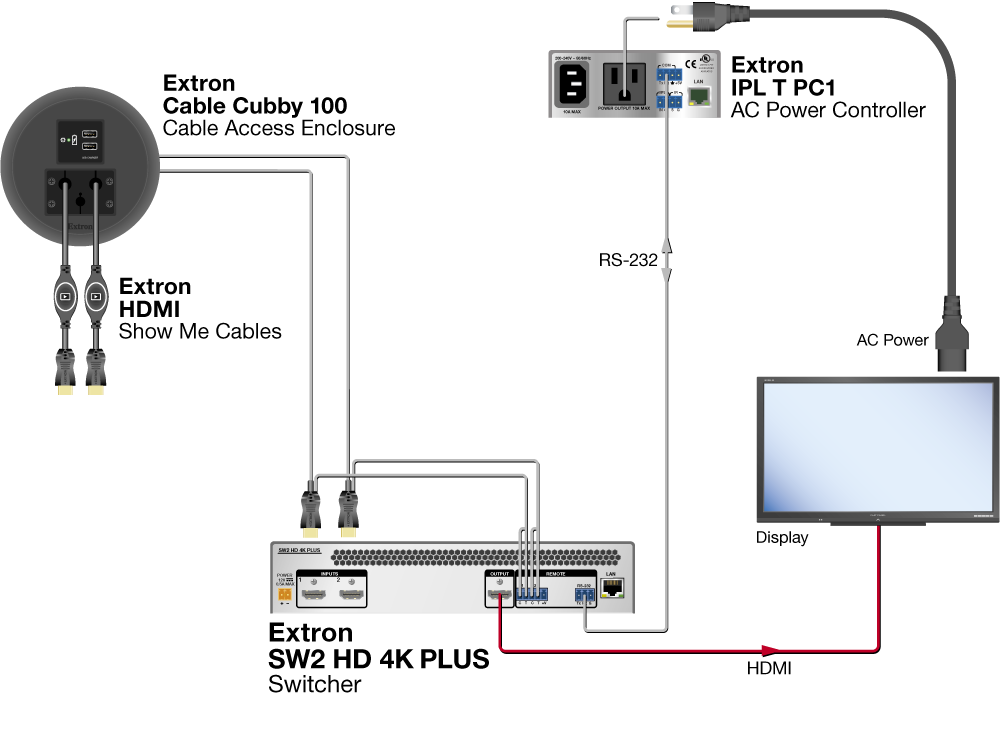

| SW HD 4K PLUS Series |
|
 specification |
|---|
| Max. 4K Capabilities |
| Resolution and Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 4096x2160 at 60 Hz |
4:4:4 |
8 bit |
| 3840x2160 at 60 Hz |
| 4096x2160 at 30 Hz |
12 bit |
| 3840x2160 at 30 Hz |
| 4096x2160 at 60 Hz |
4:2:0 |
| 3840x2160 at 60 Hz |
|
| Frame rate1 | 24, 25, 30, 50, 60, 120, 144, 240 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 |
| Color bit depth1 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0b, HDCP 2.3 |
| Max. video data rate | 18 Gbps (6 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Maximum data rate | 18 Gbps (6 Gbps per color) |
| Maximum pixel clock | 600 MHz |
| Resolution range | Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling)
5120x1080* @ 30 Hz, 5120x1440* @ 30 Hz, 5120x2160 @ 30 Hz
5120x2560* @ 30 Hz, 5120x2880* @ 30 Hz (4:4:4 chroma sampling) |
| NOTE | *Indicated rates are not available via standard 256-byte EDID and may require custom video card configuration. |
|
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 2.0b, HDMI 1.4, HDCP 1.4, HDCP 2.3, CEA-861E |
| NOTE | The SW HD 4K PLUS Series switchers support TMDS data rates up to 18 Gbps, HDR, up to 12 bit Deep Color, 3D**, HD lossless audio formats, and other HDMI specification features.
**Extron strongly recommends compatibility testing while designing and before installing any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The 3D support in this product is limited to signals operating within 164 MHz pixel clock and requires format and EDID compatibility between source and sink devices. Please contact an Extron Application Engineer for more information.
|
|
|
| Video input |
|---|
| Number/signal type | 2, 4, 6, or 8 (depending on model) single link HDMI (or DVI-D*) |
| Connectors | 2, 4, 6, or 8 female HDMI type A |
| Horizontal frequency | 15 KHz to 270 KHz for resolutions up to 18 Gbps |
| Vertical frequency | 24 Hz to 240 Hz for resolutions up to 18 Gbps |
|
| Video output |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D*) |
| Connectors | 1 female HDMI type A |
| Power for active cables | 1.1 W for the HDMI port |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
|
| Audio input |
|---|
| Number/signal type | |
| SW2 HD 4K PLUS | 2 HDMI, embedded |
| SW4 HD 4K PLUS | 4 HDMI, embedded |
| SW6 HD 4K PLUS | 6 HDMI, embedded |
| SW8 HD 4K PLUS | 8 HDMI, embedded |
| Connectors | |
| SW2 HD 4K PLUS | 2 female HDMI type A |
| SW4 HD 4K PLUS | 4 female HDMI type A |
| SW6 HD 4K PLUS | 6 female HDMI type A |
| SW8 HD 4K PLUS | 8 female HDMI type A |
| Supported formats | |
| HDMI pass-through | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats
DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats |
|
| Audio output |
|---|
| Number/signal type | 1 HDMI, embedded |
| Connector | 1 female HDMI type A |
|
| Communication |
|---|
| Serial control port | 1 RS-232, 3.5 mm, 3 pole captive screw connector |
| Pin configuration | 1 = Tx, 2 = Rx, 3 = GND |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| USB control port | 1 female mini USB B on front panel |
| USB standards | USB 2.0, low speed |
| Ethernet data rate | 10/100Base-T, half/full duplex, with auto detect |
| Ethernet protocol | ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, SNMP, SSH, Telnet |
| Program control | Extron control/configuration program for Windows®
Extron Simple Instruction Set™ (SIS™)
Microsoft® Internet Explorer®
Telnet
|
| Contact closure/tally output | |
| SW2 HD 4K PLUS | (1) 3.5 mm captive screw, 5 pole (C,T,C,T,+V) |
| SW4 HD 4K PLUS | (1) 3.5 mm captive screw, 5 pole (C,T,C,T,+V)
(1) 3.5 mm captive screw, 4 pole (C,T,C,T) |
| SW6 HD 4K PLUS | (6) 3.5 mm captive screw, 3 pole (C,G,T)
(1) 3.5 mm captive screw, 3 pole (+V) |
| SW8 HD 4K PLUS | (8) 3.5 mm captive screw, 3 pole (C,G,T)
(1) 3.5 mm captive screw, 3 pole (+V) |
| | C = contact, G = ground, T = tally, +V = +5 V |
|
| General |
|---|
| Power supply | |
| SW2 and SW4 HD 4K PLUS | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| SW6 and SW8 HD 4K PLUS | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption | |
| SW2 and SW4 HD 4K PLUS | |
| Device | 3.9 watts, 12 VDC |
| Device and power supply | 5.5 watts, 12 VDC |
| SW6 and SW8 HD 4K PLUS | 12.1 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| SW2 and SW4 HD 4K PLUS | |
| Device | 12.2 BTU/hr |
| Device and power supply | 17.8 BTU/hr |
| SW6 and SW8 HD 4K PLUS | 40.4 BTU/hr |
| Mounting | |
| SW2 and SW4 HD 4K PLUS |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit or through-desk mounting kit |
| SW6 and SW8 HD 4K PLUS |
| Rack mount | Yes, with supplied mounting brackets |
| Enclosure type | Metal |
| Enclosure dimensions | |
| SW2 and SW4 HD 4K PLUS | 1.75" H x 8.75" W x 6.0" D (1U high, half rack wide)
(44 mm H x 222 mm W x 152 mm D)
(Depth excludes connectors.) |
| SW6 and SW8 HD 4K PLUS | 1.75" H x 17.5" W x 8.5" D (1U high, full rack wide)
(44 mm H x 445 mm W x 216 mm D)
(Depth excludes connectors.) |
| Product weight | |
| SW2 and SW4 HD 4K PLUS | 1.2 lbs (0.5 kg) |
| SW6 and SW8 HD 4K PLUS | 2.5 lbs (1.1 kg) |
| Regulatory compliance | CE, c-UL, UL, PSE, RoHs, and WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6529-D8) |
