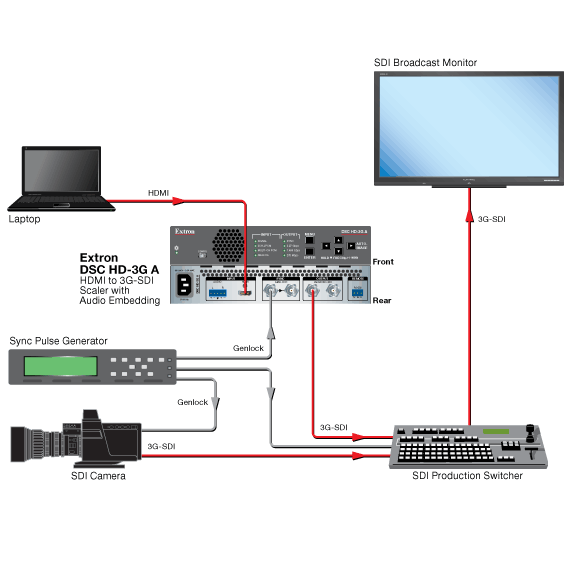

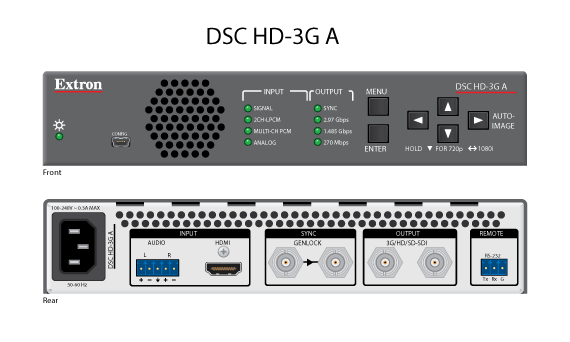

| DSC HD-3G A |
|
| Video input |
|---|
| Number/signal type | 1 HDMI/DVI |
| Connectors | 1 female HDMI type A |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 120 Hz |
| Resolution range | 640x480 to 1920x1200 (with reduced blanking), 480i, 576i, 480p, 720p, 1080i, 1080p, and 2K (2048x1080) |
| Standards | DVI 1.0, HDMI 1.3 |
|
| Video processing |
|---|
| Digital sampling | 30-bit, 8, 10, and 12 bits per color; 165 MHz standard (pixel clock) |
| Colors | 1.07 billion (10-bit processing) |
|
| Video output |
|---|
| Number/signal type | (2) 3G/HD/SD-SDI — digital component video
SMPTE: 259M-C, 292M, 424M |
| Connectors | 2 female BNC: SDI |
| Scaled resolutions | 480i7, 576i6, 720p1,2,3,4,5,6,7,8, 1080i6,7,8, 1080p (HD-SDI)1,2,3,4,5, 1080p (A)6,7,8, 1080p (B)6,7,8, 2K (2048x1080)1,2,3,4,5,6,7,8
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz |
| Data rates | 270 Mbps to 2.97 Gbps |
| Nominal level | 0.8 Vp-p ± 10% |
| Impedance | 75 ohms |
| DC offset | ± 0.5 Vp-p with input at 0 offset |
| Jitter | <0.35 UI |
| Rise and fall time | 0.6 ns ± 100 ps |
| Operation standards | SMPTE 259M-C, 292M, 424M |
|
| External sync (genlock) |
|---|
| Number/signal type | 1 female BNC for genlock input
1 female BNC for genlock loop output |
| Connectors | 2 female BNC |
| External sync level | Auto-sensing: tri-level (high definition: 720p-2K), bi-level (standard definition: 480i and 576i) |
| Impedance | 75 ohms |
| Return loss | >30 dB @ 5 MHz (genlock input)
≥21 dB @ 5 MHz (genlock loop output) |
|
| Audio |
|---|
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.1% @ 1 kHz, 20 kHz (at nominal level) |
| S/N | >90 dB, at full scale output (unweighted) |
| Stereo channel separation | >80 dB @ 1 kHz |
|
| Audio input |
|---|
| Number/signal type | 1 stereo/multi-channel, de-embedded from HDMI (PCM only)
1 stereo/mono, balanced/unbalanced |
| Connectors | 1 female HDMI type A
(1) 5 pole captive screw |
| Impedance | >10k ohms unbalanced, >20k ohms balanced |
| Nominal level | +4 dBu (1.23 Vrms), -10 dBV (316 mVRMS), adjustable |
| Maximum level | +21 dBu (balanced), +15 dBu (unbalanced) |
| Input gain adjustment | -18 dB to +12 dB, 1 dB steps (analog input only) |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output |
|---|
| Number/signal type | 2 AES3, SDI embedded audio, up to 8 channels |
| Connectors | 2 female BNC |
|
| Control/remote |
|---|
| Serial control port | 1 RS-232 rear panel 3 pole captive screw connector |
| Serial control pin configuration | Pin 1 = Tx, pin 2 = Rx, pin 3 = ground |
| Baud rate and protocol | 9600 (default), 8 data bits, 1 stop bit, no parity |
| USB control port | 1 female mini USB-B |
| USB standards | USB 2.0, high speed |
| Program control | On-screen display (OSD) via front panel control
Extron Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption | 11.6 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Fan, air flows from front to rear. |
| Thermal dissipation | 38.2 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.66" H x 8.69" W x 8.5" D (1U high, half rack wide)
(42 mm H x 221 mm W x 216 mm D)
(Depth excludes connectors.) |
| Product weight | 1.8 lbs (0.8 kg) |
| Regulatory compliance | CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5319-D6) |
