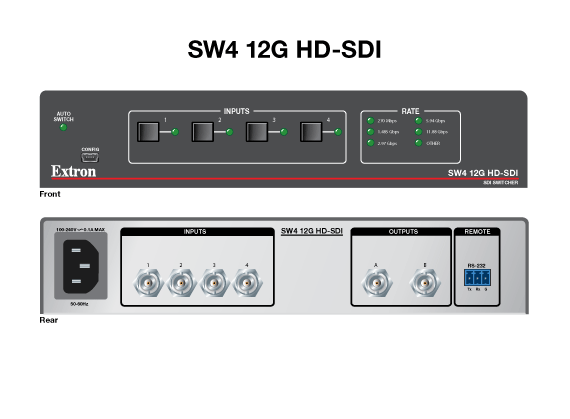

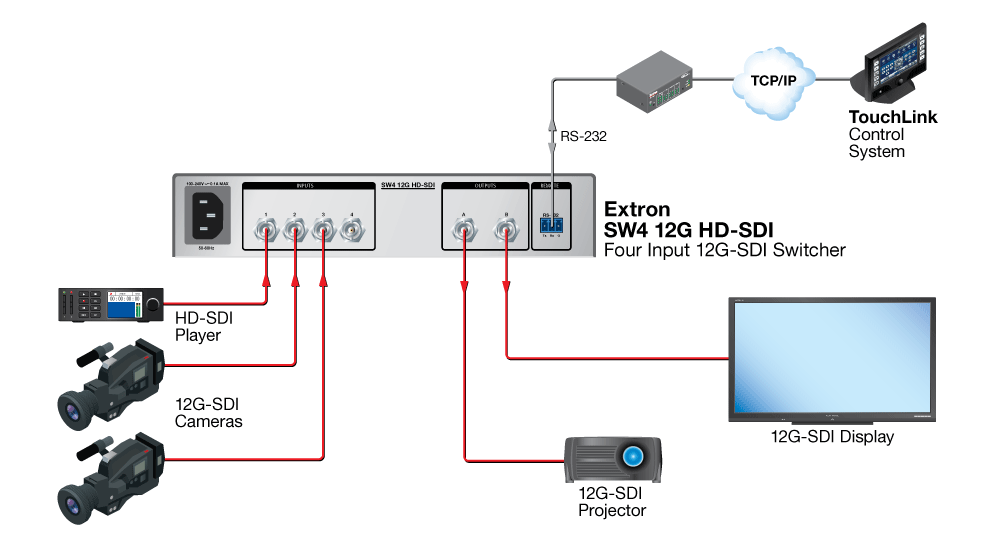

| SW4 12G HD-SDI |
|
 specification |
|---|
 |
| Frame rate1 | 23.97, 24, 25, 29.97, 30, 50, 59.94, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, and 4:2:0 |
| Color bit depth1 | 8 or 10 bits per color |
| Signal Type | 6G-SDI, 12G-SDI |
| Max. video data rate | 11.88 Gbps per 12G-SDI connection |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (/8kdatarate) to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Signal Type | SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI digital video |
| Gain | Unity |
| Resolution | 480i, 576i, 720p, 1080i, 1080PsF, 1080p, 2K (2048x1080), 2840x2160, 4096x2160 |
| Operation standards | SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE ST-2081, SMPTE 2082, ITU-RBT.601, ITU-RBT.1120 |
| Level mapping | Supports both level A and level B mapping (3G-SDI and 6G-SDI) |
| Auto data rate lock | Yes |
| Latency | 24 ns |
| Bit Depth | |
| 12G-SDI | Supports up to 10 bits. |
| 6G-SDI | Supports up to 10 bits. |
| 3G-SDI | Supports up to 12 bits. |
| HD-SDI | Supports up to 12 bits. |
| SDI | Supports up to 12 bits. |
|
| Video input |
|---|
| Number/signal type | 4 single link SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI digital component video |
| Connectors | 4 female BNC |
| Data rates | 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps |
| Nominal level | 0.8 Vp-p |
| Minimum/maximum levels | 0.5 V to 1 Vp-p with no offset |
| Impedance | 75 ohms |
| Return loss | -15 dB @ 1 MHz to 1.5 GHz
-10 dB @ 1.5 GHz to 3 GHz
-7 dB @ 3 GHz to 6 GHz
-4 dB @ 6 GHz to 12 GHz |
| Equalization | Automatic for up to -30 dB of cable loss |
| 12G-SDI | 70 meters (230 feet) |
| 6G-SDI | 90 meters (295 feet) |
| 3G-SDI | 180 meters (590 feet) |
| HD-SDI | 240 meters (787 feet) |
| SDI | 300 meters (984 feet) |
| NOTE | Transmission distance varies depending on the signal resolution, the type of cable, source, and display used in the system. |
|
|
| Video output |
|---|
| Number/signal type | 2 single link SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI digital component video |
| Connectors | 2 female BNC |
| Data rates | 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps |
| Re-clocking | Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, and 11.88 Gbps; bypassed for other rates |
| Nominal level | 0.8 Vp-p ±10% |
| Minimum/maximum levels | 0.5 V to 1.0 Vp-p |
| Impedance | 75 ohms |
| Return loss | -15 dB @ 1 MHz to 1.5 GHz
-10 dB @ 1.5 GHz to 3 GHz
-7 dB @ 3 GHz to 6 GHz
-4 dB @ 6 GHz to 12 GHz |
| DC offset | ±0.5 V with input at 0 offset |
|
| Audio |
|---|
| Audio channels | Supports up to 16 channels. |
|
| Control/remote — switcher |
|---|
| Serial control port | 1 RS-232, 3.5 mm, 3 pole captive screw connector |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Pin configuration | 1 = Tx, 2 = Rx, 3 = GND |
| Program control | Extron Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power supply | Internal
Input: 100 VAC to 240 VAC, 50-60 Hz |
| Power consumption | 2.2 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | 7.3 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional under-desk or through-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.75" H x 8.75" W x 6.0" D (1U high, half rack wide)
(44 mm H x 222 mm W x 152 mm D)
(Depth excludes connectors.) |
| Product weight | 1.6 lbs (0.7 kg) |
| Regulatory compliance | CE, C-tick, c-UL, UL, FCC Class A, ICES, KC-mark, RoHs, VCCI, and WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4964-D5) |
