Extron IN1606 是一款符合 HDCP 标准的 6 路输入视频图像解析度转换器，具有 4 路 HDMI 输入、2 路通用模拟视频输入以及 2 路 HDMI 同时输出。IN1606 可接受各种类型的视频格式，包括 HDMI、HDTV、RGB 和标清视频。它采用 1080i 去隔行处理和深色处理的高级视频图像解析度转换引擎，可支持高达 1920x1200 和 2K 的输出分辨率。增强的音频特性包括 6 路立体声输入、2 路可变的立体声输出、2 路带闪避的麦克风/线路输入以及 HDMI 音频嵌入和解嵌。IN 1606 设计用于专业的视音频集成领域，提供了包括以太网、RS-232 和 USB 等灵活的控制选项。IN1606 在一个可机架安装的外壳内提供了完整的视音频切换系统。

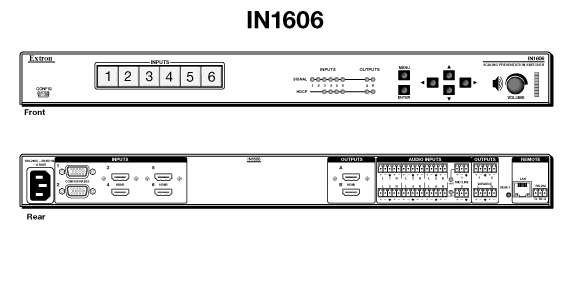

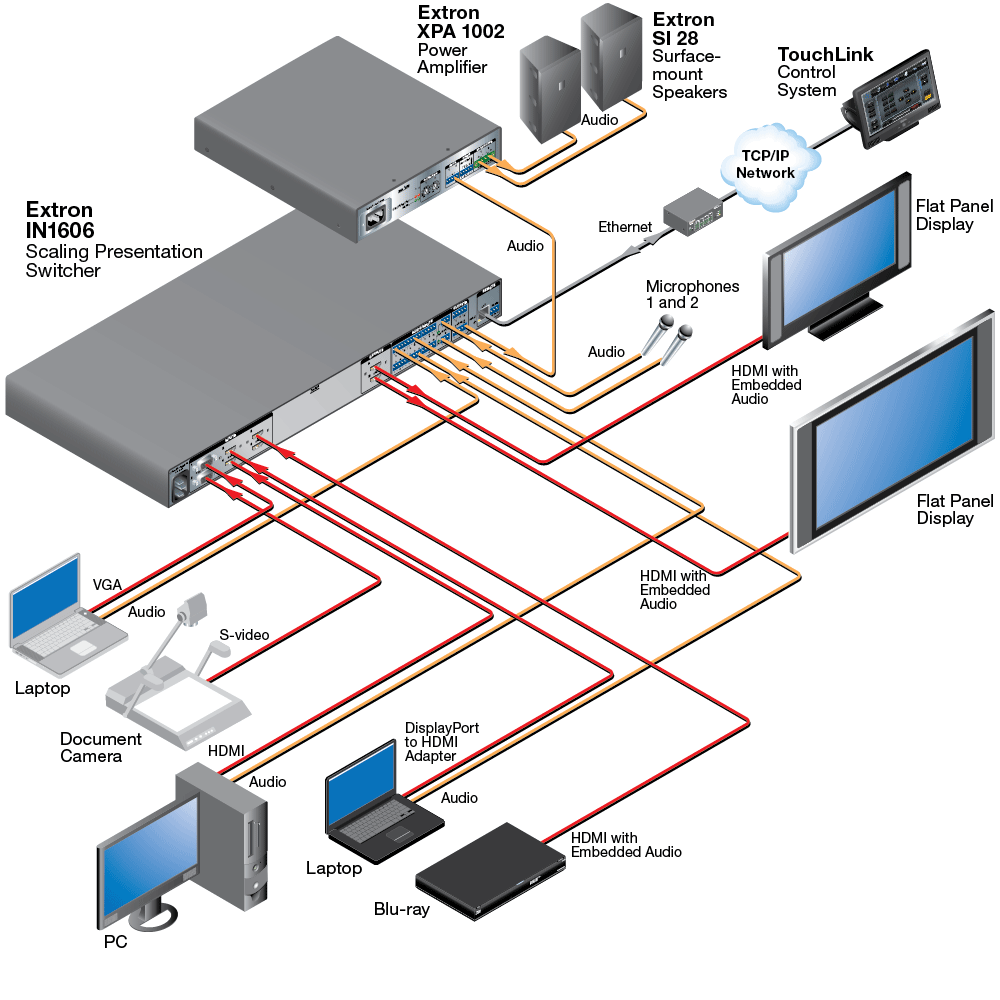

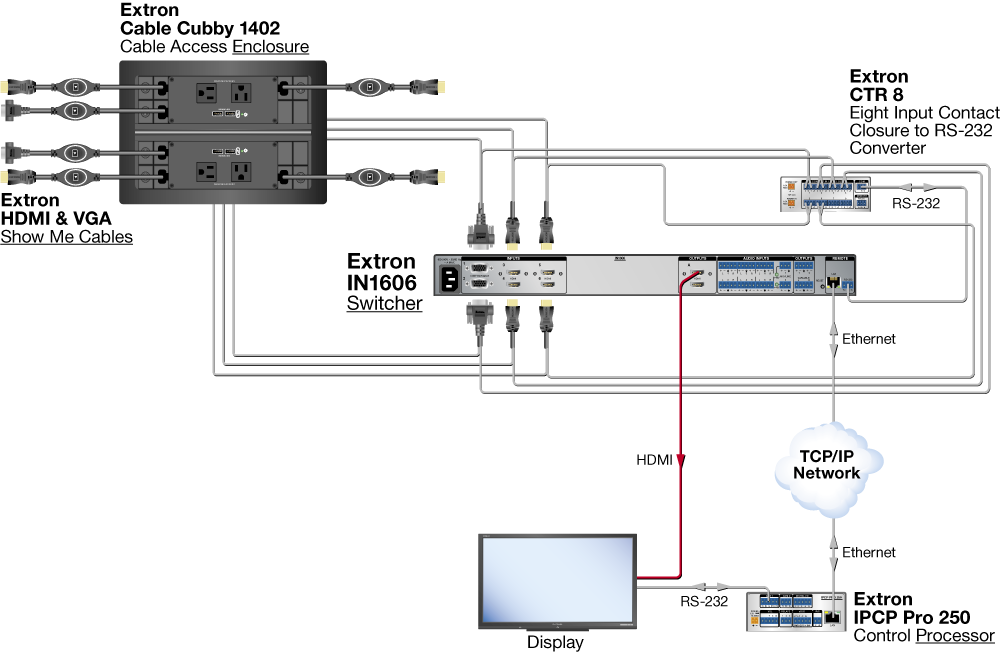

技术参数

IN1606
Video input
Number/signal type	2 RGB, RGBcvS, component video (YUVi or YUVp/HDTV), S-video, composite video 4 HDMI digital video
Connectors	2 female 15-pin HD 4 female HDMI
Equalization	Automatic
Input cable length	Up to 75' (22.9 m) for all supported input rates
Nominal level	1 Vp-p for Y of component video and S-video, and for composite video 0.7 Vp-p for RGB and for R-Y and B-Y of component video 0.3 Vp-p for C of S-video
Minimum/maximum levels	Analog: 0.0 V to 1.0 Vp-p with no offset at unity gain
Impedance	75 ohms
Horizontal frequency	15 kHz to 100 kHz
Vertical frequency	24 Hz to 75 Hz
Resolution range	640x480 to 1600x1200 and 1920x1200* NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 2k *reduced blanking
Return loss	>30 dB @ 5 MHz
DC offset (max. allowable)	1.5 V
Standards	NTSC 3.58, NTSC 4.43, PAL, SECAM, DVI 1.0, HDMI 1.3, HDCP 1.4
Video processing
Decoder	12 bit digital (3D-adaptive comb filter)
Analog sampling	12 bits per color; 13.5 MHz standard (video) 170 MHz standard (RGB)
Digital pixel data bit depth	8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)
Colors	1 billion (10 bit processing)
Video output
Number/signal type	2 HDMI
Connectors	2 female HDMI
HDMI peripheral device power	200 mA per output
Scaled resolution	640x4806,8,9, 800x6006,8,9, 852x4806,8,9, 1024x7686,8,9, 1024x8526,8,9, 1024x10246,8,9,1280x7686,8,9, 1280x8006,8,9, 1280x10246,8,9, 1360x7656,8,9, 1360x7686,8,9, 1365x7686,8,9, 1365x10246,8,9, 1366x7686,8,9,1400x10506,8, 1440x9006,8,9, 1600x9006,8, 1600x12006,8, 1680x10506,8, 1920x12006,8 HDTV 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2048x10801,2,3,4,5,6,7,8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz,4 = at 29.97 Hz, 5 = 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz
Standards	DVI 1.0, HDMI 1.3, HDCP 1.4
Sync
Input type	RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video
Input standards	NTSC 3.58, NTSC 4.43, PAL, SECAM
Input level	2.75 V to 5.0 Vp-p for RGBHV or RGBS 0.6 Vp-p for component video with tri-level sync 0.3 Vp-p for component video with bi-level sync or RGsB
Input impedance	Horizontal: 510 ohms Vertical: 510 ohms
Max. input voltage	5.0 Vp-p
Audio
Gain	Unbalanced output: -6 dB; balanced output: 0 dB
Frequency response	20 Hz to 20k Hz, ±0.5 dB
THD + Noise	<0.1%, 20 Hz to 20k Hz at nominal level
S/N	>90 dB at maximum balanced output (unweighted)
Crosstalk	≤-80 dB @ 1 kHz, fully loaded
Stereo channel separation	>80 dB @ 1 kHz
Bass	+12 dB to -24 dB @ 100 Hz
Treble	+12 dB to -24 dB @ 8 kHz
Supported formats
Analog de-embedding	LPCM-2Ch
HDMI pass-through	LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
Audio input
Number/signal type	6 stereo line balanced or unbalanced 2 mono mic/line balanced or unbalanced (with available phantom power) 4 stereo, de-embedded from HDMI (PCM only)
Connectors	(6) 3.5 mm, 5 pole captive screw connectors for Line (2) 3.5 mm, 3 pole captive screw connector for Mic/Line 4 female HDMI type A
Impedance	>10k ohms unbalanced, >20k ohms balanced
Nominal level	Line inputs: +4 dBu, -10 dBV, adjustable Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable
Maximum level	+21 dBu at rated THD+N when input gain is set to 0 dB
CMRR	>80 dB @ 1 kHz
Input gain adjustment	Line inputs: -18 dB to +24 dB, 0.1 dB steps, adjustable per input Mic/line inputs: -18 dB to +60 dB, 0.1 dB steps, adjustable per input LPCM-2Ch: -18 dB to +24 dB, 0.1 dB steps, adjustable per input
DC phantom power	+48 VDC ±10% (can be switched on or off per Mic/line input)
Audio output
Number/signal type	1 balanced or unbalanced stereo (variable) 1 balanced or unbalanced stereo; can be configured as stereo or two independently mixed mono channels 2 HDMI embedded
Connectors	(2) 3.5 mm captive screw connectors, 5 pole 2 female HDMI
Impedance	50 ohms unbalanced, 100 ohms balanced
Gain error	±0.5 dB channel to channel
Maximum level (Hi-Z)	>+21 dBu, balanced; >+15 dBu, unbalanced
Output volume range	0 to -100 dB in 0.1 dB steps
Control/remote
Serial control port	1 bidirectional RS-232: 1 rear panel 3.5 mm captive screw connector, 3 pole
Baud rate and protocol	9600, 8 data bits, 1 stop bit, no parity (default)
USB control ports	1 front panel female mini USB B
USB standards	USB 2.0, high speed
Ethernet control port	1 female RJ-45 connector
Ethernet data rate	10/100Base-T, half/full duplex with autodetect
Ethernet protocol	ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP
Program control	Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™) Microsoft® Internet Explorer®, Telnet
General
Power supply	Internal Input: 100-240 VAC, 50-60 Hz
Power consumption
Full load	26 watts
Power save mode	<14 watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Passive, side and top vents
Thermal dissipation
Full load	68.7 BTU/hr
Power save mode	45.4 BTU/hr
Mounting
Rack mount	Yes, with included, pre-installed brackets
Enclosure type	Metal
Enclosure dimensions	1.72" H x 17.5" W x 9.5" D (1U high, full rack wide) (44 mm H x 444 mm W x 241 mm D) (Depth excludes connectors and knobs. Width excludes rack ears.)
Product weight	4.9 lbs (2.2 kg)
Regulatory compliance	CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(5940-D13)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
60-1081-01	13.3 cm	37.5 cm	55.9 cm	3.49 kg
