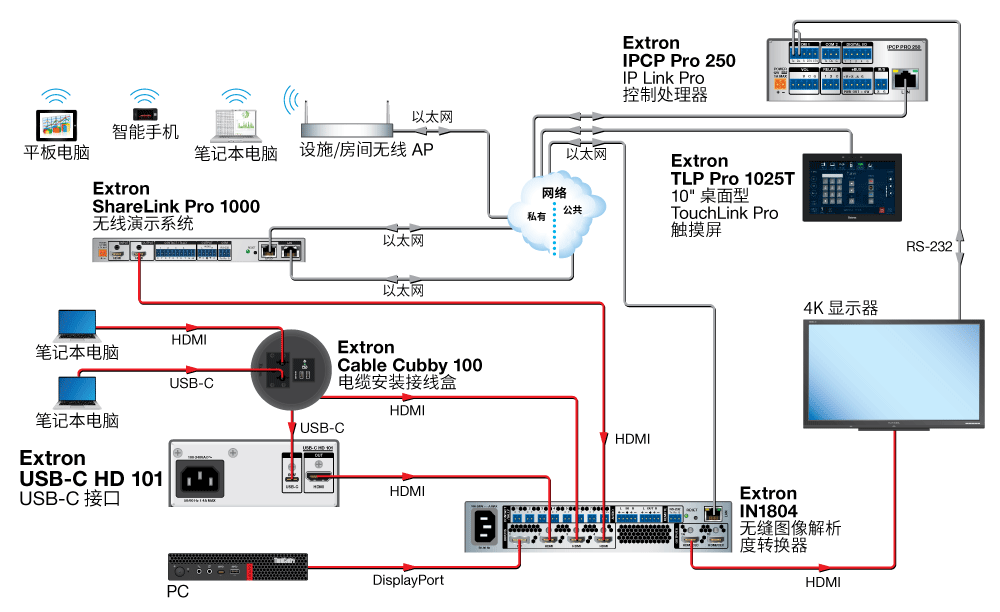

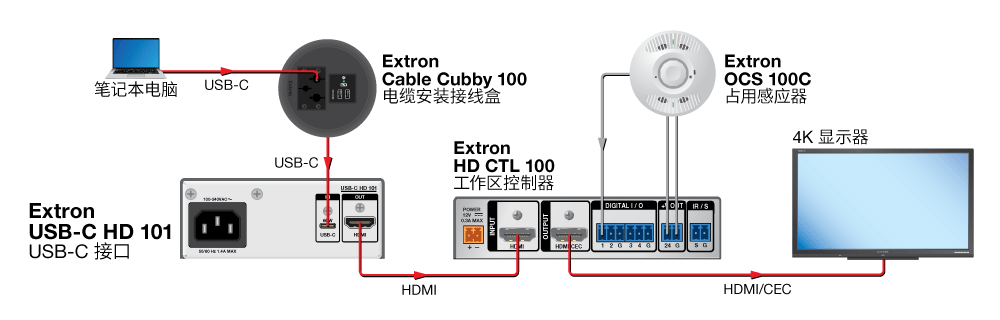

| USB-C HD 101 |
|
 specification |
|---|
| Max. 4K Capabilities |
| Resolution and Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 4096x2160 at 60 Hz |
4:4:4 |
8 bit |
| 3840x2160 at 60 Hz |
| 4096x2160 at 30 Hz |
12 bit |
| 3840x2160 at 30 Hz |
| 4096x2160 at 60 Hz |
4:2:0 |
| 3840x2160 at 60 Hz |
|
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4, 4:2:2, 4:2:0 |
| Color bit depth1 | 8, 10, or 12 bits per color |
| Signal Type | HDMI 2.0b, HDCP 2.3 |
| Max. video data rate | 18 Gbps (6.0 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at /8Kdatarate to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| Maximum data rate | 18 Gbps (6 Gbps per color) |
| Maximum pixel clock | 600 Mhz |
| Resolution range | Up to 4K (4096 x 2160) @60 Hz 4:4:4, UHD (3840 x 2160) @60 Hz 4:4:4 |
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 2.0b, HDMI 1.4a, HDCP 2.3, HDCP 1.4 |
|
| Video input |
|---|
| Number/signal type | 1 DisplayPort (Alt Mode, 4 HBR2 lanes) |
| DisplayPort video | DisplayPort Alt Mode. DP 1.2 (4 lanes), RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps |
| Maximum data rate | 21.6 Gbps |
| NOTE | Extron requires using USB-C cables supporting 4 DisplayPort lanes. |
|
| Connector | Female USB-C |
| Horizontal frequency | 15kHz to 270kHz for resolutions up to 18Gbps |
| Vertical frequency | 24Hz – 240Hz for resolutions up to 18Gbps |
|
| Video output |
|---|
| Number/signal type | 1 HDMI |
| Connector | Female HDMI type A |
| Output power for active cables | 1.1 W max. for the HDMI port |
|
| USB port |
|---|
| Number/signal type | 1-port, USB |
| Connector | 1 USB type C, female |
| Maximum built-in USB hubs | 0 |
| Minimum built-in USB hubs | 0 |
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power output | 5 VDC @ up to 3A, 9 VDC @ up to 3A, 15VDC @ up to 3A, or 20VDC @ up to 3A. 60 Total Watts |
| Power consumption | |
| Device | 65.8 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 30.7 BTU/Hr |
| Mounting | Yes, or with optional 1U rack shelf, with the included ZipClip 200® mounting clip |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 4.3" W x 3.0” D (1U high, one quarter rack wide)
(4.3cm H x 10.9cm W x 7.6cm D)
(Excludes power cords)
|
| Product weight | 0.68 lbs (0.31 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | CE, c-UL, UL, C-Tick, FCC, ICES, VCCI, KC, RoHS, WEEE |
| MTBF | 155,000 Hrs |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6556-D8) |
