Extron HDMI Pro 系列电缆设计用于需要对 HDMI 数字视频和音频信号进行高性能传输的应用环境。根据不同的电缆长度，HDMI Pro 系列电缆符合超高速、高速或标速 HDMI 电缆性能标准。超高速和高速 HDMI 电缆支持 4K 分辨率。标速 HDMI 电缆支持 1080p 或 720p 分辨率。电缆采用 22 AWG 铜线芯和镀金触点。Extron HDMI Pro 电缆提供的长度从 7.6 m 到 60 m (25' 到 200') 不等。

技术参数

HDMI M-M Pro Cables
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8 bits per color
Signal type	HDMI 2.0
Max. video data rate	18.0 Gbps (6.0 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/4Kdatarate to determine video parameters supported by this data rate.
Performance/electrical
Resolution range
Premium High Speed HDMI cable — Up to 25' (7.6 m)	Up to 4K @ 60 Hz (4096x2160) or UHD @ 60 Hz (3840x2160) 8 bit color depth, max. 18.0 Gbps data rate
High Speed HDMI cable — Up to 50' (15.2 m)	Up to 4K @ 30 Hz (4096x2160) or UHD @ 30 Hz (3840x2160) 8 bit color depth, max. 10.2 Gbps data rate
NOTE     A cable equalizer is recommended for 1080p @ 60 Hz resolutions beyond 75' (22.8 m).
Voltage	30 V
Pair impedance	100 ohms ±10 ohms
Attenuation	At 0.3 - 0.825 GHz: ≤5 dB per 6 m At 0.825 - 2.475 GHz: ≤12 dB per 6 m At 2.475 - 4.125 GHz: ≤20 dB per 6 m At 4.125 - 5.100 GHz: ≤25 dB per 6 m
FEXT	≥20 dB per 6 m
Skew
12' (3.6 m) and shorter
Intrapair	≤112 ps per 6 m
Interpair	≤1.78 ns per 6 m
25' (7.6 m) and longer
Intrapair	≤112 ps per 8 m
Interpair	≤1.78 ns per 8 m
General — physical characteristics
Connector type	1 male type A HDMI to 1 male type A HDMI
Contacts	Gold plated
Material
12' (3.6 m) and shorter	Conductors: silver coated, tinned copper Drain wire: tinned copper Shielding: aluminum/Mylar® and tinned copper braid Jacket: PVC
25' (7.6 m) and longer	Conductors: tinned copper Drain wire: tinned copper Shielding: aluminum/Mylar® and tinned copper braid Jacket: PVC
Conductor gauge
12' (3.6 m) and shorter	Conductors and drain wire: 24 AWG
25' (7.6 m) and longer	Conductors and drain wire: 22 AWG

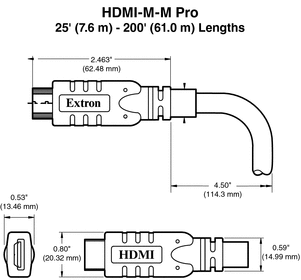

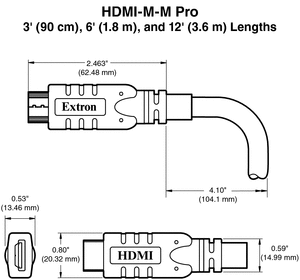

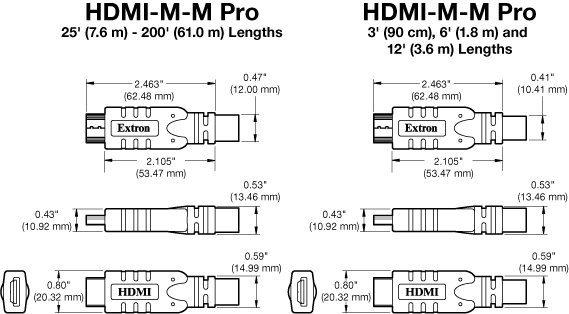

Connector dimensions	2.46" L* x 0.80" W x 0.60" thick (62.5 mm L* x 20.3 mm W x 15.0 mm thick) *Length includes plug.
12' (3.6 m) and shorter
Cable outer diameter	0.39" (10.0 mm)
Bend radius	4.10" (104.1 mm)
25' (7.6 m) and longer
Cable outer diameter	0.47" (12.0 mm)
Bend radius	4.50" (114.3 mm)

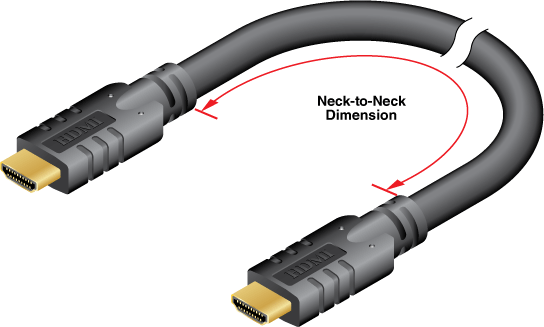

NOTE     Dimensions given above exclude the cable length.
Regulatory compliance
Safety	Cable: UL Listed as type CM, CSA FT-1
Temperature rating	Minimum: -25 °C Maximum: 75 °C
Product warranty	Limited Lifetime Performance
NOTE     Specifications are subject to change without notice.
(4113-D10)

装运尺寸和重量
产品编号	高度	宽度	深度	重量
26-650-25	5.1 cm	30.5 cm	30.5 cm	1.34 kg
26-650-35	6.4 cm	32.4 cm	32.4 cm	1.86 kg
26-650-50	5.7 cm	34.3 cm	34.3 cm	2.59 kg
26-650-200	15.9 cm	32.4 cm	30.5 cm	9.82 kg
