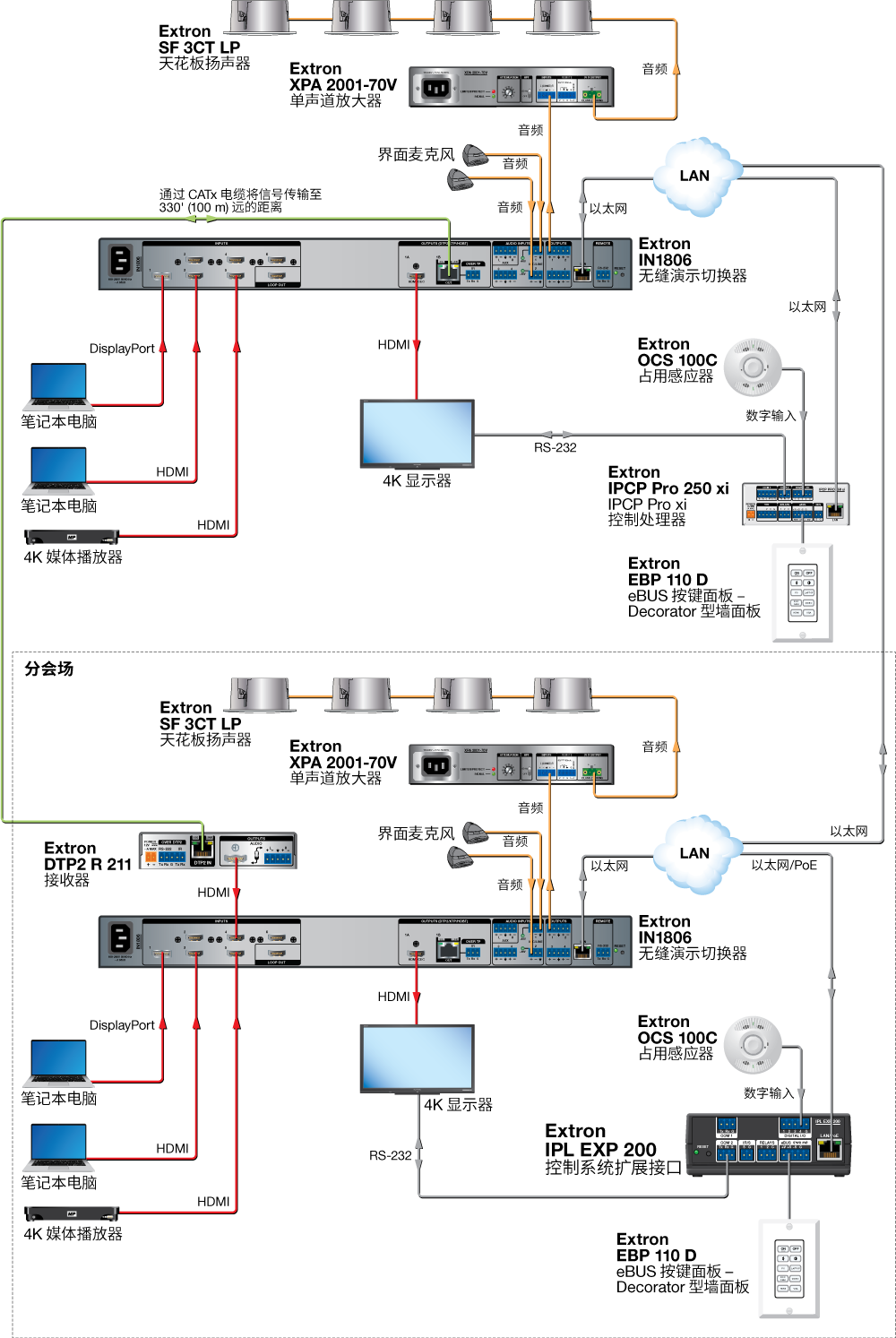

| IPL EXP 200 |
|
| Memory |
|---|
| SDRAM | 512 MB |
| Flash | 512 MB |
|
| Software |
|---|
| Configuration software | Global Configurator® Plus and Professional |
| Programming software | Global Scripter® |
| Control apps | Extron Control, iGVE |
| Resource management software | GlobalViewer® Enterprise |
| Utilities | Toolbelt, embedded web page |
|
| Ethernet |
|---|
| Network interface controllers (NICs) | 1 |
| Connectors | 1 female RJ-45 connector |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | ARP, DHCP, DNS, HTTP (redirect), HTTPS, ICMP (ping), IEEE 802.1X, NTP, SNMP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.250
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.0 |
|
| Serial |
|---|
| Quantity/type | 2 bidirectional RS-232 |
| Connectors | (2) 3.5 mm captive screw connectors, 3 pole |
| Baud rate and protocol | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default), even, or odd parity |
| NOTE | These ports support software flow control. The default is no flow control. |
|
| Pin configuration | Pin 1 = Tx, 2 = Rx, 3 = Gnd |
|
| IR/serial |
|---|
| Quantity/type | 1 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz |
| Connectors | (1) 3.5 mm captive screw connectors, 2 pole |
| Baud rate and protocol (RS-232) | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default), even, or odd parity |
| Pin configurations | Pin 1 = signal, 2 = Gnd |
| IR output carrier frequency | 30 kHz to 300 kHz |
|
| Digital I/O |
|---|
| Quantity/type | 4 digital input/output (configurable) |
| Connector | (1) 3.5 mm captive screw connector, 5 pole |
| Digital inputs | |
| Input voltage range | 0 to 24 VDC, clamped at +30 VDC |
| Input impedance | >10k ohms |
| Programmable pullup | 1k ohms to +5 VDC |
| Threshold low to high | 2.8 VDC |
| Threshold high to low | 2.0 VDC |
| Digital outputs | 250 mA sink from 24 VDC max. |
| Pin configuration | 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd |
|
| Relays |
|---|
| Quantity/type | 2 normally open relays |
| Relay control connectors | (1) 3.5 mm captive screw connectors, 3 pole |
| Relay control contact rating | 24 VDC, 1 A |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | Power over Ethernet (PoE) (complies with PoE 802.3af, class 3);
48 VDC (PoE), minimum 0.35 A |
| Power consumption — Power injector (PI 115) | |
| Device | 1.7 watts, 48 VDC (PoE) |
| Device and PoE injector | 2.6 watts, 100-240 VAC, 50-60 Hz |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 5.8 BTU/hr |
| Device and PoE injector | 8.9 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf, with the included ZipClip® 200 mounting clip, or by securing to rack rails with tie wraps |
| Furniture mount | Yes, with the included ZipClip 200 mounting clip |
| Pole mount | Yes, using tie wraps |
| Enclosure type | High impact, high temperature plastic |
| Enclosure dimensions | 1.7" H x 4.3" W x 4.5" D (1U high, quarter rack wide)
(42 mm H x 109 mm W x 114 mm D) |
| Product weight | 0.45 lbs (0.2 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE |
| Warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6188-D4) |
