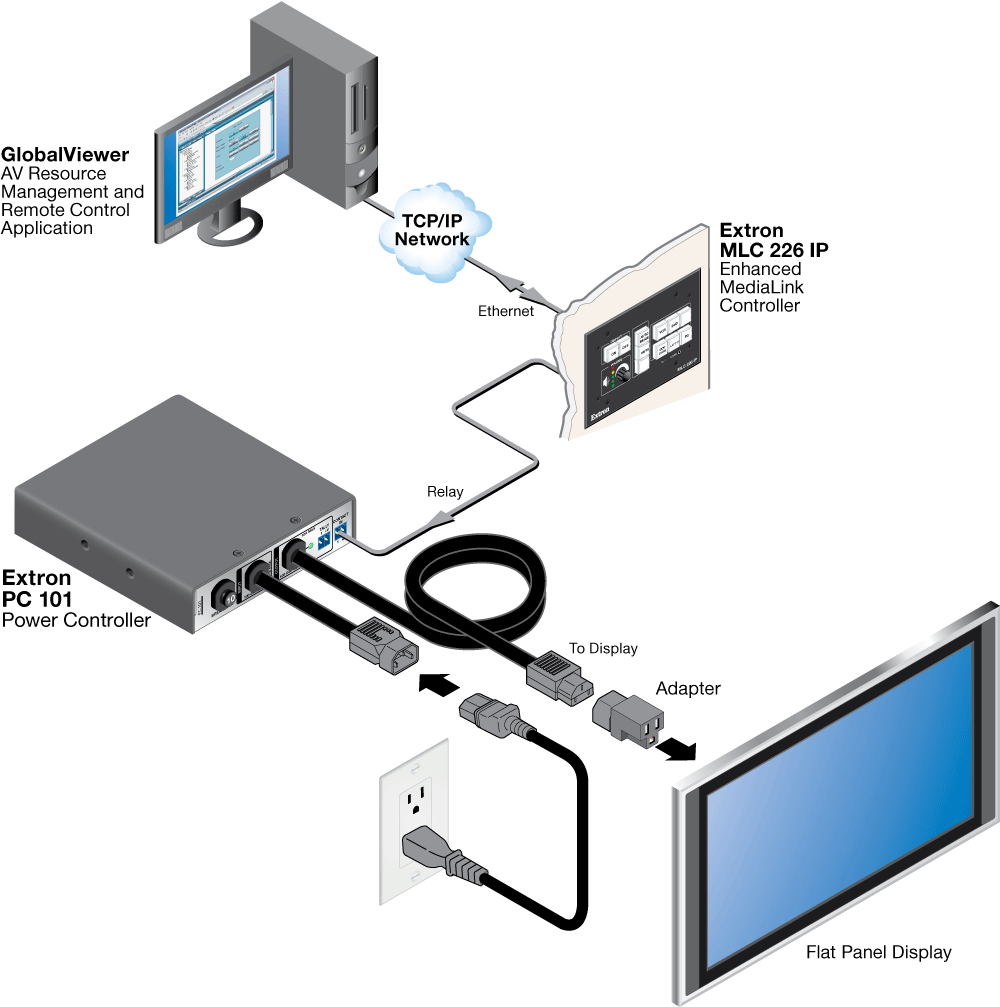

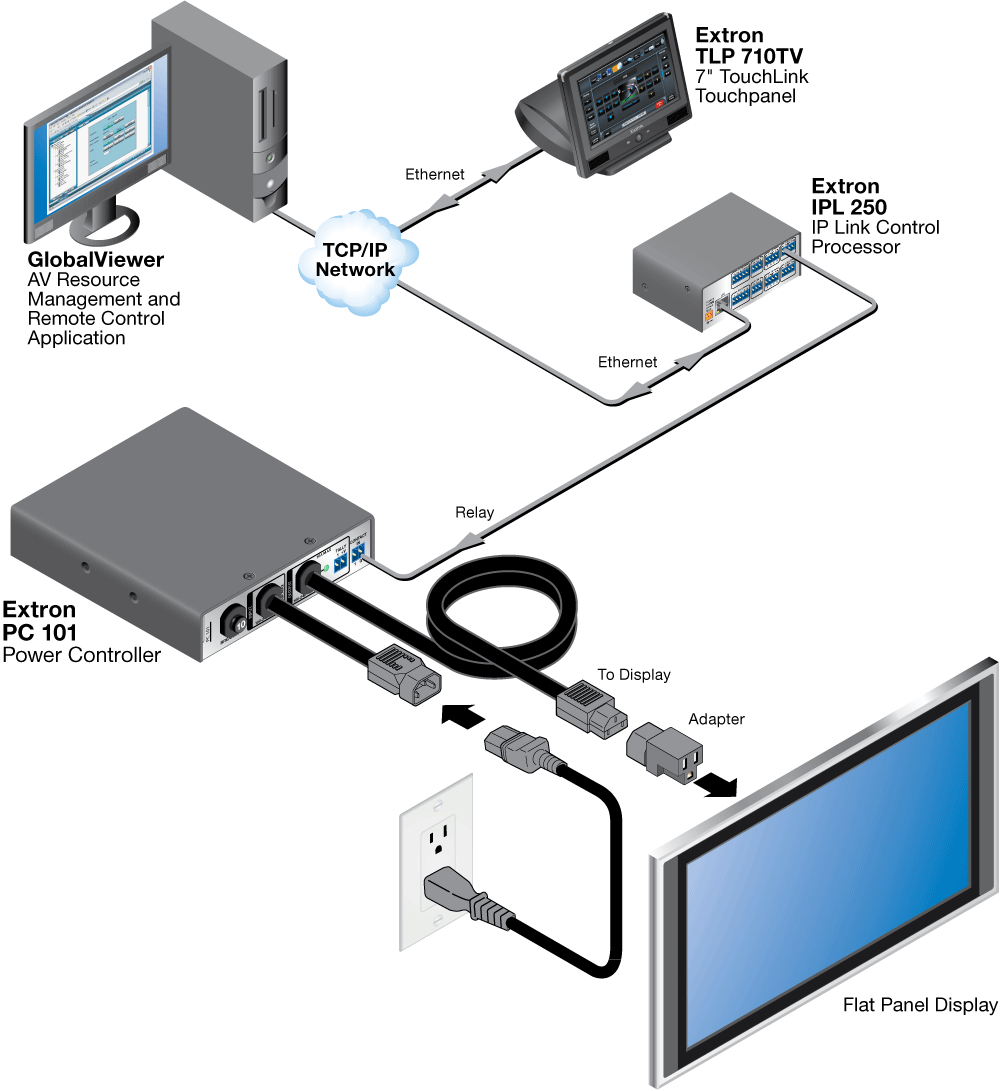

| PC 101 |
|
| AC control interface |
|---|
| Connectors | |
| Input | 1 male IEC power connector, 6" (15 cm) |
| Output | 1 female IEC power connector, ≤ 24" (60 cm) |
| NOTE | 1 male IEC to female Edison adapter is included. |
|
| Voltage | 100-240 VAC, 50-60 Hz |
| Maximum AC load | 10 A |
|
| Contact closure interface — input only |
|---|
| Quantity/type | 1 contact closure input |
| Contact input control connector | (1) 3.5 mm captive screw, 2 pole |
| Pin configuration | 1 = contact input (+5 VDC), 2 = GND
Internal pullup resistor is enabled to +5 VDC, non-selectable.
The port is active when the contact pin latches to ground |
|
| Tally output |
|---|
| Quantity/type | 1 tally output |
| Connector | (1) 3.5 mm captive screw, 2 pole |
| Pin configuration | 1 = tally pin, +V = +5 V (40 mA max.)
Follows the AC output, active when power is present on the AC output. |
|
| General |
|---|
| Power supply | Internal
100-240 VAC, 50-60 Hz, on 1 male IEC power connector, 10 A (max.) |
| Power consumption | 1.9 watts (no load at AC output) |
| Ambient temperature/humidity
|
| Storage | -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing |
| Operating | At 8 A: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
At 10 A: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | 2.9 BTU/hr (no load at AC output) |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 4.3" W x 4.0" D (quarter rack wide)
(2.5 cm H x 10.9 cm W x 10.2 cm D)
(Depth excludes connectors.) |
| Product weight | 0.8 lbs (0.4 kg) |
| Shipping weight | 1.5 lbs (0.7 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (8.0-072613-D5) |
