IPA T RLY4
带四个继电器的 IP Link® 附件
主要特性
-
4 个继电器用于控制房间功能
-
可在任意带有 Flex I/O 端口的 IP Link® 产品上作为扩展附件使用
| 型号 |
产品说明 |
产品编号 |
| IPA T RLY4 |
带 4 个继电器 |
60-545-03 |
Extron IPA T RLY4 是一款带有 4 个继电器的 IP Link® 附件，用于控制屏幕、投 影机、灯光、安全门等等。它提供了 4 个独立的继电器，可用作独立设备，也可添加到任何带有Flex I/O 端口的 IP Link 产品上。
特性
-
4 个继电器用于控制房间功能
-
可在任意带有 Flex I/O 端口的 IP Link® 产品上作为扩展附件使用
-
随附 ZipClip 25
技术参数
-
| IPA T RLY4 |
|
| Relay control |
|---|
| Relay control ports number/type | 4 momentary |
| Relay control connectors | (1) 3.5 mm captive screw connectors, 5 pole, for control input and power
(4) 3.5 mm captive screw connectors, 3 pole, NO and NC for configurable relay outputs |
| Relay coil operating current | 0.015 A |
| Relay control contact rating | 24 V, 1 A |
|
| General |
|---|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Mounting | |
| Rack mount | Yes, with the included ZipClip® 25 mounting clip |
| Furniture mount | Yes, with the included ZipClip 25 mounting clip, or set on tabletop |
| Enclosure type | Plastic |
| Enclosure dimensions | 1.0" H x 2.4" W x 2.3" D
(25 mm H x 61 mm W x 58 mm D) |
| Product weight | 0.1 lbs (<0.1 kg) |
| Shipping weight | 1 lb (1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6254-D7) |
| 装运尺寸和重量 |
| 产品编号 |
高度 |
宽度 |
深度 |
重量 |
| 60-545-03 |
6.4 cm |
17.8 cm |
13.3 cm |
0.2 kg |

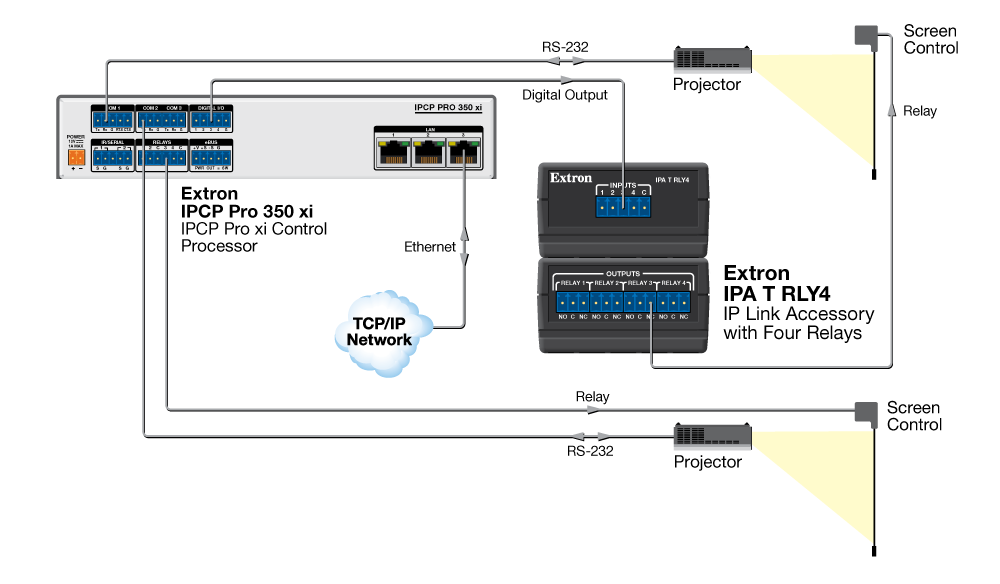

示意图
面板图
