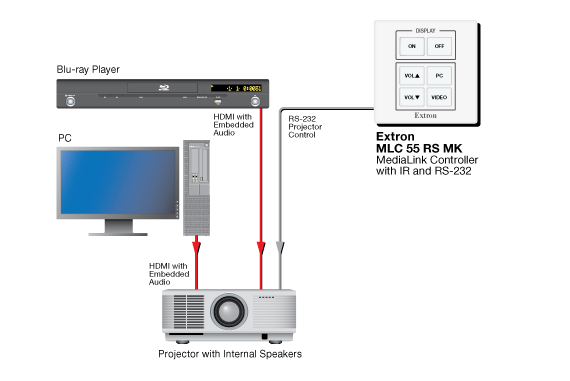

| MLC 55 RS MK |
|
| Communication — host port |
|---|
| USB host port | USB mini B, front panel behind faceplate |
| USB standards | USB 2.0, low speed |
| IR learning frequencies | 30 kHz to 300 kHz |
| IR learning distance | 4" (10 cm) to 14" (36 cm) from the receiver |
| Program control | Extron MLC 55, 62 and 64 Series Configuration Program for Windows®
Extron Simple Instruction Set (SIS™) |
|
| Communication — serial port |
|---|
| Serial control port | (1) 3.5 mm captive screw connector, 2 pole, ground pin shared with IR port, for unidirectional RS-232 control (±5 V) |
| Baud rate and protocol (RS-232) | 9600 (default), 19200, 38400, 57600, or 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity |
|
| Communication — IR port |
|---|
| IR control port | (1) 3.5 mm captive screw connector, 2 pole, ground pin shared with serial port (transmit only)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 300 kHz |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts |
| Power consumption | |
| Device | 1.1 watts, 12 VDC |
| Device and power supply | 1.5 watts, 100-240 VAC, 50-60 Hz |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 3.6 BTU/hr |
| Device and power supply | 4.9 BTU/hr |
| Mounting | Wall or furniture mount
Mount to a standard 1 gang electric MK type British standard external wall box (may not fit in some in-wall junction boxes). |
| Mounting centers | 60 mm horizontal |
| Enclosure type | Plastic |

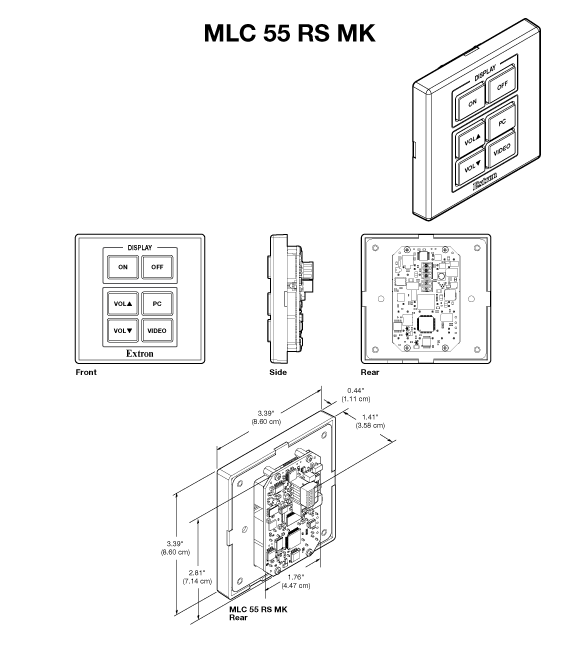

| Enclosure dimensions | |
| Faceplate | 3.39" H x 3.39" W x 0.44" D
(8.60 cm H x 8.60 cm W x 1.11 cm D) |
| Device | 2.81" H x 1.76" W x 1.41" D
(7.14 cm H x 4.47 cm W x 3.58 cm D)
Fits the opening in a standard 1-gang MK type external wall box.
(Depth includes connectors. Allow enough depth in the wall box for device plus cable clearance.) |
| |  |
| Product weight | 0.26 lbs (0.1 kg) |
| Regulatory compliance | CE, C-tick, c-UL, UL , FCC Class A, ICES, VCCI Class A
Section 508 of the Rehabilitation Act (29 U.S.C. 794d) |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4355-D5) |
