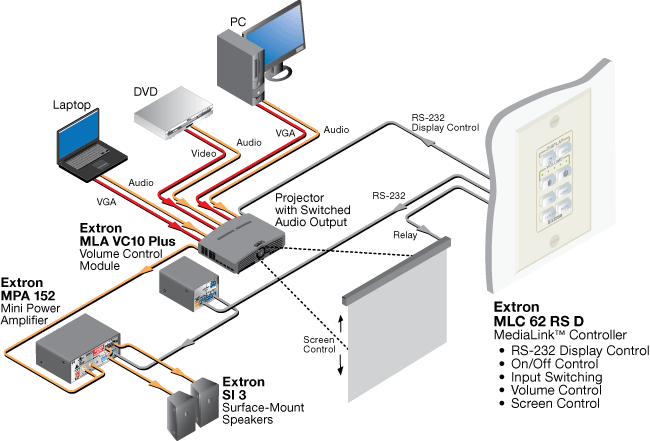

| MLC 62 Series |
|
| Control — host ports |
|---|
| Serial control port | 1 bidirectional RS-232 on a 3.5 mm captive screw connector, 3 pole |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configuration | Pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd |
| USB control ports | |
| Decorator-style models | 1 front panel female USB mini B |
| MK and EU models | 1 side panel female USB mini B |
| USB standards | USB 2.0, low speed |
| IR learning frequencies | 30 kHz to 60 kHz |
| IR learning distance | 4" (10 cm) to 14" (36 cm) from the receiver (on front panel for decorator-style models, side panel for MK and EU models) |
| Program control | Extron configuration program for Windows®
Extron Simple Instruction Set (SIS™) |
|
| Control — serial port (RS models) |
|---|
| Display control port | (1) 3.5 mm captive screw connector, 2 pole for unidirectional RS-232 control (±5 V) |
| Baud rate and protocol (RS-232) | 9600 (default), 19200, 38400, 57600, 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity |
|
| Control — IR port (IR models) or IR/serial port (RS models) |
|---|
| IR control port | (1) 3.5 mm captive screw connector, 2 pole for IR or IR/serial* (transmit only)
TTL level (0 to 5 V) modulated infrared control (all models) from 30 kHz up to 60 kHz, or ±5 V RS-232 control (RS models, transmit only)
*For RS models, IR/serial ports are configurable via software, serial communication is the default. |
| Baud rate and protocol | For RS models:
9600 (default), 19200, 38400, 57600, 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity |
|
| Control — relay (RS models) |
|---|
| Number/type | 2 momentary or latching (configurable via software) |
| Connector | (1) 3.5 mm captive screw connector, 3 pole
|
| Contact rating | 24 V, 1 A |
|
| Control — digital input monitoring port (RS models) |
|---|
| Number/type | 1 digital input (configurable) |
| Connector | (1) 3.5 mm captive screw connector, 2 pole
|
| Digital inputs | |
| Input voltage range | 0-24 VDC |
| Input impedance | 12k ohms |
| Programmable pullup | 2k ohms to +5 VDC |
| Threshold low to high | >1.5 VDC |
| Threshold high to low | <1.0 VDC |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts |
| Power consumption | |
| MLC 62 RS models | |
| Device | 2.1 watts, 12 VDC |
| Device and power supply | 2.5 watts, 100-240 VAC, 50-60 Hz |
| MLC 62 IR D | |
| Device | 1.0 watt, 12 VDC |
| Device and power supply | 1.5 watts, 100-240 VAC, 50-60 Hz |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| MLC 62 RS models | |
| Device | 7.0 BTU/hr |
| Device and power supply | 8.4 BTU/hr |
| MLC 62 IR D | |
| Device | 3.4 BTU/hr |
| Device and power supply | 5.1 BTU/hr |
| Mounting | |
| Rack mount | No |
| Furniture or wall mount | |
| Decorator-style models | Mounts in a standard 1 gang US electrical junction box or with included mud ring. |
| EU model | Mounts in a standard 1 gang EU electrical junction box with 60 mm mounting centers. An adapter frame is included. |
| MK model | Mounts to a standard MK electric type British standard wall box or junction box. |
| Enclosure type | Plastic |
| Enclosure dimensions | |

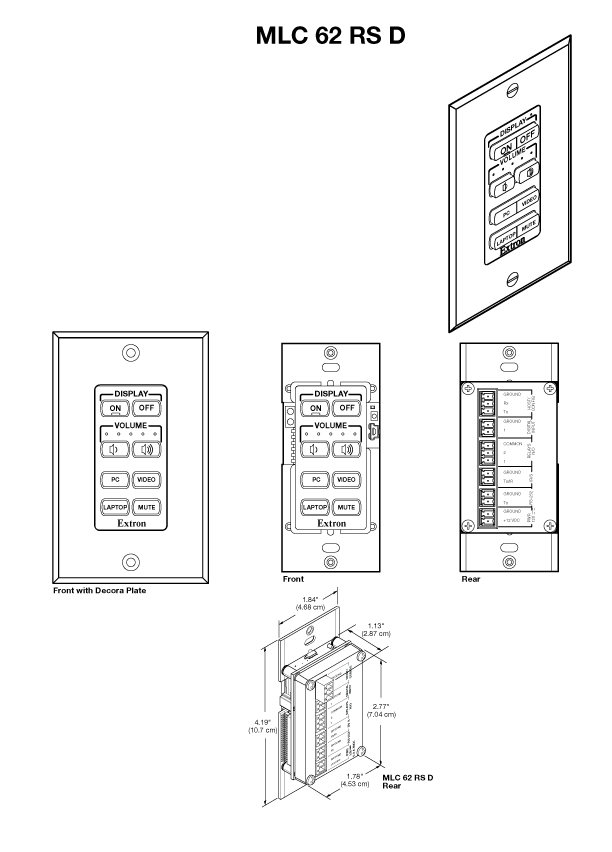

| MLC 62 IR D, MLC 62 RS D | |
| Faceplate | Fits the opening in a 1 gang decorator-style wallplate. |
| Device | 4.19" H x 1.84" W x 1.5" D
(106 mm H x 47 mm W x 37 mm D)
(Depth includes connectors and buttons. Allow enough depth in the wall or furniture for the device plus cable clearance.) |
| |  |
| |  |

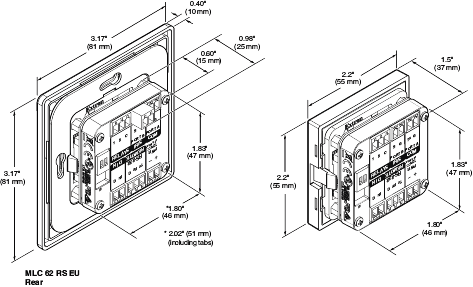

| MLC 62 RS EU | |
| Faceplate | Fits the opening in a 1-gang EU, fits a Jung AS 500 wallplate or other European frame that accepts 55 mm x 55 mm modules. |
| Wall frame | 317" H x 3.17" W x 0.40" D
(81 mm H x 81 mm W x10 mm D) |
| Device | 2.2" H x 2.2" W x 1.5" D
(55 mm H x 55 mm W x 37 mm D)
Depth includes connectors and buttons. Allow enough depth in the junction box for device plus cable clearance.) |
| |  |

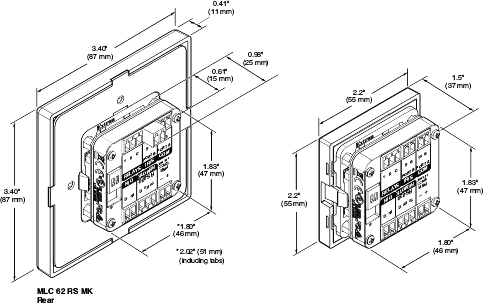

| MLC 62 RS MK | |
| Faceplate | Fits the opening in a 1-gang Jung AS 500 wallplate or other European frame that accepts 55 mm x 55 mm modules.) |
| Wall frame | 3.40" H x 3.40" W x 0.41" D
(87 mm H x 87 mm W x 11 mm D) |
| Device | 2.2" H x 2.2" W x 1.5" D
(55 mm H x 55 mm W x 37 mm D)
Depth includes connectors and buttons. Allow enough depth in the junction box for device plus cable clearance.) |
| |  |
| Product weight | |
| MLC 62 IR D, MLC 62 RS D | 1.0 lb (0.5 kg) |
| MLC 62 RS EU | 1.0 lb (0.5 kg) |
| MK models | 1.0 lb (0.5 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A
Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d). |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4504-D13-121818) |
