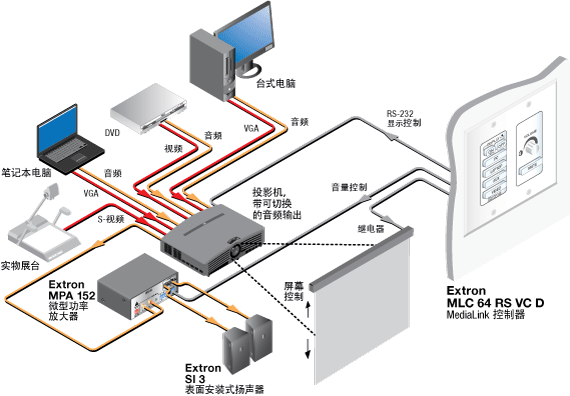

| MLC 64 RS VC D |
|
| Control — host ports |
|---|
| Serial control port | 1 bidirectional RS-232 on a 3.5 mm captive screw connector, 3 pole |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configuration | Pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd |
| USB control port | 1 front panel female USB mini B |
| USB standards | USB 2.0, low speed |
| IR learning frequencies | 30 kHz to 60 kHz |
| IR learning distance | 4" (10 cm) to 14" (36 cm) from the receiver |
| Program control | Extron configuration program for Windows®
Extron Simple Instruction Set (SIS™) |
|
| Control — serial port |
|---|
| Display control port | (1) 3.5 mm captive screw connector, 2 pole for unidirectional RS-232 control (±5 V) |
| Baud rate and protocol (RS-232) | 9600 (default), 19200, 38400, 57600, 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity |
|
| Control — IR/Serial port |
|---|
| IR control port | (1) 3.5 mm captive screw connector, 2 pole for IR/serial* (transmit only)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz, or ±5 V RS-232 control (transmit only)
*IR/serial ports are configurable via software; serial communication is the default. |
| Baud rate and protocol | For RS models:
9600 (default), 19200, 38400, 57600, 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity |
|
| Control — relay |
|---|
| Number/type | 2 momentary or latching (configurable via software) |
| Connector | (1) 3.5 mm captive screw connector, 3 pole
|
| Contact rating | 24 V, 1 A |
|
| Control — digital input monitoring port |
|---|
| Number/type | 1 digital input (configurable) |
| Connector | (1) 3.5 mm captive screw connector, 2 pole
|
| Digital inputs | |
| Input voltage range | 0-24 VDC |
| Input impedance | 12k ohms |
| Programmable pullup | 2k ohms to +5 VDC |
| Threshold low to high | >1.5 VDC |
| Threshold high to low | <1.0 VDC |
|
| Control — peripheral audio equipment |
|---|
| Volume control | 0 to 10 VDC variable voltage, positive logic (the higher the voltage, the higher the volume) |
| Mute control | Momentary push switch with latching contact closure during mute; LED mute indication |
| Pin configuration | Pin 1 = +10 VDC, pin 2 = volume/mute (variable voltage), pin 3 = Gnd |
| Reference voltage | 10 VDC |
|
| General |
|---|
| Power supply | |
| MLC 64 RS VC D | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6.0 watts |
| Remote volume control device | 10 VDC, supplied by the Extron device being controlled |
| Power consumption | |
| MLC 64 RS VC D | |
| Device | 1.8 watts, 12 VDC max. |
| Device and power supply | 2.6 watts, 100-240 VAC, 50-60 Hz |
| Remote volume control device | Unmute mode: 0.2 watts
Mute mode: 0.5 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| MLC 64 RS VC D | |
| Device | 6.2 BTU/hr |
| Device and power supply | 8.8 BTU/hr |
| Remote volume control device | 1.7 BTU/hr |
| Mounting | |
| Rack mount | No |
| Furniture or wall mount | Mounts in a standard 2 gang US electrical junction box (1.50" depth) or with included mud ring. |
| Enclosure type | Plastic |

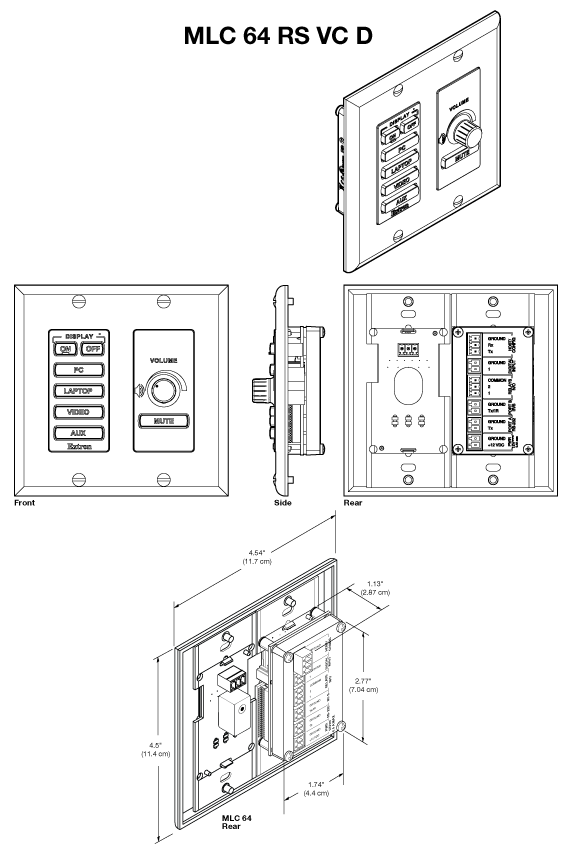

| Enclosure dimensions | |
| Faceplate | Fits the opening in a 2 gang decorator-style wallplate. |
| Devices | 4.19" H x 3.61" W x 1.5" D or 1.9" D*
(106 mm H x 92 mm W x 37 mm D or 48 mm D*)
(Depth includes connectors and buttons. Allow enough depth in the junction box for device plus cable clearance.)
*Depth including the knob |
| |  |
| Product weight | 1.1 lb (0.5 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A
Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d). |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4506-D5-120618) |
